CIOCAN ROTOPERCUTOR DEWALT D25481 Type 1
[D25481 Type 1]
CIOCAN ROTOPERCUTOR DEWALT D25481 Type 1
Click pentru a mari
Imagini suplimentare
CIOCAN ROTOPERCUTOR DEWALT D25481 Type 1
Click pentru a mari
CIOCAN ROTOPERCUTOR DEWALT D25481 Type 1
Click pentru a mari
CIOCAN ROTOPERCUTOR DEWALT D25481 Type 1
Click pentru a mari

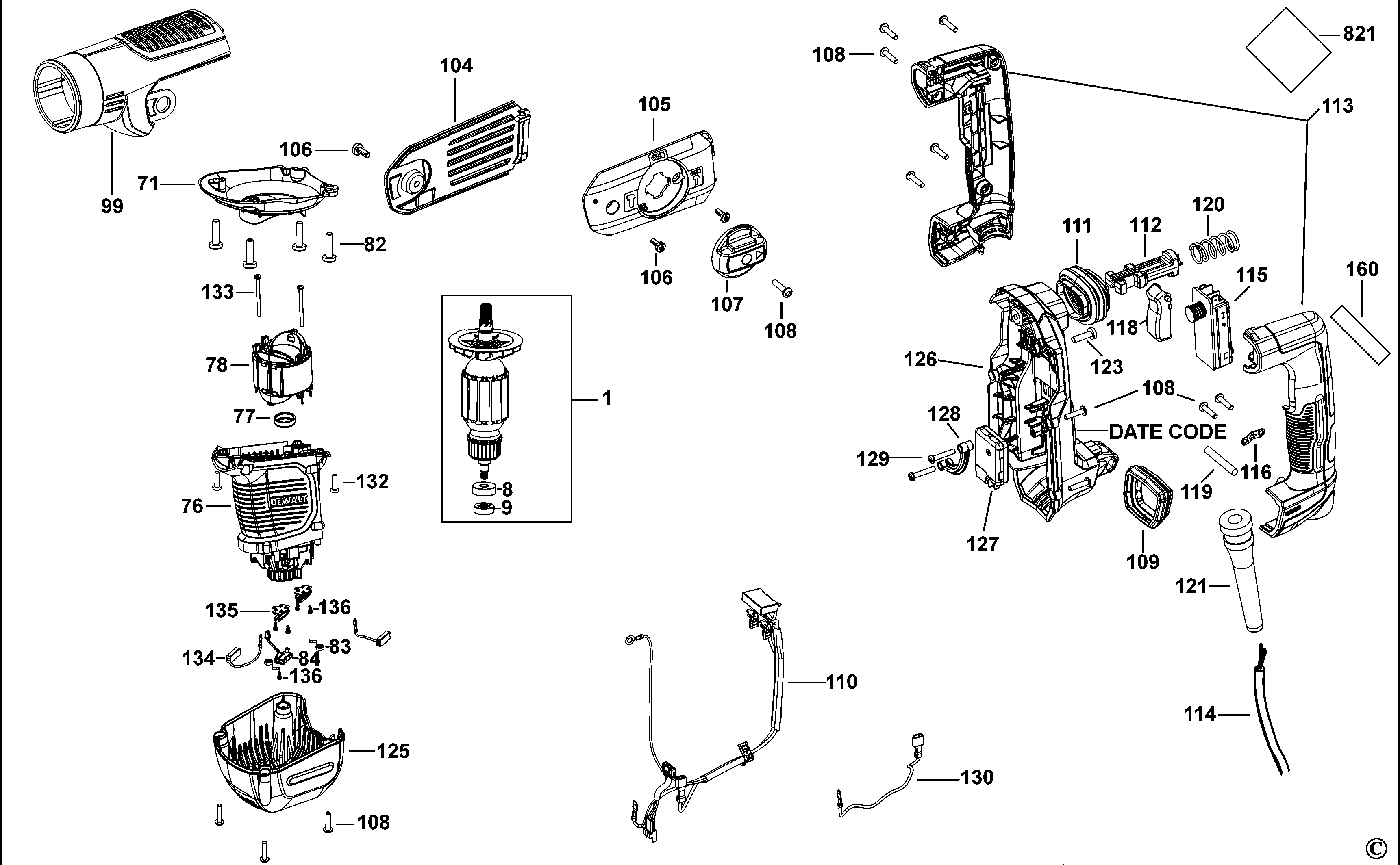

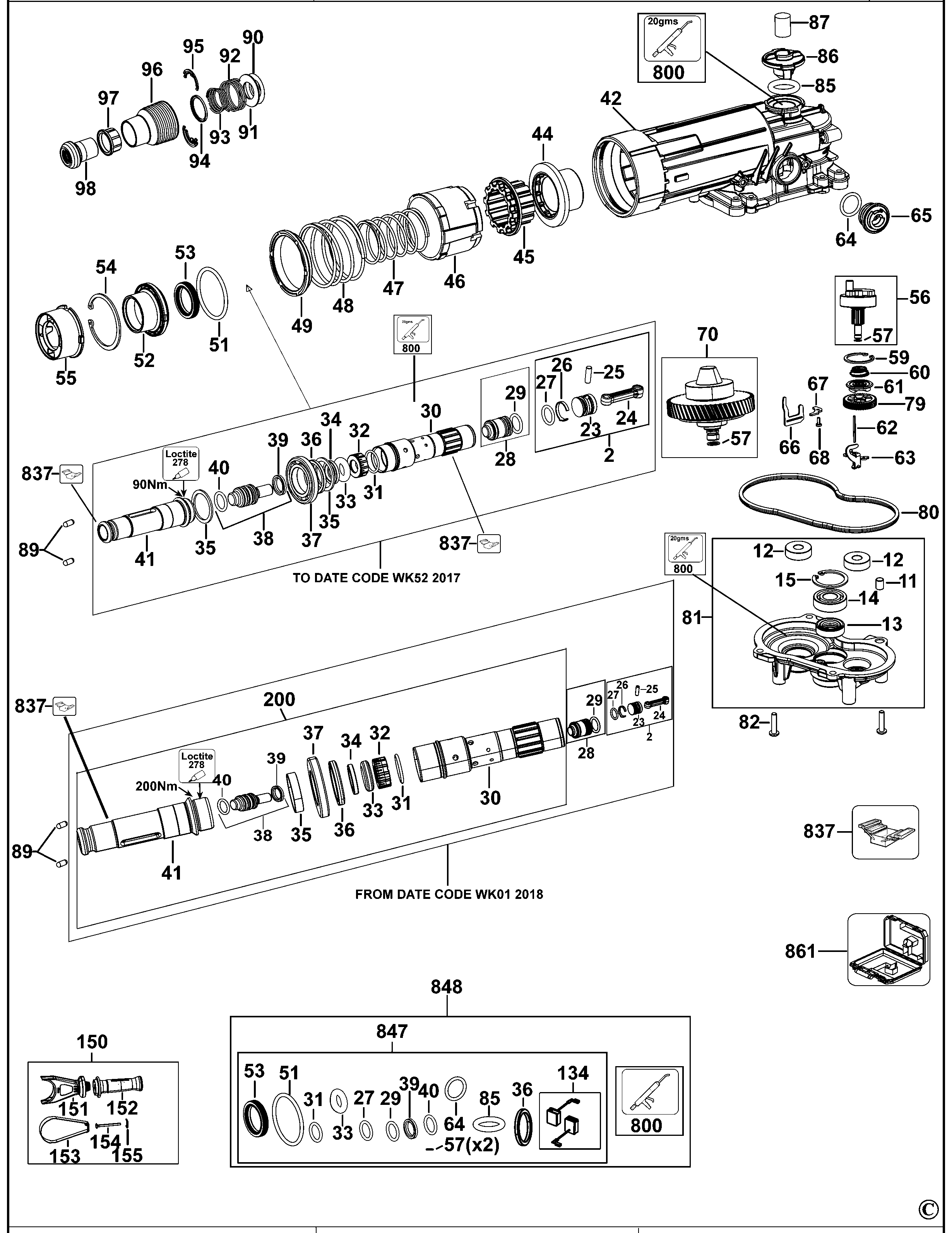

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ARMATURE 230V (N491963) 33797 RON
2 1 1 PISTON SA (N491979) 10241 RON
8 1 1 BEARING BALL (330003-60) 190 RON
9 1 1 MAGNET (N466979) 2796 RON
11 1 1 SLEEVE (327575-00) 781 RON
12 1 2 BEARING (N110358) 2347 RON
13 1 1 SEAL (N495599) 2182 RON
14 1 1 BEARING BALL 6001 (577745-01) 3466 RON
15 1 1 CIRCLIP, INTERNAL 28MM (488147-01) 588 RON
23 1 1 PISTON (N406776) 4827 RON
24 1 1 CON ROD (N406775) 1933 RON
24 1 1 CON ROD (N922659) 114 RON
25 1 1 PIN PISTON 5KG (N446699) 82 RON
26 1 1 N446701 - Indisponibil
26 1 1 PISTON RING (N922676) 588 RON
27 1 1 O-RING 19X3.5 FKM 75 (N487314) 1772 RON
28 1 1 RAM SA (N491986) 741 RON
29 1 1 O-RING 19X3.5 FKM 75 (N487314) 1772 RON
30 1 1 SPINDLE SA (N571895) 55455 RON
30 1 1 SPINDLE SA (N571916) 85494 RON
30 1 1 N492494 - Indisponibil
31 1 1 O RING (N410350) 944 RON
32 1 1 N431706 - Indisponibil
32 1 1 BUSH (N922650) 944 RON
33 1 1 REBOUND DAMPER 5KG (N410349) 2182 RON
34 1 1 WASHER (N431708) 2182 RON
35 1 1 SPACER (N545367) 1318 RON
35 1 2 WASHER (N440708) 82 RON
36 1 1 DAMPER (N504457) 2796 RON
36 1 1 N504216 - Indisponibil
37 1 1 BALL BEARING CW16007 d36 V TN9 C18/23 (N536109) 741 RON
37 1 1 N446368 - Indisponibil
38 1 1 BEAT PIECE (N492498) 13697 RON
39 1 1 BEATPIECE NMSH SEALING (N244259) 3954 RON
40 1 1 O-RING 19X3.5 FKM 75 (N487314) 1772 RON
41 1 1 SPINDLE SA (N571895) 55455 RON
41 1 1 SPINDLE SA (N571916) 85494 RON
41 1 1 N422540 - Indisponibil
42 1 1 HOUSING SA (N506088) 30769 RON
44 1 1 BEVEL GEAR 5KG SDS-MAX (N410187) 30769 RON
45 1 1 SHIFTING SLEEVE 5KG SDS-MAX (N410188) 4355 RON
46 1 1 SLEEVE (N433094) 1933 RON
47 1 1 SPRING (N437808) 668 RON
48 1 1 SPRING (N437814) 944 RON
49 1 1 SUPPORT (N460603) 668 RON
51 1 1 O RING (N432556) 2182 RON
52 1 1 SLEEVE (N526257) 944 RON
52 1 1 N432546 - Indisponibil
53 1 1 RING SEALING 42 7 30 (327141-00) 1788 RON
54 1 1 CIRCLIP (N532870) 668 RON
54 1 1 N432870 - Indisponibil
55 1 1 FRONT CAP 5KG SDSMAX (N439579) 944 RON
56 1 1 SA CRANK SHAFT 5KG HAMMER COMBI SERVICE (N492496) 16689 RON
57 1 2 "O RING 5*1.2""" (323711-26) 558 RON
59 1 1 CIRCLIP (N432869) 668 RON
60 1 1 CONICAL SPRING 5KG (N571701) 588 RON
60 1 1 CONICAL SPRING (N199272) 781 RON
61 1 1 CRANK SLEEVE 5KG SDS MAX (N406228) 15469 RON
62 1 1 PIN 3X40 (N450900) 588 RON
63 1 1 SELECTOR FORK (N422799) 2556 RON
63 1 1 SELECTOR FORK (NA600979) 2556 RON
64 1 1 O-RING 16X2.65 (N553858) 588 RON
64 1 1 O-RING 16 X 2.5 (323711-05) 558 RON
65 1 1 ECCENTRIC (N435997) 944 RON
66 1 1 PLATE (N422798) 944 RON
67 1 1 PLATE (N422797) 668 RON
68 1 1 SCREW TAPTITE M4X10 ANU LOCK (N445171) 588 RON
70 1 1 SA CLUTCH 5KG HAMMER SERVICE ONLY (N492837) 28836 RON
71 1 1 BAFFLE FAN (N435623) 114 RON
76 1 1 MOTOR HOUSING SDS MAX AC (N433780) 10241 RON
77 1 1 COVER BEARING (N449094) 588 RON
78 1 1 FIELD 230V (N492847) 18568 RON
79 1 1 Gear (N492874) 13697 RON
80 1 1 MAIN HOUSING GASKET 5KG (N422796) 944 RON
81 1 1 HOUSING GEAR SA (N491766) 18568 RON
82 1 8 SCREW PAN HEAD M5*18 (324007-11) 558 RON
83 1 2 BRUSH SPRING (N444425) 588 RON
84 1 1 SA TACHO COIL (N448156) 6688 RON
85 1 1 O-RING 18X4.5 - 5 Kg HAMMER (N504436) 588 RON
86 1 1 GREASE CAP, 5KG (N452721) 944 RON
87 1 1 FELT 4KG (N395554) 82 RON
89 1 2 "ROLLER 8 * 20""" (325878-00) 1229 RON
90 1 1 FELT 31X52 (N038151) 105 RON
91 1 1 WASHER (N465749) 944 RON
92 1 1 SPRING.CPRSN 2.2/47. (323395-06) 781 RON
93 1 1 SPRING CONICAL (487118-00) 893 RON
94 1 1 GUIDE (N464690) 588 RON
95 1 2 HOLDER PIN (N468172) 82 RON
96 1 1 SLEEVE (N464913) 5370 RON
97 1 1 SLEEVE SDS YELLOW (326575-01) 2347 RON
98 1 1 SEAL LIP (N465586) 6688 RON
99 1 1 FRONT COVER SDS MAX 5kg (N429783) 3954 RON
104 1 1 SIDE RH (N431333) 114 RON
105 1 1 SIDE LH (N877353) 1772 RON
105 1 1 N431397 - Indisponibil
106 1 3 SCREW TAPTITE M4X10 ANU LOCK (N445171) 588 RON
107 1 1 SA MODE CHANGE KNOB 5KG (N464282) 1772 RON
108 1 14 SCREW (330065-08) 558 RON
109 1 1 LOWER FOLD BELLOW, SDS-MAX 5kg (N452043) 944 RON
110 1 1 SET OF LEAD WIRES (N452385) 10241 RON
111 1 1 UPPER FOLD BELLOW, SDS-MAX 5kg (N452042) 1318 RON
112 1 1 LIMIT STOP (N152623) 3018 RON
113 1 1 CLAMSHELL SET (N492860) 9012 RON
114 1 1 CORDSET (EURO) (1005752-00) 6821 RON
115 1 1 DEFOND SWITCH (N467530) 10241 RON
115 1 1 SWITCH (N862131) 741 RON
116 1 1 CLAMP CORD (821070) 558 RON
118 1 1 SWITCH TRIGGER (587114-01) 781 RON
119 1 1 HANDLE ROD (N159443) 893 RON
120 1 1 SPRING AV 4KG HANDLE (N106188) 893 RON
121 1 1 CORD PROTECTOR (323091-01) 105 RON
123 1 2 SCREW PAN HEAD M5*18 (324007-11) 558 RON
125 1 1 END CAP (N438602) 4355 RON
126 1 1 CLAMSHELL (N438601) 5370 RON
127 1 1 CONTROL MODULE SA (N492852) 21676 RON
128 1 1 BRACKET (N449848) 588 RON
129 1 2 SCREW, PLSTC THD FORM, M4X22 T20 (N371839) 588 RON
130 1 1 LEAD SA (N450546) 1933 RON
132 1 4 SCREW PAN HEAD M5*18 (324007-11) 558 RON
133 1 2 "SCREW PLASTIC 4X55""" (330065-10) 558 RON
134 1 1 BRUSH PAIR 230V (N492849) 4355 RON
135 1 2 SA BRUSH BOX (N450097) 944 RON
136 1 5 SCREW (N086775) 558 RON
150 1 1 HANDLE SA (N535058) 21676 RON
150 1 1 N466680 - Indisponibil
151 1 1 CLAMP (N466673) 3268 RON
152 1 1 N505367 - Indisponibil
152 1 1 HANDLE SA (N533870) 741 RON
153 1 1 CLAMP (N466679) 4355 RON
154 1 1 MUSHROOM HEAD BOLT M6x75 ISO 8677 (N466678) 82 RON
155 1 1 CLAMP WASHER 15mm (N466677) 588 RON
160 1 1 LABEL PERFORM PROTECT 42MMX14MM (N196274) 781 RON
200 1 1 SPINDLE SA (N571916) 85494 RON
800 1 1 GREASE GLK 249 NLGI 00 150G TUBE (578970-06) 28296 RON
800 1 1 GREASE GLK 249NLGI 00-80G TUBE (SERVICE) (578970-04) 12861 RON
821 1 1 N495319 - Indisponibil
821 1 1 RATING LABEL (NA130658) 588 RON
837 1 1 S.T.DIS-ASSEMBLY JIG (1003962-99) 48847 RON
837 1 1 S.T.SEAL FITTING TOOL (1003964-99) 24660 RON
837 1 1 S.T.SUPPORT PLATE (1003961-99) 64138 RON
837 1 1 S.T.SEAL FITTING TOOL (1003965-99) 1547 RON
837 1 1 S.T.LIP SEAL REMOVER (1003966-99) 25960 RON
847 1 1 SERVICE KIT 230V (N680320) 21676 RON
847 1 1 SERVICE KIT 230V (N513606) 21676 RON
848 1 1 SERVICE KIT 230V (1004727-66) 42426 RON
861 1 1 SA KITBOX FOR 5KG HAMMER (N469730) 30769 RON
