CIOCAN ROTOPERCUTOR DEWALT D25153 Type 1
[D25153 Type 1]
CIOCAN ROTOPERCUTOR DEWALT D25153 Type 1
Click pentru a mari
Imagini suplimentare
CIOCAN ROTOPERCUTOR DEWALT D25153 Type 1
Click pentru a mari
CIOCAN ROTOPERCUTOR DEWALT D25153 Type 1
Click pentru a mari
CIOCAN ROTOPERCUTOR DEWALT D25153 Type 1
Click pentru a mari

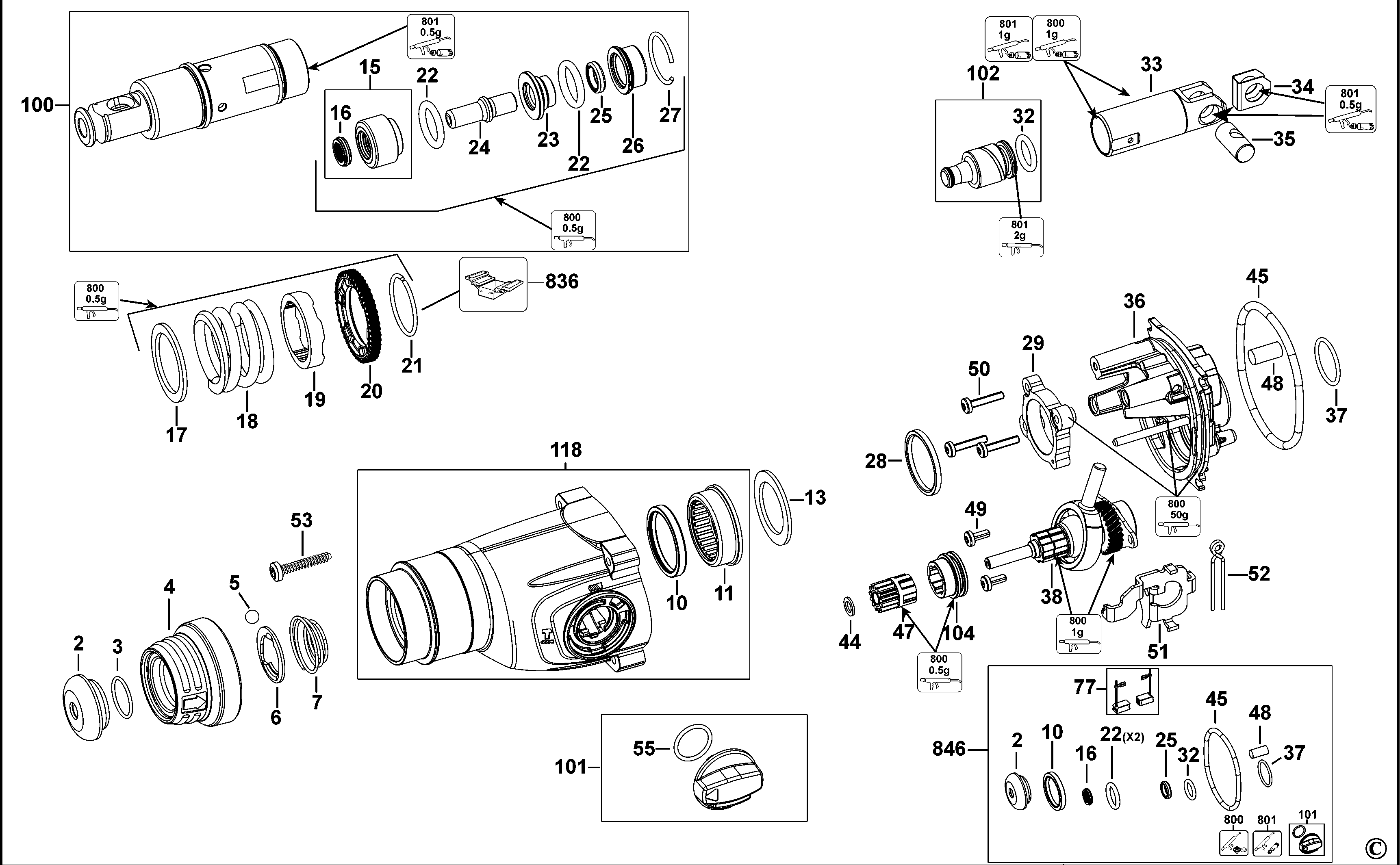

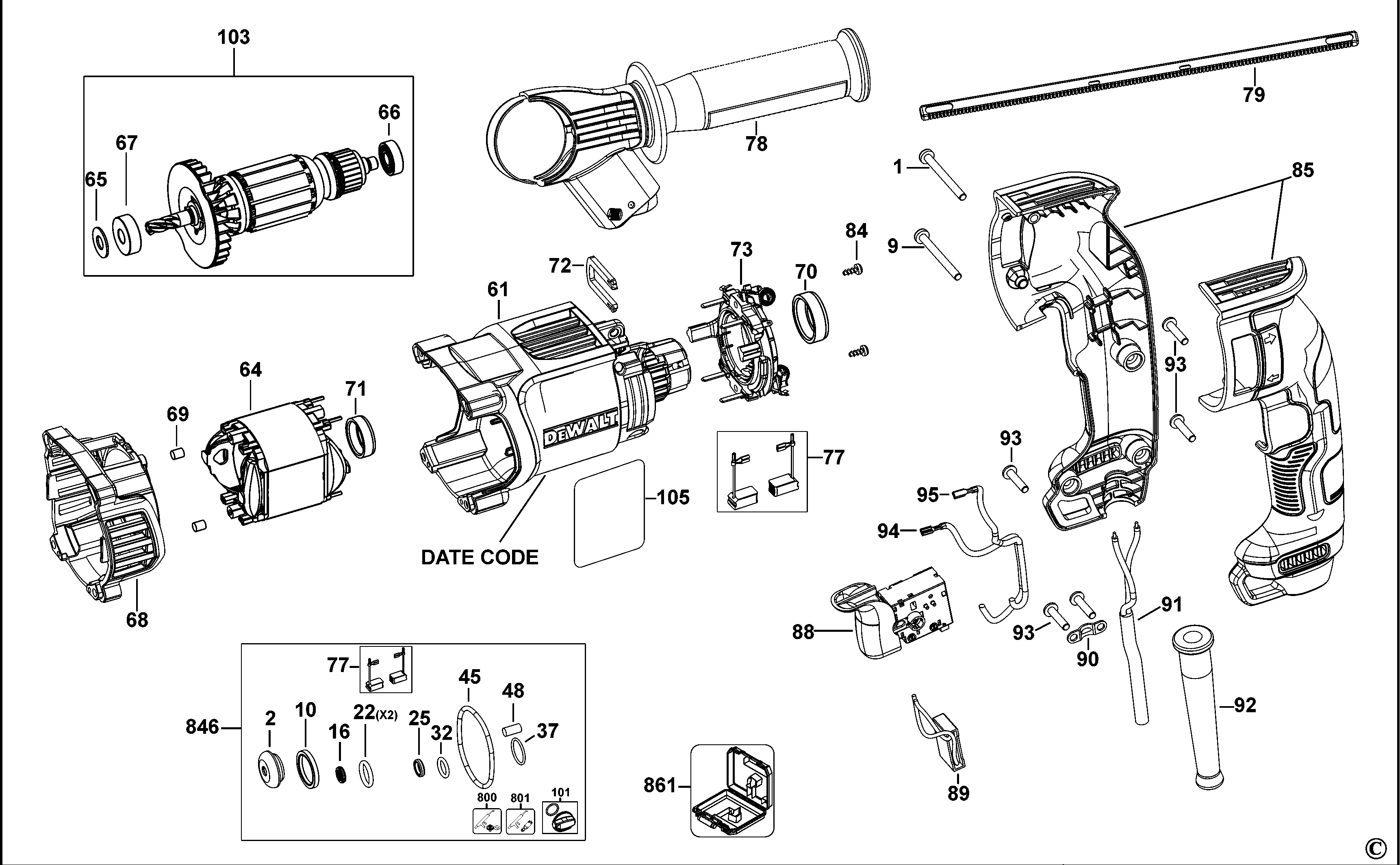

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SCREW PLASTC THD FORM M4.06X42 (N325879) 588 RON
2 1 1 SEAL LIP (323489-00) 893 RON
3 1 1 RING SNAP 21 (579212-00) 781 RON
4 1 1 N391370 - Indisponibil
4 1 1 N850185 - Indisponibil
4 1 1 TUBE (NA076561) 3268 RON
5 1 1 BALL (N629539) 588 RON
5 1 1 BALL 7.0 (583890-00) 781 RON
6 1 1 SDS BALL PLATE (WASHER SDS 1.4MM) (578387-00) 893 RON
7 1 1 SPRING BEVEL (871690) 558 RON
9 1 1 SCREW (330065-16) 558 RON
10 1 1 RING SEAL (577812-00) 1229 RON
11 1 1 BEARING NEEDLE-1 (577813-00) 3018 RON
13 1 1 WASHER SPINDLE (577814-00) 1788 RON
15 1 1 SA BEARING BEATPIECE NQCC PACKED (584423-00) 10512 RON
16 1 1 SEAL (577139-00) 1117 RON
17 1 1 WASHER SPINDLE (577814-00) 1788 RON
18 1 1 SPRING CLUTCH HPP (N322087) 2796 RON
19 1 1 LOCKING RING (N417736) 4355 RON
20 1 1 Gear (N417740) 741 RON
21 1 1 RING SNAP 29.5 (581836-00) 558 RON
22 1 2 O-RING 19.5X3.5 (577135-00) 1117 RON
23 1 1 BUSH DAMPER (577130-00) 2796 RON
24 1 1 BEAT PIECE (N082142) 2347 RON
25 1 1 RING RAMCATCHER (580990-00) 1117 RON
26 1 1 CATCHER RAM DTV (N401306) 2796 RON
27 1 1 RING, SNAP (N361759) 588 RON
28 1 1 RING WASHER (N059509) 781 RON
29 1 1 BEARING (N417747) 6688 RON
32 1 1 O-RING 16X3 (579699-00) 105 RON
33 1 1 PISTON (N417751) 6688 RON
34 1 1 U-WASHER HPP (N325040) 588 RON
35 1 1 CROSS BOLT (N325041) 1630 RON
36 1 1 HOUSING BEARING (N495867) 10241 RON
37 1 1 O RING 22X2 (N264673) 588 RON
38 1 1 INTERSHAFT SA (N418018) 15469 RON
44 1 1 WASHER INTERSHAFT FRONT (1005844-00) 558 RON
45 1 1 O RING 68X4 (N264672) 668 RON
47 1 1 Gear (N417860) 4827 RON
48 1 1 FELT (1005812-00) 558 RON
48 1 1 FELT (NB422492) 588 RON
49 1 2 SCREW TAPTITE M4X10 ANU LOCK (N445171) 588 RON
50 1 3 SCREW TAPTITE M4X20 ANU LOCK (324006-15) 558 RON
51 1 1 PLATE SWITCH HPP (N323101) 1772 RON
51 1 1 PLATE (NA264679) 1630 RON
52 1 1 SPRING MODE SWITCH (1005795-00) 558 RON
53 1 4 SCREW PLSTC THD FORM (N389438) 588 RON
55 1 1 SERING (N091381-00) 588 RON
61 1 1 HOUSING MOTOR (N481043) 4355 RON
65 1 1 N245239 - Indisponibil
66 1 1 CE BEARING (1005895-00) 1788 RON
67 1 1 BEARING BALL (330003-60) 190 RON
68 1 1 CONNECTION FLANGE DTV 44MM (N346919) 3268 RON
69 1 2 RUBBER PAD (N476768) 588 RON
70 1 1 RING RUBBER (1005856-00) 781 RON
70 1 1 N442577 - Indisponibil
71 1 1 BEARING COVER (N442578) 588 RON
72 1 1 CLIP COMM BEARING (1005894-00) 558 RON
78 1 1 SA SIDE HANDLE FIXED (1008956-00) 10512 RON
79 1 1 STOP DEPTH (798846-02) 893 RON
84 1 2 SCREW PLSTC THD FORM M3.12 X 16 (N475466) 588 RON
90 1 1 CLAMP CORD CORNER (329301-00) 558 RON
92 1 1 N542553 - Indisponibil
92 1 1 CORD PROTECTOR (N918736) 668 RON
93 1 5 SCREW (330065-08) 558 RON
94 1 1 LEAD WIRE BLUE PISTOL (1005879-00) 781 RON
95 1 1 LEAD WIRE RED PISTOL (1005879-01) 781 RON
100 1 1 SPINDLE SA (N418052) 25728 RON
101 1 1 SELECTOR SA (N417861) 3954 RON
102 1 1 RAM SA (N418036) 5370 RON
104 1 1 COLLAR (N417853) 1772 RON
105 1 1 000000-99 - Indisponibil
118 1 1 HOUSING SA (N417734) 10241 RON
800 1 1 GREASE TUBE 100ML RENOLIT PARAGON EP (870889-02) 4472 RON
801 1 1 GREASE GLK FLUID 10G SACHET - SERVICE (487130-04) 3466 RON
836 1 1 T.CIRCLIP INSERTER (1003925-99) 53345 RON
836 1 1 S.T.CIRCLIP REMOVER (1003924-99) 3516 RON
836 1 1 SERVICE TOOLING KIT (596005-99) 84238 RON
