CIOCAN ROTOPERCUTOR DEWALT D25133 Type 10
[D25133 Type 10]
CIOCAN ROTOPERCUTOR DEWALT D25133 Type 10
Click pentru a mari
Imagini suplimentare
CIOCAN ROTOPERCUTOR DEWALT D25133 Type 10
Click pentru a mari
CIOCAN ROTOPERCUTOR DEWALT D25133 Type 10
Click pentru a mari
CIOCAN ROTOPERCUTOR DEWALT D25133 Type 10
Click pentru a mari

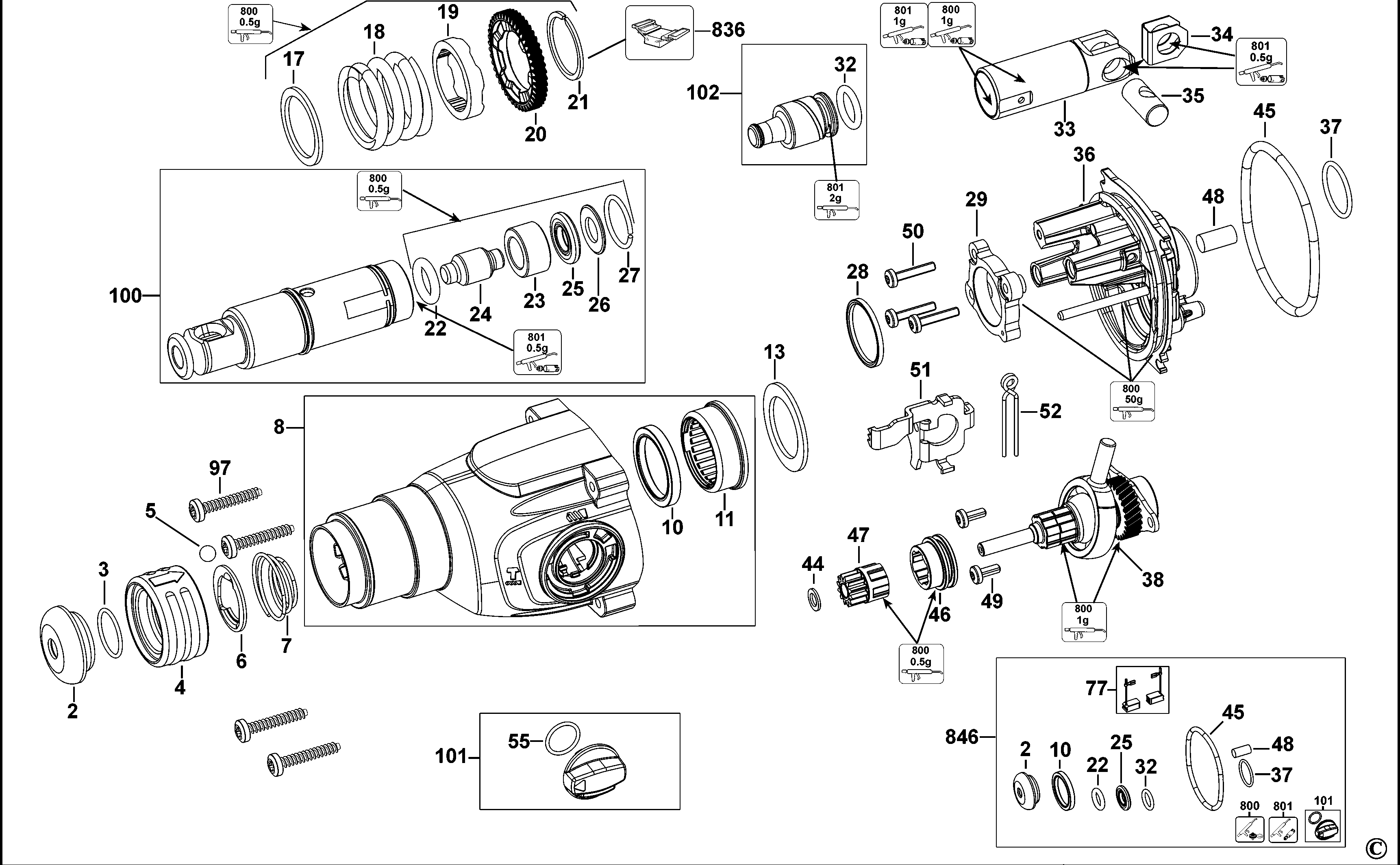

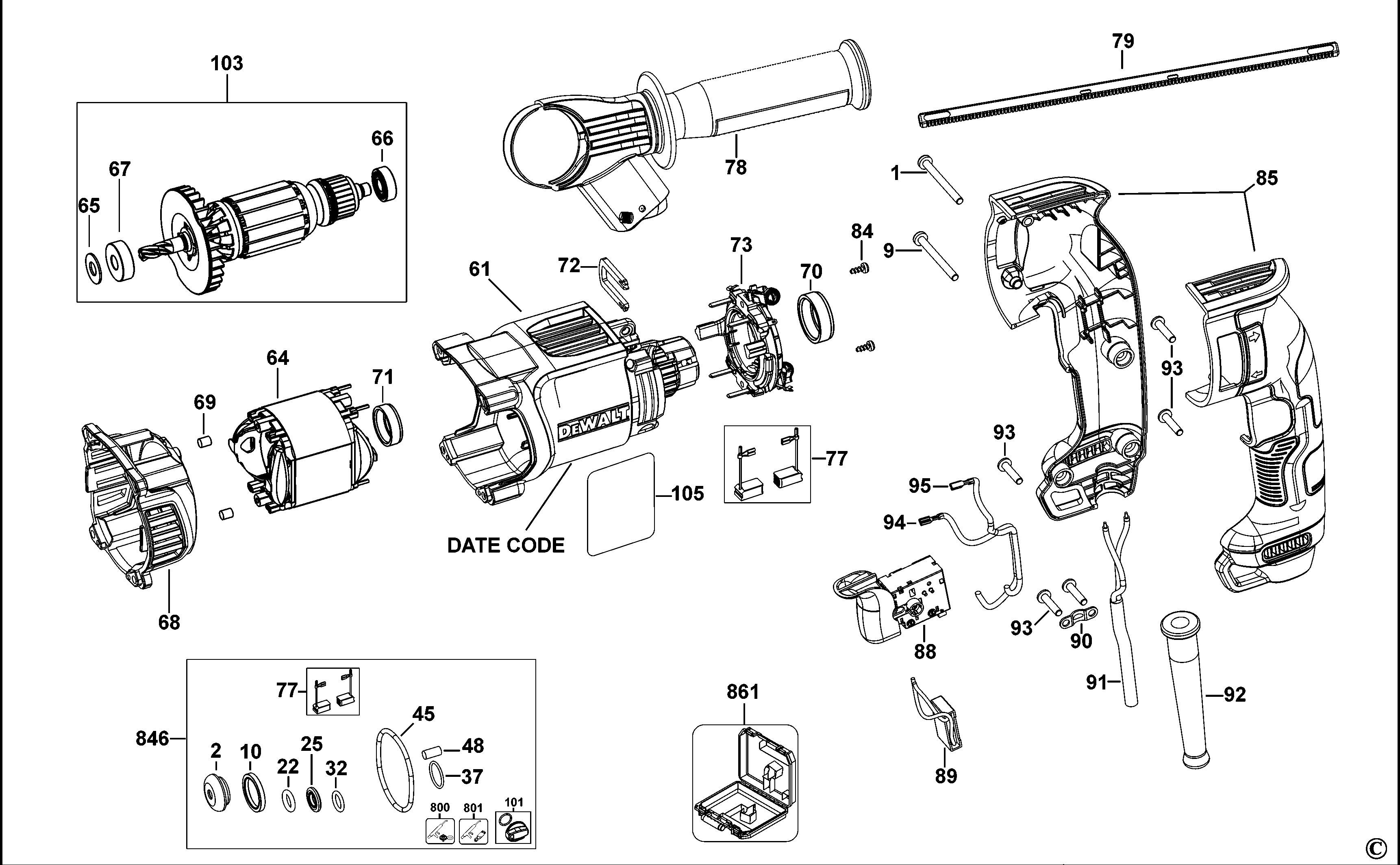

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SCREW PLASTC THD FORM M4.06X42 (N325879) 588 RON
2 1 1 SEAL LIP (323489-00) 893 RON
3 1 1 RING SNAP 21 (579212-00) 781 RON
4 1 1 SLIDING TUBE (SUBC) (N163578) 2795 RON
4 1 1 SA SLIDING TUBE (N720573) 1933 RON
4 1 1 SPINDLE SA (NA098071) 28836 RON
5 1 1 BALL 7.0 (583890-00) 781 RON
6 1 1 SDS BALL PLATE (WASHER SDS 1.4MM) (578387-00) 893 RON
7 1 1 SPRING BEVEL (871690) 558 RON
8 1 1 HOUSING SA (N417731) 6688 RON
9 1 1 SCREW (330065-16) 558 RON
10 1 1 RING SEALING DIA 28 (327141-06) 1788 RON
10 1 1 RING SEALING DIA28 (N496180) 1933 RON
11 1 1 NEEDLE BEARING (N020023) 3018 RON
13 1 1 WASHER,NEEDLE BEARING (1005788-00) 82 RON
17 1 1 WASHER CLUTCH (589350-00) 105 RON
18 1 1 SPRING (N264677) 1318 RON
19 1 1 LOCKING RING (N417735) 5370 RON
20 1 1 Wheel Gear with Packaging DTV Hammer (N417737) 3954 RON
21 1 1 C-CLIP 28 (N406151) 588 RON
21 1 1 N504141 - Indisponibil
22 1 1 O-RING 13X4 (N394276) 82 RON
23 1 1 GUIDE BEAT PIECE (1005804-00) 1229 RON
23 1 1 GUIDE BEAT PIECE (N470388) 1772 RON
24 1 1 N417744 - Indisponibil
24 1 1 BEAT PIECE (NA534440) 2796 RON
25 1 1 CATCH RING (1005808-00) 1452 RON
25 1 1 RING RAMCATCHER (580990-00) 1117 RON
26 1 1 RAM CATCHER OPP/MPP (N531681) 1933 RON
26 1 1 WASHER CATCH (327087-00) 1788 RON
27 1 1 RING SNAP 22.5 (N294259) 588 RON
28 1 1 RING (N267565) 82 RON
29 1 1 BEARING (N417745) 2556 RON
32 1 1 O RING 14X3 (N264642) 114 RON
33 1 1 PISTON (N425231) 5370 RON
34 1 1 WASHER U SHAPE (1005842-00) 558 RON
35 1 1 CROSS BOLT (N325041) 1630 RON
36 1 1 HOUSING BR OPP/MPP WITH PACK FOR SERVICE (N495931) 9012 RON
36 1 1 N417752 - Indisponibil
37 1 1 O RING 22X2 (N264673) 588 RON
38 1 1 INTERSHAFT SA (N418018) 15469 RON
44 1 1 WASHER INTERSHAFT FRONT (1005844-00) 558 RON
45 1 1 O RING 68X4 (N264672) 668 RON
46 1 1 COLLAR (N417853) 1772 RON
47 1 1 Gear (N417859) 4355 RON
48 1 1 FELT (1005812-00) 558 RON
49 1 2 SCREW TAPTITE M4X10 ANU LOCK (N445171) 588 RON
49 1 2 SCREW TAPTITE M4X10 ANU-LOCK (324006-14) 558 RON
50 1 3 SCREW TAPTITE M4X20 ANU LOCK (324006-15) 558 RON
51 1 1 N264652 - Indisponibil
51 1 1 PLATE SWITCH OPP/MPP (N493869) 1772 RON
52 1 1 SPRING MODE SWITCH (1005795-00) 558 RON
55 1 1 SERING (N091381-00) 588 RON
61 1 1 N271819 - Indisponibil
64 1 1 N451494 - Indisponibil
64 1 1 FIELD 230V (N484765) 741 RON
65 1 1 N245239 - Indisponibil
66 1 1 BEARING (605040-02) 1788 RON
67 1 1 BEARING BALL (330003-60) 190 RON
68 1 1 CONNECTION FLANGE DTV 40MM 2KG HAMMER (N344965) 1630 RON
69 1 2 RUBBER BAFFLE (N012971) 558 RON
69 1 1 RUBBER PAD (N476768) 588 RON
70 1 1 RING RUBBER (1005856-00) 781 RON
70 1 1 N442577 - Indisponibil
71 1 1 BEARING COVER 1 (1005865-00) 558 RON
71 1 1 BEARING COVER (N442578) 588 RON
72 1 1 CLIP COMM BEARING (1005894-00) 558 RON
73 1 1 BRUSH HOLDER SA (N418033) 10241 RON
77 1 1 BRUSH PAIR 230V (N418039) 3268 RON
78 1 1 SA SIDE HANDLE (N415820) 741 RON
79 1 1 STOP DEPTH (798846-02) 893 RON
84 1 2 SCREW (N086775) 558 RON
85 1 1 HANDLE SA (N418013) 5370 RON
88 1 1 SWITCH DGQ HV W/O LOCK ON (SERVICE) (N364920) 10512 RON
89 1 1 CAPACITOR 0.22uF (320842-19) 105 RON
90 1 1 CLAMP CORD CORNER (329301-00) 558 RON
90 1 1 CLAMP CORD (821070) 558 RON
91 1 1 CORDSET QS (582319-31) 7940 RON
92 1 1 CORD PROTECTOR (403395-00) 1788 RON
93 1 5 SCREW (330065-08) 558 RON
94 1 1 LEAD WIRE BLUE PISTOL (1005879-00) 781 RON
95 1 1 LEAD WIRE RED PISTOL (1005879-01) 781 RON
95 1 1 LEAD SA (NA032293) 668 RON
97 1 4 N395744 - Indisponibil
97 1 4 SCREW PLSTC THD FORM M4X35 (N476832) 588 RON
100 1 1 N424934 - Indisponibil
100 1 1 NA015421 - Indisponibil
100 1 1 SASPINDLE+SLIDINGTUBE HAMMER FOR SERVICE (NA419837) 18568 RON
101 1 1 SELECTOR SA (N417861) 3954 RON
102 1 1 RAM SA (N418035) 5370 RON
103 1 1 N451493 - Indisponibil
103 1 1 ARMATURE 230V (N566901) 18568 RON
105 1 1 LABEL RATING D25133-QS TY10 (N435426) 944 RON
800 1 1 GREASE TUBE 100ML RENOLIT PARAGON EP (870889-02) 4472 RON
801 1 1 GREASE GLK FLUID 10G SACHET - SERVICE (487130-04) 3466 RON
836 1 1 SERVICE TOOLING KIT (596005-99) 84238 RON
836 1 1 S.T.CIRCLIP REMOVER (1003960-99) 74397 RON
836 1 1 S.T.CIRCLIP REMOVER (1003959-99) 42123 RON
846 1 1 SERVICE KIT 230V (N418448) 20216 RON
861 1 1 N400986 - Indisponibil
861 1 1 KITBOX (N440493) 18568 RON
