Top » Piese de schimb » PIESE DEWALT » DCD805S2T Type 2

CIOCAN ROTOPERCUTOR CU ACUMULATOR DEWALT DCD805S2T Type 2
[DCD805S2T Type 2]
CIOCAN ROTOPERCUTOR CU ACUMULATOR DEWALT DCD805S2T Type 2
Click pentru a mari
Imagini suplimentare
CIOCAN ROTOPERCUTOR CU ACUMULATOR DEWALT DCD805S2T Type 2
Click pentru a mari
CIOCAN ROTOPERCUTOR CU ACUMULATOR DEWALT DCD805S2T Type 2
Click pentru a mari

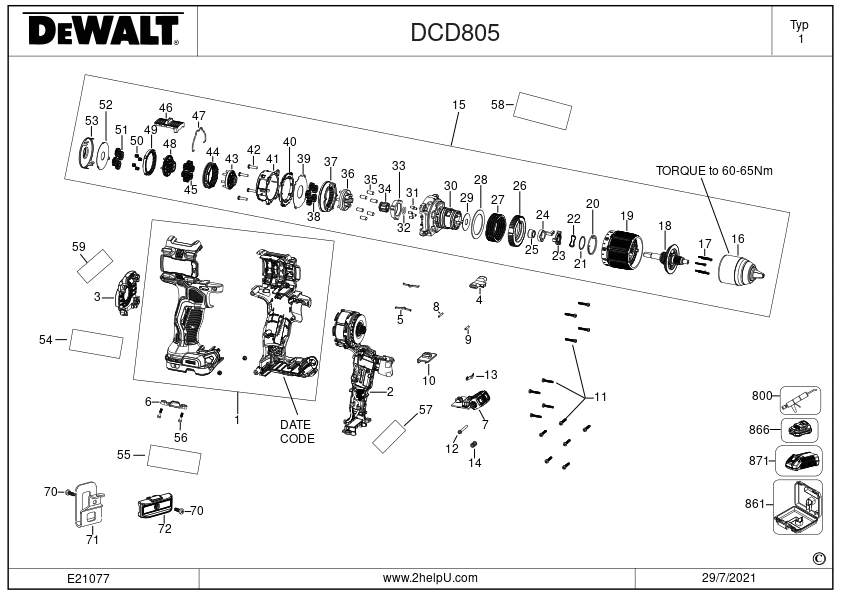

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HOUSING SA (NA265578) 5370 RON
2 1 1 MOTOR & SWITCH SA (NA369742) 67932 RON
3 1 1 CAP (N882247) 1772 RON
4 1 1 ACTUATOR FWD/REV (N399342) 588 RON
5 1 2 SPEED SELECTOR DETENT SPRING (N014681) 558 RON
6 1 1 BLANK COVER AUDIT CHIP (N787996) 588 RON
8 1 1 ROLL PIN (N917079) 588 RON
9 1 1 ROLL PIN 2.5 X 10.9 (N071836) 558 RON
10 1 1 SELECTOR (N393603) 588 RON
11 1 14 SCREW PLASTITE (682211-00) 781 RON
12 1 1 SCREW PLSTC THD FORM M3 12X25 (330019-62) 558 RON
13 1 1 DETENT SPRING (N392855) 588 RON
14 1 1 SPRING COMPRESSION (N929081) 588 RON
15 1 1 TRANSMISSION SA (NA369823) 55455 RON
16 1 1 CHUCK (N928691) 15469 RON
17 1 5 SCREW (N039795) 558 RON
18 1 1 SPINDLE SA (NA088145) 16689 RON
19 1 1 COLLAR (NA313073) 2556 RON
20 1 1 MD-HDD TORSION SPRING (N616763) 588 RON
21 1 1 BALL BEARING WASHER (N613395) 588 RON
22 1 1 MD HDD WAVE WASHER (N618571) 588 RON
23 1 1 RATCHET (NA135758) 944 RON
24 1 1 RATCHET (NA156130) 2182 RON
26 1 1 CLUTCH (NA319238) 668 RON
27 1 1 CLUTCH SPRING (N422472) 2182 RON
28 1 1 CLUTCH WASHER G3 (N854140) 588 RON
29 1 1 SPINDLE LOCK WASHER (N090435) 558 RON
30 1 1 HOUSING SA (NA576227) 5370 RON
31 1 5 ROLLER (N093416) 558 RON
32 1 1 O RING (N560646) 588 RON
33 1 1 LOCKING RING (N022985) 2795 RON
34 1 1 ANVIL (NA073159) 2182 RON
35 1 6 PIN (NA309722) 588 RON
36 1 1 CARRIER SA (NA094641) 4355 RON
37 1 1 Gear (NA309675) 3268 RON
38 1 5 3RD PLANET (N845244) 588 RON
39 1 1 PLATE (N875646) 588 RON
40 1 1 RING G3 (N855533) 1318 RON
41 1 1 HOUSING G3 (N855688) 82 RON
42 1 4 SCREW M3 12X13 (N075506) 558 RON
43 1 1 CARRIER SA (NA034901) 3954 RON
43 1 1 NB448351 - Indisponibil
44 1 1 Gear (N845241) 1933 RON
45 1 6 Gear (N845240) 588 RON
46 1 1 LEVER (N855158) 588 RON
47 1 1 WIRE (N855159) 588 RON
48 1 1 CARRIER SA (NA034898) 3954 RON
49 1 1 Gear (N845239) 114 RON
50 1 4 ROLLER (N692779) 1772 RON
51 1 4 Gear (N845237) 588 RON
52 1 1 PLATE (N855592) 944 RON
53 1 1 PLATE (N855591) 1318 RON
54 1 1 RATING LABEL (NA290995) 588 RON
55 1 1 LABEL (NA290997) 588 RON
56 1 2 SCREW (N831593) 588 RON
57 1 1 LABEL-LABEL ANTI ROTATION (NA186385) 588 RON
58 1 1 BRAND LABEL (NA088118) 588 RON
59 1 1 LABEL (NA715276) 588 RON
60 1 1 LABEL-LABEL TOP FOOT LED PART A (NA290934) 588 RON
61 1 1 LABEL-LABEL TOP FOOT LED PART B (NA290935) 588 RON
70 1 2 BELT HOOK SCREW M3 (N042665) 558 RON
71 1 1 BELT HOOK (N086039) 1788 RON
72 1 1 HOLDER SA (N851797) 3954 RON
800 1 1 GREASE (N017298) 4825 RON
861 1 1 KITBOX (NA602771) 21676 RON
866 1 2 BATTERY (NA662281) 161583 RON
871 1 1 CHARGER-DCB1104-QW - (4A) (NA132878) 44688 RON
