Top » Piese de schimb » PIESE DEWALT » DW543K Type 3

CIOCAN MEDIE MARIME DEWALT DW543K Type 3
[DW543K Type 3]
CIOCAN MEDIE MARIME DEWALT DW543K Type 3
Click pentru a mari
Imagini suplimentare
CIOCAN MEDIE MARIME DEWALT DW543K Type 3
Click pentru a mari
CIOCAN MEDIE MARIME DEWALT DW543K Type 3
Click pentru a mari
CIOCAN MEDIE MARIME DEWALT DW543K Type 3
Click pentru a mari

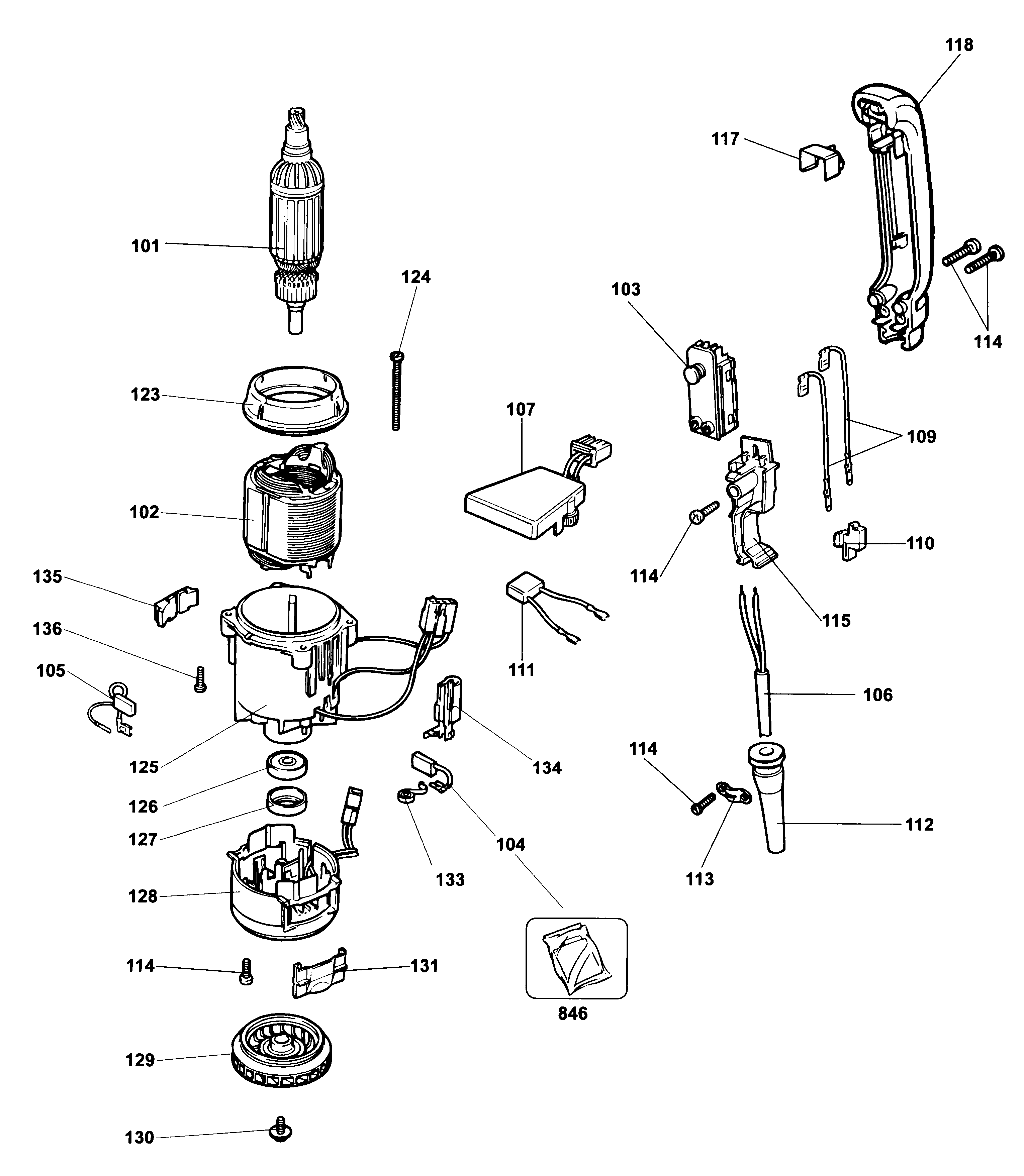

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
101 1 1 ARMATURE SERVICE KIT (571059-00) 70239 RON
102 1 1 571130-00 - Indisponibil
103 1 1 SWITCH ON / OFF MARQUART (326087-00) 14315 RON
104 1 1 BRUSH 230V CUT OFF SA (326961-00) 9282 RON
105 1 1 BRUSH 230V SA (326960-00) 10512 RON
106 1 1 CORDSET CH 4200PCP (324438-70) 11519 RON
107 1 1 326138-00 - Indisponibil
109 1 2 LEAD 110 FST / WSH PVC BLACK (325089-00) 781 RON
110 1 1 PLUG HOLDER (326189-00) 781 RON
111 1 1 320842-11 - Indisponibil
112 1 1 CORD PROTECTOR (323091-01) 105 RON
113 1 1 CABLE INLET (916307-00) 558 RON
113 1 1 CLAMP CORD (821070) 558 RON
114 1 17 SCREW (330065-08) 558 RON
115 1 1 SUPPORT BLADE (326190-00) 781 RON
116 1 1 SCEW PLSTC THD FORM M4X10 T20 (330065-05) 558 RON
117 1 1 INSULATOR HANDLE (326581-00) 781 RON
118 1 1 COVER HANDLE (325382-00) 5031 RON
120 1 1 SA TRIGGER RETAINER (327325-00) 4137 RON
121 1 1 SCREW PLASTIC 4 * 18 (326519-00) 558 RON
123 1 1 BAFFLE (325244-00) 893 RON
123 1 1 CAP ISO M73 (492073-00) 893 RON
124 1 2 SCREW PLASTIC THREAD FORM 4.0*65 (330065-11) 781 RON
125 1 1 MOTOR CASE ( SERVICE ) (326411-16) 28296 RON
126 1 1 BEARING BALL cod vechi: 330003-36 BEARING 6000 T1XDDW (577745-00) 3018 RON
127 1 1 RING ISOLATION 26MM (325279-00) 781 RON
128 1 1 COVER (326934-01) 10512 RON
129 1 1 SA FAN M73 BLACK (325477-01) 6821 RON
129 1 1 SA FAN (577736-00) 7940 RON
130 1 1 "SCREW M5 * 12""" (324119-02) 893 RON
131 1 2 COVER BRUSH (326579-00) 893 RON
133 1 2 SPRING SPIRAL (326667-00) 893 RON
134 1 2 SA CHOKE HOLDER (326933-01) 2124 RON
135 1 2 ELEMENT RUBBER (325917-00) 781 RON
136 1 8 SCREW PAN HEAD M5*18 (324007-11) 558 RON
150 1 1 329033-00 - Indisponibil
151 1 1 BEARING NEEDLE HK1612 (330004-32) 3466 RON
152 1 1 BEARING NEEDLE 20261 (330004-33) 3466 RON
153 1 1 GEARCASE COVER (329039-00) 25164 RON
153 1 1 SA HOUSING (329039-01) 20467 RON
154 1 1 SEAL HOUSING (325936-00) 893 RON
165 1 1 "RING SEALING 24 * 5 * 15.8""" (327141-02) 3018 RON
167 1 6 SCREW CYL M6 40 / 12..9 (918825-02) 781 RON
168 1 3 SCREW CYL M6*20 (918825-04) 558 RON
169 1 1 SA CRANKSHAFT 51T SERVICE (581014-00) 39145 RON
170 1 1 "O RING 5*1.2""" (323711-26) 558 RON
171 1 1 CONNECTING ROD (325002-00) 3018 RON
172 1 1 PISTON PLATT (324858-00) 5591 RON
173 1 1 "NEEDLE PIN 8 * 24""" (330041-22) 1117 RON
174 1 1 "RING PISTON D=25.6""" (325905-00) 105 RON
175 1 2 O RING 22 4 (323711-11) 1452 RON
176 1 1 CYLINDER 45MM (326098-03) 23598 RON
177 1 1 "O RING 26.3 * 2.4""" (323711-21) 1452 RON
180 1 1 RAM 45MM (329319-00) 12861 RON
181 1 1 BEARING SLEEVE (326008-00) 2124 RON
183 1 1 RING SNAP 58 FL (323763-03) 105 RON
184 1 1 SPINDLE LOCK (324985-00) 4472 RON
184 1 1 SPINDLE LOCK (1005697-00) 3018 RON
185 1 1 PIN CYL 4.75 82.0 (325880-02) 1452 RON
186 1 1 SHIFT FORK 40/45MM (325160-00) 2795 RON
187 1 1 SPRING.CPRSN 1.25/5. (323395-08) 558 RON
188 1 1 SPRING.CPRSN 0.8/5.4 (323395-09) 558 RON
189 1 2 RIVET TUBE (326093-00) 781 RON
190 1 1 "SHIFT BAIL 40/4""" (325212-00) 1788 RON
191 1 1 SA ECCENTRIC (326720-00) 3466 RON
192 1 1 "RING O 11.5*2.4""" (323711-07) 558 RON
193 1 1 SA LEVER SWITCH (326507-00) 1788 RON
194 1 1 CAP CONTROL LEVER SWITCH (326225-00) 781 RON
195 1 1 SCREW SLEEVE M4 (326122-00) 2124 RON
196 1 1 329963-49 - Indisponibil
197 1 1 FIBRE OPTICAL (326192-00) 893 RON
198 1 4 RING RUBBER 19.8 (325916-01) 558 RON
201 1 1 CLIP RETAINER (326194-00) 2124 RON
205 1 1 CAP GEAR BLACK (325371-04) 2347 RON
206 1 1 "O RING 56 * 3""" (323711-22) 558 RON
207 1 1 FILTER FILZ (326824-00) 558 RON
208 1 1 "O RING 72 * 3""" (323711-17) 781 RON
210 1 1 SEAL CIRCULATING AIR 50MM (326242-00) 3466 RON
211 1 1 CAP END LONG (325384-00) 7940 RON
251 1 1 COLLET BAND SDS (326555-00) 3018 RON
252 1 1 THREAD SLEEVE (326552-00) 3018 RON
253 1 1 PIN SIDEHANDLE (N079374) 558 RON
253 1 1 "PIN CYLINDRICAL 5 * 30""" (326775-00) 190 RON
254 1 1 SIDE HANDLE CHIPPING (327146-00) 11519 RON
255 1 1 WASHER 10.4 * 24 * 2 (323753-18) 105 RON
256 1 1 SA KNOB TURN (327351-00) 6821 RON
261 1 2 WASHER.41*48*1.8 STEEL (323753-11) 1229 RON
262 1 1 "O RING 40 * 4""" (323711-14) 781 RON
263 1 1 WASHER.44.4 STEEL (323753-14) 1117 RON
264 1 1 SPRING.CPRSN 2.2/44. (323395-07) 781 RON
265 1 1 SA BEAT PIECE 45MM SERVICE (579580-00) 28296 RON
266 1 1 SEAL BEATPIECE MSH (577484-00) 14315 RON
266 1 2 323711-10 - Indisponibil
266 1 1 BEATPIECE NMSH SEALING (N244259) 3954 RON
267 1 1 WASHER (325117-00) 3018 RON
267 1 1 WASHER BEATPIECE (582381-00) 3018 RON
268 1 1 323711-20 - Indisponibil
268 1 1 O RING 23 * 6 HNBR (577744-02) 1229 RON
269 1 1 WASHER.18.5 STEEL (323753-16) 1229 RON
270 1 1 323711-19 - Indisponibil
270 1 1 O RING 16 * 6 HNBR (577744-01) 1452 RON
270 1 1 O-RING 16X6 HNBR 80 (N210233) 893 RON
271 1 1 BUSH 18 5*35*10 5 NATUR (326044-00) 1229 RON
272 1 1 SA SPINDLE (326126-00) 91714 RON
272 1 1 SA SDS SPINDLE (SERVICE) (493133-00) 86681 RON
273 1 2 "ROLLER 8 * 20""" (325878-00) 1229 RON
274 1 1 SEAL LIP (329816-00) 2795 RON
275 1 1 SLEEVE SDS BLACK (326575-02) 1452 RON
276 1 1 SA SLIDING TUBE (328604-00) 12861 RON
276 1 1 SLIDING TUBE INCL. WASHER (479247-00) 3466 RON
277 1 1 WASHER 30*47.2*5.5 (325847-00) 4472 RON
277 1 1 SLIDING TUBE INCL. WASHER (479247-00) 3466 RON
278 1 1 GUIDE SDS (325928-00) 1117 RON
278 1 1 SLIDING TUBE INCL. WASHER (479247-00) 3466 RON
279 1 1 SPRING.CPRSN 2.2/47. (323395-06) 781 RON
280 1 2 HOLDER PIN (325929-00) 781 RON
281 1 1 SPRING (325888-00) 781 RON
281 1 1 SPRING CONICAL (487118-00) 893 RON
282 1 1 GUIDE CONICAL (325930-00) 1452 RON
283 1 1 RING SEALING 42 7 30 (327141-00) 1788 RON
284 1 1 SA HOUSING SDS SILVER (326125-00) 3124 RON
285 1 1 SEAL HOUSING (325935-00) 893 RON
286 1 1 BUSH TOOTH (324986-00) 5591 RON
286 1 1 BUSH TOOTH (588560-00) 2347 RON
287 1 1 RING SNAP 43FL (323763-04) 893 RON
288 1 1 WASHER GUIDE (327208-00) 558 RON
290 1 1 SA END CAP LONG (326784-01) 14315 RON
291 1 1 "SCREW PAN HEAD M4 * 10""" (324007-10) 558 RON
293 1 1 O RING 2.5 * 1.3 (323711-27) 558 RON
294 1 1 "O RING 55 * 1.2""" (323711-28) 558 RON
316 1 1 SLIDING TUBE SDS DEWALT (324993-01) 5591 RON
800 1 1 GREASE THERMOPLEX 1KG TIN (328771-01) 59725 RON
800 1 1 GREASE 100 GM TUBE (328771-02) 7940 RON
816 1 1 329151-01 - Indisponibil
836 1 1 559508-98 - Indisponibil
837 1 1 559603-99 - Indisponibil
838 1 1 559510-99 - Indisponibil
839 1 1 559511-99 - Indisponibil
839 1 1 559656-99 - Indisponibil
840 1 1 559597-99 - Indisponibil
841 1 1 559598-99 - Indisponibil
842 1 1 559602-99 - Indisponibil
846 1 1 327148-01 - Indisponibil
847 1 1 SA O RING KIT 230V ( SERVICE ) (327467-01) 45297 RON
847 1 1 SA O-RING KIT (SERVICE) (327467-04) 4825 RON
850 1 1 REPAIR KIT (SERVICE) (576171-00) 15993 RON
