Top » Piese de schimb » PIESE DEWALT » DCPS966N Type 1

CIOCAN DEMOLATOR DEWALT DCPS966N Type 1
[DCPS966N Type 1]
CIOCAN DEMOLATOR DEWALT DCPS966N Type 1
Click pentru a mari
Imagini suplimentare
CIOCAN DEMOLATOR DEWALT DCPS966N Type 1
Click pentru a mari
CIOCAN DEMOLATOR DEWALT DCPS966N Type 1
Click pentru a mari
CIOCAN DEMOLATOR DEWALT DCPS966N Type 1
Click pentru a mari
CIOCAN DEMOLATOR DEWALT DCPS966N Type 1
Click pentru a mari
CIOCAN DEMOLATOR DEWALT DCPS966N Type 1
Click pentru a mari

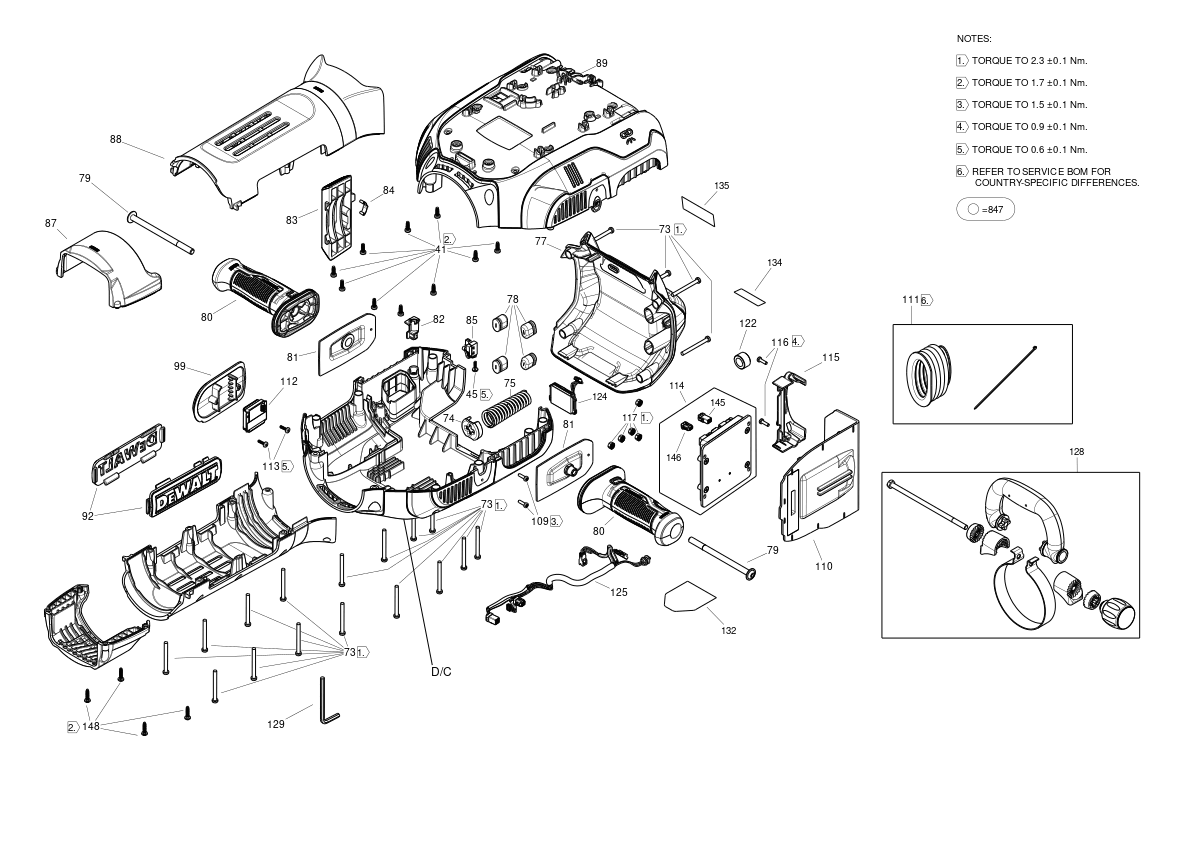

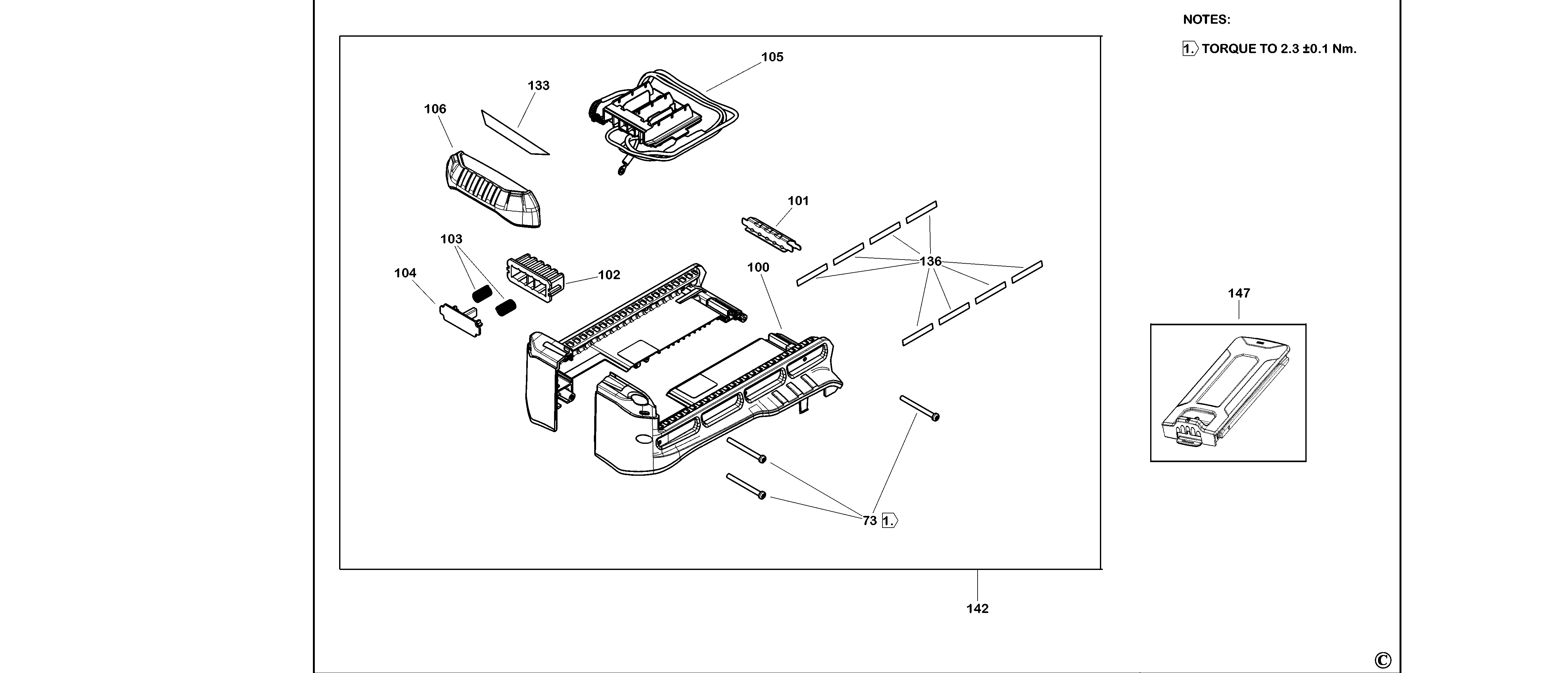

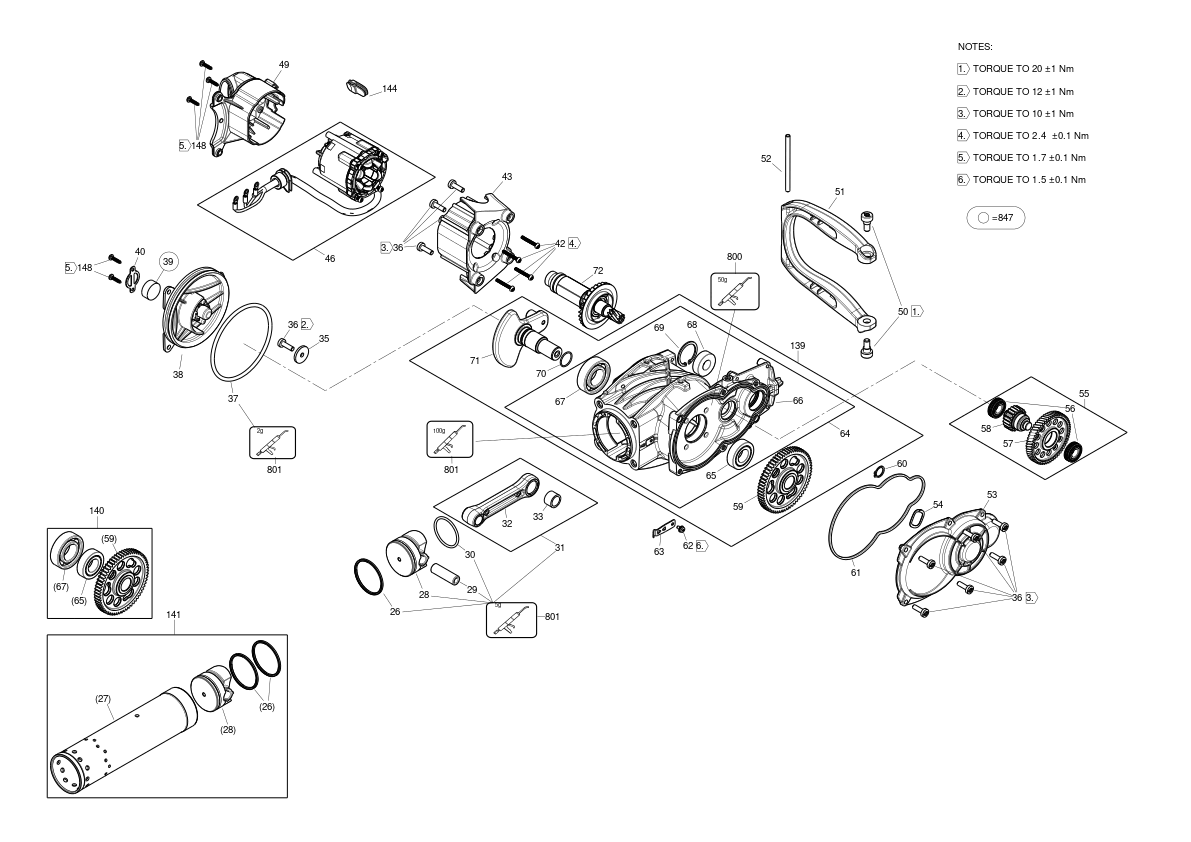

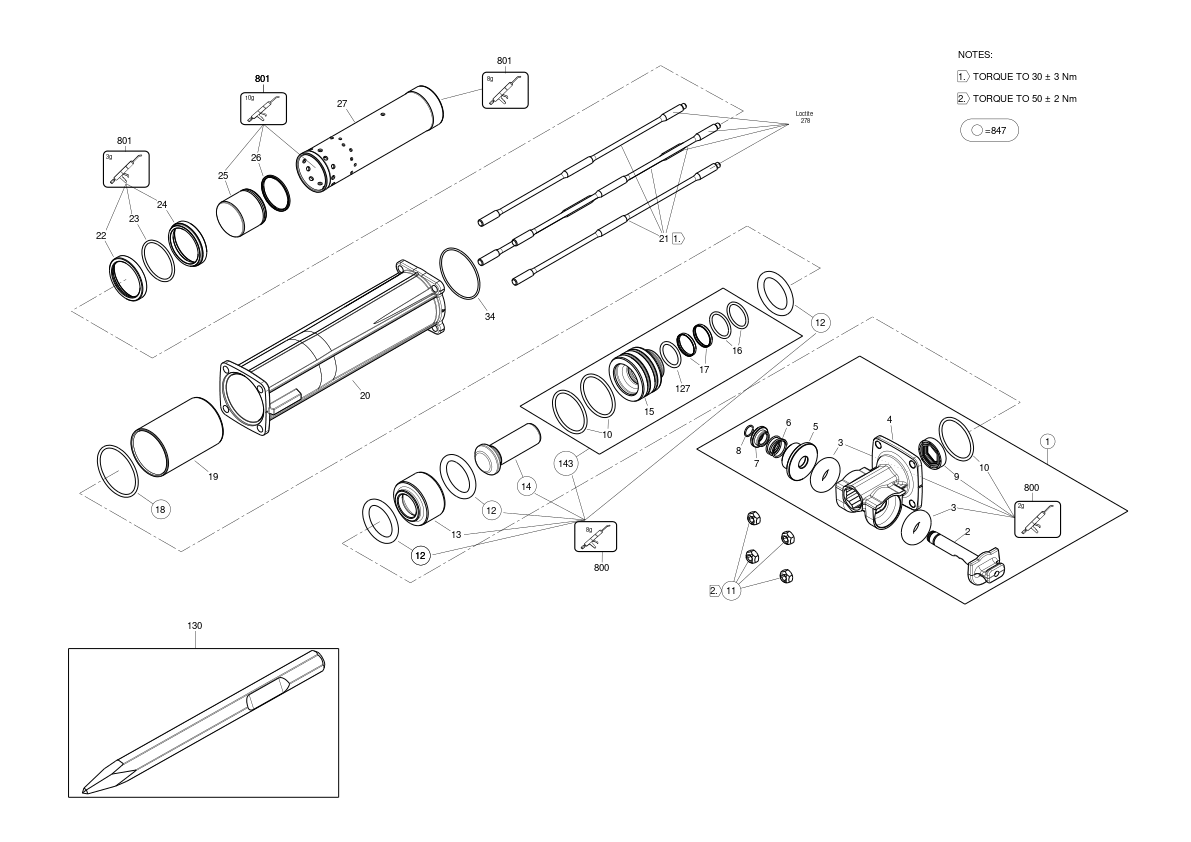

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HOLDER SA (NA355539) 249223 RON
2 1 1 RETAINER (N777635) 27287 RON
3 1 2 DAMPER RETAINER D25980 (478063-00) 3018 RON
4 1 1 KEY HOLDER (N777258) 176482 RON
5 1 1 BUSH (N777701) 741 RON
6 1 1 SPRING (NA210411) 588 RON
7 1 1 BOLT (NA263843) 2796 RON
8 1 1 RING (N281859) 588 RON
9 1 1 SEAL (NA356928) 4355 RON
10 1 3 O RING (N784854) 3954 RON
11 1 4 NUT (NA092773) 944 RON
12 1 3 DAMPER (N662214) 10241 RON
13 1 1 TUBE GUIDE (N719424) 32327 RON
14 1 1 BEAT PIECE (N719422) 38463 RON
15 1 1 SUPPORT. REAR (N719423) 40734 RON
16 1 2 O RING (NA234398) 1630 RON
17 1 2 RING (NA160752) 4355 RON
18 1 1 O RING (NA114412) 944 RON
19 1 1 BUSH (N846104) 21676 RON
20 1 1 HOUSING FRONT (N776933) 49827 RON
21 1 4 THREADED ROD (NA085613) 15469 RON
22 1 1 RING (N654927) 5370 RON
23 1 1 O RING (N905036) 2556 RON
24 1 1 ADAPTOR (NA043935) 741 RON
25 1 1 RAM (N718762) 33797 RON
26 1 2 PISTON RING-PISTON RING 55X2.5X2.5 (N779205) 3954 RON
27 1 1 CYLINDER (N715365) 73079 RON
28 1 1 PISTON (N650468) 12361 RON
29 1 1 SHAFT (N680414) 2796 RON
30 1 1 O RING (N784847) 2182 RON
31 1 1 CON ROD SA (NA355540) 28836 RON
32 1 1 CON ROD (N650465) 13697 RON
33 1 1 BUSH (NA321225) 12361 RON
34 1 1 O RING (N905034) 82 RON
35 1 1 WASHER (NA274631) 668 RON
36 1 15 SCREW (NA090420) 588 RON
37 1 1 O RING (N794476) 2556 RON
38 1 1 COVER BEARING (NA571790) 5370 RON
39 1 1 FELT (487229-00) 781 RON
40 1 1 FIXED BLOCK (N840772) 668 RON
41 1 10 SCREW PLSTC THD FORM M4.55X13 T20 (330019-11) 558 RON
42 1 4 SCREW PLASTIC 4 X 30FORM 4* 30 (330065-13) 558 RON
43 1 1 BAFFLE (N725002) 2796 RON
45 1 1 SCREW (N427493) 588 RON
46 1 1 NB452087 - Indisponibil
49 1 1 SUPPORT-MOTOR SUPPORT 15KG (N788601) 6688 RON
50 1 2 SCREW (N863510) 1933 RON
51 1 1 CON ROD (N821601) 6688 RON
52 1 1 AXIS (N823671) 1933 RON
53 1 1 GEARCASE COVER (N776489) 20216 RON
54 1 1 SPRING (N863312) 588 RON
55 1 1 GEAR SA (NA355544) 38463 RON
56 1 2 BEARING BALL (N916835) 4827 RON
57 1 1 Gear (N714306) 12361 RON
58 1 1 PINION GEAR (N810103) 6688 RON
59 1 1 INTERGEAR SA-GEAR CRANK WHEEL 15KG (N715090) 24962 RON
60 1 1 CIRCLIP (N526266) 588 RON
61 1 1 SEAL (N853807) 2556 RON
62 1 1 SCREW (N470873) 588 RON
63 1 1 FIXED BLOCK (NA159604) 668 RON
64 1 1 GEARBOX SA (NA355545) 113822 RON
65 1 1 BEARING BALL (N083127) 3954 RON
66 1 1 GEARBOX (N776205) 73079 RON
67 1 1 BEARING 6205DDUC3E D EA5S (577745-03) 4137 RON
68 1 1 BEARING BALL (330003-13) 4137 RON
69 1 1 RETAINING RING D.35 (949729-03) 558 RON
70 1 1 O-RING 20x1 5 NBR-70 D25960 (N049232) 558 RON
71 1 1 CRANKSHAFT (N722344) 38463 RON
72 1 1 ROTOR SA (NA334581) 49114 RON
73 1 22 SCREW PLASTITE (330019-18) 558 RON
74 1 1 ADAPTOR (NA151466) 1772 RON
75 1 1 NA663582 - Indisponibil
77 1 1 NA662591 - Indisponibil
78 1 4 BUFFER (N704275) 668 RON
79 1 2 SCREW (N876031) 2796 RON
80 1 2 SIDE HANDLE (NA072270) 741 RON
81 1 2 BASEPLATE SA (N837517) 741 RON
82 1 1 COUNTER BALANCE (N866122) 2182 RON
83 1 1 SLIDE (N802852) 3954 RON
84 1 1 DETENT (N520790) 588 RON
85 1 1 MICRO SWITCH (N885510) 4355 RON
87 1 1 END PANEL. FRONT (NA045466) 6688 RON
88 1 1 COVER-TOP (NA072278) 12361 RON
89 1 1 NA710045 - Indisponibil
92 1 2 NB403908 - Indisponibil
99 1 1 COVER (NA072275) 1630 RON
100 1 1 NA709190 - Indisponibil
101 1 1 PLATE (NA266283) 1933 RON
102 1 1 COVER (NA242554) 668 RON
103 1 2 SPRING (NA242556) 588 RON
104 1 1 PLATE (NA242557) 588 RON
105 1 1 NA702463 - Indisponibil
106 1 1 NB067742 - Indisponibil
109 1 2 SCREW PLSTC THD FORM M3.5X13 T15 (330019-02) 558 RON
110 1 1 NA486923 - Indisponibil
111 1 1 BELLOWS-SA RUBBER BELLOW (NA355547) 6688 RON
112 1 1 NB428706 - Indisponibil
113 1 2 SCREW (N427493) 588 RON
114 1 1 NB452656 - Indisponibil
115 1 1 NA486924 - Indisponibil
116 1 2 SCREW PLSTC THD FORM M3.5X13 T15 (330019-02) 558 RON
117 1 5 NUT (NA228980) 588 RON
122 1 1 RESISTOR (NA399619) 2796 RON
124 1 1 MODULE-WTC module (N859968) 15469 RON
125 1 1 NA702944 - Indisponibil
127 1 1 O RING (N784846) 1933 RON
128 1 1 HANDLE SIDE SA-SA AUXILIARY HANDLE 15KG (N873311) 32327 RON
129 1 1 TABLE INSERT (A) KEY ALLEN 5MM (322929) Indisponibil Indisponibil
130 1 1 BREAKER-CHISEL BIT BULL POINT 15.75 IN 1 (N507915) 38463 RON
132 1 1 NB415906 - Indisponibil
133 1 1 NB415289 - Indisponibil
134 1 1 LABEL PERFORM PROTECT 50MMX16.4MM (N196044) 781 RON
135 1 1 LABEL (NA234485) 1933 RON
136 1 8 NB415293 - Indisponibil
139 1 1 GEARBOX SA-SA GEARBOX WITH CRANK SHAFT (NA411717) 200340 RON
140 1 1 CRANK KIT-SA CRANK WHEEL (NA411374) 44688 RON
141 1 1 CYLINDER SA (NA495070) 99395 RON
142 1 1 NB452623 - Indisponibil
143 1 1 GUIDE SA-SA GUIDE BP REAR SERV ONLY (NA499597) 78485 RON
144 1 1 STOP RUBBER (N894888) 1318 RON
147 1 1 NB443565 - Indisponibil
148 1 9 SCREW (330065-08) 558 RON
800 1 1 GREASE TUBE 100ML RENOLIT PARAGON EP (870889-02) 4472 RON
801 1 1 GREASE GLK 249 NLGI 00 150G TUBE (578970-06) 28296 RON
847 1 1 SERVICE KIT (NA261795) 356963 RON
