Top » Piese de schimb » PIESE DEWALT » DCH911NK Type 1

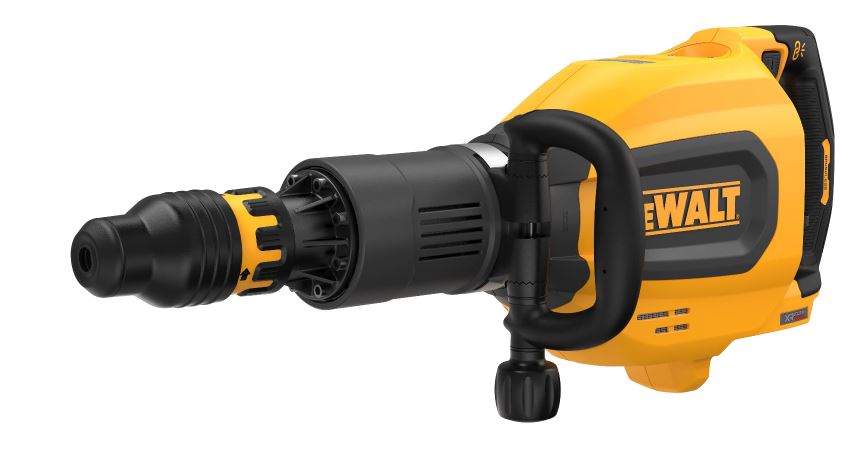

CIOCAN DEMOLATOR DEWALT DCH911NK Type 1
[DCH911NK Type 1]
CIOCAN DEMOLATOR DEWALT DCH911NK Type 1
Click pentru a mari
Imagini suplimentare
CIOCAN DEMOLATOR DEWALT DCH911NK Type 1
Click pentru a mari
CIOCAN DEMOLATOR DEWALT DCH911NK Type 1
Click pentru a mari
CIOCAN DEMOLATOR DEWALT DCH911NK Type 1
Click pentru a mari
CIOCAN DEMOLATOR DEWALT DCH911NK Type 1
Click pentru a mari
CIOCAN DEMOLATOR DEWALT DCH911NK Type 1
Click pentru a mari
CIOCAN DEMOLATOR DEWALT DCH911NK Type 1
Click pentru a mari
CIOCAN DEMOLATOR DEWALT DCH911NK Type 1
Click pentru a mari

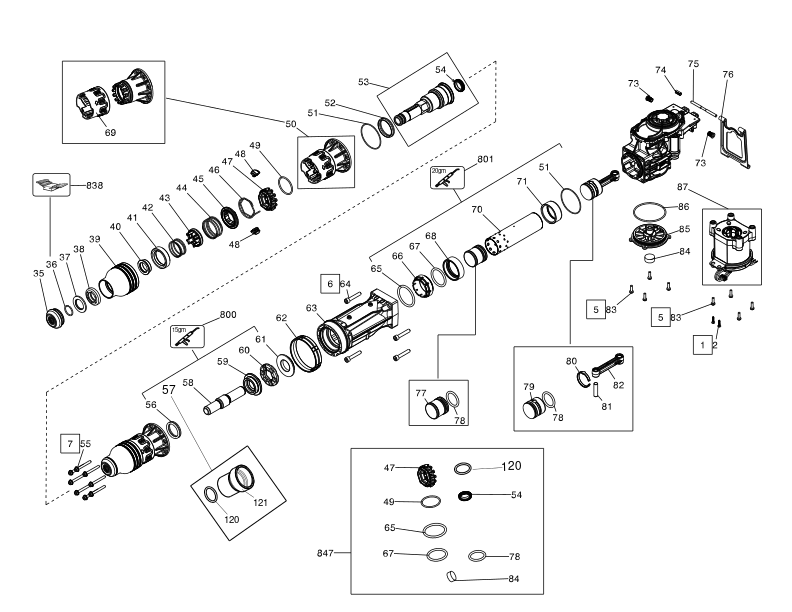

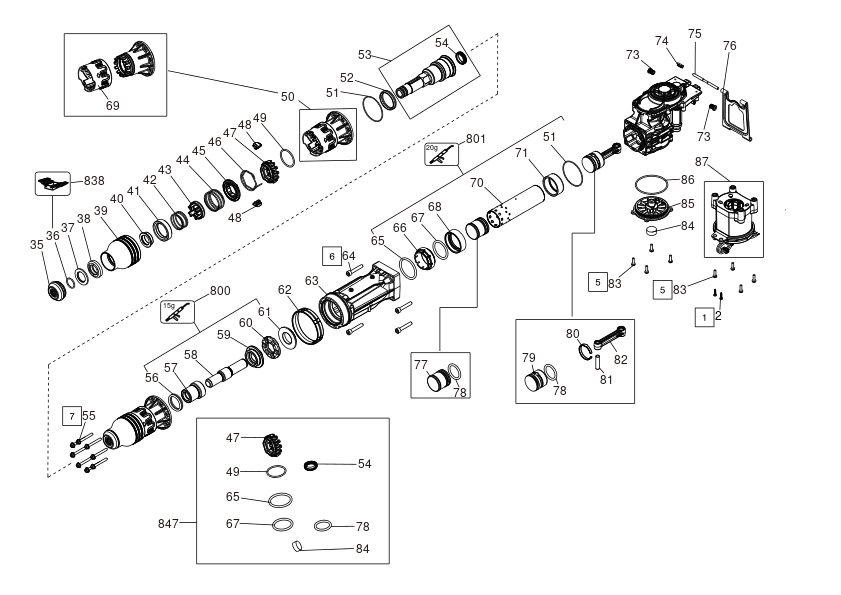

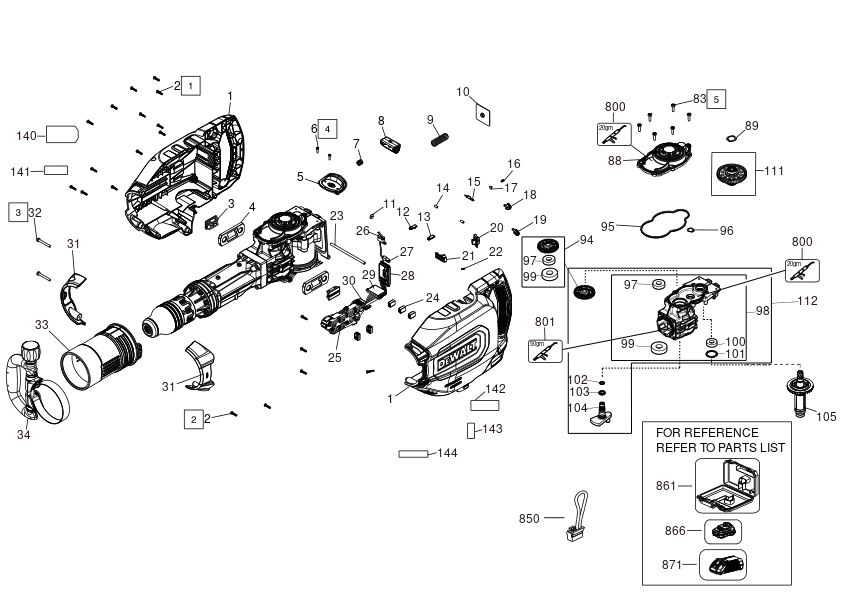

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HOUSING SA (NA029602) 42426 RON
2 1 26 SCREW (330065-08) 558 RON
3 1 2 GUIDE BLOCK (NA228762) 944 RON
4 1 2 DAMPER (N906377) 1772 RON
5 1 1 HANDLE COVER (NA049554) 944 RON
6 1 2 SCREW PLSTC THD FORM M3.5X13 T15 (330019-02) 558 RON
7 1 1 SPRING (NA083203) 588 RON
8 1 1 SLIDE (N849617) 668 RON
9 1 1 SPRING (N855091) 1318 RON
10 1 1 PLATE (N855177) 944 RON
11 1 1 WASHER (NA262558) 588 RON
12 1 1 INSERT (N728012) 588 RON
13 1 1 INSERT (N728013) 588 RON
14 1 2 RUBBER PIN (N487311) 588 RON
15 1 1 STRIKE PLATE (N467560) 588 RON
16 1 1 TERMINAL BLOCK SPRING (N461735) 588 RON
17 1 1 SPRING GUIDE (N091479) 558 RON
18 1 1 GUIDE (NA000208) 2556 RON
19 1 1 GUIDE (NA090620) 2556 RON
20 1 1 SWITCH SUPPORT (N936367) 2556 RON
21 1 1 LEVER (N936366) 3268 RON
22 1 1 INDEXING BOLT (N403227) 588 RON
23 1 1 AXIS (N919485) 114 RON
24 1 5 CONNECTOR (N590957) 1318 RON
25 1 1 MODULE (NA334560) 57833 RON
26 1 1 SWITCH (N935669) 4355 RON
27 1 1 WIRE HARNESS (N689017) 11337 RON
28 1 1 MODULE (N889840) 12361 RON
29 1 1 CLUTCH MODULE (NA029067) 15469 RON
30 1 1 TERMINAL BLOCK (N779711) 16689 RON
31 1 1 HOUSING FRONT (NA131178) 2796 RON
32 1 2 SCREW M5.28 X42 (330019-26) 781 RON
33 1 1 SUPPORT. FRONT (NA077222) 10241 RON
34 1 1 HANDLE SIDE SA (N843733) 27287 RON
35 1 1 SEAL (NA176495) 5370 RON
36 1 1 RETAINER (N522784) 588 RON
37 1 1 WASHER (N516487) 944 RON
38 1 1 RUBBER (NA176490) 2796 RON
39 1 1 SLEEVE (N532534) 3268 RON
40 1 1 DAMPER (NA147565) 3954 RON
41 1 1 LOCKING BUSH SDS (N511834) 3268 RON
42 1 1 SPRING (N520782) 944 RON
43 1 1 GUIDING BUSH SDS ST (N408040) 2796 RON
44 1 1 SPRING (N546022) 114 RON
45 1 1 GUIDE (N532488) 944 RON
46 1 1 SPRING (N929397) 668 RON
47 1 1 SLEEVE (NA365538) 6688 RON
48 1 2 PIECE, LOCKING (N511836) 4827 RON
49 1 1 O RING (N918192) 1772 RON
50 1 1 HOLDER TOOL (NA334572) 85494 RON
51 1 2 O RING (N853695) 944 RON
52 1 1 DAMPER (NA068950) 3268 RON
53 1 1 SPINDLE SA (NA334559) 73079 RON
54 1 1 SEAL (N784061) 2796 RON
55 1 8 SCREW (NA278416) 82 RON
56 1 1 SLEEVE BEARING (N784052) 3268 RON
57 1 1 N768789 - Indisponibil
57 1 1 SERVICE KIT (NA562768) 27287 RON
58 1 1 BEAT PIECE (N784058) 24962 RON
59 1 1 BUSH (N770296) 13697 RON
60 1 1 DAMPER (N770302) 10241 RON
61 1 1 WASHER (N851202) 3954 RON
62 1 1 SLIDER (N770319) 3268 RON
63 1 1 HOUSING FRONT (N819437) 32327 RON
64 1 4 SCREW (N866784) 944 RON
65 1 1 O RING (N853690) 2796 RON
66 1 1 CYLINDER (N835754) 5370 RON
67 1 1 O RING (N770286) 2556 RON
68 1 1 N835755 - Indisponibil
68 1 1 SERVICE KIT (NA640615) 33797 RON
68 1 1 CYLINDER (NA640511) 3954 RON
69 1 1 SLEEVE (N537380) 5370 RON
70 1 1 N784056 - Indisponibil
70 1 1 SERVICE KIT (NA640615) 33797 RON
70 1 1 NA640475 - Indisponibil
70 1 1 CYLINDER (NA720745) 32327 RON
71 1 1 N844713 - Indisponibil
71 1 1 SERVICE KIT (NA640615) 33797 RON
71 1 1 CYLINDER (NA640547) 2796 RON
73 1 2 CONTACT PLATE (NA025059) 588 RON
74 1 1 CLIP (NA025057) 588 RON
75 1 1 AXIS (N919476) 944 RON
76 1 1 CONTACT PLATE (N911183) 4355 RON
77 1 1 RAM (N772436) 20216 RON
78 1 2 O RING (N809161) 2796 RON
79 1 1 PISTON KIT (N784889) 11337 RON
80 1 1 RING (N854055) 668 RON
81 1 1 PIN (N855767) 1630 RON
82 1 1 CONNECTING ROD (N849636) 3268 RON
83 1 14 SCREW (N548557) 588 RON
84 1 1 FELT (487229-00) 781 RON
85 1 1 CRANK KIT (NA187983) 4355 RON
86 1 1 O RING (N455140) 114 RON
87 1 1 STATOR SA (NA334575) 52855 RON
88 1 1 HOUSING GEAR (N810039) 4827 RON
89 1 1 SPRING (N927841) 588 RON
94 1 1 GEAR SA (NA408088) 20216 RON
95 1 1 SEAL (N913721) 1772 RON
96 1 1 CIRCLIP (N526266) 588 RON
97 1 1 BEARING BALL 17x40x12-6203T1XDDW1C3E D (330003-69) 4472 RON
98 1 1 GEARCASE SA (NA409838) 55455 RON
99 1 1 BEARING BALL (330003-68) 7940 RON
100 1 1 BEARING BALL (330003-13) 4137 RON
101 1 1 RETAINING RING D.35 (949729-03) 558 RON
102 1 1 O RING (650249-00) 588 RON
103 1 1 RING (NA076391) 588 RON
104 1 1 CRANKSHAFT (N868365) 33797 RON
105 1 1 ROTOR SA (NA334581) 49114 RON
111 1 1 GEAR SA (NA334573) 25728 RON
112 1 1 GEARCASE SA (NA334558) 104961 RON
120 1 1 O RING (NA410062) 944 RON
121 1 1 BEAT PIECE (NA410078) 23244 RON
140 1 1 RATING LABEL (NA149485) 114 RON
141 1 1 LABEL (NA165857) 588 RON
142 1 1 LABEL PERFORM PROTECT 61MMX20MM (N208653) 588 RON
143 1 1 LABEL (NA165853) 588 RON
144 1 2 LABEL (N929414) 588 RON
800 1 1 GREASE SACHET 20G RENOLIT PARAGON EP 1 (870889-03) 3018 RON
801 1 1 GREASE GLK 249 NLGI 00 150G TUBE (578970-06) 28296 RON
838 1 1 SERVICE TOOL (559651-99) 252696 RON
838 1 1 S.T.CIRCLIP REMOVER (1003976-99) 33298 RON
847 1 1 SERVICE KIT (NA334574) 23244 RON
850 1 1 WIRE HARNESS (NA514097) 1772 RON
861 1 1 KITBOX (NA111460) 73079 RON
