Top » Piese de schimb » PIESE DEWALT » DW293 Type 1

CHEIE DE IMPACT DEWALT DW293 Type 1
[DW293 Type 1]
CHEIE DE IMPACT DEWALT DW293 Type 1
Click pentru a mari
Imagini suplimentare
CHEIE DE IMPACT DEWALT DW293 Type 1
Click pentru a mari

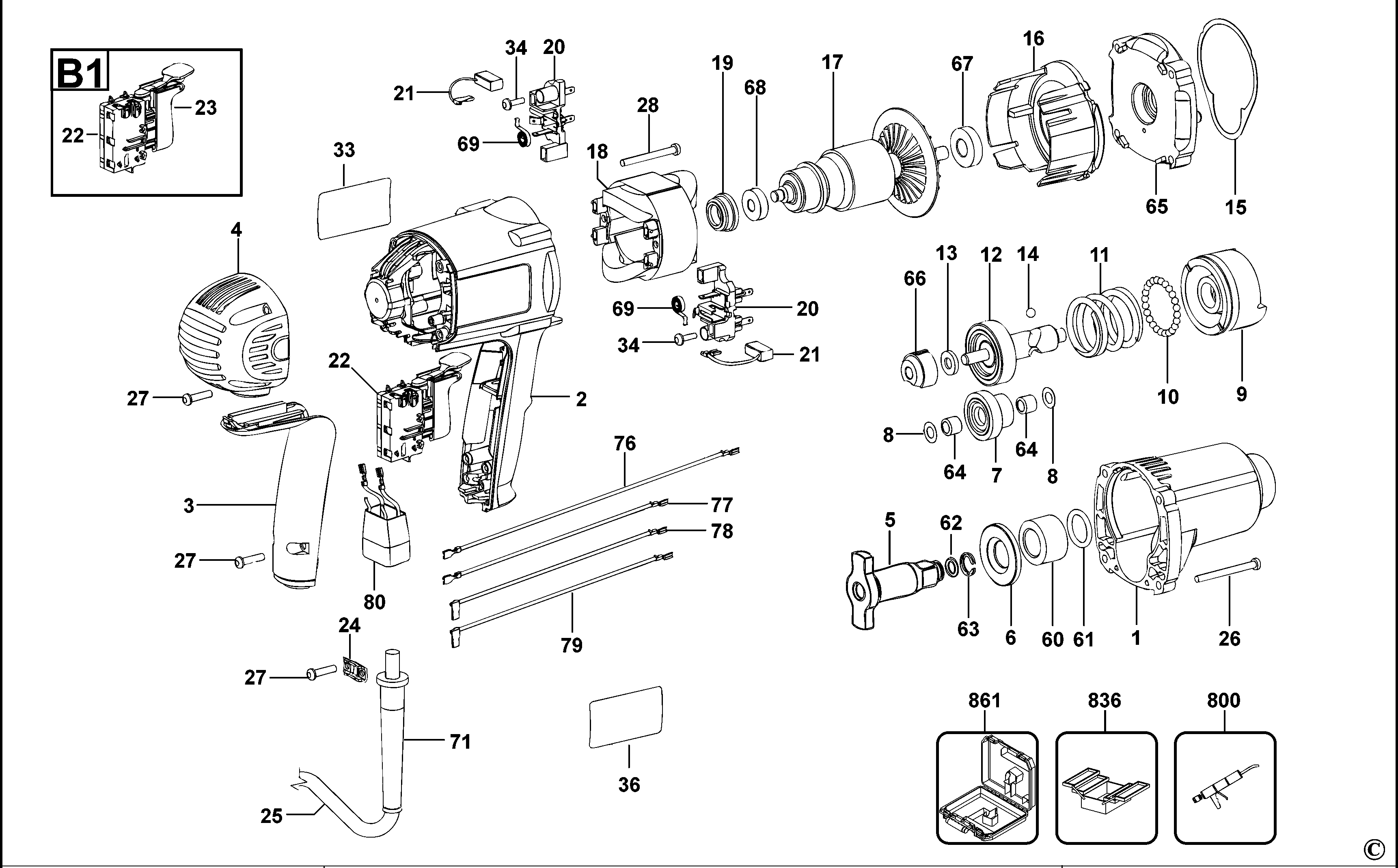

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 616822-00SV - Indisponibil
1 1 1 GEARCASE SA cod vechi 616822-00SV (N822135) 1891 RON
1 1 1 GEARCASE SA (616822-00) 11519 RON
4 1 1 END CAP (616830-00) 2124 RON
5 1 1 ANVIL (616834-00) 29862 RON
6 1 1 WASHER THRUST (616859-00) 190 RON
7 1 1 GEAR & PINION (135093-01) 7940 RON
7 1 1 GEAR PINION (135093-01SV) 9282 RON
8 1 2 WASHER DW290 (135089-00) 558 RON
9 1 1 IMPACTOR (628129-00) 22144 RON
10 1 25 475-00 - Indisponibil
10 1 25 BALL STEEL (000475-00) 558 RON
11 1 1 SPRING (618843-00) 2347 RON
12 1 1 GEAR & CAM SA (616874-00) 1891 RON
12 1 1 GEAR & CAM SA (659923-00) 15993 RON
12 1 1 SA CAM SHAFT SERVICE (659923-00SV) 24962 RON
13 1 1 WASHER DW290 (450667-00) 2347 RON
14 1 2 BALL STEEL (618844-00) 558 RON
15 1 1 GASKET (616847-00) 558 RON
16 1 1 BAFFLE FAN (616858-00) 1452 RON
19 1 1 SLEEVE (445217-02) 781 RON
20 1 2 BRUSH HOLDER (616857-00) 3018 RON
24 1 1 CORD CLAMP (450877-00) 558 RON
26 1 4 SCREW PLASTIC THREAD FORM M4 * 50 T20 (330019-50) 558 RON
26 1 4 SCREW PLASTITE (330019-18) 558 RON
27 1 8 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
28 1 2 SCREW (330019-17) 558 RON
33 1 1 IDENTITY LABEL (605523-00) 781 RON
34 1 2 SCREW (176951-00) 558 RON
60 1 1 SLEEVE (616844-00) 2124 RON
60 1 1 SERVICE KIT (N863052) 3954 RON
61 1 1 SERVICE KIT (N863052) 3954 RON
61 1 1 O RING (616863-00) 1117 RON
62 1 1 50056-00 - Indisponibil
62 1 1 RING P2674 (050056-00) 558 RON
63 1 1 SPRING RING (086947-00) 893 RON
63 1 1 86947-00 - Indisponibil
64 1 2 BEARING (131790-00) 1117 RON
64 1 2 BEARING NEEDLE (330004-02) 1229 RON
65 1 1 GEARCASE COVER SA (616823-00) 14315 RON
65 1 1 GEARCASE COVER SA (616823-00SV) 16689 RON
66 1 1 BEARING BLOCK (616841-00) 1788 RON
67 1 1 BEARING BALL (330003-09) 2795 RON
67 1 1 GEARCASE COVER SA (616823-00) 14315 RON
67 1 1 GEARCASE COVER SA (616823-00SV) 16689 RON
68 1 1 330003-04 - Indisponibil
68 1 1 BEARING BALL cod vechi 330003-04 BEARING BALL (605040-06) 1452 RON
69 1 2 BRUSH SPRING DW309K (383387-00) 1229 RON
80 1 1 FILTER (623976-00) 12861 RON
800 1 1 GREASE (429698-00) 62298 RON
