Top » Piese de schimb » PIESE DEWALT » DCF900N Type 1

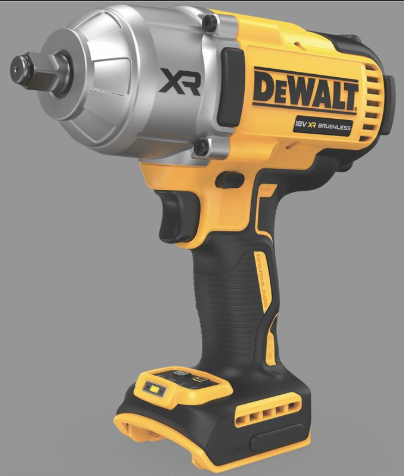

CHEIE DE IMPACT DEWALT DCF900N Type 1
[DCF900N Type 1]
CHEIE DE IMPACT DEWALT DCF900N Type 1
Click pentru a mari
Imagini suplimentare
CHEIE DE IMPACT DEWALT DCF900N Type 1
Click pentru a mari
CHEIE DE IMPACT DEWALT DCF900N Type 1
Click pentru a mari

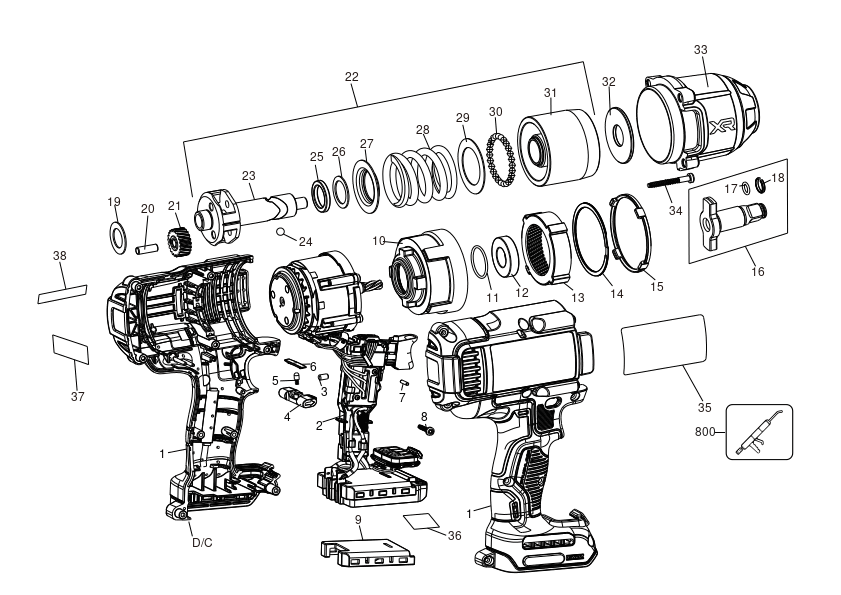

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 CLAMSHELL SET (NA100738) 12361 RON
2 1 1 MOTOR SA (NA039647) 161583 RON
3 1 4 RUBBER PAD (N186764) 588 RON
4 1 1 ACTUATOR FWD/REV (N137055) 668 RON
5 1 1 INDEXING BOLT (N403227) 588 RON
6 1 1 DETENT-FWD/REV (N419514) 588 RON
7 1 1 ROLL PIN 2.5 X 10.9 (N071836) 558 RON
8 1 9 SCREW PLASTIC THREAD FORM M3.5 * 19 T1 (330019-04) 558 RON
9 1 1 RUBBER SEAL (NA066209) 2556 RON
10 1 1 GEARCASE (N363283) 6688 RON
11 1 1 O RING (N411414) 588 RON
12 1 1 BEARING (N158641) 3268 RON
13 1 1 GEAR-RING GEAR (N470304) 3268 RON
14 1 1 RING (N389400) 668 RON
15 1 1 SEAL (N410641) 82 RON
16 1 1 ANVIL ASSEMBLY (NA039663) 23244 RON
17 1 1 RING P2674 (050056-00) 558 RON
18 1 1 SPRING RING (086947-00) 893 RON
19 1 1 WASHER (N114027) 588 RON
20 1 3 PIN (N194994) 588 RON
21 1 3 Gear (N389396) 2796 RON
22 1 1 IMPACTOR (NA039655) 78485 RON
23 1 1 NA024756 - Indisponibil
23 1 1 NA199360 - Indisponibil
23 1 1 CARRIER (NA599798) 23244 RON
24 1 2 BALL STEEL (618844-00) 558 RON
25 1 1 BUMPER (NA080785) 82 RON
26 1 1 WASHER (NA080787) 588 RON
27 1 1 WASHER (NA080788) 668 RON
28 1 1 SPRING (N827324) 6688 RON
29 1 1 WASHER THRUST (N377515) 588 RON
30 1 27 BALL STEEL (000475-00) 558 RON
30 1 27 NB449518 - Indisponibil
31 1 1 IMPACTOR (NA024757) 32327 RON
32 1 1 WASHER (N735836) 588 RON
33 1 1 NOSE SA (NA163451) 23244 RON
34 1 4 SCREW (NA002385) 588 RON
35 1 1 RATING PLATE (NA005586) 668 RON
36 1 1 LABEL (NA005587) 588 RON
37 1 1 LABEL (NA013335) 588 RON
38 1 1 BRAND LABEL (NA018894) 588 RON
800 1 1 GREASE (N017298) 4825 RON
