CHEIE DE IMPACT DEWALT DCF891P2G Type 1
[DCF891P2G Type 1]

Imagini suplimentare

Click pentru a mari

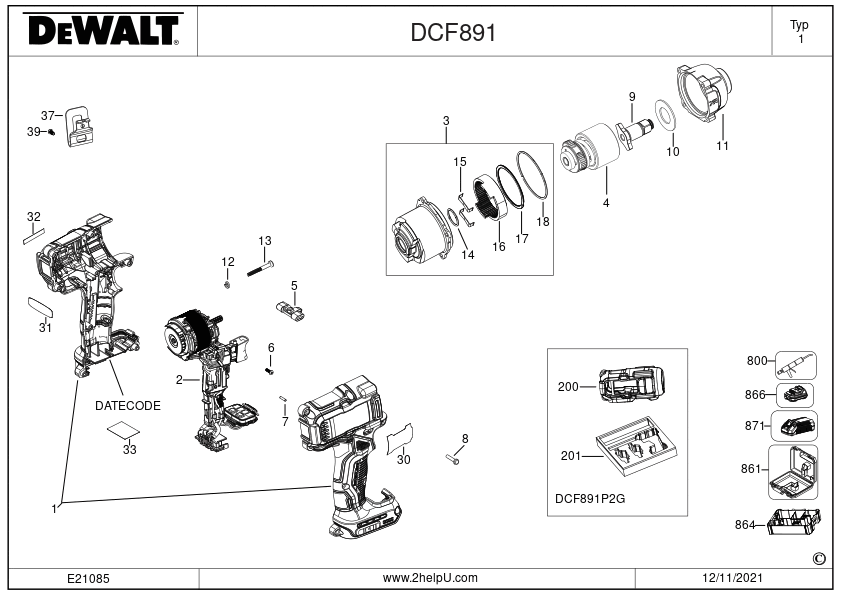

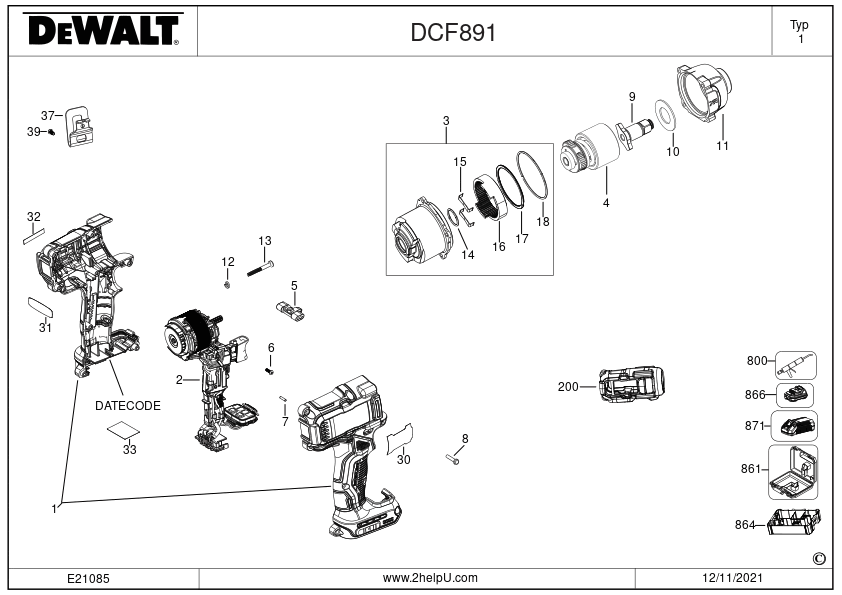

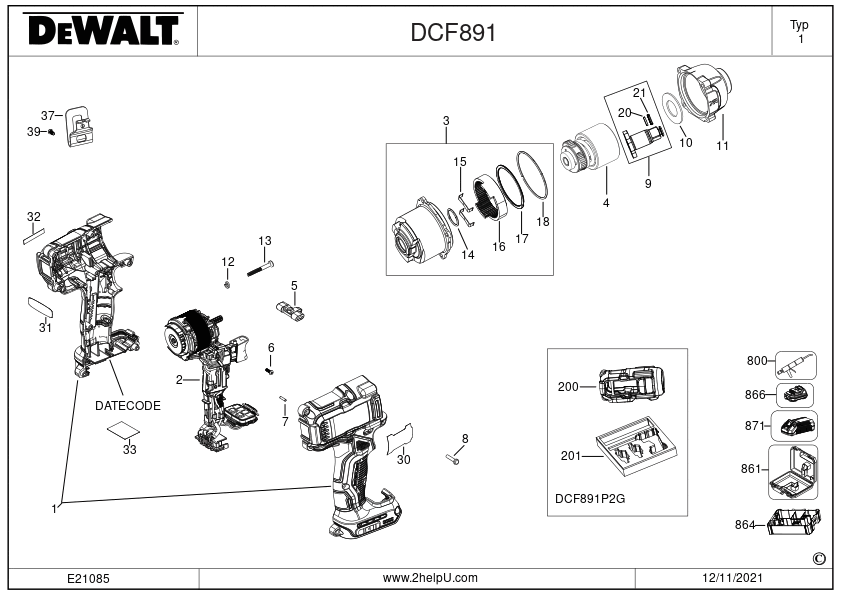

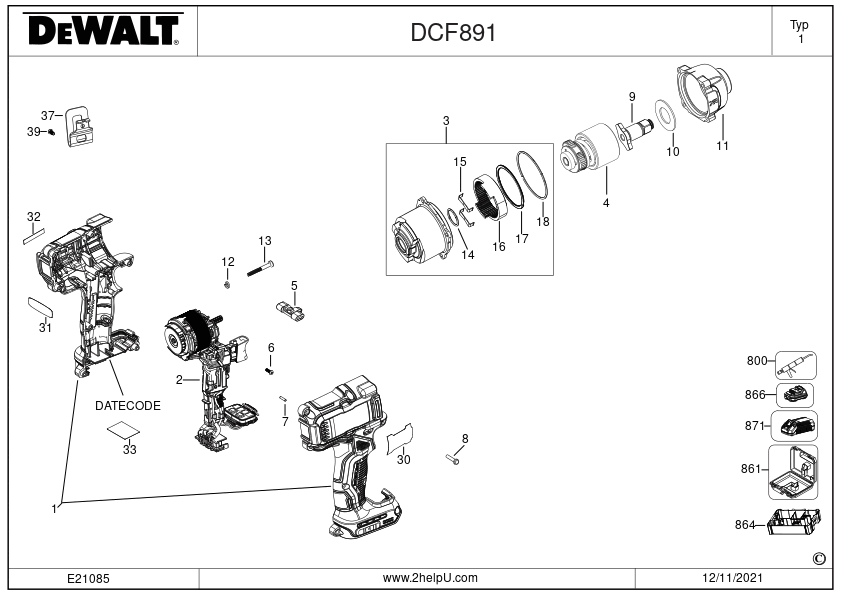

LISTA DE COMPONENTE:

Numar	Versiune	Buc. in schema	Denumire	Pret/buc (Tva inclus)	Cumpara
1	1	1	CLAMSHELL SET (N896695)	74¹ RON
2	1	1	MOTOR & SWITCH SA (NA016963)	1088⁹ RON
2	1	1	MOTOR SWITCH SA (NB409785)	784⁸⁵ RON
3	1	1	GEARCASE SA (NA020584)	154⁶⁹ RON
4	1	1	IMPACTOR (NA016971)	498²⁷ RON
5	1	1	ACTUATOR FWD/REV (N473670)	5⁸⁸ RON
6	1	1	SCREW (N719210)	5⁸⁸ RON
7	1	1	ROLL PIN 2.5 X 10.9 (N071836)	5⁵⁸ RON
8	1	9	SCREW (90611830)	5⁸⁸ RON
9	1	1	ANVIL ASSEMBLY (NA142744)	185⁶⁸ RON
10	1	1	WASHER THRUST (N699996)	5⁸⁸ RON
11	1	1	NOSE SA (NA016760)	113³⁷ RON
12	1	4	WASHER LOCK (N529458)	5⁸⁸ RON
13	1	4	SCREW (N516846)	5⁸⁸ RON
14	1	1	O RING (N438625)	5⁸⁸ RON
15	1	2	BEARING PLATE (N484792)	5⁸⁸ RON
16	1	1	Gear (N465624)	25⁵⁶ RON
17	1	1	RING (N482343)	9⁴⁴ RON
18	1	1	O RING (N458130)	6⁶⁸ RON
20	1	1	RING P2674 (050056-00)	5⁵⁸ RON
21	1	1	SPRING RING (086947-00)	8⁹³ RON
30	1	1	RATING PLATE (NA006247)	5⁸⁸ RON
31	1	1	LABEL (NA006997)	5⁸⁸ RON
32	1	1	BRAND LABEL (NA007356)	5⁸⁸ RON
33	1	1	LABEL (NA006249)	5⁸⁸ RON
37	1	1	BELT HOOK (N086039)	17⁸⁸ RON
39	1	1	BELT HOOK SCREW M3 (N042665)	5⁵⁸ RON
200	1	1	RUBBER BOOT (NA015293)	123⁶¹ RON
201	1	1	FOAM (NA109176)	337⁹⁷ RON
800	1	1	GREASE (N017298)	482⁵ RON
801	1	1	N475660	-	Indisponibil
801	1	1	NYOGEL 760G (NA218891)	1764⁸² RON
861	1	1	KITBOX DWST1-17807 (N279261)	307⁶⁹ RON
864	1	1	INSERT (N521549)	74¹ RON
866	1	2	BATTERY 18V - 5.0AH - 90WH-DCB184G-XJ (NA155375)	1255⁴² RON
871	1	1	N450536	-	Indisponibil
871	1	1	CHARGER-DCB1104-QW - (4A) (NA132878)	446⁸⁸ RON
