Top » Piese de schimb » PIESE DEWALT » DPSSX38-1 Type 1

CAPSATOR DEWALT DPSSX38-1 Type 1
[DPSSX38-1 Type 1]
CAPSATOR DEWALT DPSSX38-1 Type 1
Click pentru a mari
Imagini suplimentare
CAPSATOR DEWALT DPSSX38-1 Type 1
Click pentru a mari
CAPSATOR DEWALT DPSSX38-1 Type 1
Click pentru a mari

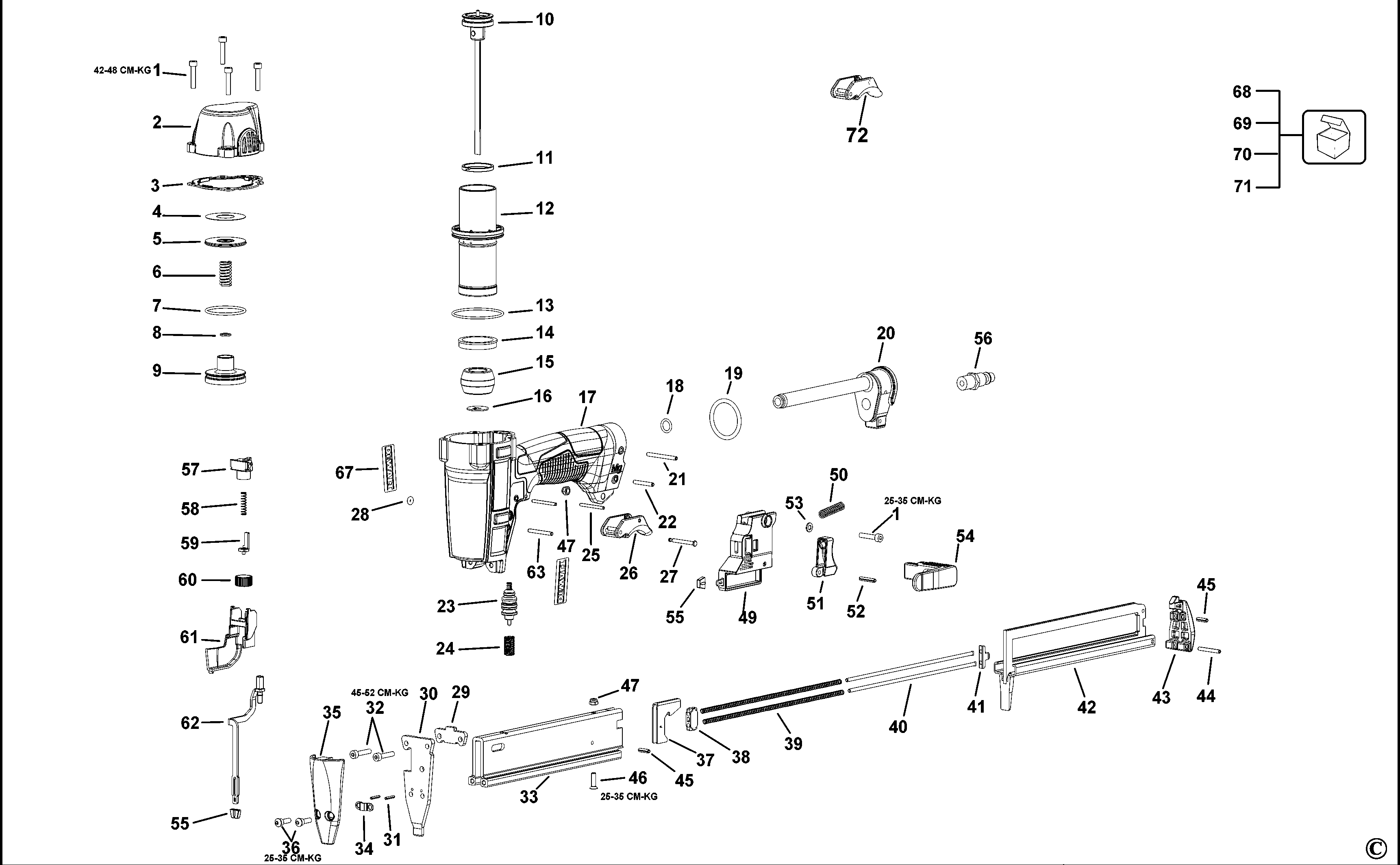

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 5 SCREW (182237) 82 RON
2 1 1 END CAP (9R195614) 10241 RON
3 1 1 GASKET (9R195626) 114 RON
4 1 1 180445 - Indisponibil
4 1 1 PLATE (N905958) 588 RON
5 1 1 SEAL (180446) 82 RON
6 1 1 SPRING (180447) 82 RON
7 1 1 O RING (180448) 82 RON
8 1 1 WASHER (180449) 82 RON
9 1 1 BODY, HEAD VALVE (NEW 05/AP/2011) (180450-S) 82 RON
9 1 1 VALVE BODY (180450) 1630 RON
10 1 1 DRIVER SA (180205-K) 4355 RON
10 1 1 180205 - Indisponibil
11 1 1 180457 - Indisponibil
11 1 1 PISTON RING (N905972) 1630 RON
12 1 1 CYLINDER (9R195284) 2796 RON
13 1 1 O-RING,1.739X.070 (851483-S) 82 RON
14 1 1 SEAL (180460) 82 RON
15 1 1 BUMPER (180461) 82 RON
16 1 1 DRIVER GUIDE (180462) 558 RON
16 1 1 GUIDE (N906034) 588 RON
17 1 1 FRAME (9R195612) 44688 RON
18 1 1 9R195331 - Indisponibil
18 1 1 O-RING,.346X.075 (MRG008819) 82 RON
19 1 1 O RING (9R195332) 588 RON
20 1 1 END CAP (9R195281) 2182 RON
21 1 1 SPIROL PIN (9R195285) 588 RON
22 1 1 PIN (180503) 82 RON
23 1 1 VALVE (9R195308) 741 RON
24 1 1 SPRING (9R195329) 588 RON
25 1 1 9R195327 - Indisponibil
25 1 1 SPIROL PIN (195327) 588 RON
27 1 1 PIN (9R195317) 588 RON
28 1 1 O RING (174073) 82 RON
29 1 1 PLATE (180208) 82 RON
30 1 1 NOSE (9R195369) 5370 RON
31 1 2 PIN (180490) 82 RON
32 1 2 SCREW (100260) 944 RON
32 1 1 SCREW (N906076) 588 RON
33 1 1 MAGAZINE (9R195362) 13697 RON
34 1 1 BRACKET, TRIP (180207) 82 RON
35 1 1 COVER (9R195368) 944 RON
36 1 2 SHOULDER SCREW, M4.0X12MM (180587) 588 RON
37 1 1 PUSHER (9R195363) 944 RON
38 1 1 GUIDE, SLIDING (180199) 82 RON
39 1 1 SPRING, PUSHER (180527) 82 RON
40 1 1 ROD, SPRING GUIDE (180526) 82 RON
41 1 1 ARC CLICHET BBA520 (180200) 190 RON
42 1 1 ASSEMBLY, MAGAZINE CORE (180206) 6688 RON
43 1 1 END CAP, MAGAZINE (180201) 82 RON
44 1 1 PIN (180567) 82 RON
45 1 1 PIN SPRING M3X12MM (MPG030012) 558 RON
46 1 1 SCREW (174307) 82 RON
47 1 1 NUT ESN M4 X 0.7 (MHE4070-100) 558 RON
49 1 1 BRACKET (9R195619) 1933 RON
50 1 1 SPRING, LATCH (180528) 82 RON
51 1 1 9R195735 - Indisponibil
51 1 1 LATCH (N869562) 668 RON
52 1 1 SPIROL PIN (107583) 82 RON
53 1 1 180504 - Indisponibil
53 1 1 WASHER-FLAT, ID 4.30 x OD 8.0 x T 1.0 (N905878) 588 RON
54 1 1 HOOK (9R195620) 114 RON
55 1 1 FOOT (9R195734) 588 RON
56 1 2 ADAPTOR (159977) 1229 RON
57 1 1 180514 - Indisponibil
57 1 1 GUIDE (N905995) 82 RON
58 1 1 SPRING (180513) 82 RON
58 1 1 SPRING (N906013) 114 RON
59 1 1 180510 - Indisponibil
59 1 1 ARM (N905944) 114 RON
60 1 1 KNOB (9R195663) 588 RON
61 1 1 GUIDE (9R195365) 82 RON
62 1 1 9R195366 - Indisponibil
62 1 1 TRIP SA (195366) 2796 RON
63 1 1 PIN (174345) 82 RON
68 1 1 KIT (DWFP12231-CTK) 3954 RON
69 1 1 KIT (DWFP12232-DK) 12361 RON
70 1 1 VALVE KIT (DWFP12231-TVK) 5370 RON
71 1 1 KIT (DWFP12231-OK) 9012 RON
