Top » Piese de schimb » PIESE DEWALT » DPSSL540 Type 1

CAPSATOR DEWALT DPSSL540 Type 1
[DPSSL540 Type 1]
CAPSATOR DEWALT DPSSL540 Type 1
Click pentru a mari
Imagini suplimentare
CAPSATOR DEWALT DPSSL540 Type 1
Click pentru a mari
CAPSATOR DEWALT DPSSL540 Type 1
Click pentru a mari

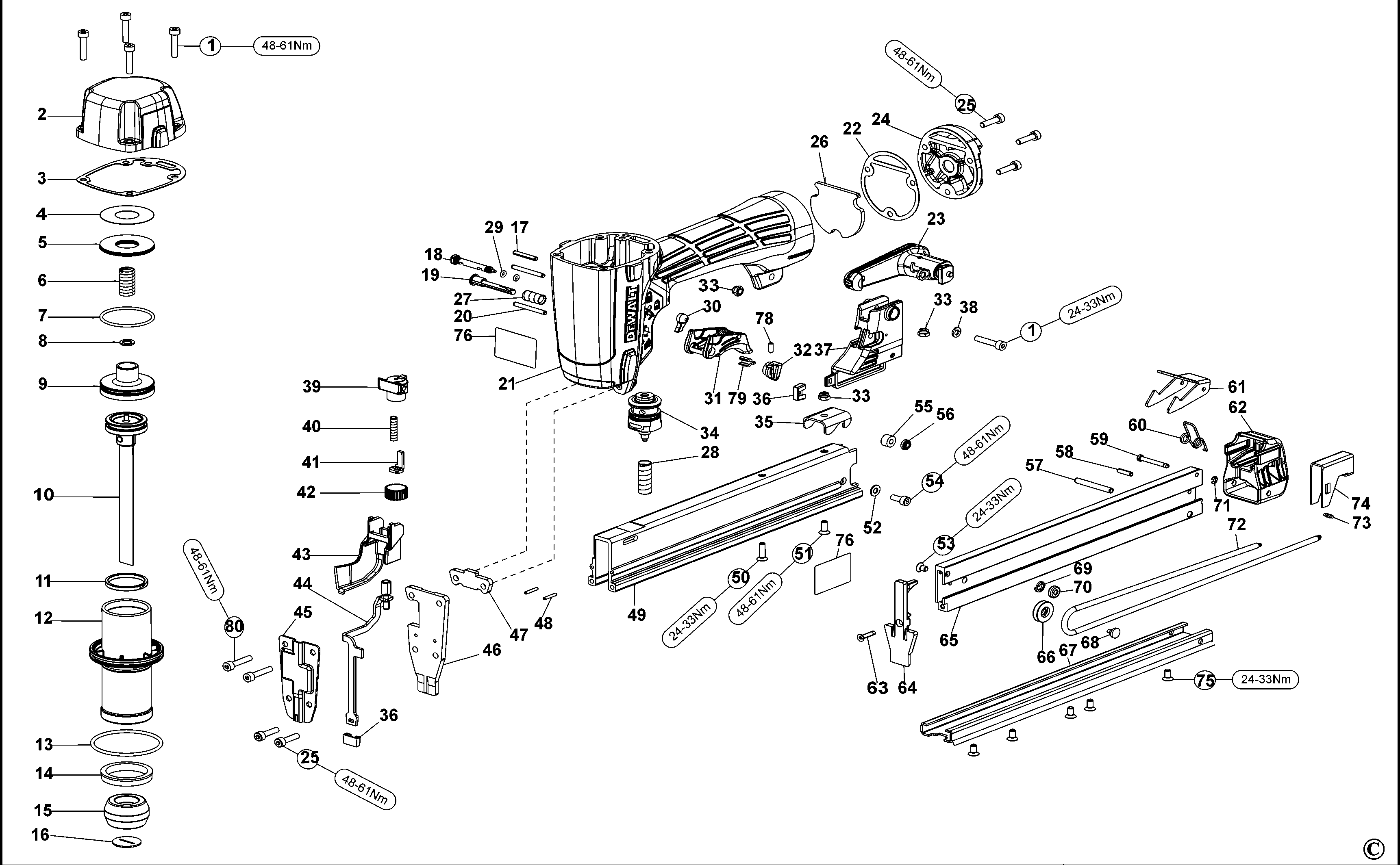

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 4 SCREW (182237) 82 RON
2 1 1 CAP SA (9R209722) 741 RON
3 1 1 GASKET (175682) 82 RON
4 1 1 180445 - Indisponibil
4 1 1 PLATE (N905958) 588 RON
5 1 1 SEAL (180446) 82 RON
6 1 1 SPRING (180447) 82 RON
7 1 1 O RING (180448) 82 RON
8 1 1 WASHER (180449) 82 RON
9 1 1 BODY, HEAD VALVE (NEW 05/AP/2011) (180450-S) 82 RON
9 1 1 VALVE BODY (180450) 1630 RON
10 1 1 PISTON SA (182153) 15469 RON
11 1 1 180457 - Indisponibil
11 1 1 PISTON RING (N905972) 1630 RON
12 1 1 CYLINDER (180458) 114 RON
13 1 1 O RING (180459) 82 RON
14 1 1 SEAL (180460) 82 RON
15 1 1 BUMPER (180461) 82 RON
16 1 1 GUIDE (182175) 82 RON
17 1 1 PIN (180475) 82 RON
18 1 1 PIN, TRIGGER LOCK (184519) 944 RON
19 1 1 PIN (184507) 1630 RON
20 1 2 PIN (174345) 82 RON
21 1 1 HOUSING SA (9R209721) 35435 RON
22 1 1 GASKET (180463) 82 RON
23 1 1 HOOK (182272) 2182 RON
24 1 1 CAP (180465) 2556 RON
25 1 2 SCREW SHCS M4X0.7X16 (MSC4070-16) 558 RON
26 1 1 FILTER (182235) 82 RON
27 1 1 SPRING (180481) 82 RON
28 1 1 SPRING (180476) 82 RON
29 1 2 O-RING,.098X.055 (MRG002514) 82 RON
30 1 1 BUTTON, TRIGGER LOCK (184518) 82 RON
31 1 1 9R202299 - Indisponibil
31 1 1 TRIGGER (184510) 1772 RON
32 1 1 BUTTON (184506) 82 RON
33 1 1 NUT ESN M4 X 0.7 (MHE4070-100) 558 RON
34 1 1 TVA15 - Indisponibil
34 1 1 VALVE-KIT (9R202265-TW) 3268 RON
35 1 1 LATCH (182172) 944 RON
36 1 1 FOOT (9R213368) 588 RON
37 1 1 BRACKET (182171) 114 RON
38 1 1 180504 - Indisponibil
38 1 1 WASHER-FLAT, ID 4.30 x OD 8.0 x T 1.0 (N905878) 588 RON
39 1 1 180514 - Indisponibil
39 1 1 GUIDE (N905995) 82 RON
40 1 1 SPRING (180513) 82 RON
40 1 1 SPRING (N906013) 114 RON
41 1 1 180510 - Indisponibil
41 1 1 ARM (N905944) 114 RON
42 1 1 ADJUSTER (180509) 82 RON
43 1 1 GUIDE (180530) 82 RON
44 1 1 ASSEMBLY, TRIP (180318) 2556 RON
44 1 1 DEPTH ROD (189975) 3954 RON
45 1 1 COVERPLATE (182174) 741 RON
46 1 1 NOSE (182156) 741 RON
47 1 1 PLATE (180208) 82 RON
48 1 2 PIN (180490) 82 RON
49 1 1 MAGAZINE (182158) 39318 RON
50 1 1 SCREW (174307) 82 RON
51 1 1 SCREW-M4x0.7x10 (MSF4070-10) 82 RON
52 1 1 WASHER PWN M4 (MPW4) 558 RON
53 1 1 SCREW-M4x0.7x6 (MSF4070-6) 82 RON
54 1 1 SCREW (MSC4070-10) 82 RON
55 1 1 BUMPER (184431) 944 RON
56 1 1 NUT M4 (182178) 588 RON
57 1 1 S0804032000 - Indisponibil
57 1 1 PIN-M4x32 (177685) 82 RON
58 1 1 PIN SPRING M3X12MM (MPG030012) 558 RON
59 1 1 PIN (182179) 588 RON
60 1 1 SPRING (182180) 82 RON
61 1 1 LATCH (182177) 114 RON
62 1 1 END CAP (182167) 2556 RON
63 1 1 MAGAZINE (182161) 51127 RON
63 1 1 SCREW (MSF3050-14) 668 RON
64 1 1 MAGAZINE (182161) 51127 RON
64 1 1 182166 - Indisponibil
65 1 1 MAGAZINE (182161) 51127 RON
65 1 1 SLIDER (182162) 20216 RON
66 1 1 MAGAZINE (182161) 51127 RON
66 1 1 PULLEY (182163) 1933 RON
67 1 1 MAGAZINE (182161) 51127 RON
67 1 1 182168 - Indisponibil
68 1 1 MAGAZINE (182161) 51127 RON
68 1 1 182164 - Indisponibil
69 1 1 WASHER SPRING-D5 (188750) 588 RON
70 1 1 MAGAZINE (182161) 51127 RON
70 1 1 182258 - Indisponibil
71 1 1 CIRCLIP (180494) 82 RON
72 1 1 SPRING (182165) 1933 RON
73 1 1 STOP (182170) 1318 RON
74 1 1 PUSH BLOCK (182169) 1318 RON
75 1 5 MAGAZINE (182161) 51127 RON
75 1 5 SCREW (MSF4070-8) 82 RON
76 1 1 LABEL (9R212085) 588 RON
78 1 1 SCREW (180484) 82 RON
79 1 1 BUSHING (184508) 82 RON
80 1 2 SCREW (100260) 944 RON
80 1 1 SCREW (N906076) 588 RON
