BURGHIU DIAMANTAT DEWALT D21583K Type 1
[D21583K Type 1]
BURGHIU DIAMANTAT DEWALT D21583K Type 1
Click pentru a mari
Imagini suplimentare
BURGHIU DIAMANTAT DEWALT D21583K Type 1
Click pentru a mari

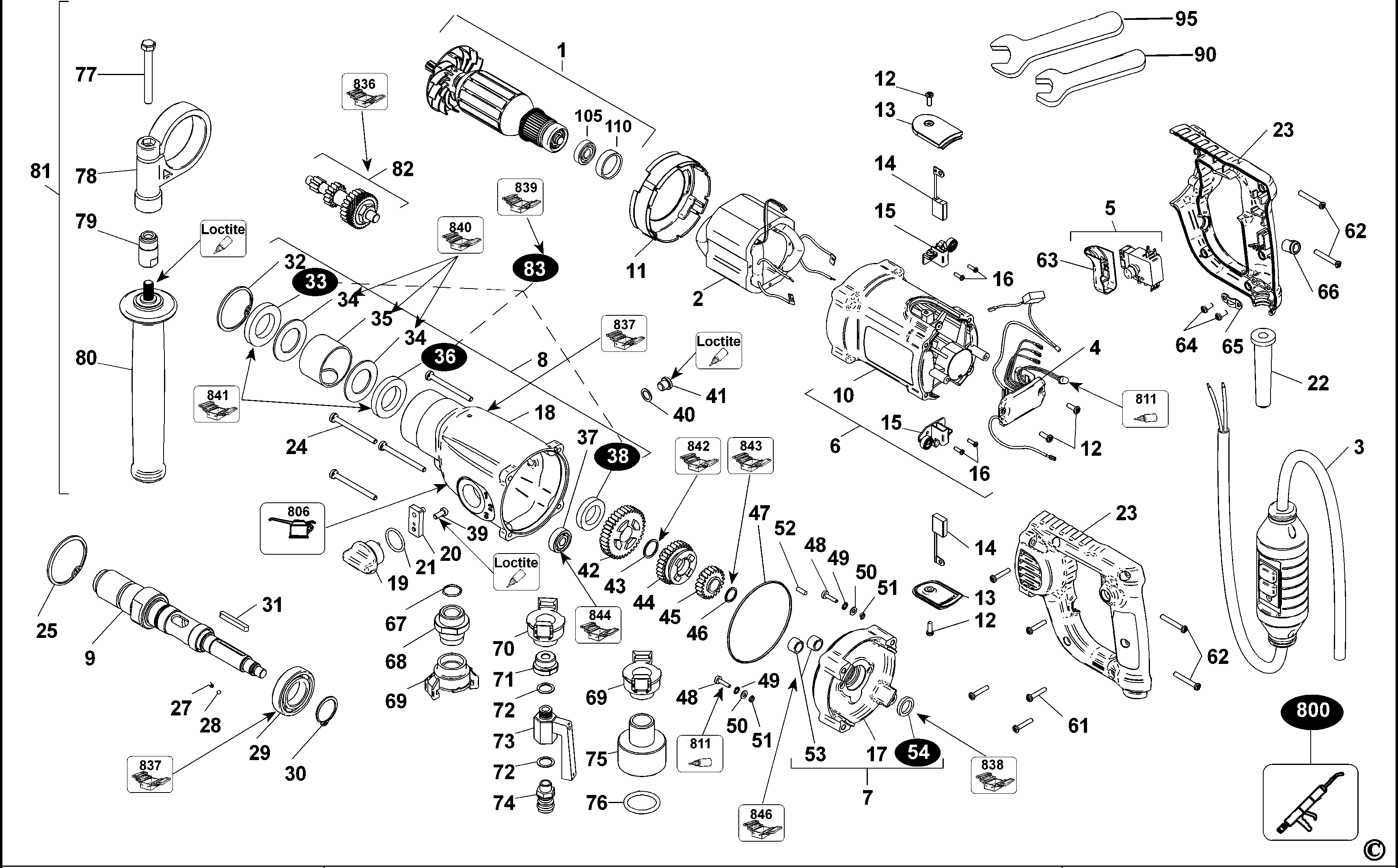

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ROTOR (1002632-00) 190812 RON
2 1 1 STATOR 230V (1002575-00) 74937 RON
3 1 1 CORDSET QS (1002741-00) 14265 RON
4 1 1 PCB - GB/QS (1002617-00) 102451 RON
5 1 1 SWITCH (492301-00) 1891 RON
6 1 1 MOTOR HOUSING SA (1002577-00) 5484 RON
7 1 1 GEARCASE COVER (1002634-00) 80865 RON
8 1 1 HOUSING GEARBOX (1002635-00) 165534 RON
9 1 1 SPINDLE (1002636-00) 102451 RON
10 1 1 HOUSING MOTOR (492277-00) 37579 RON
11 1 1 GUIDE (492283-00) 6821 RON
12 1 4 SCREW PLSTC THD FROM M4X12 T20 (330065-06) 558 RON
13 1 1 BRUSH COVER (492282-00) 1229 RON
14 1 2 BRUSH & LEAD (1002581-00) 7940 RON
15 1 2 BRUSH HOLDER (1002582-00) 7940 RON
16 1 4 SCREW PLSTC THD FORM M3X9 T10 (330065-25) 558 RON
17 1 1 GEARCASE COVER (492281-01) 57488 RON
18 1 1 HOUSING GEARBOX (492546-00) 86681 RON
19 1 1 BUTTON (1002637-00) 20467 RON
20 1 1 LEVER (1002638-00) 12861 RON
21 1 1 RING (1002639-00) 1117 RON
22 1 1 CORD PROTECTOR (1002586-00) 893 RON
23 1 1 HOUSING HANDLE (492273-00) 11519 RON
24 1 4 SCREW PLASTITE (330019-19) 781 RON
25 1 1 CIRCLIP (1002640-00) 2124 RON
27 1 1 SPRING (1002642-00) 2124 RON
28 1 1 BALL (1002643-00) 1117 RON
29 1 1 BEARING BALL (1002644-00) 29862 RON
30 1 1 CIRCLIP (1002645-00) 1117 RON
31 1 1 KEY (1002646-00) 2124 RON
32 1 1 CIRCLIP (1002647-00) 1229 RON
33 1 1 SEAL (1002648-00) 15993 RON
34 1 2 RING (1002649-00) 6821 RON
35 1 1 SPACER (1002650-00) 10512 RON
36 1 1 SEAL (1002651-00) 15993 RON
37 1 1 BEARING (1002652-00) 7940 RON
38 1 1 SEAL (1002653-00) 10512 RON
39 1 1 SCREW (1002654-00) 1229 RON
40 1 1 SEAL (1002630-00) 1117 RON
41 1 1 SCREW (1002655-00) 2124 RON
42 1 1 WHEEL (1002656-00) 5484 RON
43 1 1 CIRCLIP (1002657-00) 1229 RON
44 1 1 WHEEL (1002658-00) 70239 RON
45 1 1 WHEEL (1002659-00) 5484 RON
46 1 1 CIRCLIP (1002660-00) 1117 RON
47 1 1 RING (1002597-00) 3466 RON
48 1 2 SCREW (1002593-00) 1117 RON
49 1 2 Washer Lock (1002594-00) 558 RON
50 1 2 DISC (1002595-00) 558 RON
51 1 2 RING (1002596-00) 1117 RON
52 1 1 PIN (1002598-00) 1229 RON
53 1 2 BEARING NEEDLE (1002661-00) 7940 RON
54 1 1 SEAL (1002623-00) 7940 RON
54 1 1 SEAL (1002623-10) 4472 RON
61 1 4 SCREW PLSTC THD FORM M4X25 T20 (330065-09) 558 RON
62 1 4 SCREW PLASTIC THREAD FORM M4 * 32 T20 (330019-15) 558 RON
63 1 1 TRIGGER (492302-00) 2347 RON
64 1 2 SCEW PLSTC THD FORM M4X10 T20 (330065-05) 558 RON
65 1 1 CORD CLAMP (1002613-00) 558 RON
66 1 1 HOLDER (1002624-00) 2124 RON
67 1 1 SEAL (1002667-00) 1117 RON
68 1 1 NIPPLE (1002668-00) 12861 RON
69 1 2 CONNECTOR (1002669-00) 9282 RON
70 1 1 CONNECTOR (1002670-00) 7940 RON
71 1 1 NIPPLE (1002671-00) 5591 RON
72 1 2 SEAL (1002626-00) 1117 RON
73 1 1 VALVE (1002672-00) 12861 RON
74 1 1 CONNECTOR (1002628-00) 5591 RON
75 1 1 ADAPTOR (1002673-00) 25164 RON
76 1 1 RING (1002674-00) 1117 RON
77 1 1 SCREW (1002614-00) 2347 RON
78 1 1 CLAMP (492549-00) 15993 RON
79 1 1 ADAPTOR (492548-00) 14315 RON
80 1 1 HANDLE WEINMEYER (MOULD) (N021120) 7940 RON
80 1 1 HANDLE (479423-00) 4137 RON
80 1 1 HANDLE (326201-00) 11519 RON
81 1 1 HANDLE SIDE SA (1002675-00) 34336 RON
82 1 1 CLUTCH SA (1002676-00) 165534 RON
83 1 1 SEAL SA (1003198-00) 42277 RON
90 1 1 SPANNER 32mm (1004303-00) 5591 RON
95 1 1 SPANNER 41mm (1004304-00) 10512 RON
105 1 1 BEARING BALL (1003777-00) 7940 RON
110 1 1 SLEEVE INSULATING (1003776-00) 3018 RON
800 1 1 GREASE (1003362-00) 15993 RON
806 1 1 OIL (1003363-00) 49771 RON
811 1 1 TUBE SILICONE (1004773-44) 104961 RON
811 1 1 TUBE SILICONE (1003464-00) 25164 RON
836 1 1 SERVICE TOOL (559671-99) 30030 RON
837 1 1 SERVICE TOOL (559672-99) 32443 RON
838 1 1 SERVICE TOOL (559673-99) 538 RON
839 1 1 SERVICE TOOL (559674-99) 9654 RON
840 1 1 SERVICE TOOL (559677-99) 11916 RON
841 1 1 SERVICE TOOL (559681-99) 9956 RON
842 1 1 SERVICE TOOL (559686-99) 9048 RON
843 1 1 SERVICE TOOL (559687-99) 11096 RON
844 1 1 SERVICE TOOL (559689-99) 18541 RON
846 1 1 SERVICE TOOL (559693-99) 7721 RON
