Top » Piese de schimb » PIESE DEWALT » DW520 Type 1

BURGHIU DEWALT DW520 Type 1
[DW520 Type 1]
BURGHIU DEWALT DW520 Type 1
Click pentru a mari
Imagini suplimentare
BURGHIU DEWALT DW520 Type 1
Click pentru a mari

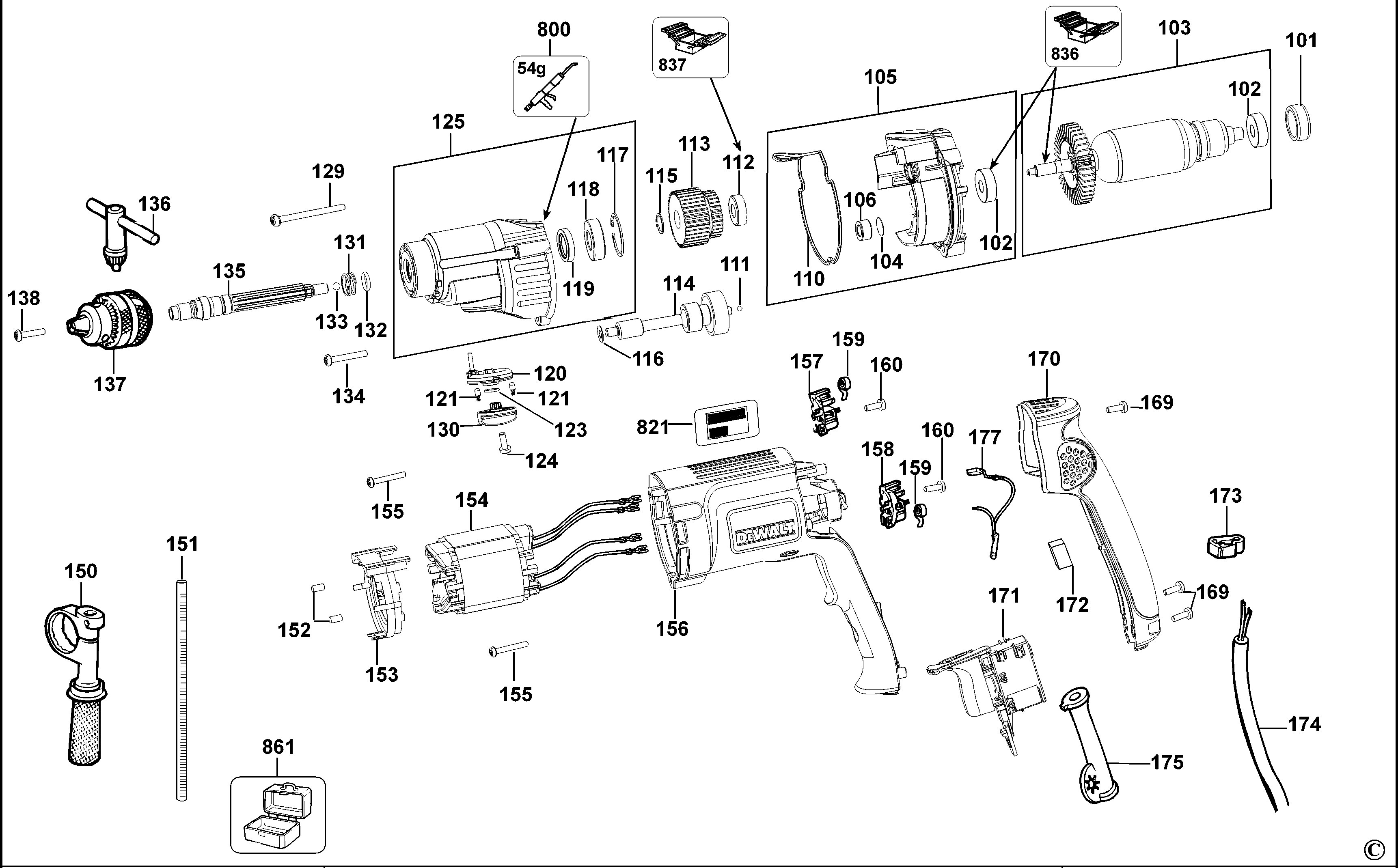

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
101 1 1 RUBBER BOOT (389824-00) 558 RON
102 1 2 BEARING BALL CW MFG (605040-08) 1452 RON
102 1 2 BEARING BALL cod vechi 330003-04 BEARING BALL (605040-06) 1452 RON
104 1 1 DISC (931284-00) 588 RON
104 1 1 THRUST PLATE (931284) 558 RON
105 1 1 SA GEARCASE (SERVICE) (494623-00) 1891 RON
106 1 1 BEARING NEEDLE (330004-20) 1117 RON
110 1 1 SEAL HOUSING (488148-00) 1117 RON
111 1 1 BALL STEEL (917725) 558 RON
112 1 1 MOVING CLUTCH (945706-00) 105 RON
113 1 1 SA OUTPUT GEAR (SERVICE) (494626-00) 10512 RON
114 1 1 SA INTERSPINDLE (SERVICE) (494627-00) 25164 RON
115 1 1 CIRCLIP (479369-00) 558 RON
116 1 1 WASHER (492481-00) 558 RON
117 1 1 CIRCLIP (488147-00) 558 RON
118 1 1 BEARING BALL CW MFG (605040-25) 2347 RON
119 1 1 SEAL GREASE (1006305-00) 781 RON
119 1 1 SEAL GREASE (939611-00) 190 RON
120 1 1 SA SPEED SELECTOR (479859-00) 10512 RON
121 1 2 INDEXING BOLT (N403227) 588 RON
121 1 2 DETENT (326467-00) 558 RON
123 1 1 323711-34 - Indisponibil
124 1 1 SCREW PLASTIC 3.5*22 (330065-22) 558 RON
125 1 1 A NOSE CASTING (SERVICE) (494629-00) 20467 RON
129 1 2 SCREW PLASTIC THREAD FORM M4 * 57 T20 (330019-30) 558 RON
130 1 1 SPEED KNOB (479865-00) 893 RON
131 1 1 SPRING (931890) 558 RON
132 1 1 323711-34 - Indisponibil
133 1 1 BALL (000903-00) 558 RON
133 1 1 903-00 - Indisponibil
134 1 1 SCREW PLASTIC THD FORM M4*38 T20 (330019-16) 558 RON
135 1 1 SA OUTPUT SPINDLE (SERVICE) (494630-00) 14315 RON
136 1 1 CHUCK KEY (330034-08) 781 RON
137 1 1 CHUCK KEYED (584925-00) 10512 RON
137 1 1 CHUCK AND KEY (5140071-68) 6688 RON
138 1 1 CHUCK SCREW 1/4 LH (490910-00) 558 RON
150 1 1 HANDLE SIDE (939794-02) 5591 RON
151 1 1 DEPTH STOP (580787-00) 893 RON
152 1 2 SMALL RUBBER (949638-02) 558 RON
153 1 1 FAN BAFFLE (176811-00) 781 RON
155 1 2 SCREW (390198-00) 558 RON
156 1 1 CASE FIELD 44MM YELLOW Cd FREE (478814-00) 4472 RON
157 1 1 BRUSH HOLDER (401878-02) 2795 RON
158 1 1 BRUSH HOLDER (401877-02) 2795 RON
159 1 2 SPRING (402759-01) 781 RON
160 1 2 SCREW PLSTC THD FROM M4X12 T20 (330065-06) 558 RON
169 1 3 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
170 1 1 COVER HANDLE (488142-00) 3466 RON
172 1 1 BUMPER SPONGE (930026-01) 781 RON
173 1 1 CORD CLAMP (402648-00) 781 RON
175 1 1 CORD PROTECTOR (401751-00) 1788 RON
800 1 1 GREASE TUBE 100ML RENOLIT PARAGON EP (870889-02) 4472 RON
836 1 1 SERVICE TOOL (559666-99) 18212 RON
837 1 1 SERVICE TOOL (559596-99) 46915 RON
861 1 1 SA KITBOX NO.3A DeWALT (MOULD) (N383875) 16689 RON
861 1 1 KITBOX 3A DEWALT (MOULD) (577646-01) 14315 RON
