Top » Piese de schimb » PIESE DEWALT » DW236 Type A1

BURGHIU DEWALT DW236 Type A1
[DW236 Type A1]
BURGHIU DEWALT DW236 Type A1
Click pentru a mari
Imagini suplimentare
BURGHIU DEWALT DW236 Type A1
Click pentru a mari

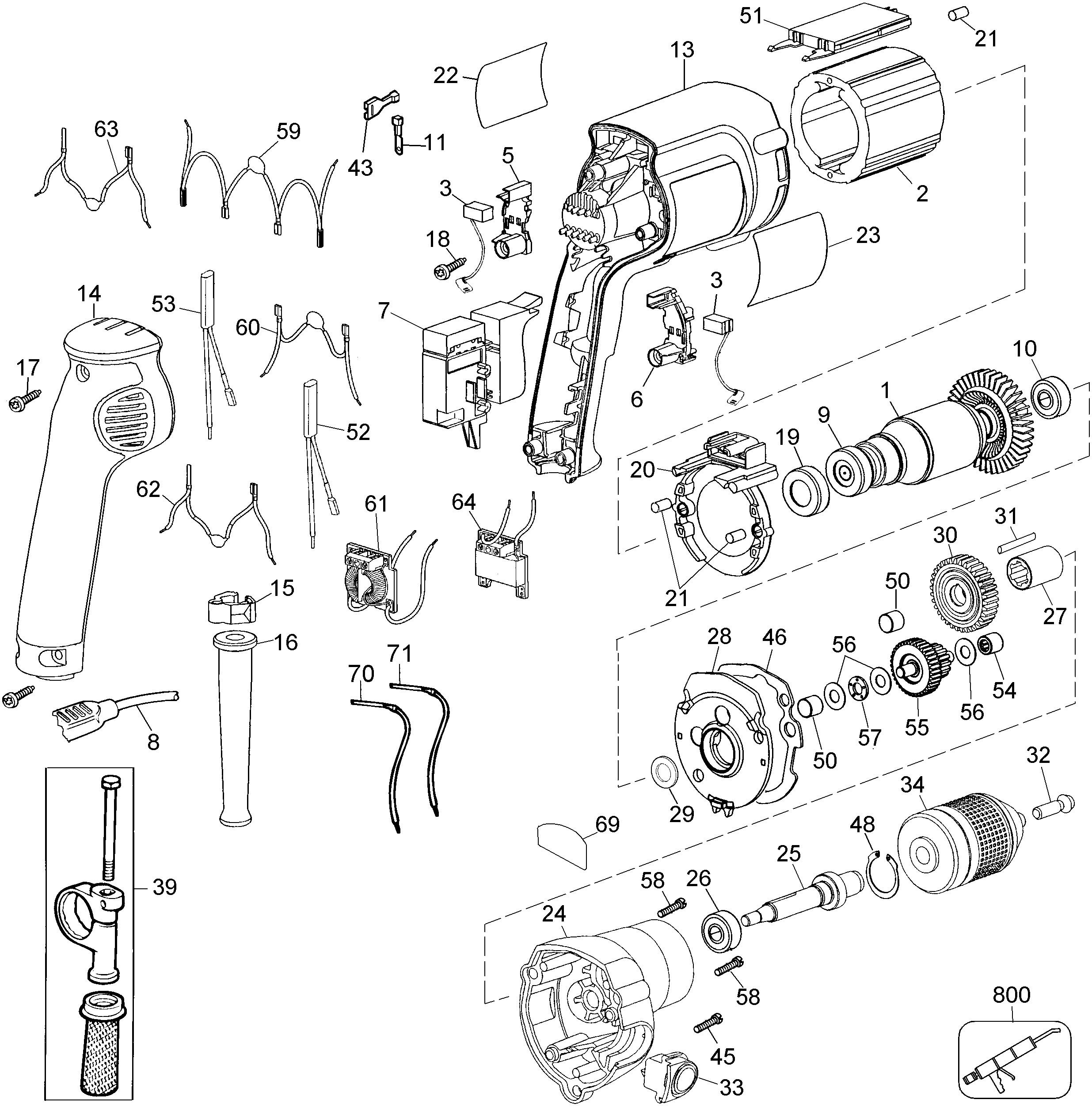

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SA ARMATURE & BEARING 230V ( SERVICE ) (579598-15) 28296 RON
1 1 1 ARMATURE (176850-01) 25164 RON
2 1 1 SA FIELD 230V PLUG ( SERVICE ) (579605-01) 1891 RON
3 1 2 BRUSH 230V CUT OFF (176949-00) 2347 RON
5 1 1 SA BRUSH HOLDER LEFT (176801-03) 7940 RON
6 1 1 SA BRUSH HOLDER RIGHT (176800-03) 6821 RON
7 1 1 SWITCH (176830-15) 17335 RON
8 1 1 SCREW (148204-00) 781 RON
8 1 1 CORD PWR SPLY EURO (330080-39) 14315 RON
9 1 1 BEARING (176950-00) 2124 RON
9 1 1 BRAND LABEL (149474-00) 781 RON
9 1 1 330003-04 - Indisponibil
9 1 1 BEARING BALL cod vechi 330003-04 BEARING BALL (605040-06) 1452 RON
10 1 1 GEARCASE (176634-00) 23598 RON
10 1 1 330003-04 - Indisponibil
10 1 1 BEARING BALL cod vechi 330003-04 BEARING BALL (605040-06) 1452 RON
11 1 2 TERMINAL (449192-00) 558 RON
13 1 1 429974-04 - Indisponibil
14 1 1 HANDLE COVER (176818-02) 10512 RON
15 1 1 176832-00 - Indisponibil
16 1 1 N542553 - Indisponibil
16 1 1 PROTECTOR CORD (330005-01) 105 RON
16 1 1 CORD PROTECTOR (N918736) 668 RON
17 1 3 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
18 1 2 SCREW (176951-00) 558 RON
19 1 1 SLEEVE (949721-03) 781 RON
19 1 1 RUBBER BOOT (389824-00) 558 RON
20 1 1 field case DW226 (176814-12) 7940 RON
20 1 1 FAN BAFFLE (176811-00) 781 RON
21 1 3 SMALL RUBBER (949638-02) 558 RON
22 1 1 LABEL IDENTITY DEWALT 34*48 (395047-00) 558 RON
23 1 1 385147-00 - Indisponibil
24 1 1 GEARCASE (176634-03) 17335 RON
24 1 1 176634-03SV - Indisponibil
24 1 1 FIELD (176848-01) 12861 RON
25 1 1 SPINDLE OUTPUT (176638-00) 7940 RON
26 1 1 BEARING BALL (330003-09) 2795 RON
26 1 1 Ball Brg (605040-20) 2182 RON
27 1 1 COVER HANDLE SLOT 40 (176900-01) 15993 RON
27 1 1 SPACER (176691-00) 781 RON
28 1 1 COVER GEARCASE (388761-00) 4137 RON
29 1 1 23813-00 - Indisponibil
29 1 1 WASHER (023813-00) 781 RON
30 1 1 GEAR OUTPUT (176639-00) 6821 RON
31 1 1 PIN (099227-05) 558 RON
31 1 1 99227-05 - Indisponibil
32 1 1 "SCREW CHUCK (1/4"" - 28 UNF - LH)" (605256-01) 781 RON
33 1 1 SA SPINDLE LOCK (176641-00) 4472 RON
34 1 1 CHUCK KEYLESS (330075-45) 25164 RON
39 1 1 N429860 - Indisponibil
39 1 1 HANDLE SIDE SA (939794-00) 5591 RON
39 1 1 SIDE HANDLE (NA292261) 6688 RON
43 1 1 CHUCK (330075-30) 3592 RON
43 1 1 CHUCK KEYLESS (330075-39) 46863 RON
43 1 1 386699-00 - Indisponibil
45 1 1 SCREW (330019-14) 558 RON
46 1 1 GASKET (176655-00) 558 RON
48 1 1 RETAINER (087692-00) 558 RON
48 1 1 87692-00 - Indisponibil
50 1 2 NEEDLE BEARING (093128-00) 1229 RON
50 1 2 93128-00 - Indisponibil
51 1 1 SA MODULE SUPPRESSION (176917-00) 12861 RON
54 1 1 BEARING DW226 (93129-00) 1117 RON
54 1 1 BEARING (330004-00) 1772 RON
55 1 1 SA PINION & GEAR (176647-00) 9282 RON
55 1 1 GEAR & PINION SA (176647-00SV) 17335 RON
56 1 3 WASHER (091817-00) 781 RON
56 1 3 91817-00 - Indisponibil
57 1 1 91644-00 - Indisponibil
57 1 1 WASHER (091644-00) 1452 RON
58 1 2 SCREW PLASTIC THD FORM M4*38 T20 (330019-16) 558 RON
59 1 1 384022-00 - Indisponibil
60 1 1 384021-00 - Indisponibil
61 1 1 SA TOROID & TERMINAL (383714-00) 11519 RON
69 1 1 387233-00 - Indisponibil
70 1 1 SA LEAD WIRE (176893-00) 105 RON
71 1 1 SA LEAD WIRE (176834-00) 893 RON
800 1 1 GREASE (286436-00) 70239 RON
