Top » Piese de schimb » PIESE DEWALT » BM19E Type 1

BURGHIU DEWALT BM19E Type 1
[BM19E Type 1]
BURGHIU DEWALT BM19E Type 1
Click pentru a mari
Imagini suplimentare
BURGHIU DEWALT BM19E Type 1
Click pentru a mari

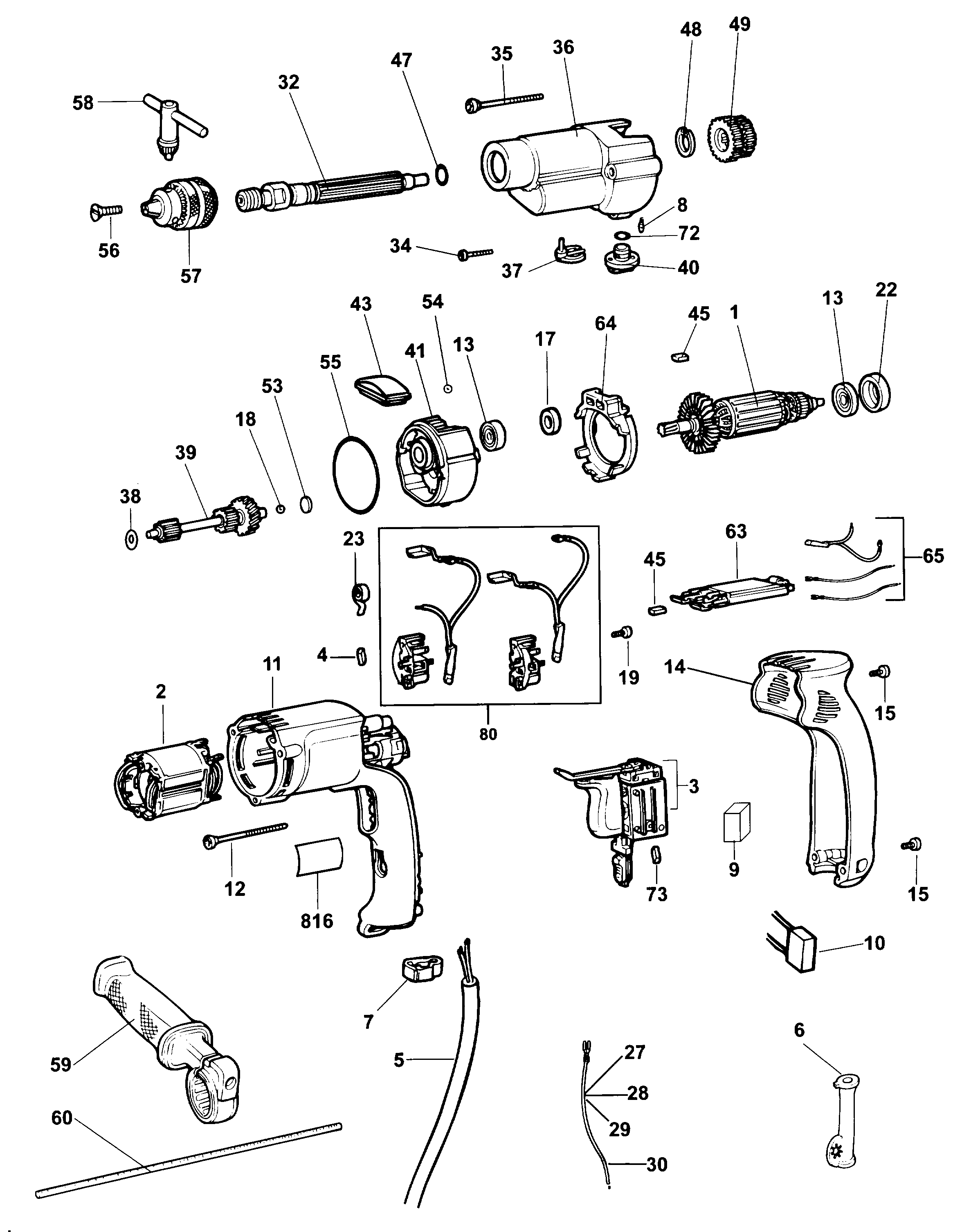

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ARMATURE 230V DW505 (387614-01) 22144 RON
1 1 1 387614-00 - Indisponibil
3 1 1 176830-03 - Indisponibil
3 1 1 SWITCH (329851-49) 17335 RON
3 1 1 SWITCH KIT ( SERVICE ) (329854-49) 20467 RON
3 1 1 386623-03 - Indisponibil
5 1 1 CORD PWR SPLY EURO (330120-86) 7940 RON
5 1 1 CORD PWR SUPPLY (330060-07) 14315 RON
5 1 1 CORD PWQR SUPPLY 115V (330061-14) 1891 RON
5 1 1 CORD PWR SPLY EURO (330080-39) 14315 RON
6 1 1 CORD PROTECTOR (401751-00) 1788 RON
7 1 1 CORD CLAMP (402647-00) 781 RON
7 1 1 CORD CLAMP (402649-00) 558 RON
8 1 2 INDEXING BOLT (N403227) 588 RON
8 1 2 DETENT (326467-00) 558 RON
9 1 1 BUMPER SPONGE (930026-01) 781 RON
10 1 1 "CAPACITOR 0 22""" (949877-01) 1117 RON
11 1 1 176814-08 - Indisponibil
12 1 2 SCREW (949650-01) 558 RON
12 1 2 SCREW (390198-00) 558 RON
13 1 2 BEARING (N110358) 2347 RON
13 1 2 BEARING (330003-05) 3466 RON
14 1 1 176900-02 - Indisponibil
15 1 3 SCREW (330065-08) 558 RON
17 1 1 402763-00 - Indisponibil
18 1 1 936840 - Indisponibil
18 1 1 BALL STEEL (936840-00) 558 RON
19 1 2 SCREW PLSTC THD FROM M4X12 T20 (330065-06) 558 RON
22 1 1 SLEEVE (949721-03) 781 RON
23 1 2 SPRING BRUSH (402759-00) 781 RON
27 1 1 SA LEADWIRE BLACK 90MM (949801-86) 893 RON
28 1 1 LEAD BLACK 90MM (949801-85) 893 RON
29 1 1 LEAD BLUE (949801-87) 893 RON
30 1 1 949801-88 - Indisponibil
32 1 1 SA PACKAGED SPINDLE (SERVICE) (581235-00) 17335 RON
32 1 1 spindle sb13ek (401744-00) 17335 RON
34 1 1 SCREW PLASTIC 4 X 30FORM 4* 30 (330065-13) 558 RON
35 1 2 "SCREW PLASTIC 4X55""" (330065-10) 558 RON
36 1 1 SA GEARCASE (SERVICE) (1006352-00) 15993 RON
36 1 1 SA GEARCASE (401842-01) 17335 RON
36 1 1 SA GEARCASE (401842-00) 20467 RON
37 1 1 SA SELECTOR FORK (401735-00) 2347 RON
38 1 1 932933 - Indisponibil
38 1 1 WASHER (932933-00) 558 RON
39 1 1 SA INTERSHAFT PACKED ( SERVICE ) (581234-00) 22144 RON
39 1 1 INTERSHAFT (401741-00) 22144 RON
40 1 1 SA LEVER (401844-00) 190 RON
40 1 1 SELECTOR FORK (628891-00) 4472 RON
40 1 1 SPEED SELECTOR (429948-00) 4137 RON
41 1 1 401843-00 - Indisponibil
43 1 1 PLATE (401839-00) 1117 RON
45 1 2 SMALL RUBBER (949638-02) 558 RON
47 1 1 O-RING (930028-00) 558 RON
48 1 1 944137 - Indisponibil
48 1 1 RING (944137-00) 781 RON
49 1 1 GEAR DOUBLE (397239-00) 15993 RON
49 1 1 GEAR (401740-00) 12861 RON
49 1 1 GEAR DOUBLE (397239-01) 4137 RON
53 1 1 DISC (931284-00) 588 RON
53 1 1 THRUST PLATE (931284) 558 RON
54 1 1 BALL (930012) 781 RON
55 1 1 RING OR (401847-00) 558 RON
56 1 1 CHUCK SCREW (945013-00) 558 RON
57 1 1 CHUCK KEYED (585189-00) 12861 RON
57 1 1 CHUCK 13MM KEYED (330033-25) 12861 RON
57 1 1 CHUCK KEYED (584925-00) 10512 RON
57 1 1 CHUCK AND KEY (5140071-68) 6688 RON
58 1 1 Drill Chuck Key (330034-07) 893 RON
59 1 1 HANDLE SIDE (939794-02) 5591 RON
59 1 1 HANDLE SIDE SA (939794-00) 5591 RON
60 1 1 940357 - Indisponibil
60 1 1 DEPTH STOP (940357-00) 893 RON
63 1 1 328649-00 - Indisponibil
64 1 1 FAN BAFFLE (176811-00) 781 RON
65 1 1 LEAD & SOCKET SA (328101-00) 2347 RON
72 1 1 O RING DW501 TYPE 2 (930727-00) 1117 RON
73 1 1 932330 - Indisponibil
80 1 1 BRUSH HOLDER (403522-00) 7940 RON
80 1 1 403522-01 - Indisponibil
80 1 1 BRUSH PAIR 230V SA (588142-00) 7940 RON
816 1 1 152529-00 - Indisponibil
