Top » Piese de schimb » PIESE DEWALT » BTIRS1200E Type 1

BTI DW311K DEWALT BTIRS1200E Type 1
[BTIRS1200E Type 1]
BTI DW311K DEWALT BTIRS1200E Type 1
Click pentru a mari
Imagini suplimentare
BTI DW311K DEWALT BTIRS1200E Type 1
Click pentru a mari

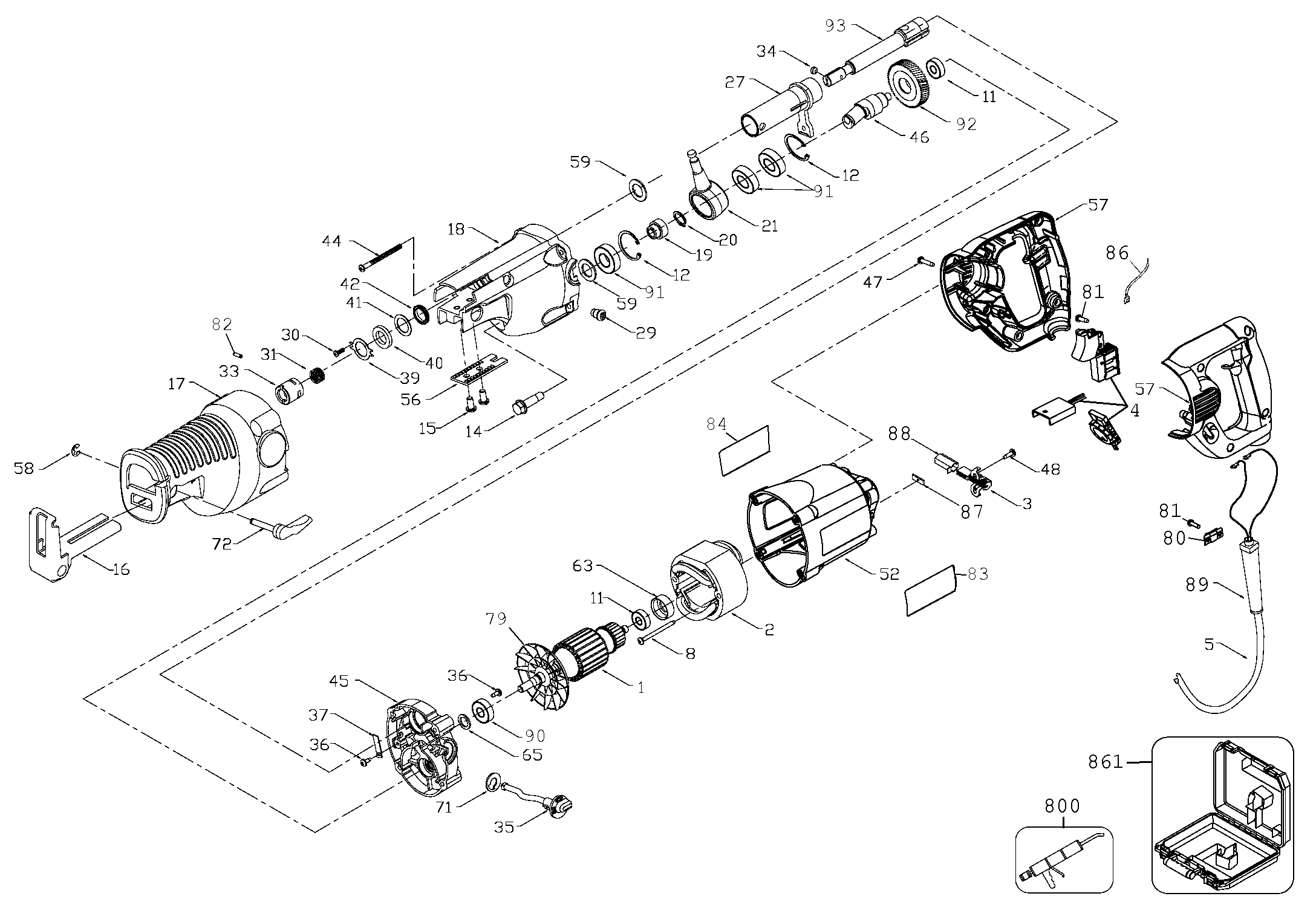

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ARMATURE 230V (A05447) 43731 RON
2 1 1 FIELD 230V (639560-00) 15993 RON
2 1 1 FIELD 230V (639560-00SV) 28296 RON
3 1 2 BRUSH SA (1pc) (874289) 2347 RON
4 1 1 SWITCH SA (N008716) 46863 RON
4 1 1 SWITCH (638985-00) 1891 RON
5 1 1 CORD PWR SPLY EURO (330080-39) 14315 RON
8 1 2 SCREW (882704) 558 RON
11 1 2 BEARING (N110358) 2347 RON
11 1 1 BEARING DW818 (390821-01 cod inlocuit cu N110359) BALL BEARING (N110359) 5591 RON
11 1 2 BEARING (330003-05) 3466 RON
11 1 2 BEARING (855284) 5591 RON
12 1 2 RING (802302) 781 RON
14 1 1 SCREW (879421) 105 RON
15 1 2 SCREW (906952) 558 RON
16 1 1 SHOE SA (911450SV) 15993 RON
16 1 1 SHOE SA (911450) 10512 RON
17 1 1 COVER (906725) 7940 RON
18 1 1 HOUSING FRONT (906701) 15993 RON
19 1 1 SPACER (879429) 781 RON
20 1 1 RING (853246) 558 RON
21 1 1 PLATE (890819) 10512 RON
27 1 1 CARRIER FEED PISTON COVER (883098) 20467 RON
29 1 2 SCREW (879408) 1452 RON
30 1 2 SCREW (882255) 558 RON
31 1 1 SPRING (648924-00) 893 RON
33 1 1 COLLAR (897774) 6821 RON
34 1 1 CLAMPING BAR (648594-00) 2124 RON
35 1 1 SELECTOR (N004096) 4137 RON
36 1 2 SCREW (882187) 558 RON
37 1 1 SPRING (847418) 558 RON
39 1 1 PLATE (879458) 781 RON
40 1 1 FELT SEAL (879457) 781 RON
41 1 1 WASHER (684931) 558 RON
42 1 1 SEAL (902998) 2347 RON
44 1 4 SCREW PLASTITE (330019-19) 781 RON
45 1 1 PLATE (906705) 7940 RON
46 1 1 883097SV - Indisponibil
46 1 1 DRIVE SHAFT BUMPER (883097) 22144 RON
47 1 9 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
48 1 4 SCREW (882703) 558 RON
52 1 1 FIELDCASE (N004070) 1891 RON
56 1 1 PLATE (906043) 1452 RON
57 1 1 HANDLE SA (N008713) 20467 RON
58 1 1 RETAINER (697965) 558 RON
59 1 2 FELT SEAL (882348) 558 RON
63 1 1 HOLDER BEARING (694432) 558 RON
65 1 1 SEAL (801852) 558 RON
71 1 1 BELT SEAL (908873) 558 RON
72 1 1 LEVER (906949) 3466 RON
72 1 1 LEVER (651021-00) 2795 RON
79 1 1 878904SV - Indisponibil
79 1 1 FAN (878904) 4137 RON
80 1 1 CORD CLAMP (450877-00) 558 RON
81 1 3 SCREW PLSTC THD FORM M3.5X13 T15 (330019-02) 558 RON
82 1 1 SPIROL PIN (638557-00) 558 RON
83 1 1 BRAND LABEL (N004036) 781 RON
84 1 1 RATING PLATE (N004037) 781 RON
86 1 1 LEAD RED (898878) 190 RON
87 1 2 INSULATOR (865321) 558 RON
88 1 2 BRUSH HOLDER (865323) 781 RON
89 1 1 N542553 - Indisponibil
89 1 1 PROTECTOR CORD (330005-01) 105 RON
89 1 1 CORD PROTECTOR (N918736) 668 RON
90 1 1 BEARING BALL (CE) (330003-17) 2795 RON
90 1 1 BEARING BALL (605040-15) 2347 RON
91 1 3 BEARING (879431) 2347 RON
92 1 1 GEAR (879401) 9282 RON
93 1 1 DRIVE SHAFT (N074353) 3592 RON
93 1 1 DRIVE SHAFT (A12592) 14315 RON
800 1 1 GREASE (875667) 39145 RON
800 1 1 GREASE (5140061-28) 34336 RON
800 1 1 GREASE (875914) 9282 RON
861 1 1 KITBOX (N003957) 26730 RON
