Top » Piese de schimb » PIESE DEWALT » BTIRS1050E Type 5

BTI DW304PK DEWALT BTIRS1050E Type 5
[BTIRS1050E Type 5]
BTI DW304PK DEWALT BTIRS1050E Type 5
Click pentru a mari
Imagini suplimentare
BTI DW304PK DEWALT BTIRS1050E Type 5
Click pentru a mari

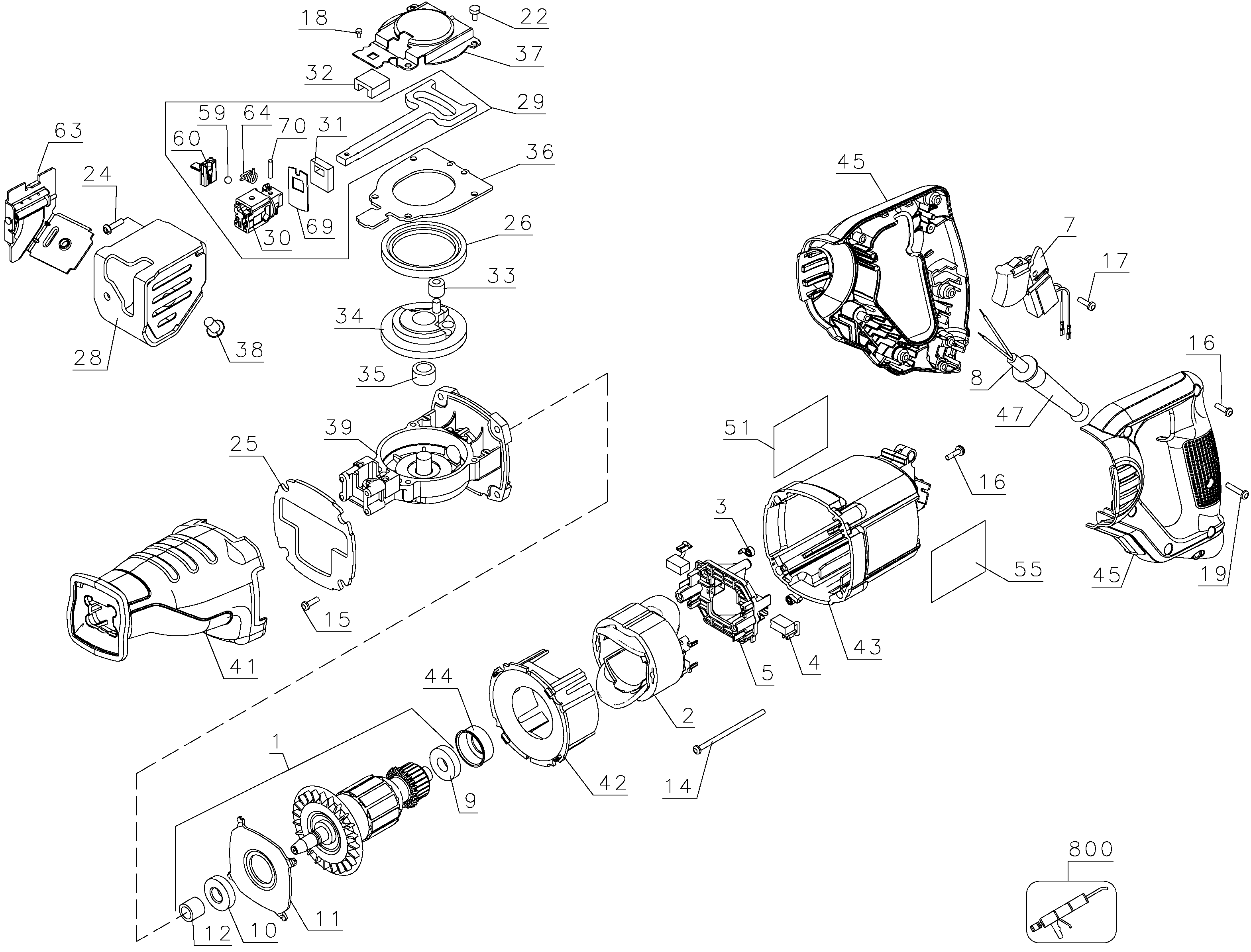

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ARMATURE SA (N408687) 28836 RON
1 1 1 NB470909 - Indisponibil
2 1 1 FIELD 230V (448719-81SV) 10512 RON
3 1 2 BRUSH SPRING DW309K (383387-00) 1229 RON
4 1 2 384719-03 - Indisponibil
4 1 2 BRUSH 230V SA ( cod vechi 384719-03 ) (N501035) 4137 RON
5 1 1 BRUSH SA (N402490) 741 RON
5 1 1 BRUSHPLATE DW309K (383597-03) 7940 RON
7 1 1 N054931SV - Indisponibil
8 1 1 CORDSET (EURO) (N053145) 9282 RON
9 1 1 BEARING (N110358) 2347 RON
9 1 1 BEARING DW818 (390821-01 cod inlocuit cu N110359) BALL BEARING (N110359) 5591 RON
9 1 1 BEARING (330003-05) 3466 RON
9 1 1 BEARING (855284) 5591 RON
10 1 1 BEARING BALL (330003-09) 2795 RON
10 1 1 Ball Brg (605040-20) 2182 RON
11 1 1 PLATE (383476-00) 1117 RON
12 1 1 BUSH (616345-00) 105 RON
14 1 1 SCREW PLASTIC THREAD FORM M4 * 50 T20 (330019-50) 558 RON
14 1 1 SCREW PLASTITE (330019-18) 558 RON
15 1 4 SCREW PLASTIC THREAD FORM M4 * 32 T20 (330019-15) 558 RON
16 1 7 SCREW PLASTITE (330019-32) 558 RON
17 1 1 Screw M3.5 X9.5 (330019-01) 558 RON
18 1 2 SCREW (158472-00) 558 RON
19 1 2 SCREW (330019-14) 558 RON
22 1 4 SCREW (144457-02) 558 RON
24 1 4 SCREW (142940-00) 558 RON
25 1 1 GASKET (146576-00) 105 RON
26 1 1 RING (N401394) 5370 RON
26 1 1 RING (616393-00) 2347 RON
28 1 1 SHOE (N192684) 4472 RON
29 1 1 SHAFT SA (N380620) 1891 RON
30 1 1 BLADE CLAMP (N389789) 10241 RON
31 1 1 FELT SEAL (609488-00) 558 RON
32 1 1 BEARING (604644-01) 3018 RON
32 1 1 BEARING (N400905) 82 RON
33 1 1 BEARING NEEDLE (385238-00) 1788 RON
34 1 1 GEAR (448503-14SV) 17335 RON
35 1 1 ROLLER BEARING (135531-00) 1452 RON
36 1 1 PLATE (N083910) 2347 RON
37 1 1 COVER PLATE (448489-03) 2124 RON
38 1 1 SCREW (099279-08) 558 RON
39 1 1 GEARCASE (616333-00SV) 15469 RON
41 1 1 COVER (N028019) 5591 RON
41 1 1 COVER (NA575106) 15469 RON
42 1 1 BAFFLE FAN (N056203) 944 RON
43 1 1 N084770 - Indisponibil
44 1 1 HOLDER BEARING (694432) 558 RON
45 1 1 HANDLE SA (N055133) 6821 RON
47 1 1 N542553 - Indisponibil
47 1 1 PROTECTOR CORD (330005-01) 105 RON
47 1 1 CORD PROTECTOR (N918736) 668 RON
51 1 1 N399172 - Indisponibil
55 1 1 N379734 - Indisponibil
59 1 1 BALL (000903-00) 558 RON
60 1 1 SLIDER (N436043) 4355 RON
60 1 1 SLIDER (N192696) 3466 RON
63 1 1 LEVER SA (N252881) 3018 RON
64 1 1 SPRING (N389778) 588 RON
69 1 1 RETAINER (608202-00) 558 RON
70 1 1 PIN NEEDLE ROLLER (330041-27) 558 RON
800 1 1 GREASE (N017298) 4825 RON
800 1 1 GREASE (429698-00) 62298 RON
