Top » Piese de schimb » PIESE DEWALT » BTIRS1050E Type 3

BTI DW304PK DEWALT BTIRS1050E Type 3
[BTIRS1050E Type 3]
BTI DW304PK DEWALT BTIRS1050E Type 3
Click pentru a mari
Imagini suplimentare
BTI DW304PK DEWALT BTIRS1050E Type 3
Click pentru a mari

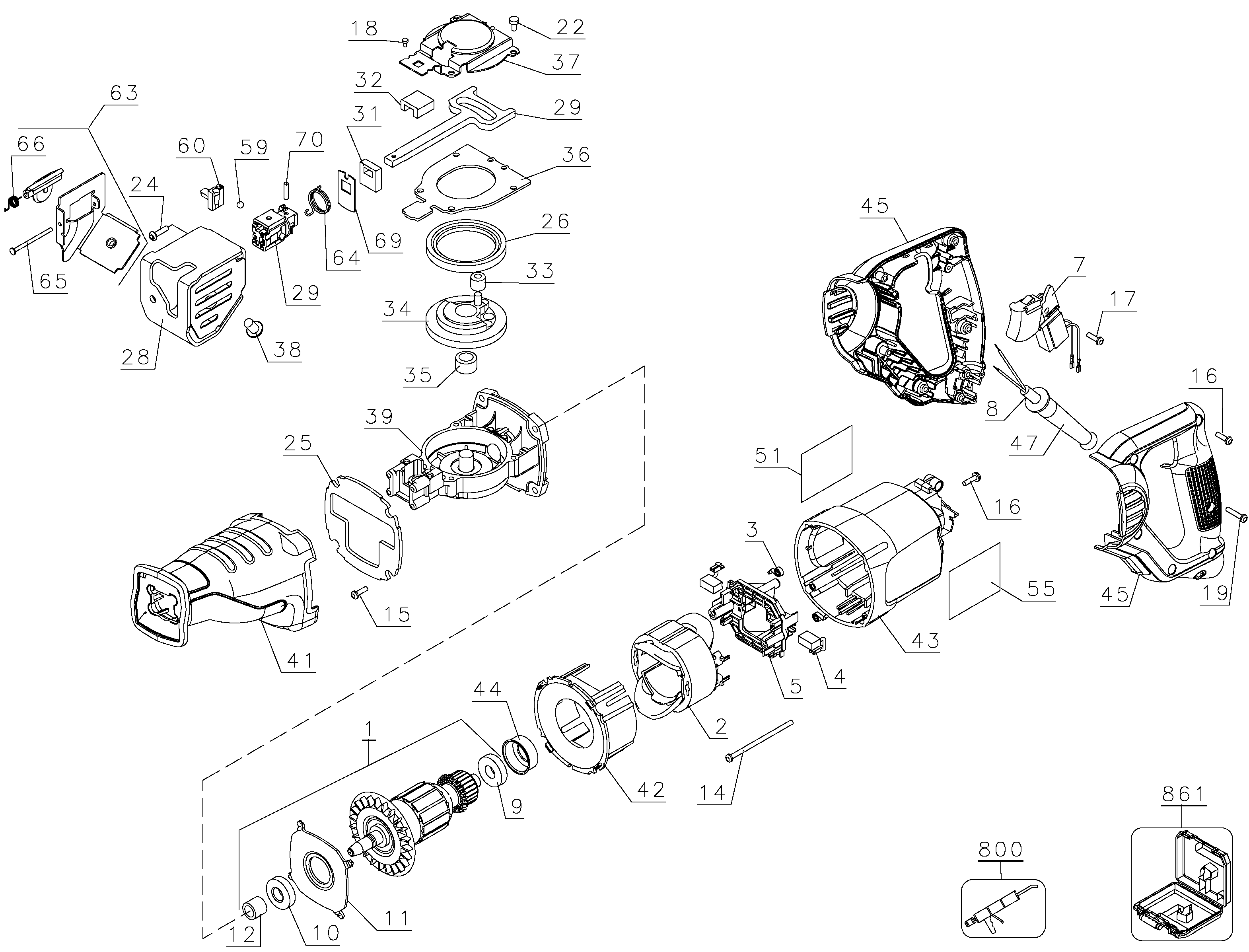

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ARMATURE SA (616355-01) 3124 RON
1 1 1 ARMATURE SA (616355-01SV) 3592 RON
1 1 1 383474-04 - Indisponibil
2 1 1 FIELD 230V (448719-81SV) 10512 RON
2 1 1 FIELD SA (448719-81) 12861 RON
3 1 2 BRUSH SPRING DW309K (383387-00) 1229 RON
4 1 2 384719-03 - Indisponibil
4 1 2 BRUSH 230V SA ( cod vechi 384719-03 ) (N501035) 4137 RON
5 1 1 BRUSH SA (N402490) 741 RON
5 1 1 BRUSHPLATE DW309K (383597-03) 7940 RON
7 1 1 N054931SV - Indisponibil
7 1 1 SWITCH SA (N054931) 32770 RON
8 1 1 CORDSET (EURO) (N053145) 9282 RON
9 1 1 BEARING BALL (330003-09) 2795 RON
9 1 1 Ball Brg (605040-20) 2182 RON
10 1 1 BEARING BALL (330003-09) 2795 RON
10 1 1 Ball Brg (605040-20) 2182 RON
11 1 1 PLATE (383476-00) 1117 RON
12 1 1 BUSH (616345-00) 105 RON
14 1 1 SCREW PLASTIC THREAD FORM M4 * 50 T20 (330019-50) 558 RON
14 1 1 SCREW PLASTITE (330019-18) 558 RON
15 1 4 SCREW PLASTIC THREAD FORM M4 * 32 T20 (330019-15) 558 RON
16 1 7 SCREW PLASTITE (330019-32) 558 RON
17 1 1 Screw M3.5 X9.5 (330019-01) 558 RON
18 1 2 SCREW (158472-00) 558 RON
19 1 2 SCREW (330019-14) 558 RON
22 1 4 SCREW (144457-02) 558 RON
24 1 4 SCREW (142940-00) 558 RON
25 1 1 GASKET (146576-00) 105 RON
26 1 1 RING (N401394) 5370 RON
26 1 1 RING (616393-00) 2347 RON
28 1 1 SHOE (616340-00) 3466 RON
28 1 1 SHAFT SA (N302139) 34336 RON
29 1 1 SHAFT SA (N064499SV) 28296 RON
29 1 1 SHAFT SA (616360-00) 20467 RON
29 1 1 SHAFT SA (N064499) 20467 RON
29 1 1 SHAFT SA (N302139) 34336 RON
31 1 1 FELT SEAL (609488-00) 558 RON
32 1 1 BEARING (604644-01) 3018 RON
32 1 1 BEARING (N400905) 82 RON
33 1 1 BEARING NEEDLE (385238-00) 1788 RON
34 1 1 GEAR (448503-14SV) 17335 RON
34 1 1 GEAR (448503-14) 15993 RON
35 1 1 ROLLER BEARING (135531-00) 1452 RON
36 1 1 PLATE (N083910) 2347 RON
36 1 1 PLATE (616394-00) 2347 RON
37 1 1 COVER PLATE (448489-03) 2124 RON
38 1 1 SCREW (099279-08) 558 RON
38 1 1 99279-08 - Indisponibil
39 1 1 GEARCASE (616333-00) 17335 RON
39 1 1 GEARCASE (616333-00SV) 15469 RON
41 1 1 COVER (N028019) 5591 RON
41 1 1 COVER (NA575106) 15469 RON
42 1 1 BAFFLE FAN DW309K (382750-01) 1788 RON
43 1 1 FIELDCASE (382747-13) 12861 RON
44 1 1 SLEEVE (137382-02) 558 RON
45 1 1 HANDLE SA (N055133) 6821 RON
47 1 1 N542553 - Indisponibil
47 1 1 PROTECTOR CORD (330005-01) 105 RON
47 1 1 CORD PROTECTOR (N918736) 668 RON
51 1 1 RATING PLATE (N054926) 893 RON
55 1 1 BRAND LABEL (N003919) 781 RON
59 1 1 BALL (000903-00) 558 RON
59 1 1 903-00 - Indisponibil
60 1 1 SLIDER (616363-00) 3466 RON
60 1 1 N128875 - Indisponibil
60 1 1 SLIDER (651886-00) 2347 RON
60 1 1 SLIDER (N092351) 5591 RON
60 1 1 SHAFT SA (N302139) 34336 RON
63 1 1 LEVER SA (N003929) 3018 RON
64 1 1 SHAFT SA (N302139) 34336 RON
64 1 1 SPRING (616343-01) 558 RON
65 1 1 SHAFT SA (N302139) 34336 RON
65 1 1 LEVER SA (616356-00) 2795 RON
65 1 1 PIN (396016-00) 558 RON
66 1 1 SHAFT SA (N302139) 34336 RON
66 1 1 LEVER SA (616356-00) 2795 RON
66 1 1 SPRING (396017-00) 190 RON
69 1 1 RETAINER (608202-00) 558 RON
70 1 1 PIN NEEDLE ROLLER (330041-27) 558 RON
800 1 1 GREASE (429698-00) 62298 RON
861 1 1 KITBOX (N003957) 26730 RON
