Top » Piese de schimb » PIESE DEWALT » BS9310----B Type 1

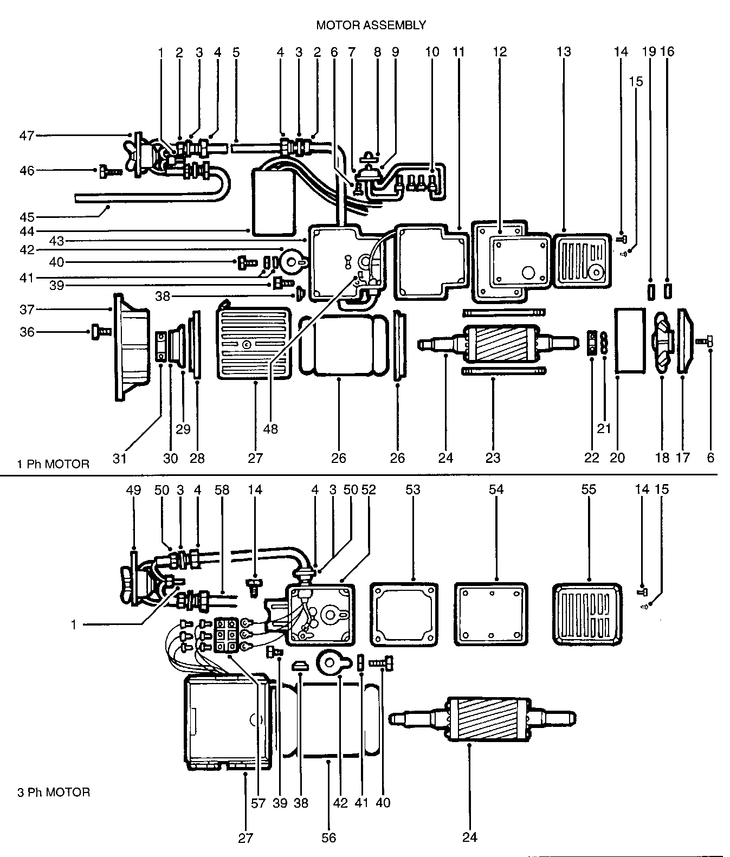

BS9310----B BANDSAW Type 1
[BS9310----B Type 1]
BS9310----B BANDSAW Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 CONNETTORE CORNER OK 67904 (860540-00) 781 RON
1 1 1 CONNETTORE CORNER OK 67904 (860540-00) 781 RON
2 1 2 RUBBER PIECE FOR SUPPLY LINE C (863877-00) 781 RON
3 1 2 000000-00 - Indisponibil
3 1 2 000000-00 - Indisponibil
4 1 2 JAM NUT FOR CABLE INLET 3/8 (949747-07) 781 RON
4 1 2 JAM NUT FOR CABLE INLET 3/8 (949747-07) 781 RON
5 1 1 000000-00 - Indisponibil
6 1 2 SCREW PAN PH/TT M.4X12UNI8112 (860094-05) 558 RON
7 1 2 WASHER SPRING CON.D4.2X10X0.6 (860074-00) 558 RON
8 1 1 GASKET FOR OVERLOAD THRM (860133-00) 1788 RON
10 1 4 000000-00 - Indisponibil
11 1 1 GASKET MOTOR BOX DW 125 (860708-00) 2124 RON
13 1 1 000000-00 - Indisponibil
14 1 4 SCREW PAN PH/TT M.4X10UNI8112 (860094-03) 558 RON
14 1 4 SCREW PAN PH/TT M.4X10UNI8112 (860094-03) 558 RON
15 1 2 RIVET THREAD.2.5X5 UNI 7346 (860060-01) 558 RON
15 1 2 RIVET THREAD.2.5X5 UNI 7346 (860060-01) 558 RON
16 1 1 SCREW SET M.5X10 UNI 5929 (860088-25) 558 RON
17 1 1 MOTOR GUARD 8001/3 (860687-03) 4137 RON
18 1 1 FAN MOTOR D84-D15 DW125-1150 (860688-00) 5591 RON
19 1 4 NUT HEX THICK M.5 UNI 5587 (860083-02) 558 RON
20 1 1 BELL REAR END MTR DW125 CAST (860701-00) 12861 RON
21 1 1 RING AXIAL LOAD 34.5X28X0.5 (860080-02) 781 RON
22 1 1 BEARING 6202 (868768-07) 4137 RON
23 1 2 000000-00 - Indisponibil
24 1 1 000000-00 - Indisponibil
24 1 1 000000-00 - Indisponibil
26 1 1 000000-00 - Indisponibil
27 1 1 000000-00 - Indisponibil
27 1 1 000000-00 - Indisponibil
28 1 2 GASKET FOR MOTOR BELL DW1150 (860718-00) 3018 RON
29 1 1 INNER MOTOR FLANGE (123302-01) 2795 RON
30 1 1 GASKET FOR INTERNAL MOTOR FLAN (863878-00) 893 RON
31 1 1 BEARING BALL ISO 6204-2RSL (868768-10) 6821 RON
36 1 4 SCREW FLAT HD M.4X25 UNI 6109 (860538-00) 558 RON
38 1 1 GASKET EARTH SCREW (944653-00) 190 RON
38 1 1 GASKET EARTH SCREW (944653-00) 190 RON
39 1 1 SCREW PAN PH/TT M.4X16UNI8112 (860094-01) 558 RON
39 1 1 SCREW PAN PH/TT M.4X16UNI8112 (860094-01) 558 RON
40 1 1 SCREW FIL.HD M.5X16 UNI6107 Z (860089-18) 558 RON
40 1 1 SCREW FIL.HD M.5X16 UNI6107 Z (860089-18) 558 RON
41 1 2 WASHER FLAT 5.3X10 UNI 6592 (860073-01) 558 RON
41 1 2 WASHER FLAT 5.3X10 UNI 6592 (860073-01) 558 RON
42 1 1 GASKET FOR CABLE DW 1150 (944652-00) 5591 RON
42 1 1 GASKET FOR CABLE DW 1150 (944652-00) 5591 RON
43 1 1 000000-00 - Indisponibil
44 1 1 000000-00 - Indisponibil
45 1 1 000000-00 - Indisponibil
48 1 1 CLAMP WIRE ZINC PLATED (944650-00) 558 RON
50 1 1 BUSHING CABLE D.10XD.14X5 (944590-00) 781 RON
51 1 1 000000-00 - Indisponibil
52 1 1 000000-00 - Indisponibil
53 1 1 GASKET MOTOR BOX DW 125 (860708-00) 2124 RON
54 1 1 000000-00 - Indisponibil
55 1 1 000000-00 - Indisponibil
56 1 1 000000-00 - Indisponibil
57 1 1 CONNECTION PLATE FOR POWER-SHO (946085-00) 4137 RON
58 1 1 000000-00 - Indisponibil
