BAZA OFFSET - TRIMMER DEWALT DW6707 Type 1A
[DW6707 Type 1A]
BAZA OFFSET - TRIMMER DEWALT DW6707 Type 1A
Click pentru a mari
Imagini suplimentare
BAZA OFFSET - TRIMMER DEWALT DW6707 Type 1A
Click pentru a mari

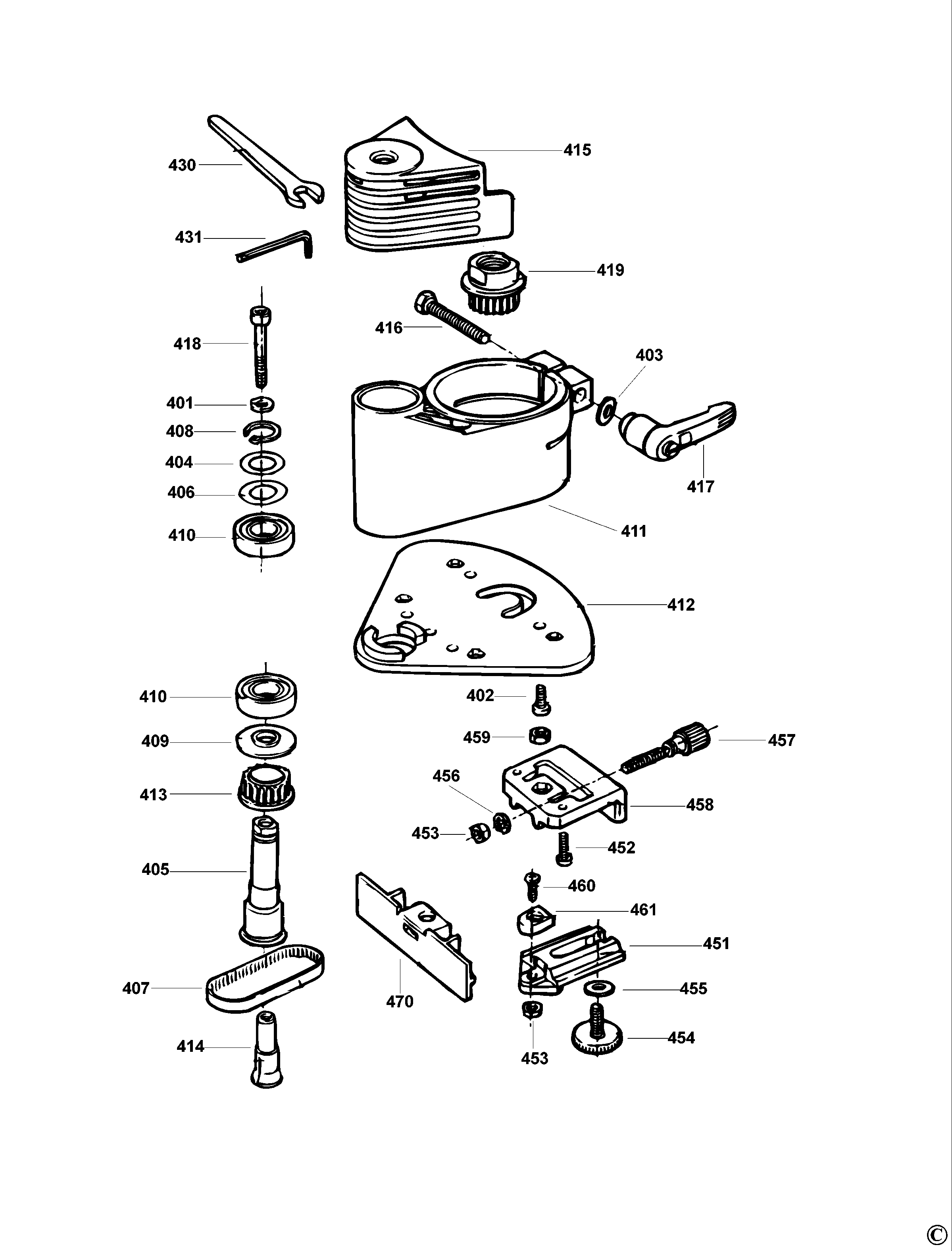

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
401 1 1 WASHER FLAT 5.3X10 UNI 6592 (860073-01) 558 RON
402 1 3 SCREW (249424-02) 558 RON
403 1 1 WASHER FLAT 6.4X12.5 UNI 6592 (720959-00) 558 RON
404 1 1 WASHER (932309-00) 558 RON
405 1 1 SHAFT (947919-00) 9282 RON
406 1 1 ANELLO COMPENSAZ.18 8X13 2X0 2 (943194-00) 781 RON
407 1 1 CINGHIA DENTATA 9281-40036 (943195-00) 4472 RON
408 1 1 RING SPRING SHAFT D12 UNI7435 (860079-03) 558 RON
409 1 1 DISTANZIALE D12X27 4X2 (944036-00) 190 RON
410 1 2 BEARING (945395-00) 4472 RON
412 1 1 BASEPLATE (947918-00) 3466 RON
413 1 1 943190-00 - Indisponibil
414 1 1 COLLET (947920-00) 5591 RON
415 1 1 COVER (947921-00) 2347 RON
416 1 1 HEXAGONAL HEAD SCREW (949702-26) 558 RON
417 1 1 LEVER (861840-01) 3018 RON
418 1 1 SCREW (949886-01) 558 RON
419 1 1 PULLEY (943191-00) 5591 RON
430 1 1 KEY 8MM (868148-00) 2124 RON
431 1 1 WRENCH (949882-01) 781 RON
451 1 1 SLITTA (943188-00) 893 RON
452 1 2 SCREW M4X15 UNI7687 (930770-00) 558 RON
453 1 2 NUT HEX MEAN M.4 UNI5588 ZINC (860083-10) 558 RON
454 1 1 SCREW M5X15 (943185-00) 2347 RON
455 1 1 WASHER FLAT 5.3X10 UNI 6592 (860073-01) 558 RON
456 1 1 RING RADIAL SPRING D4 UNI7434 (860322-03) 558 RON
457 1 1 VITE DI REGOLAZIONE (943189-00) 3466 RON
458 1 1 SUPPORTO (943187-00) 190 RON
459 1 1 NUT (930244-00) 558 RON
460 1 1 SCREW (249424-02) 558 RON
461 1 1 RULLO (943200-00) 781 RON
470 1 1 SQUADRETTA (944034-00) 781 RON
