Top » Piese de schimb » PIESE DEWALT » DCN660 Type 1

BATATOR DE CUIE DE FINISARE 16 DEWALT DCN660 Type 1
[DCN660 Type 1]
BATATOR DE CUIE DE FINISARE 16 DEWALT DCN660 Type 1
Click pentru a mari
Imagini suplimentare
BATATOR DE CUIE DE FINISARE 16 DEWALT DCN660 Type 1
Click pentru a mari
BATATOR DE CUIE DE FINISARE 16 DEWALT DCN660 Type 1
Click pentru a mari

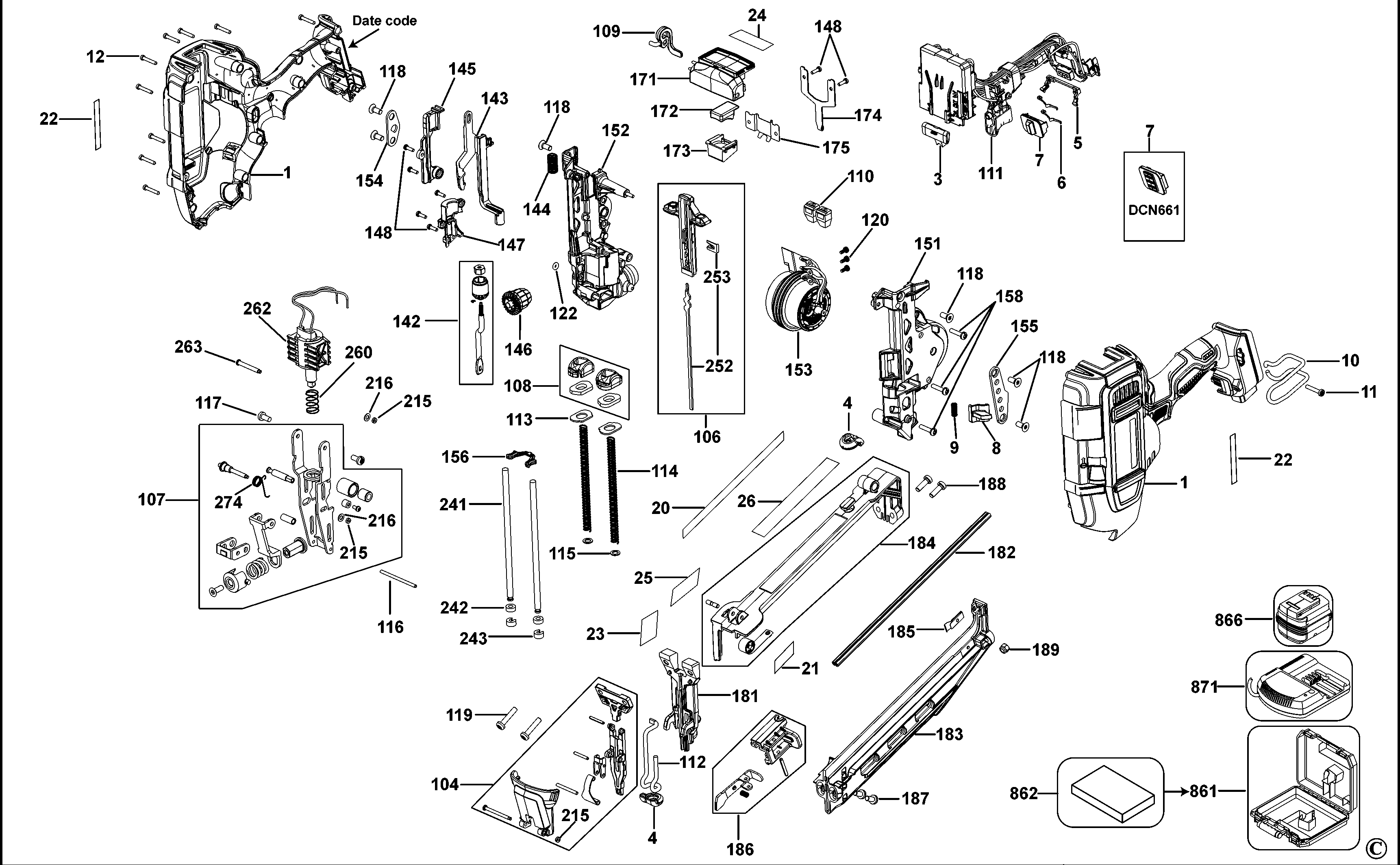

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SA PACKED HOUSINGS DCN660 (SERVICE) (N446581) 15469 RON
3 1 1 SA TRIGGER LOCK OFF (MOULD) (N411320) 1772 RON
4 1 2 SA CONTACT TRIP BOOT (N383365) 114 RON
5 1 1 LED LIGHT PIPE (N382272) 82 RON
6 1 2 DETENT SPRING (N388602) 82 RON
7 1 1 SA MODE SELECT SWITCH (MOULD) (N365060) 114 RON
8 1 1 SA STALL RELEASE BUTTON (MOULD) (N393495) 2796 RON
8 1 1 NB464908 - Indisponibil
9 1 1 SPRING (N411486) 588 RON
10 1 1 HOOK (N410943) 2182 RON
11 1 1 SCREW PLSTC THD FORM M3.5X19 T15 (330019-52) 558 RON
12 1 10 SCREW PLSTC THD FORM M3*19 T10 (330019-24) 558 RON
20 1 1 N433091 - Indisponibil
21 1 1 RELOAD LABEL DCN660 (N411618) 82 RON
22 1 2 LABEL IDENTIFICATION ARTWORK EU 18V (N407584) 82 RON
23 1 1 DO NOT OIL LABEL DCN660 (N433093) 944 RON
24 1 1 BRUSHLESS BRANDING LABEL DCN660 (N413309) 1318 RON
25 1 1 DEPTH ADJUST LABEL DCN660 (N433089) 944 RON
26 1 1 WARNING LABEL EURO DCN660 (N433090) 944 RON
104 1 1 SA PACKED DOOR FOR DCN66# (SERVICE) (N446574) 24962 RON
106 1 1 N446575 - Indisponibil
106 1 1 SERVICE PACKED SA DRIVER DCN66# TY2 (N690269) 28836 RON
107 1 1 N446580 - Indisponibil
107 1 1 SSA 15GA PTO (USTI) (N812432) 63720 RON
107 1 1 N488807 - Indisponibil
108 1 1 SA PACKED BUMPER PARTS DCN66# (SERVICE) (N446577) 6688 RON
109 1 1 N371259 - Indisponibil
109 1 1 ACTUATOR (N532613) 1318 RON
109 1 1 ACTUATOR SPRING (N055786) 1229 RON
110 1 2 CONNECTOR (650974-00) 668 RON
111 1 1 ELECTRONIC & SWITCH (N595143) 91363 RON
111 1 1 SA MODULE KIT 16G NAILER (SERVICE) (N512730) 85494 RON
112 1 1 CONTACT TRIP (N367669) 944 RON
113 1 2 BUMPER PLATE (N376891) 588 RON
114 1 1 SA PACKED SPRINGS FOR DCN66# (SERVICE) (N446578) 12361 RON
115 1 2 RETURN RAIL WASHER (N383361) 588 RON
116 1 1 DOWELL PIN 3MM (N410969) 588 RON
117 1 2 SCREW (613619-03) 558 RON
118 1 6 SCREW, FLAT HEAD, MAGFORM (N386788) 588 RON
119 1 2 SCREW, MAGFORM (N383360) 588 RON
120 1 3 SCREW (N403241) 588 RON
122 1 1 O-RING ID 2.0MM (N439188) 588 RON
142 1 1 SA PACKED INT.TRIP FOR DCN66# (SERVICE) (N446571) 12361 RON
143 1 1 N374940 - Indisponibil
143 1 1 REAR CONTACT TRIP 16GA (MOULD) (N587377) 1772 RON
144 1 1 COMPRESSION SPRING (N378115) 588 RON
145 1 1 SA REAR CONTACT TRIP COVER (MOULD) (N378116) 1630 RON
146 1 1 SA DEPTH ADJUST KNOB (MOULD) (N367663) 2556 RON
147 1 1 SA DEPTH ADJUST COVER (MOULD) (N367666) 2182 RON
148 1 7 SCREW M3 MAGFORM (N379045) 588 RON
151 1 1 LEFT FRAME PACKED (N377231) 23244 RON
152 1 1 SA RIGHT FRAME AND PINS (SERVICE) (N496177) 30769 RON
152 1 1 N406152 - Indisponibil
153 1 1 SA PACKED MOTOR FOR DCN66# (SERVICE) (N446570) 48037 RON
154 1 1 MOTOR LOCATOR RIGHT FRAME (N378063) 668 RON
155 1 1 MOTOR LOCATOR LEFT FRAME (N377923) 114 RON
156 1 1 N376266 - Indisponibil
156 1 1 RETAINER (NA181312) 944 RON
158 1 3 SCREW (613619-00) 781 RON
171 1 1 BACK BUMPER SUPPORT (N378032) 13697 RON
172 1 1 N378030 - Indisponibil
173 1 1 BACK BUMPER RETAINER (MOULD) (N378031) 2556 RON
174 1 1 SKID PAD (N367683) 82 RON
175 1 1 N394453 - Indisponibil
175 1 1 PROFILE LIFTER SPRING (N455371) 4355 RON
181 1 1 N367670 - Indisponibil
181 1 1 16GA NOSEPIECE MACHINED (N457374) 27287 RON
182 1 1 LINER (392193-01) 12861 RON
183 1 1 SA MAGAZINE LOWER (N367675) 5370 RON
184 1 1 SA PACKED UPPER MAG+CFS DCN66# (SERVICE) (N446572) 9012 RON
185 1 1 NAIL RETAINER (N383367) 588 RON
186 1 1 SA PACKED PUSHER FOR DCN66# (SERVICE) (N446573) 9012 RON
187 1 2 SCREW M5X.8X10 MACHINE (609932-00) 558 RON
188 1 2 PAN HEAD SCREW M5X0.80X15 (N383358) 588 RON
189 1 2 LOCK NUT M5X0.80 (N383359) 588 RON
215 1 3 GROMMET (391814-00) 781 RON
216 1 2 WASHER (330016-26) 558 RON
241 1 2 16GA RETURN RAIL (N439725) 2556 RON
242 1 2 SPRING BUMPER (N378014) 588 RON
243 1 2 SA SPRING RAIL CLIP (N402150) 588 RON
252 1 1 N446582 - Indisponibil
252 1 1 16GA DRIVER BLADE (N563610) 11337 RON
252 1 1 NA387403 - Indisponibil
253 1 2 CLIP (392206-00) 781 RON
260 1 1 SOLENOID COMPRESSION SPRING (N415948) 588 RON
262 1 1 SA PACKED SOLENOID DCN66# (SERVICE) (N446579) 11337 RON
263 1 1 PIN (633207-00) 781 RON
274 1 1 16GA PTO TORSION SPRING (N377077) 668 RON
861 1 1 N428571 - Indisponibil
861 1 1 KITBOX (N445186) 39318 RON
861 1 1 KITBOX (NA319923) 28836 RON
862 1 1 PAD FOAM DCN660NT (N433995) 9012 RON
866 1 2 BATTERY 18V -5.0AH -90WH (N394624) 104961 RON
866 1 2 SA DCB183-XJ SERVICE EURO (SERVICE) (N314783) 80865 RON
871 1 1 SA ZODIAC ACC.CHARGER DCB105-QW01 (SERV) (N120346) 57488 RON
871 1 1 N450536 - Indisponibil
871 1 1 CHARGER-DCB1104-QW - (4A) (NA132878) 44688 RON
871 1 1 CHARGER 10.8V - 18V (NA010209) 51127 RON
