Top » Piese de schimb » PIESE DEWALT » D51257K Type 2

BATATOR DE CUIE DE FINISARE 16 DEWALT D51257K Type 2
[D51257K Type 2]
BATATOR DE CUIE DE FINISARE 16 DEWALT D51257K Type 2
Click pentru a mari
Imagini suplimentare
BATATOR DE CUIE DE FINISARE 16 DEWALT D51257K Type 2
Click pentru a mari

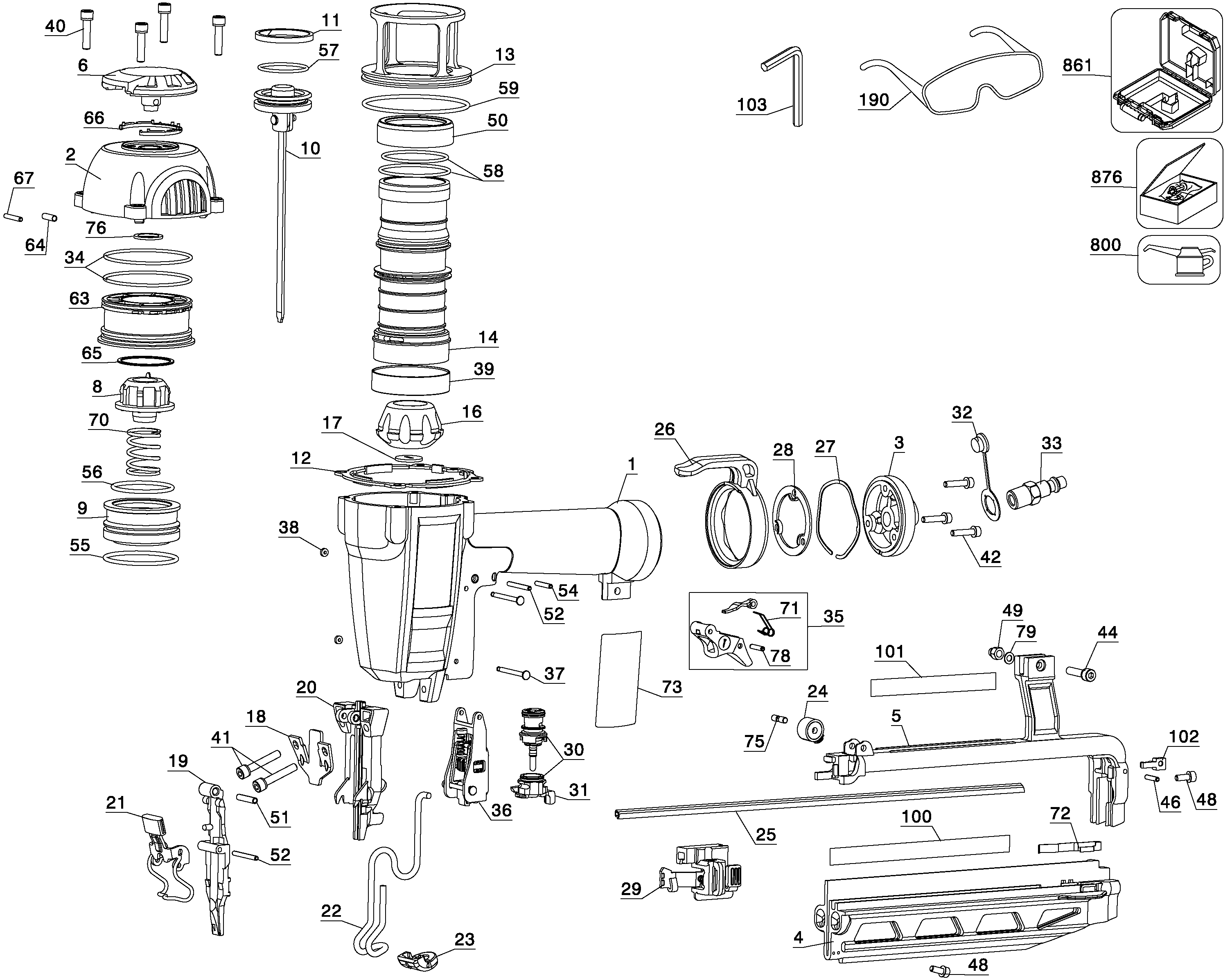

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 FRAME (645891-00) 3124 RON
2 1 1 CAP (646079-00) 12861 RON
3 1 1 END CAP (647648-00) 3018 RON
4 1 1 MAGAZINE SA (N004644) 10512 RON
5 1 1 MAGAZINE (645883-00) 5591 RON
6 1 1 DEFLECTOR (646416-00) 190 RON
8 1 1 BUMPER (651874-00) 1117 RON
9 1 1 VALVE (N006892) 3018 RON
10 1 1 647649-00 - Indisponibil
10 1 1 SA DRIVER BLADE (647649-00-K) 12361 RON
10 1 1 647649-00SV - Indisponibil
11 1 1 SEAL (647950-00) 190 RON
11 1 1 SEAL (N925911) 2182 RON
12 1 1 GASKET (647954-00) 105 RON
13 1 1 INSERT (652466-00) 1452 RON
14 1 1 CYLINDER (646281-00) 2795 RON
16 1 1 BUMPER (652499-00) 3018 RON
17 1 1 PLATE (646980-00) 781 RON
17 1 1 PLATE (N929768) 82 RON
18 1 1 DOOR (647065-00) 893 RON
19 1 1 DOOR (647073-00) 9282 RON
20 1 1 NOSE (N030812) 18568 RON
21 1 1 LATCH (653129-00) 2347 RON
22 1 1 CONTACT (644274-00) 1772 RON
23 1 1 PAD (619944-00) 2124 RON
24 1 1 SPRING (647605-00) 2124 RON
25 1 1 LINER (645872-00) 4137 RON
26 1 1 HOOK (647607-00) 1933 RON
27 1 1 SPRING (647608-00) 781 RON
28 1 1 N043700 - Indisponibil
28 1 1 GASKET (NA087191) 114 RON
29 1 1 SLIDER (647946-00) 4137 RON
29 1 1 647946-00SV - Indisponibil
30 1 1 TRIGGER (647956-00) 7940 RON
30 1 1 TRIGGER VALVE ASSY (N566148) 4355 RON
31 1 1 CAP (641011-00) 2124 RON
31 1 1 TRIGGER (647956-00) 7940 RON
31 1 1 TRIGGER VALVE ASSY (N566148) 4355 RON
32 1 1 CAP (634066-00) 558 RON
33 1 1 CONNECTOR (634059-00) 190 RON
33 1 1 S112218410 - Indisponibil
34 1 2 O RING (647850-00) 558 RON
35 1 1 TRIGGER (641188-00) 14315 RON
35 1 1 TRIGGER (641209-00) 3018 RON
35 1 1 641209-00SV - Indisponibil
35 1 1 TRIGGER ASSEMBLY (N572068) 2796 RON
36 1 1 ADJUSTER (N108466) 741 RON
37 1 2 PIN (395091-00) 1117 RON
38 1 3 GROMMET (391814-00) 781 RON
39 1 1 RING (N000558) 2347 RON
40 1 4 SCREW (608174-00) 781 RON
41 1 2 SCREW (608175-00) 105 RON
42 1 3 SCREW (608178-00) 558 RON
44 1 1 SCREW (N077883) 588 RON
46 1 1 ROLL PIN (330036-11) 558 RON
48 1 3 SCREW (608179-00) 558 RON
49 1 1 NUT (607156-00) 558 RON
50 1 1 SEAL (649695-00) 781 RON
51 1 1 ROLL PIN (330036-03) 558 RON
52 1 2 SPIROL PIN (650156-00) 558 RON
54 1 1 SPIROL PIN (650155-00) 558 RON
55 1 1 O RING (651606-00) 558 RON
56 1 1 O RING (651607-00) 558 RON
57 1 1 O RING (647951-00) 558 RON
58 1 2 O RING (652467-00) 558 RON
59 1 1 O RING (398166-00) 1117 RON
63 1 1 SLEEVE (N021192) 2124 RON
64 1 1 SLEEVE (651982-00) 781 RON
65 1 1 RING (651703-00) 781 RON
66 1 1 O RING (632495-00) 4137 RON
67 1 1 PIN (632492-00) 781 RON
70 1 1 SPRING (395379-00) 1229 RON
71 1 1 SPRING (391813-00) 781 RON
72 1 1 RETAINER (649650-00) 588 RON
73 1 2 BRAND LABEL (647941-00) 558 RON
75 1 1 PIN (N004643) 588 RON
76 1 1 WASHER (632239-00) 558 RON
78 1 1 PIN (603394-00) 558 RON
79 1 1 WASHER PLAIN (330016-01) 558 RON
100 1 1 RATING PLATE (N071918) 558 RON
101 1 1 LABEL (646425-00) 781 RON
102 1 1 LATCH (645873-00) 1229 RON
103 1 1 WRENCH (604407-02) 558 RON
103 1 1 KEY kc1440 (497570-02) 781 RON
103 1 1 HEX KEY 4MM (98000-09) 781 RON
190 1 1 SAFETY GLASSES (629042-01) 3466 RON
800 1 1 GREASE (429995-00) 39145 RON
861 1 1 652411-00 - Indisponibil
861 1 1 9R198043 - Indisponibil
876 1 1 TRIGGER (641188-00) 14315 RON
876 1 1 O RING KIT (N001065) 7940 RON
876 1 1 DRIVER (N001085) 20467 RON
876 1 1 TRIGGER (N003391) 9282 RON
876 1 1 BUMPER (N001079) 5591 RON
876 1 1 TRIGGER (N003390) 7940 RON
876 1 1 VALVE (N003392) 9282 RON
876 1 1 O RING KIT (N001065SV) 7940 RON
876 1 1 TRIGGER ASSEMBLY (N572068) 2796 RON
