Top » Piese de schimb » PIESE DEWALT » DW324K Type 2

BARREL GRIP JIG SAW DEWALT DW324K Type 2
[DW324K Type 2]
BARREL GRIP JIG SAW DEWALT DW324K Type 2
Click pentru a mari
Imagini suplimentare
BARREL GRIP JIG SAW DEWALT DW324K Type 2
Click pentru a mari

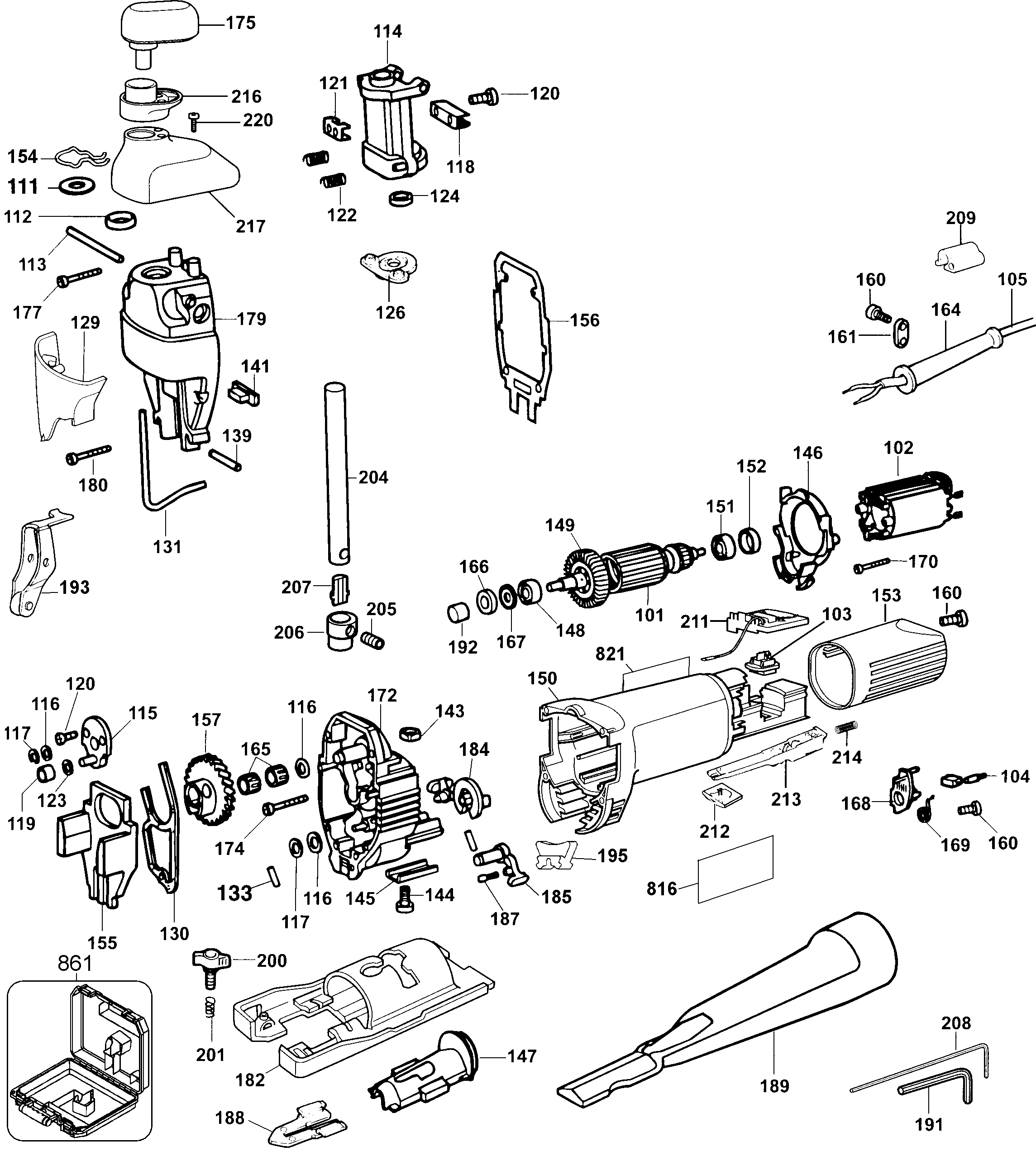

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
2 1 4 249412-12 - Indisponibil
5 1 1 GEAR (329918-00) 23598 RON
7 1 1 329987-01 - Indisponibil
26 1 1 402054-03 - Indisponibil
35 1 1 CLAMP (402120-00) 2347 RON
38 1 1 402130-00 - Indisponibil
47 1 1 SCREEN (402172-00) 1452 RON
51 1 1 BUSH (402191-00) 3018 RON
59 1 1 761175-00 - Indisponibil
59 1 1 868081-00 - Indisponibil
74 1 1 FELT (949400-01) 781 RON
101 1 1 ARMATURE DW321 TYPE 2 (387658-01) 28296 RON
102 1 1 N347359 - Indisponibil
102 1 1 FIELD 230V (402051-02) 6821 RON
103 1 1 402434-00 - Indisponibil
104 1 1 BRUSH DW321 (930151-01) 1788 RON
104 1 1 BRUSH CUT OFF (939539-01) 2124 RON
105 1 1 330080-57 - Indisponibil
105 1 1 CORD PWR SPLY EURO (330080-39) 14315 RON
111 1 1 WASHER (949876-21) 558 RON
112 1 1 RUBBER (402154-00) 558 RON
113 1 1 PIN (402105-00) 1452 RON
114 1 1 402153-00 - Indisponibil
115 1 1 ECCENTRIC SA (402161-00SV) 4472 RON
115 1 1 ECCENTRIC SA (402161-00) 5031 RON
116 1 3 WASHER (932302-00) 558 RON
117 1 2 CIRCLIP (949728-04) 558 RON
118 1 1 YOKE (402118-00) 4472 RON
119 1 1 BUSH (402155-00) 3466 RON
120 1 4 SCREW.SPECIAL (603215-00) 558 RON
121 1 1 CLAMP (399146-00) 1117 RON
122 1 2 933524-00 - Indisponibil
123 1 1 WASHER (949876-20) 558 RON
124 1 1 FELT (949400-00) 558 RON
126 1 1 SEAL SA (402177-00) 3466 RON
129 1 1 SCREEN (389599-00) 2124 RON
130 1 1 CAM (402097-00) 2347 RON
131 1 2 GUARD (402116-00) 558 RON
133 1 1 PIN (330041-08) 558 RON
139 1 1 PIN ROLLER (330041-29) 558 RON
141 1 1 RUBBER (402151-00) 558 RON
143 1 1 NUT SQUARE MEAN M.6 UNI 5597 (860310-00) 105 RON
144 1 1 390908-00 - Indisponibil
144 1 1 SCREW (931976-00) 105 RON
145 1 1 PLATE (402652-00) 893 RON
146 1 1 BAFFLE DW321 TYPE 2 (388968-01) 190 RON
146 1 1 429909-00 - Indisponibil
147 1 1 ADAPTOR (402176-00) 1788 RON
148 1 1 BEARING (330003-59) 5031 RON
149 1 1 176838-00 - Indisponibil
150 1 1 402429-03 - Indisponibil
151 1 1 BEARING BALL (330003-56) 4137 RON
152 1 1 CUP (930029-00) 558 RON
154 1 1 SPRING (402111-00) 1117 RON
155 1 1 COUNTERLFLIGHT (402098-00) 5591 RON
156 1 1 GASKET (402112-00) 781 RON
157 1 1 GEAR SA (611147-00) 15993 RON
157 1 1 GEAR SA (5140005-08) 15993 RON
160 1 3 SCREW (330065-07) 558 RON
161 1 1 CLAMP CORD (935616-00) 558 RON
164 1 1 N542553 - Indisponibil
164 1 1 PROTECTOR CORD (330005-01) 105 RON
164 1 1 CORD PROTECTOR (N918736) 668 RON
165 1 2 BEARING (402091-00) 2795 RON
165 1 2 GEAR SA (611147-00) 15993 RON
166 1 1 FELT (949400-03) 558 RON
167 1 1 COVER (402125-00) 558 RON
168 1 1 BRUSH HOLDER (944585-00) 1229 RON
168 1 1 BRUSH HOLDER SA (949880-05) 1117 RON
169 1 1 BRUSH SPRING (930090-00) 558 RON
170 1 4 SCREW PLSTC THD FORM M3.5X13 T15 (330019-02) 558 RON
172 1 1 GEARCASE SA DW321 TYPE 2 (387850-00) 23598 RON
174 1 2 SCREW (930079-01) 558 RON
177 1 2 SCREW METAL THREAD FORM M4 * 30 T20 (330045-09) 558 RON
179 1 1 389870-03 - Indisponibil
180 1 2 SCREW (930082-01) 558 RON
182 1 1 388445-00 - Indisponibil
184 1 1 329979-01 - Indisponibil
184 1 1 429909-00 - Indisponibil
185 1 1 329977-00 - Indisponibil
187 1 2 DETENT (326467-00) 558 RON
188 1 1 GUIDE BLADE (402140-00) 893 RON
189 1 1 TUBE (402138-00) 1452 RON
191 1 1 WRENCH HEX 5 UNI 6753 (930574-00) 781 RON
192 1 1 607973-00 - Indisponibil
193 1 1 SUPPORT SA (388577-00) 7940 RON
195 1 1 SUPPORT DW321 TYPE 2 (388911-00) 1229 RON
200 1 1 SCREW WING M6*17 BLACK (326573-01) 781 RON
201 1 1 SPRING (868082-00) 558 RON
204 1 1 402656-00 - Indisponibil
205 1 1 402656-00 - Indisponibil
206 1 1 402656-00 - Indisponibil
207 1 1 402656-00 - Indisponibil
208 1 1 949882-05 - Indisponibil
209 1 1 403192-00 - Indisponibil
211 1 1 402187-03 - Indisponibil
212 1 1 BUTTON (402433-01) 1117 RON
213 1 1 402432-00 - Indisponibil
214 1 1 SPRING D.6-0 75 (943051-00) 558 RON
216 1 1 402131-00 - Indisponibil
217 1 1 402128-03 - Indisponibil
220 1 2 SCREW.TEMP (330045-05) 558 RON
816 1 1 Logo Label DW801 (946194-00) 781 RON
821 1 1 000000-00 - Indisponibil
861 1 1 393455-00 - Indisponibil
