ASPIRAT UMED USCAT DEWALT DCV584L Type 12
[DCV584L Type 12]
ASPIRAT UMED USCAT DEWALT DCV584L Type 12
Click pentru a mari
Imagini suplimentare
ASPIRAT UMED USCAT DEWALT DCV584L Type 12
Click pentru a mari
ASPIRAT UMED USCAT DEWALT DCV584L Type 12
Click pentru a mari

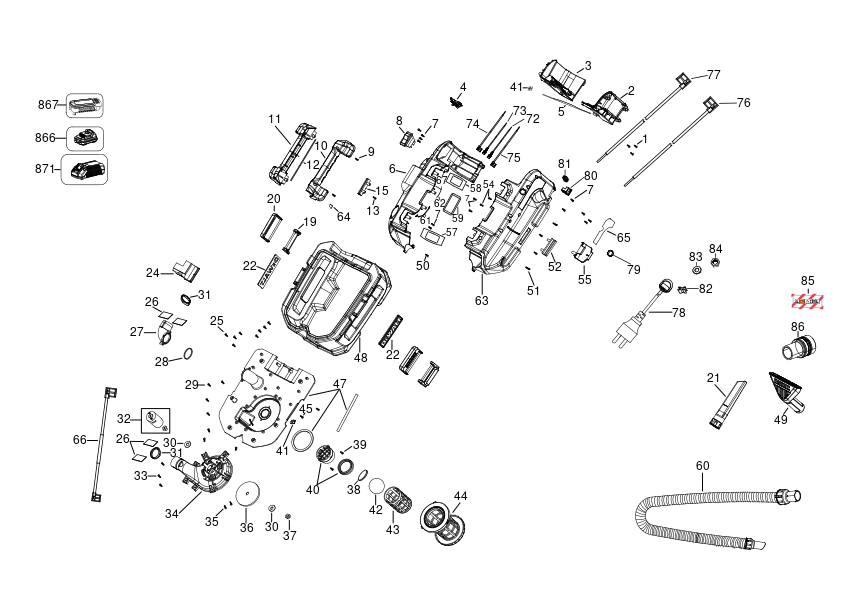

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 3 SCREW (1004693-76) 558 RON
2 1 1 HOUSING LH (1004693-77) 2795 RON
3 1 1 HOUSING RH (1004693-78) 2795 RON
4 1 1 TERMINAL BLOCK (5140128-32) 2124 RON
5 1 1 SEAL (1004694-33) 82 RON
6 1 1 CLAMSHELL RH (5140128-34) 15993 RON
7 1 19 SCREW (5140128-35) 781 RON
8 1 1 SWITCH (1004783-80) 4827 RON
9 1 5 SCREW (5140128-36) 558 RON
10 1 1 HANDLE LH (5140136-86) 3466 RON
11 1 1 HANDLE RH (5140136-87) 3466 RON
12 1 2 SEAL (1004694-34) 588 RON
13 1 4 SCREW (5140128-35) 781 RON
15 1 1 INSERT (5170063-13) 114 RON
19 1 2 LATCH (5140128-40) 1788 RON
20 1 2 LATCH (5140128-41) 1452 RON
21 1 1 TOOL CREVICE (N195974) 190 RON
22 1 2 BRAND LABEL (5140128-43) 2347 RON
24 1 1 PCB SA (1004782-60) 99395 RON
25 1 9 SCREW (1004783-90) 588 RON
26 1 1 SEAL (1004694-43) 2556 RON
27 1 1 DEFLECTOR (5140128-45) 1772 RON
28 1 1 O RING (5140128-46) 781 RON
29 1 6 000000-04 - Indisponibil
30 1 2 WASHER (5140128-47) 558 RON
31 1 2 SEAL (1004694-35) 668 RON
32 1 1 MOTOR SA (1004783-81) 18568 RON
33 1 7 SCREW (5140128-49) 893 RON
34 1 1 HOLDER (5140136-90) 4472 RON
35 1 2 SCREW (5140128-51) 558 RON
36 1 1 FAN (1004694-02) 2347 RON
37 1 1 NUT (1004694-03) 558 RON
38 1 1 FILTER (1004694-36) 588 RON
39 1 2 SCREW (5140128-53) 558 RON
40 1 1 SUPPORT SA (1004694-04) 2124 RON
41 1 2 HOLDER (1004694-37) 944 RON
42 1 1 FLOAT (5140128-55) 3466 RON
43 1 1 CAGE (5140128-56) 190 RON
44 1 1 FILTER SA (N199372) 22144 RON
45 1 2 SCREW (5140128-58) 558 RON
47 1 1 BASE SA (5140136-92) 15993 RON
48 1 1 TANK (5140128-60) 29862 RON
49 1 1 NOZZLE (N195953) 2347 RON
50 1 5 SCREW (5140128-62) 781 RON
51 1 2 SCREW (1004783-91) 588 RON
52 1 1 INSERT (5170063-14) 944 RON
54 1 2 SCREW (1004694-16) 781 RON
55 1 1 CLIP (5140128-64) 105 RON
57 1 2 SEAL (1004694-38) 588 RON
58 1 2 SEAL (1004694-39) 82 RON
59 1 1 SEAL (1004694-40) 588 RON
60 1 1 HOSE SA (N467290) 21676 RON
61 1 1 SEAL (1004696-54) 588 RON
62 1 1 SEAL (1004696-55) 588 RON
63 1 1 CLAMSHELL LH (1004696-57) 12361 RON
64 1 1 LABEL (N244354) 781 RON
65 1 1 RATING LABEL (NA236285) 1630 RON
66 1 1 LEAD SA (1004783-85) 114 RON
67 1 1 SEAL (1004696-56) 588 RON
72 1 1 LEADWIRE (1004694-20) 105 RON
73 1 1 LEADWIRE (1004694-21) 105 RON
74 1 1 LEADWIRE (1004783-86) 1772 RON
75 1 1 LEADWIRE (1004783-87) 1630 RON
76 1 1 LEAD (1004783-88) 2182 RON
77 1 1 LEAD (1004783-89) 2182 RON
78 1 1 CORDSET (EURO) (1004694-27) 6821 RON
79 1 1 BUSHING (1004696-58) 588 RON
80 1 1 000000-04 - Indisponibil
81 1 1 PROTECTOR (1004694-41) 944 RON
82 1 1 CORD CLAMP (1004694-42) 588 RON
83 1 1 SHIM (1004696-59) 668 RON
84 1 1 NUT (1004696-60) 668 RON
85 1 1 LABEL (N472467) 114 RON
86 1 1 ADAPTOR (N070905) 5370 RON
866 1 1 BATTERY 3 X18V-6.0AH-108WH (N473851) 148269 RON
866 1 1 BATTERY 18V -5.0AH -90WH (N394624) 104961 RON
867 1 1 SAFETY CAP (N462141) 5370 RON
871 1 1 CHARGER QW (N473860) 73079 RON
