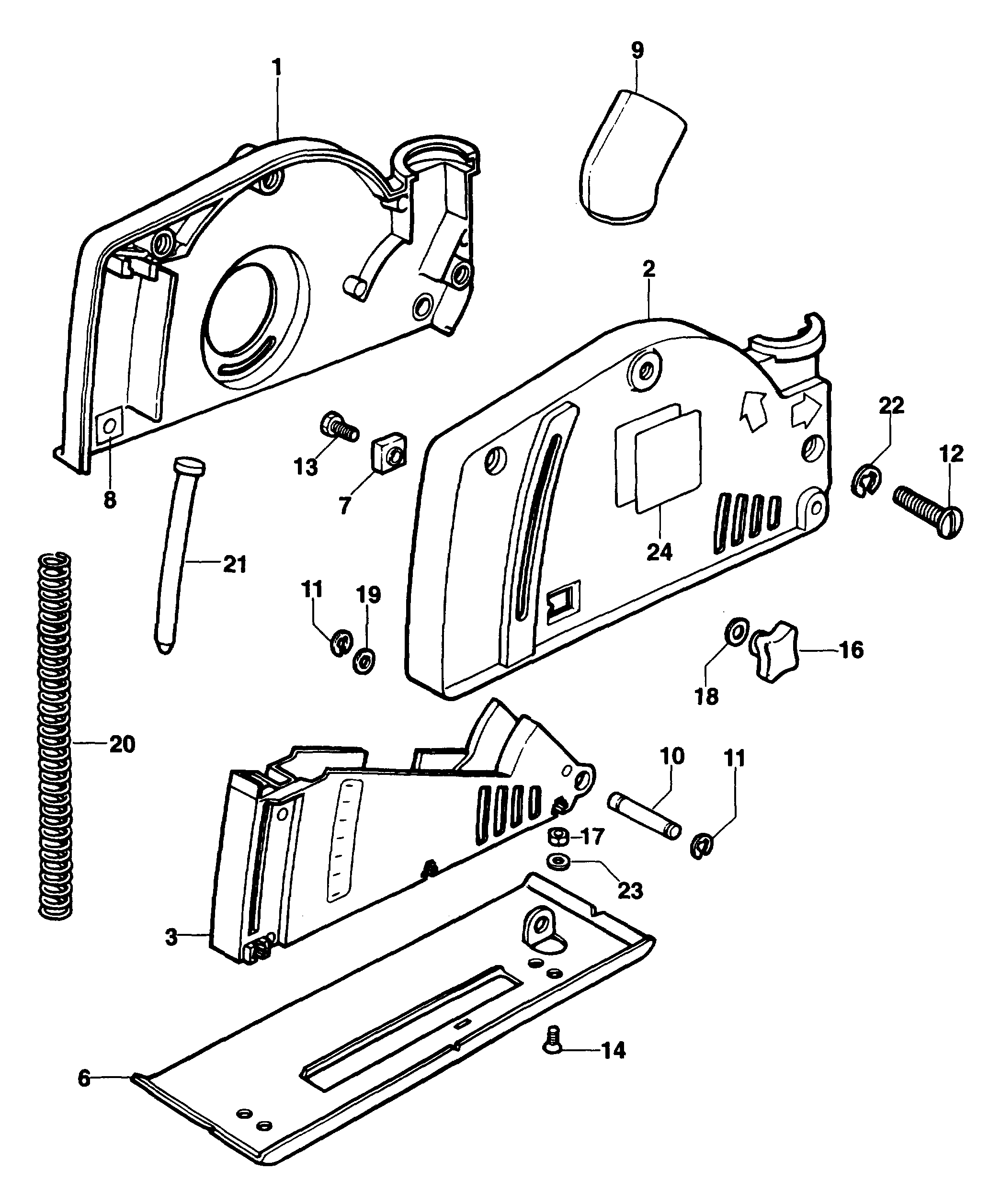

APARATOARE DEWALT DE8501 Type 1
[DE8501 Type 1]

Imagini suplimentare

Click pentru a mari

LISTA DE COMPONENTE:

Numar	Versiune	Buc. in schema	Denumire	Pret/buc (Tva inclus)	Cumpara
1	1	1	HOUSING (744790)	221⁴⁴ RON
2	1	1	744564	-	Indisponibil
3	1	1	GUARD (744114)	359² RON
6	1	1	BASEPLATE (743765)	115¹⁹ RON
7	1	1	STOP (743803)	19⁰ RON
8	1	2	SPACER (743839)	8⁹³ RON
9	1	1	NOZZLE (743758)	30¹⁸ RON
10	1	1	AXLE (743757)	10⁵ RON
11	1	2	CIRCLIP (743696)	5⁵⁸ RON
12	1	2	SCREW (743953)	5⁵⁸ RON
13	1	1	SCREW (725502)	5⁵⁸ RON
14	1	5	SCREW (743847)	5⁵⁸ RON
16	1	1	KNOB SA (744324)	21²⁴ RON
17	1	5	NUT (725123)	5⁵⁸ RON
18	1	1	WASHER (725342)	5⁵⁸ RON
19	1	1	WASHER (911532)	5⁵⁸ RON
20	1	1	SPRING (743951)	12²⁹ RON
21	1	1	GUIDE (743855)	30¹⁸ RON
22	1	2	CIRCLIP (744377)	5⁵⁸ RON
23	1	5	WASHER (725269)	5⁵⁸ RON
24	1	1	LABEL (744569)	23⁴⁷ RON
