Top » Piese de schimb » PIESE DEWALT » DC305KL Type 1

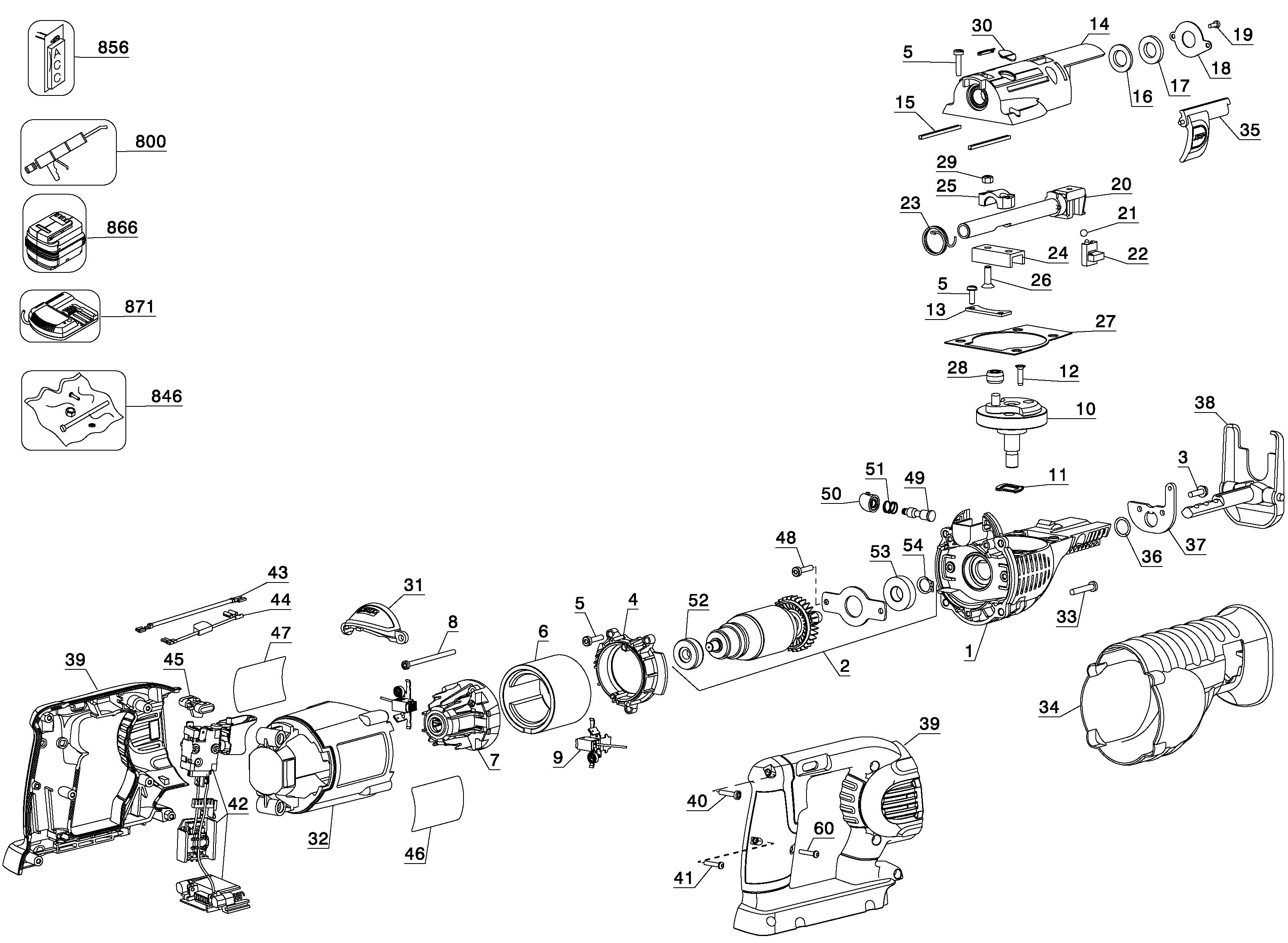

36V Reciprocating Saw DEWALT DC305KL Type 1
[DC305KL Type 1]
36V Reciprocating Saw DEWALT DC305KL Type 1
Click pentru a mari
Imagini suplimentare
36V Reciprocating Saw DEWALT DC305KL Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 GEARCASE SA (613138-00) 22144 RON
1 1 1 GEARCASE SA (613138-00SV) 26730 RON
2 1 1 ARMATURE SA (629923-00SV) 34336 RON
2 1 1 ARMATURE SA (629923-00) 29862 RON
3 1 2 SCREW (142940-00) 558 RON
4 1 1 BAFFLE FAN (613137-00) 2124 RON
5 1 9 SCREW (613619-00) 781 RON
6 1 1 MAGNET (611202-00SV) 9282 RON
6 1 1 SA MAGNET RING (611202-00) 9282 RON
7 1 1 SUPPORT REAR BEARING (610107-00) 2124 RON
7 1 1 SUPPORT BEARING (N171820) 2124 RON
8 1 2 SCREW PLASTIC THD FORM M3.5X65 T15 (330019-25) 558 RON
9 1 2 BRUSH SA (610126-00) 2795 RON
10 1 1 GEAR & SPINDLE (615940-00SV) 3124 RON
10 1 1 GEAR & SPINDLE SA (615940-00) 22144 RON
11 1 1 WASHER SPECIAL (619618-00) 893 RON
12 1 3 SCREW (622484-00) 558 RON
13 1 1 SUPPORT PLATE (621173-00) 558 RON
14 1 1 GEARCASE COVER (N027851) 15993 RON
14 1 1 GEARCASE COVER (N027851SV) 9282 RON
14 1 1 GEARCASE COVER (618612-00) 7940 RON
15 1 2 STRIP (621979-00) 558 RON
16 1 1 SEAL (618733-00) 105 RON
17 1 1 FELT SEAL (618477-00) 781 RON
18 1 1 COVERPLATE (N020720) 781 RON
18 1 1 COVERPLATE (618479-00) 781 RON
19 1 1 Screw Taptite (330045-43) 558 RON
20 1 1 SHAFT SA (629270-00) 29862 RON
20 1 1 SHAFT SA (N026647) 25164 RON
21 1 1 BALL (000903-00) 558 RON
21 1 1 903-00 - Indisponibil
22 1 1 SLIDER (622647-00) 3018 RON
23 1 1 SPRING TORSION (622659-00) 781 RON
24 1 1 YOKE (658115-00) 3018 RON
24 1 1 YOKE (615946-00) 4137 RON
25 1 1 Saddle (617000-00) 2124 RON
26 1 2 SCREW (622486-00) 558 RON
27 1 1 GASKET (617389-00) 781 RON
27 1 1 GASKET (N063272) 781 RON
28 1 1 BEARING (621507-00) 5031 RON
28 1 1 647808-00 - Indisponibil
28 1 1 BEARING (N021857) 3466 RON
29 1 2 LOCK NUT (622485-00) 558 RON
30 1 2 COVER (621927-00) 558 RON
31 1 1 INSERT (630958-00) 1452 RON
32 1 1 HOUSING MOTOR (629919-00) 5031 RON
33 1 4 SCREW (330019-45) 558 RON
34 1 1 BOOT (617390-00) 5591 RON
34 1 1 BOOT (N084697) 5591 RON
35 1 1 LEVER SA (631014-00) 4137 RON
35 1 1 LEVER SA (631014-00SV) 3466 RON
36 1 1 50049-00 - Indisponibil
37 1 1 BRACKET (617008-00) 105 RON
38 1 1 SHOE SA (623511-01) 29862 RON
39 1 1 CLAMSHELL SET (629922-00) 12861 RON
39 1 1 CLAMSHELL SET (648208-00) 14315 RON
40 1 5 SCREW PLASTIC THREAD FORM M3.5 * 19 T1 (330019-04) 558 RON
41 1 1 SCREW PLASTITE (682211-00) 781 RON
42 1 1 SWITCH SA (N309759) 46863 RON
42 1 1 SWITCH SA (639388-00) 45297 RON
42 1 1 SWITCH SA (628930-00) 45297 RON
42 1 1 SWITCH SA (628930-01SV) 51337 RON
42 1 1 SWITCH (628930-01) 42277 RON
43 1 1 LEAD BROWN (634813-00) 1229 RON
44 1 1 FUSE & HOLDER (700000-00) 7940 RON
44 1 1 LEAD PURPLE (634651-00) 1229 RON
45 1 1 BUTTON LOCK-OFF (630830-00) 893 RON
46 1 1 IDENTITY LABEL (632248-00) 781 RON
47 1 1 RATING PLATE (N049654) 1229 RON
47 1 1 NAMEPLATE (641736-00) 781 RON
48 1 2 SCREW TAPTITE M4x12 SLT/T20 (330045-45) 558 RON
49 1 1 LOCK PIN (615983-00) 105 RON
50 1 1 CAP (617733-00) 781 RON
51 1 1 SPRING (618427-00) 558 RON
52 1 1 SA BEARING AND BOOT (391032-00) 2795 RON
53 1 1 BEARING BALL (330003-64) 4137 RON
54 1 1 RETAINER (696060-00) 558 RON
60 1 1 Screw M3.5X16 T15 (330019-03) 558 RON
800 1 1 GREASE (286436-00) 70239 RON
846 1 1 REPAIR KIT (649186-00) 4825 RON
856 1 1 628977-01 - Indisponibil
866 1 2 DE9360 - Indisponibil
871 1 1 DE9000 - Indisponibil
