36V Li-Ion Hammerdrill/Dr DEWALT DC901K Type 2
[DC901K Type 2]
36V Li-Ion Hammerdrill/Dr DEWALT DC901K Type 2
Click pentru a mari
Imagini suplimentare
36V Li-Ion Hammerdrill/Dr DEWALT DC901K Type 2
Click pentru a mari

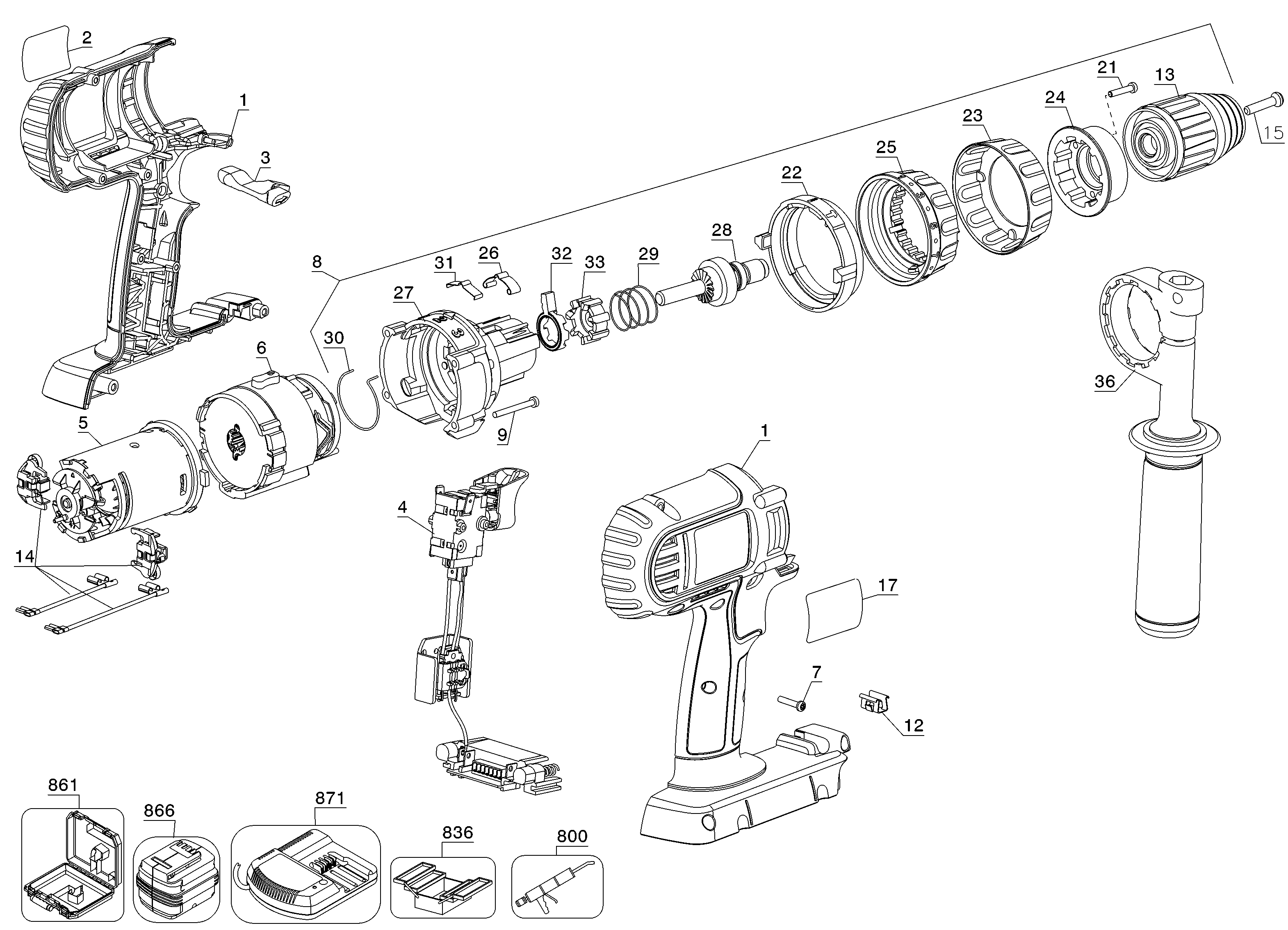

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SA HOUSING 36V (647590-01) 17335 RON
2 1 1 BRAND LABEL (652246-00) 781 RON
3 1 1 ACTUATOR FWD/REV (647558-00) 893 RON
4 1 1 SWITCH SA (654833-01SV) 53015 RON
5 1 1 MOTOR & PINION (647560-01SV) 46863 RON
6 1 1 TRANSMISSION SA (649026-00SV) 46863 RON
7 1 5 SCREW PLASTITE (682211-00) 781 RON
8 1 1 647566-03SV - Indisponibil
9 1 6 SCREW PLSTC THD FORM M3.5X19 T15 (330019-52) 558 RON
12 1 1 CLIP BIT HOLDER (148354-03) 558 RON
13 1 1 CHUCK KEYLESS (N242399) 23598 RON
13 1 1 N391336 - Indisponibil
14 1 1 SA BRUSH PAIR KIT PM50 (SERVICE) (389025-03) 6821 RON
15 1 1 "SCREW CHUCK (1/4"" - 28 UNF - LH)" (605256-01) 781 RON
17 1 1 N388616 - Indisponibil
21 1 3 SCREW PLASTIC THD FORM (330019-00) 558 RON
22 1 1 COLLAR (649054-00) 3466 RON
23 1 1 COLLAR (649055-00) 4472 RON
24 1 1 CAP (649057-00) 2795 RON
25 1 1 COLLAR (649053-00) 4137 RON
26 1 1 SPRING DETENT (395460-00) 558 RON
27 1 1 HOUSING SA (647567-03) 9282 RON
28 1 1 N410934 - Indisponibil
28 1 1 N453137 - Indisponibil
29 1 1 SPRING COMPRESSION (394546-00) 558 RON
30 1 1 SPRING CAM RETURN (399059-00) 558 RON
31 1 1 SPRING (638117-00) 781 RON
32 1 1 RING CAM (394545-00) 893 RON
33 1 1 RATCHET FIXED (638072-00) 190 RON
36 1 1 SIDE HANDLE (646594-00) 3466 RON
800 1 1 GREASE (283484-01) 62298 RON
800 1 1 GREASE (761995-01) 23598 RON
836 1 1 SERVICE TOOL (559697-99) 32283 RON
836 1 1 S.T.CHUCK REMOVAL JIG (559661-99) 40716 RON
836 1 1 SERVICE TOOL (559662-99) 22460 RON
836 1 1 233804-40 - Indisponibil
861 1 1 N232344 - Indisponibil
866 1 1 DCB361 - Indisponibil
866 1 1 DE9360 - Indisponibil
871 1 1 DC9000 - Indisponibil
871 1 1 DE9000 - Indisponibil
