36V Finishing Grinder DEWALT DC415K Type 1
[DC415K Type 1]
36V Finishing Grinder DEWALT DC415K Type 1
Click pentru a mari
Imagini suplimentare
36V Finishing Grinder DEWALT DC415K Type 1
Click pentru a mari

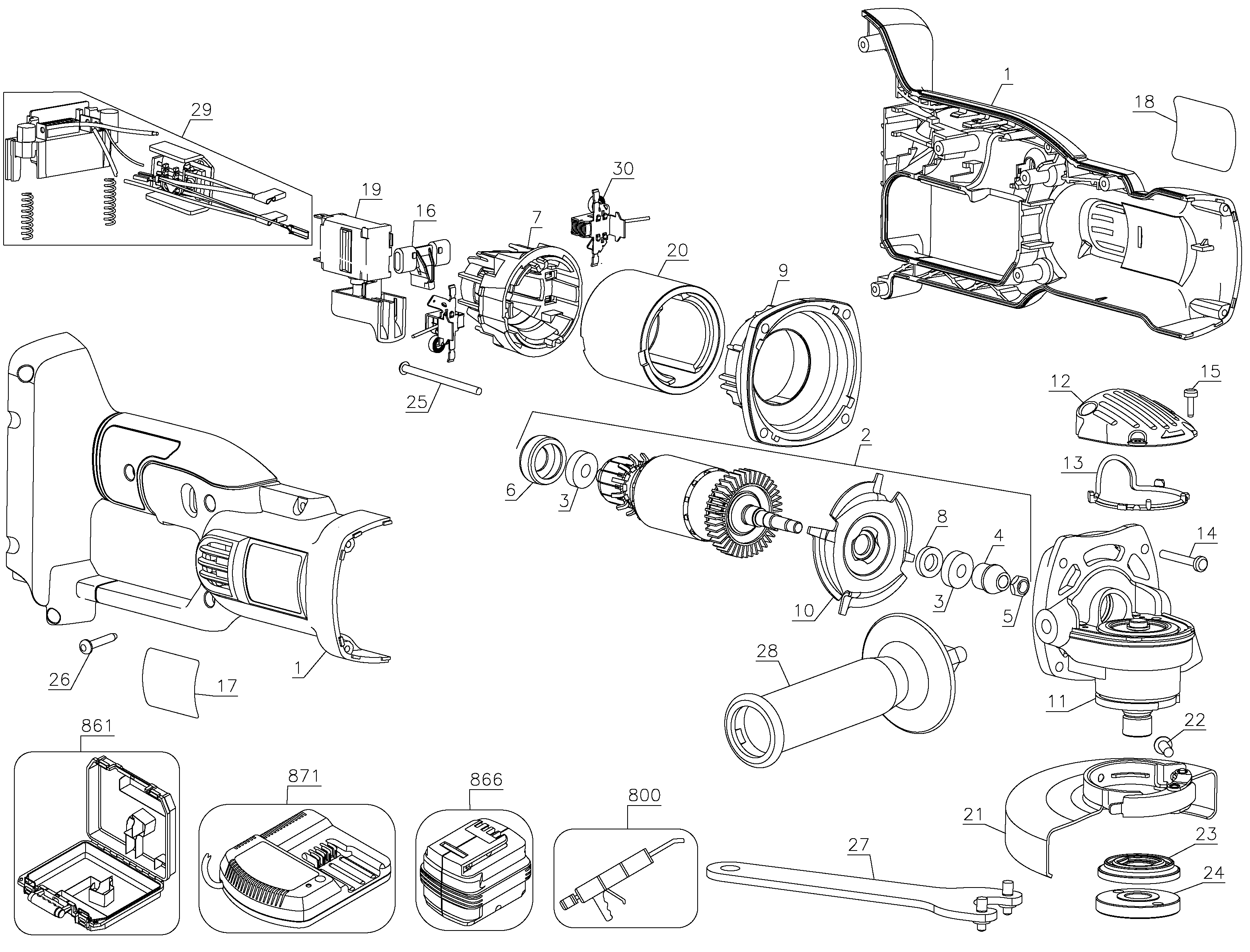

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 CLAMSHELL SET (640873-00) 14315 RON
2 1 1 ARMATURE SA (640024-00) 26730 RON
2 1 1 640024-00SV - Indisponibil
2 1 1 639924-00 - Indisponibil
3 1 2 BEARING BALL (330003-60) 190 RON
3 1 2 BEARING DW818 (390821-01 cod inlocuit cu N110359) BALL BEARING (N110359) 5591 RON
4 1 1 PINION (623564-00) 4137 RON
5 1 1 NUT (604484-00) 558 RON
6 1 1 BOOT (631563-00) 558 RON
7 1 1 SUPPORT REAR BEARING (610107-00) 2124 RON
7 1 1 SUPPORT BEARING (N171820) 2124 RON
8 1 1 FELT SEAL (623617-00) 558 RON
9 1 1 BAFFLE FAN (640579-01) 3018 RON
9 1 1 BAFFLE FAN (N027986) 2795 RON
10 1 1 N422242 - Indisponibil
10 1 1 ETAINER (623580-00) 1788 RON
11 1 1 GEARCASE SA (623586-02) 22144 RON
11 1 1 623586-02SV - Indisponibil
12 1 1 GEARCASE COVER (623562-00) 2347 RON
13 1 1 GASKET (623618-00) 105 RON
14 1 4 SCREW PLASTIC 4 X 30FORM 4* 30 (330065-13) 558 RON
15 1 4 SCREW (385676-01) 558 RON
16 1 1 BUTTON LOCK-OFF (646976-00) 781 RON
17 1 1 RATING PLATE (646646-00) 781 RON
17 1 1 NAMEPLATE (655346-00) 781 RON
18 1 1 IDENTITY LABEL (646006-00) 781 RON
19 1 1 SWITCH SA (641216-00) 10512 RON
20 1 1 MAGNET (611202-00SV) 9282 RON
20 1 1 SA MAGNET RING (611202-00) 9282 RON
21 1 1 GUARD SA (636116-01) 6821 RON
21 1 1 GUARD SA (661329-00) 5031 RON
22 1 1 SCREW (631609-00) 558 RON
22 1 1 SCREW (616623-00) 558 RON
22 1 1 SCREW (631609-02) 558 RON
23 1 1 INNER FLANGE SA (633257-00) 2795 RON
23 1 1 INNER FLANGE SA (633257-00SV) 2795 RON
24 1 1 NUT (622613-01) 3018 RON
24 1 1 OUTER FLANGE (622613-02) 2795 RON
25 1 2 SCREW PLASTIC THD FORM M3.5X65 T15 (330019-25) 558 RON
26 1 6 SCREW PLASTIC THREAD FORM M3.5 * 19 T1 (330019-04) 558 RON
27 1 1 Wrench(Spanner) DW831 (401680-00) 2124 RON
28 1 1 SIDE HANDLE (614796-00) 5591 RON
29 1 1 LEAD SA (648694-00) 28296 RON
30 1 2 BRUSH SA (610126-00) 2795 RON
800 1 1 GREASE (283484-01) 62298 RON
800 1 1 GREASE (761995-01) 23598 RON
861 1 1 KITBOX (647578-00) 40599 RON
866 1 1 DE9360 - Indisponibil
871 1 1 DE9000 - Indisponibil
