36V Circular Saw DEWALT DC300KL Type 1
[DC300KL Type 1]
36V Circular Saw DEWALT DC300KL Type 1
Click pentru a mari
Imagini suplimentare
36V Circular Saw DEWALT DC300KL Type 1
Click pentru a mari

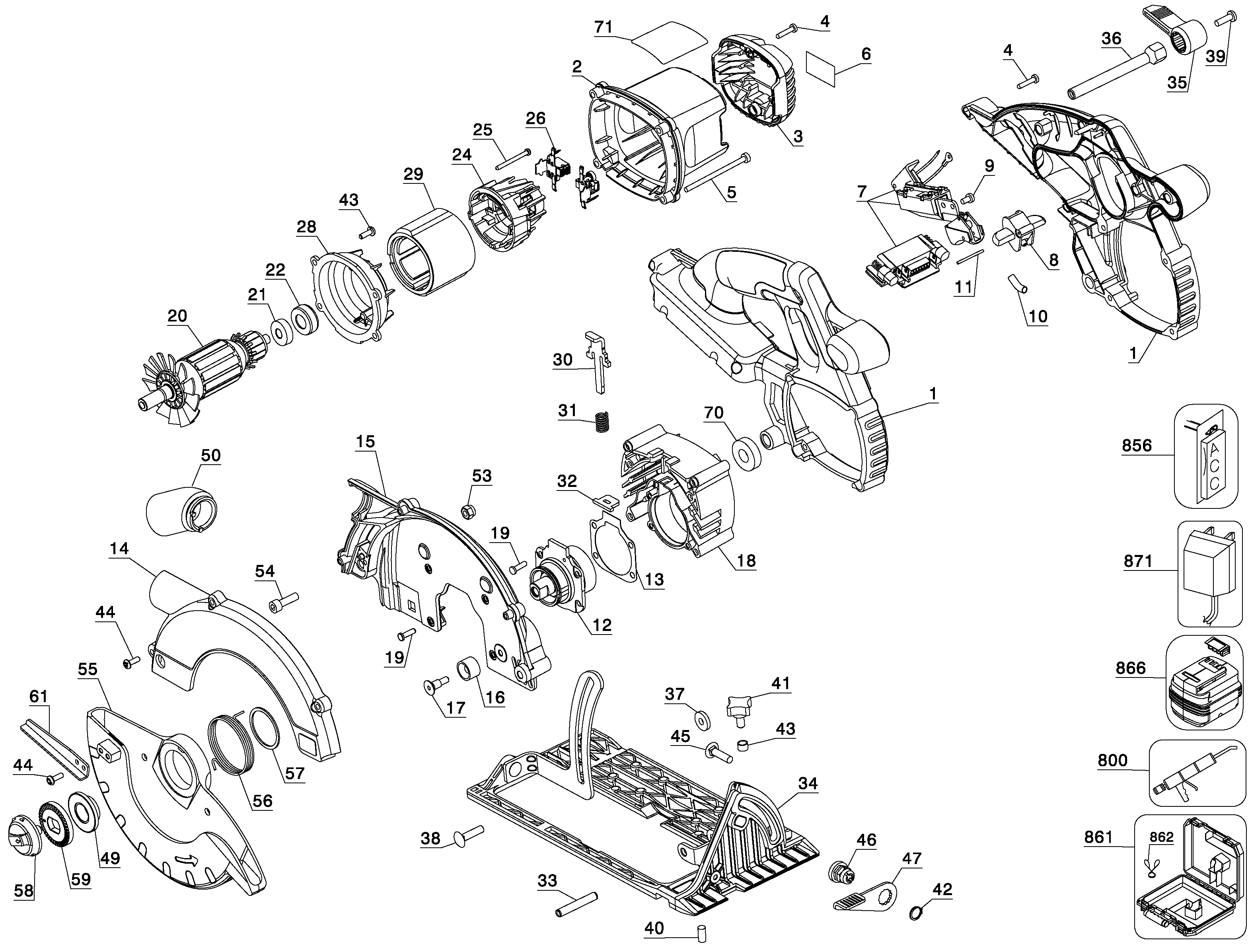

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 CLAMSHELL SET (629578-00) 17335 RON
2 1 1 HOUSING MOTOR (629546-00) 4137 RON
3 1 1 END CAP (N173219) 3018 RON
3 1 1 END CAP (629547-00) 2347 RON
4 1 8 SCREW PLASTIC THREAD FORM M3.5 * 19 T1 (330019-04) 558 RON
5 1 4 SCREW (398987-00) 558 RON
6 1 1 BRAND LABEL (629586-00) 781 RON
7 1 1 SWITCH SA (648688-00SV) 37579 RON
7 1 1 648688-00 - Indisponibil
7 1 1 SWITCH SA (629589-00) 37579 RON
8 1 1 BUTTON LOCK-OFF (605107-00) 105 RON
8 1 1 BUTTON LOCK-OFF (NA575073) 741 RON
9 1 1 SCREW DW007K (330019-40) 558 RON
10 1 1 SPRING DW007K (389120-00) 2124 RON
11 1 1 PIN DW007K (388531-00) 781 RON
12 1 1 SPINDLE & GEAR SA (N259499) 17335 RON
12 1 1 SPINDLE & GEAR SA (633267-00) 22144 RON
12 1 1 SPINDLE & GEAR SA (633267-00SV) 22144 RON
13 1 1 GASKET (605081-01) 781 RON
14 1 1 GUARD COVER (632302-00) 14315 RON
14 1 1 632302-01 - Indisponibil
15 1 1 643457-00 - Indisponibil
15 1 1 GUARD UPPER (632301-00) 15993 RON
16 1 1 SERVICE KIT (645726-00) 15993 RON
16 1 1 BUMPER (389132-00) 558 RON
17 1 1 SERVICE KIT (645726-00) 15993 RON
17 1 1 SCREW (610134-00) 558 RON
18 1 1 GEARCASE SA (629593-00SV) 25164 RON
18 1 1 GEARCASE SA (629593-00) 23598 RON
19 1 8 SCREW (613783-00) 558 RON
20 1 1 ARMATURE SA (636584-00) 20467 RON
20 1 1 N475990 - Indisponibil
20 1 1 ARMATURE 36V (636584-00SV) 23598 RON
21 1 1 BEARING BALL (330003-60) 190 RON
21 1 1 BEARING DW818 (390821-01 cod inlocuit cu N110359) BALL BEARING (N110359) 5591 RON
22 1 1 BOOT (631563-00) 558 RON
24 1 1 SUPPORT REAR BEARING (610107-00) 2124 RON
24 1 1 SUPPORT BEARING (N171820) 2124 RON
25 1 2 SCREW PLASTIC THD FORM M3.5X65 T15 (330019-25) 558 RON
26 1 2 BRUSHBOX SA (636233-00) 4137 RON
28 1 1 BAFFLE (610124-01) 2124 RON
29 1 1 MAGNET (N271359) 57488 RON
29 1 1 MAGNET (631177-00) 23598 RON
30 1 1 SPINDLE LOCK (605093-00) 105 RON
30 1 1 SPINDLE LOCK (629444-00) 105 RON
31 1 1 58698-00 - Indisponibil
31 1 1 SPRING (058698-00) 558 RON
32 1 1 WIPER (605094-00) 558 RON
33 1 1 SPIROL PIN (614048-00) 781 RON
34 1 1 SHOE SA (632414-00) 32770 RON
34 1 1 632414-00SV - Indisponibil
35 1 1 LEVER (605105-00) 1117 RON
36 1 1 SHAFT (629663-00) 3018 RON
37 1 1 SPACER (142013-00) 558 RON
38 1 1 98128-85 - Indisponibil
38 1 1 CARRIAGE BOLT (098128-85) 558 RON
39 1 1 SCREW (330045-14) 558 RON
40 1 1 SCREW DW007K (381069-00) 558 RON
41 1 1 KNOB (396992-02) 781 RON
42 1 1 RING (152211-00) 558 RON
43 1 1 SPRING (058287-00) 558 RON
43 1 1 58287-00 - Indisponibil
44 1 7 SCREW TAPTITE M4x12 SLT/T20 (330045-45) 558 RON
45 1 1 CARRIAGE BOLT (632409-00) 893 RON
46 1 1 NUT (632410-00) 2795 RON
47 1 1 LEVER LOCK (633235-00) 105 RON
49 1 1 WASHER INNER CLAMP (610046-00) 1788 RON
50 1 1 CHUTE (391229-00) 3466 RON
53 1 1 SCREW DW007K (391854-00) 558 RON
53 1 1 "NUT 6KT M6 ISO7040""" (330021-01) 2347 RON
54 1 1 SCREW DW007K (391854-00) 558 RON
55 1 1 GUARD LOWER (632512-00) 1891 RON
56 1 1 SPRING TORSION (632413-00) 190 RON
57 1 1 RETAINER (388496-01) 781 RON
58 1 1 N376797 - Indisponibil
58 1 1 BLADE CLAMP (A02590) 23598 RON
58 1 1 A02590SV - Indisponibil
59 1 1 WASHER CLAMP (637209-00) 2795 RON
61 1 1 LEVER (610088-00) 893 RON
70 1 1 BEARING BALL (330003-64) 4137 RON
71 1 1 NAMEPLATE (640675-00) 781 RON
800 1 1 GREASE (283484-01) 62298 RON
800 1 1 GREASE (761995-01) 23598 RON
856 1 1 FENCE (249226-00) 4137 RON
856 1 1 RIP FENCE (394422-00) 4137 RON
856 1 1 98000-11 - Indisponibil
856 1 1 HEX KEY 5MM ocd vechi 98000-11 (098000-11) 781 RON
861 1 1 KITBOX (633095-00) 37579 RON
862 1 1 spring clip from DC390KN-EC (605265-00) 558 RON
866 1 1 DE9360 - Indisponibil
871 1 1 DE9000-QW - Indisponibil
