Top » Piese de schimb » PIESE DEWALT » DC318N Type 1

28V Li-lon Bare Jigsaw DEWALT DC318N Type 1
[DC318N Type 1]
28V Li-lon Bare Jigsaw DEWALT DC318N Type 1
Click pentru a mari
Imagini suplimentare
28V Li-lon Bare Jigsaw DEWALT DC318N Type 1
Click pentru a mari

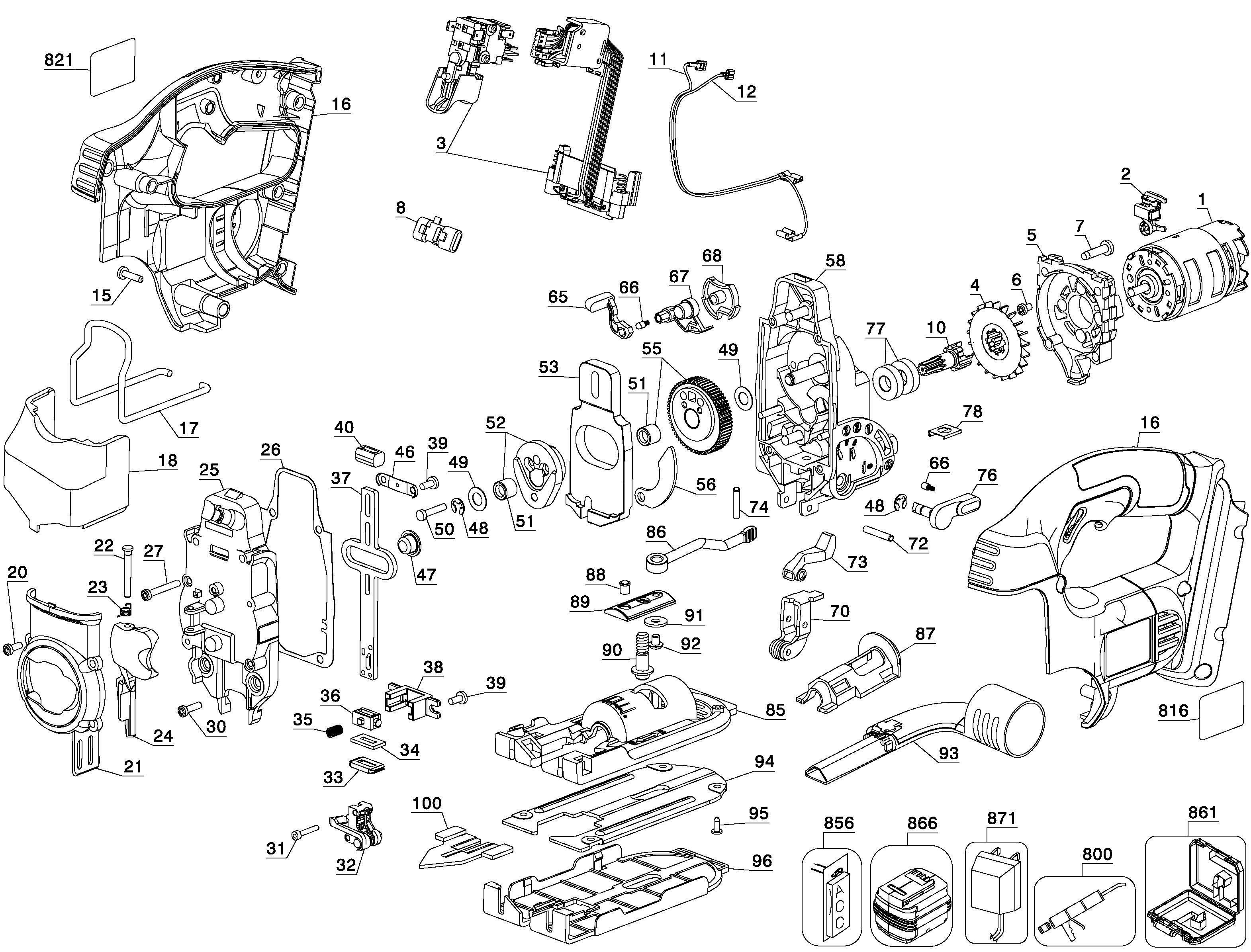

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 MOTOR SA (586202-03) 39145 RON
2 1 1 5140246-38 - Indisponibil
2 1 1 BRUSH PAIR (389025-04) 2795 RON
3 1 1 SWITCH KIT 230V (494321-00) 45297 RON
4 1 1 FAN (329810-00) 1117 RON
5 1 1 BAFFLE (496428-00) 190 RON
6 1 3 SCREW TAPTITE (156179-01) 558 RON
7 1 4 Screw Metal (330045-15) 781 RON
8 1 1 BUTTON LOCK-OFF (630830-00) 893 RON
10 1 1 PINION (490989-00) 11519 RON
11 1 1 N183063 - Indisponibil
11 1 1 LEADWIRE (635587-00) 1452 RON
12 1 1 N183063 - Indisponibil
12 1 1 LEADWIRE (635588-00) 1229 RON
15 1 7 SCREW (330065-07) 558 RON
16 1 1 CLAMSHELL SET (494319-00) 5591 RON
17 1 1 GUARD (581269-00) 4137 RON
18 1 1 SCREEN JIGSAW (581239-00) 190 RON
18 1 1 SCREEN JIGSAW (581239-01) 1788 RON
20 1 4 SCREW TAPTITE M4 * 12 (324006-00) 558 RON
21 1 1 "CASTING FACIA""" (581577-00) 4137 RON
22 1 1 PIN ACTUATOR (584627-00) 558 RON
23 1 1 SPRING ACTUATOR (581418-00) 558 RON
24 1 1 ACTUATOR AND SPRING CLIP PACKED (589055-00) 7940 RON
25 1 1 GEARCASE COVER (590336-02) 12861 RON
26 1 1 GASKET GEARCASE (581244-00) 781 RON
27 1 2 SCREW METAL THREAD FORM M4 * 30 T20 (330045-09) 558 RON
30 1 2 SCREW METAL THD FRM M4X16 T20 (330045-06) 558 RON
31 1 2 "BOLT M3 * 18""" (582837-00) 781 RON
32 1 1 N072135 - Indisponibil
32 1 1 BLADE CLAMP (586203-00) 22144 RON
32 1 1 N072135SV - Indisponibil
33 1 1 PRESSING SEAL (582262-00) 558 RON
34 1 1 SEAL FELT (582263-00) 558 RON
35 1 1 SPRING COMPRESSION (586646-00) 558 RON
36 1 1 BEARING BOTTOM (582259-00) 1788 RON
37 1 1 SHAFT RECIPROCATING (581274-00) 4137 RON
38 1 1 CARRIER BEARING (582260-00) 2124 RON
38 1 1 SUPPORT BEARING (N621424) 1772 RON
39 1 4 SCREW TAPTITE M4 * 12 (324006-00) 558 RON
40 1 1 BEARING TOP (582258-00) 1229 RON
40 1 1 TOP BEARING (490329-00) 105 RON
46 1 1 CLAMP BEARING (582261-00) 558 RON
47 1 1 SA DRIVE BEARING (582257-00) 3466 RON
48 1 1 E CLIP (571181-00) 558 RON
49 1 2 WASHER M8 * 15.5 * 0.5 (582829-00) 558 RON
50 1 1 SCREW (479146-00) 558 RON
51 1 2 BEARING NEEDLE (330004-02) 1229 RON
52 1 1 SA CRANK AND SCREWS PACKED (SERVICE) (479403-00) 10512 RON
52 1 1 CRANKSHAFT (589015-00) 7940 RON
52 1 1 N497426 - Indisponibil
53 1 1 COUNTERWEIGHT PACKED (589012-00) 9282 RON
55 1 1 N497426 - Indisponibil
55 1 1 SA GEAR SPUR (581435-00) 12861 RON
55 1 1 581435-00SV - Indisponibil
56 1 1 TIMING ACTUATOR (581247-00) 2124 RON
58 1 1 GEARCASE & PINS (585113-00) 29862 RON
58 1 1 585113-00SV - Indisponibil
65 1 1 LEVER AIRFLOW (581255-00) 781 RON
65 1 1 LEVER, AIRFLOW - NEW (581255-05) 588 RON
66 1 2 DETENT (326467-00) 558 RON
67 1 1 BODY AIRFLOW - NEW (582830-05) 588 RON
67 1 1 BODY AIRFLOW (582830-00) 781 RON
68 1 1 BAFFLE AIRFLOW (582831-00) 781 RON
70 1 1 SA SUPPORT BRACKET PACKED (589056-00) 6821 RON
72 1 1 PIN ROLLER (330041-29) 558 RON
73 1 1 NOZZLE (584450-00) 893 RON
74 1 1 PIN ROLLER (330041-49) 558 RON
76 1 1 LEVER PENDULUM ( CORDLESS ) (581257-01) 4137 RON
77 1 2 BEARING BALL (330003-95) 3018 RON
78 1 1 SPRING CLIP GEARCASE (584639-00) 558 RON
78 1 1 SPRING CLIP (N089310) 588 RON
85 1 1 SHOE (581263-00) 5591 RON
86 1 1 LEVER LOCK (495746-00) 2347 RON
87 1 1 DUST ADAPTOR (581266-00) 105 RON
88 1 1 BALL PLUNGER (584686-00) 1229 RON
89 1 1 CLAMP PLATE (496996-00) 1229 RON
90 1 1 BOLT M8 * 2 PITCH (582826-00) 893 RON
91 1 1 WASHER M5 * 14.5 * 1.5 (582828-00) 558 RON
92 1 1 BOLT M5 * 6MM (582827-00) 558 RON
93 1 1 VACUUM ADAPTOR (489669-00) 1788 RON
94 1 1 SHOE SOLE PLATE (581264-00) 2795 RON
95 1 4 SCREW JIGSAW SOLE PLATE (389235-00) 558 RON
96 1 1 SOLE PLASTIC (581268-00) 1452 RON
100 1 1 GUIDE BLADE (402140-00) 893 RON
800 1 1 GREASE (283484-01) 62298 RON
800 1 1 GREASE (761995-01) 23598 RON
816 1 1 IDENTITY LABEL (490611-00) 781 RON
821 1 1 RATING PLATE (N049797) 1452 RON
821 1 1 RATING PLATE (1006529-00) 781 RON
856 1 1 583048-00 - Indisponibil
861 1 2 LATCH ASSEMBLY, KITBOX (381109-00) 944 RON
861 1 1 380865-02 - Indisponibil
861 1 2 637475-00 - Indisponibil
861 1 1 KITBOX (633092-00) 29862 RON
866 1 1 DE9280-EC - Indisponibil
871 1 1 DE9000 - Indisponibil
