Top » Piese de schimb » PIESE DEWALT » RSA24K Type 1

24V RECIPROCATING SAW DEWALT RSA24K Type 1
[RSA24K Type 1]
24V RECIPROCATING SAW DEWALT RSA24K Type 1
Click pentru a mari
Imagini suplimentare
24V RECIPROCATING SAW DEWALT RSA24K Type 1
Click pentru a mari

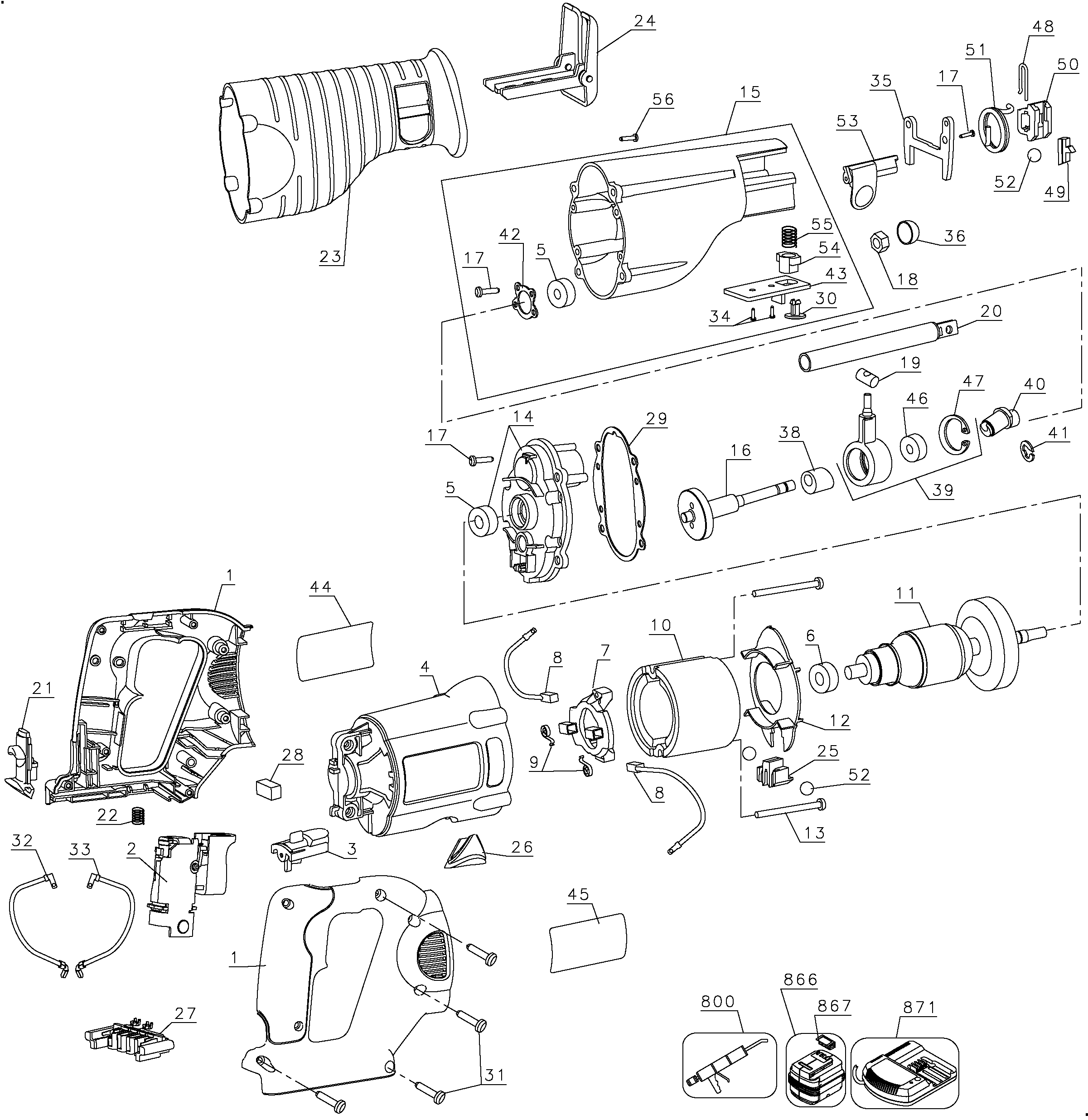

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 388870-01 - Indisponibil
2 1 1 SWITCH DW008K (152274-16) 43731 RON
3 1 1 390008-02 - Indisponibil
4 1 1 388869-01 - Indisponibil
5 1 1 GREASE (283484-00) 32770 RON
5 1 2 BEARING BALL (330003-60) 190 RON
5 1 2 BEARING DW818 (390821-01 cod inlocuit cu N110359) BALL BEARING (N110359) 5591 RON
6 1 1 390759-00 - Indisponibil
7 1 1 RING BRUSH (382178-01) 1229 RON
8 1 2 BRUSH DW007K (390772-01) 3018 RON
9 1 2 SPRING BRUSH (445860-00) 558 RON
10 1 1 MAGNET DW006K (388232-01) 11519 RON
10 1 1 MAGNET (388232-01SV) 7940 RON
10 1 1 NA476958 - Indisponibil
11 1 1 ARMATURE SA (387671-00) 17335 RON
11 1 1 ARMATURE & FAN (387671-00SV) 20467 RON
12 1 1 BAFFLE FAN DW007K (388866-00) 1452 RON
13 1 2 SCREW (448269-00) 558 RON
14 1 1 GEARCASE DW008K (388991-00) 10512 RON
14 1 1 388991-00SV - Indisponibil
15 1 1 GEARCASE DW008K (388990-00) 28296 RON
16 1 1 383883-01 - Indisponibil
17 1 8 SCREW.TEMP (330045-05) 558 RON
18 1 1 NUT RH DW007K (389998-00) 558 RON
19 1 1 AXLE (382187-00) 3466 RON
20 1 1 OUTPUT SHAFT (394564-01) 3592 RON
21 1 1 BUTTON RELEASE DW008K (388992-00) 190 RON
22 1 1 SPRING DW006 (388993-00) 558 RON
23 1 1 BOOT DW008K (388873-00) 4472 RON
24 1 1 383435-02 - Indisponibil
25 1 1 BLADE HOLDER DW008K (390229-00) 1229 RON
26 1 2 PLUG DW008K (389054-00) 1788 RON
27 1 1 TERMINAL BLOCK DW006 (387530-00) 9282 RON
28 1 1 BUMPER SPONGE (930026-01) 781 RON
29 1 1 OUTPUT SHAFT DW008K (387002-03) 34336 RON
29 1 1 GASKET DW007K (388988-00) 781 RON
30 1 1 384405-01 - Indisponibil
31 1 7 SCREW PLASTIC THREAD FORM M3.5 * 19 T1 (330019-04) 558 RON
32 1 1 LEAD BLACK (390017-00) 105 RON
33 1 1 lead red dw008k (390016-00) 781 RON
34 1 2 SCREW METAL THD FRM M4X16 T20 (330045-06) 558 RON
35 1 1 RETAINING PLATE DW309K (383745-00) 893 RON
36 1 1 CAP (383227-00) 781 RON
38 1 1 ECCENTRIC DW008K (383197-01) 781 RON
39 1 1 GEARCASE DW008 (388990-02) 46863 RON
39 1 1 ECCENTRIC SA (385872-02) 37579 RON
40 1 1 HUB DW309K (383201-00) 5031 RON
41 1 1 58836-00 - Indisponibil
41 1 1 RETAINER (058836-00) 558 RON
42 1 1 RETAINING PLATE DW008K (383668-01) 781 RON
43 1 1 SPACER DW008K (389999-00) 105 RON
44 1 1 391328-00 - Indisponibil
46 1 2 BEARING BALL CW MFG (605040-25) 2347 RON
46 1 2 BEARING BALL 153209 (330003-12) 2795 RON
47 1 1 CIRCLIP DW008K (384046-00) 781 RON
48 1 1 SPRING dw309k (383750-00) 781 RON
48 1 1 SPRING BLADE CLAMP (623343-00) 781 RON
49 1 1 SLIDE (383749-01) 190 RON
50 1 1 BLADE CLAMP DW309K (388017-00) 6821 RON
50 1 1 BLADE CLAMP (604731-00) 5031 RON
51 1 1 PIN dw008 (383751-02) 781 RON
51 1 1 LOCK PIN (620663-00) 781 RON
52 1 1 391327-00 - Indisponibil
52 1 3 BALL (000903-00) 558 RON
52 1 3 903-00 - Indisponibil
53 1 1 lever dw309k type 2 (391452-01) 3018 RON
54 1 1 PIN DW309K (383440-00) 105 RON
54 1 1 PIN (613056-00) 781 RON
55 1 1 SPRING dw309k (045550-00) 558 RON
55 1 1 45550-00 - Indisponibil
56 1 4 SCREW PLASTIC THREAD FORM M4 * 32 T20 (330019-15) 558 RON
57 1 1 761995-00 - Indisponibil
800 1 1 GREASE (286436-00) 70239 RON
800 1 1 GREASE (283484-01) 62298 RON
800 1 1 GREASE (761995-01) 23598 RON
866 1 1 000000-00 - Indisponibil
867 1 1 CAP (608262-00) 558 RON
871 1 1 EZAL24-QW - Indisponibil
