20V 3-SPEED DRIL/DRV DEWALT DCD991P2 Type 2
[DCD991P2 Type 2]
20V 3-SPEED DRIL/DRV DEWALT DCD991P2 Type 2
Click pentru a mari
Imagini suplimentare
20V 3-SPEED DRIL/DRV DEWALT DCD991P2 Type 2
Click pentru a mari
20V 3-SPEED DRIL/DRV DEWALT DCD991P2 Type 2
Click pentru a mari
20V 3-SPEED DRIL/DRV DEWALT DCD991P2 Type 2
Click pentru a mari

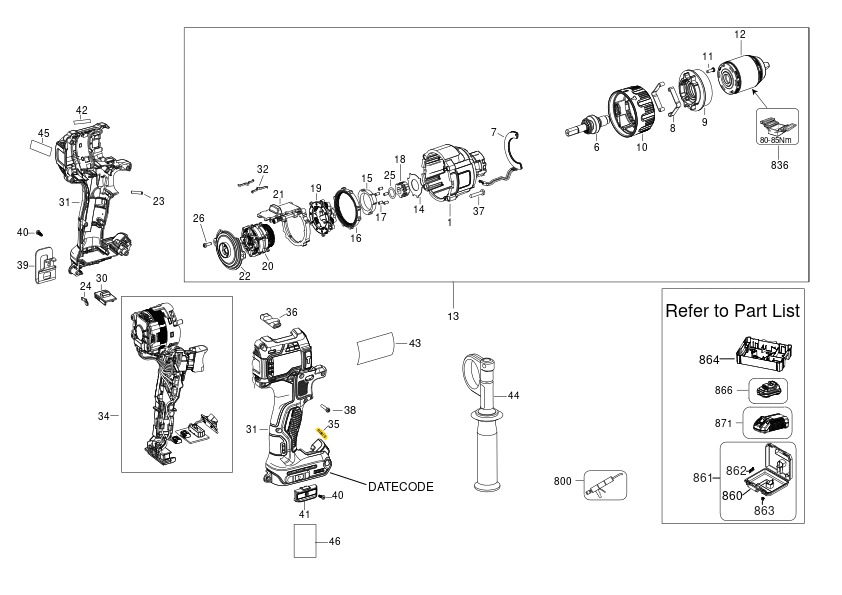

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 GEARCASE SA (N384661) 10241 RON
6 1 1 SA SPINDLE DD FOR ZRP3 (SERVICE) (N481705) 10241 RON
7 1 1 SENSOR (N481813) 12361 RON
8 1 2 DETENT SPRING (N165352) 781 RON
9 1 1 END CAP SA (N826871) 3268 RON
9 1 1 END CAP (N826901) 2556 RON
10 1 1 COLLAR (N443280) 2556 RON
11 1 3 SCREW (N359062) 588 RON
11 1 1 END CAP SA (N826871) 3268 RON
12 1 1 CHUCK KEYLESS (N454251) 20216 RON
12 1 1 CHUCK KEYLESS (NA715434) 16689 RON
13 1 1 GEARBOX SA (N470352) 78485 RON
14 1 1 PLATE RETAINING (652378-00) 558 RON
15 1 1 LOCKING RING (N375852) 2347 RON
16 1 1 GEAR (N375864) 190 RON
17 1 5 PIN 3MM SPINDLE LOCK (654110-00) 558 RON
18 1 1 ANVIL (N481809) 4827 RON
19 1 1 GEAR SA (N375865) 4137 RON
20 1 1 GEAR SA (N481798) 15469 RON
21 1 1 SLIDER SA (N375867) 4137 RON
22 1 1 BAFFLE SA (N375868) 893 RON
23 1 2 ROLL PIN 2.5 X 10.9 (N071836) 558 RON
24 1 1 DETENT SPRING (N392855) 588 RON
25 1 1 O RING VITON (N309119) 781 RON
26 1 2 M3 SCREW THREAD FORMING (N281559) 558 RON
30 1 1 SELECTOR (N393603) 588 RON
31 1 1 CLAMSHELL SET (NA085958) 741 RON
32 1 2 SPEED SELECTOR DETENT SPRING (N014681) 558 RON
34 1 1 MOTOR SWITCH SA (NA121268) 104961 RON
35 1 1 LED LABEL EU 18V FOR G2 DRILL (N439418) 588 RON
36 1 1 ACTUATOR FWD/REV (N431555) 588 RON
37 1 4 SCREW PLSTC THD FORM M3.5X19 T15 (330019-52) 558 RON
38 1 8 SCREW PLASTITE (682211-00) 781 RON
39 1 1 BELT HOOK (N086039) 1788 RON
40 1 2 BELT HOOK SCREW M3 (N042665) 558 RON
41 1 1 MAGNET HOLDER (N095778) 3466 RON
42 1 1 LABEL (N237999) 558 RON
43 1 1 RATING PLATE (NA090829) 588 RON
44 1 1 SIDE HANDLE (N433408) 5370 RON
45 1 1 LABEL (N317859) 558 RON
46 1 1 LABEL (NA090845) 588 RON

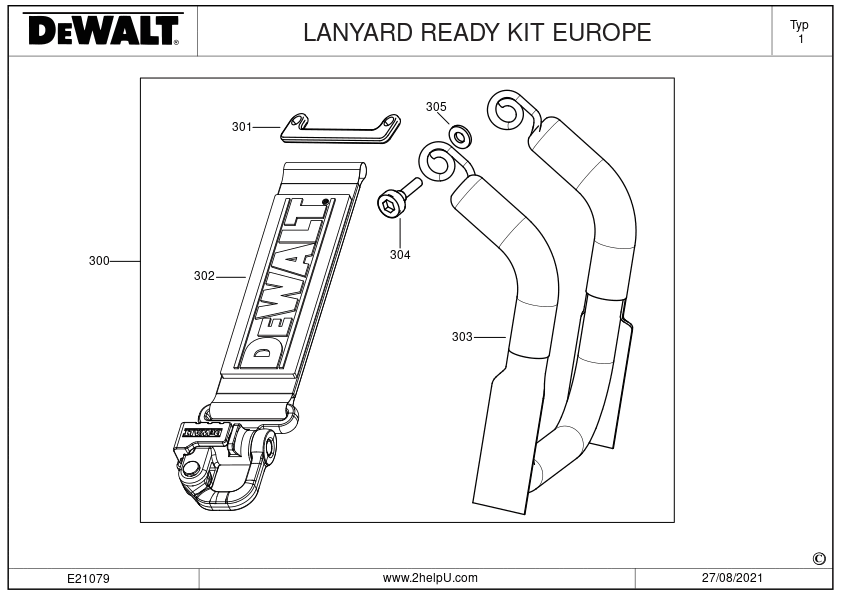

300 1 1 SERVICE KIT (NA012362) 20216 RON
300 1 1 SERVICE KIT (NA325022) 67932 RON
301 1 1 STRAP. HOOKED (N537349) 588 RON
302 1 2 BRACKET (NA012391) 5370 RON
303 1 1 CLIP SA (NA012370) 5370 RON
304 1 2 SCREW (N542271) 1630 RON
305 1 2 WASHER (N462739) 588 RON
800 1 1 GREASE (N017298) 4825 RON
836 1 1 SERVICE TOOL (596004-99) 22460 RON
836 1 1 S.T.CHUCK REMOVAL JIG (559661-99) 40716 RON
861 1 1 KITBOX (N693592) 16689 RON
862 1 1 LATCH (N409477) 114 RON
863 1 1 LATCH (P910190) 3466 RON
866 1 2 BATTERY 18V -5.0AH -90WH (N394624) 104961 RON
871 1 1 CHARGER-DCB1104-QW - (4A) (NA132878) 44688 RON
