18V MITER SAW DEWALT DCS365N Type 1
[DCS365N Type 1]
18V MITER SAW DEWALT DCS365N Type 1
Click pentru a mari
Imagini suplimentare
18V MITER SAW DEWALT DCS365N Type 1
Click pentru a mari
18V MITER SAW DEWALT DCS365N Type 1
Click pentru a mari

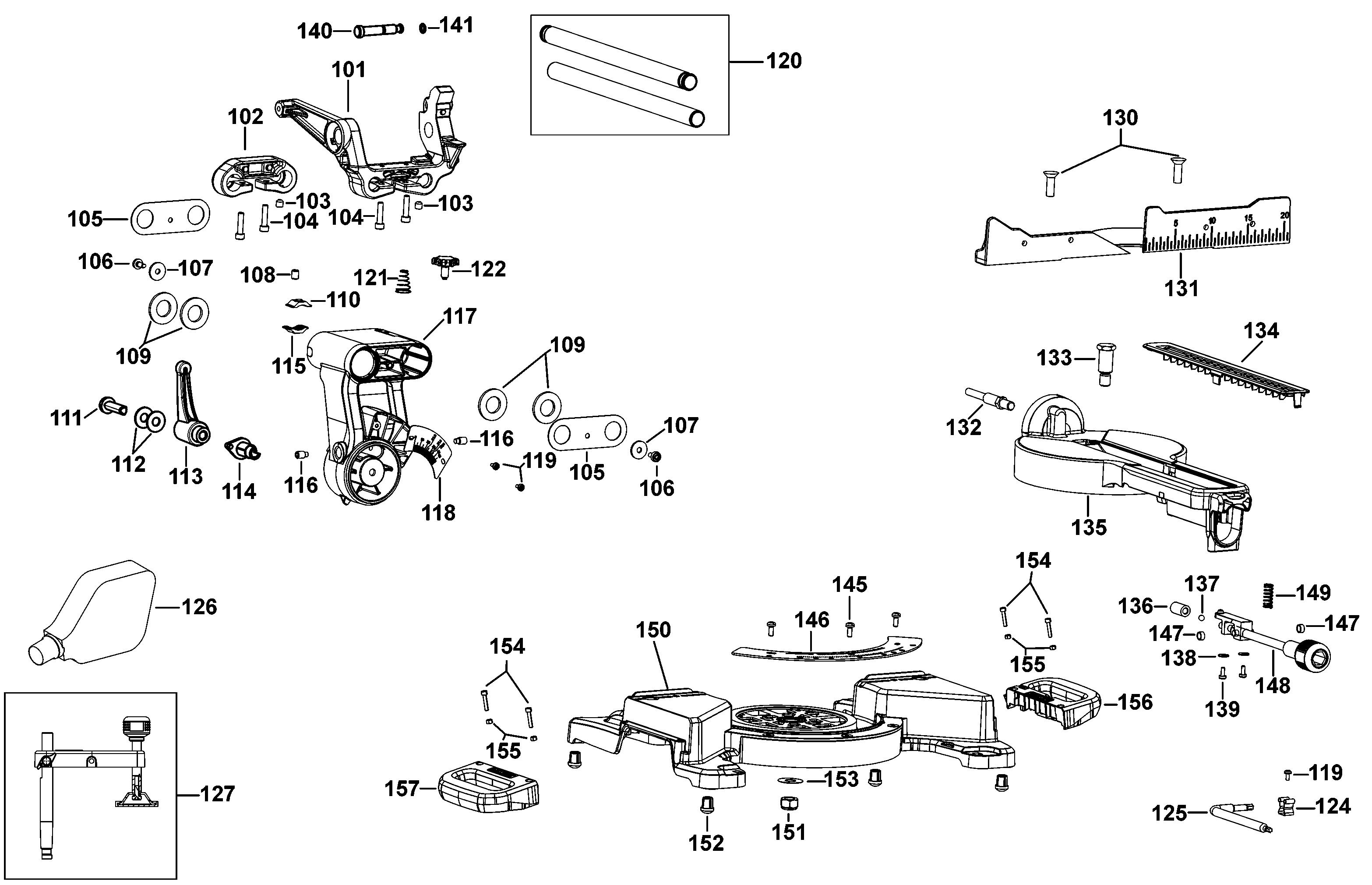

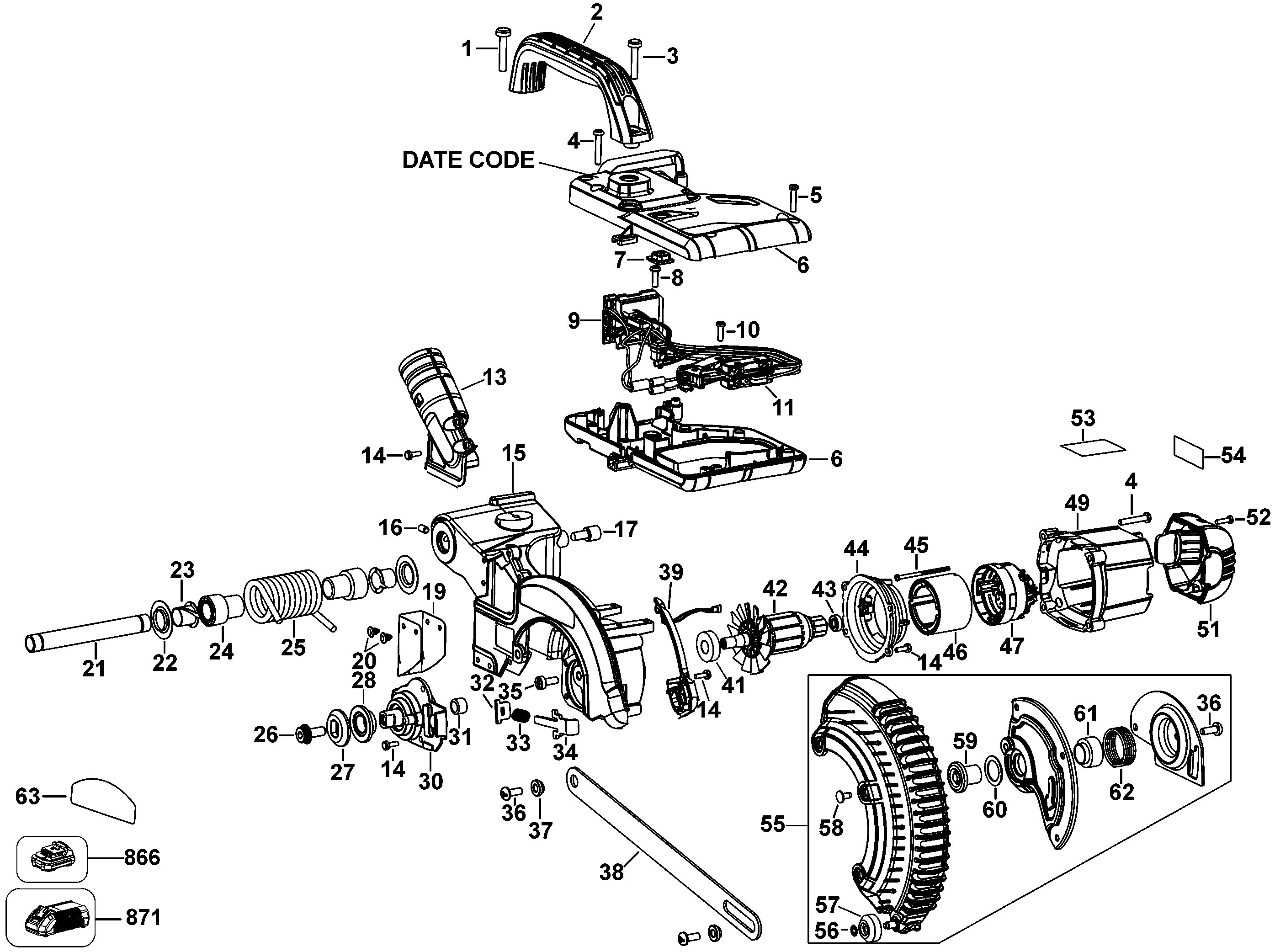

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SCREW (330045-26) 893 RON
2 1 1 HANDLE (N729776) 9012 RON
2 1 1 HANDLE (N300179) 741 RON
3 1 1 SCREW (CARRY HANDLE) (330019-22) 558 RON
4 1 7 SCREW (330045-17) 558 RON
5 1 6 SCREW PLASTITE (330019-32) 558 RON
6 1 1 HANDLE SA (N736822) 23244 RON
6 1 1 N300076 - Indisponibil
7 1 1 CAP (N300152) 1318 RON
8 1 1 SCREW (330045-14) 558 RON
9 1 1 CONTROL MODULE SA (N466092) 48037 RON
10 1 1 screw dw744 (330019-12) 558 RON
14 1 10 SCREW TAPTITE M4x12 SLT/T20 (330045-45) 558 RON
15 1 1 ARM (N473984) 57833 RON
16 1 2 SCREW (150075-00) 781 RON
30 1 1 GEARCASE SA (N449835) 21676 RON
31 1 1 BEARING DW704 TYPE 3 (386780-00) 190 RON
32 1 1 WIPER (605094-00) 558 RON
33 1 1 SPRING (058698-00) 558 RON
34 1 1 SPINDLE LOCK (629444-00) 105 RON
39 1 1 LED LIGHT (N771116) 12361 RON
39 1 1 N300194 - Indisponibil
41 1 1 BEARING BALL (330003-64) 4137 RON
42 1 1 ARMATURE SA (N415903) 23244 RON
44 1 1 BAFFLE (N333139) 1772 RON
45 1 2 SCREW, PLASTIC THD FORM (N389143) 588 RON
46 1 1 SSA MAGNET RING (N436044) 6688 RON
46 1 1 N234639 - Indisponibil
47 1 1 BRUSH HOLDER SA (N412223) 6688 RON
49 1 1 HOUSING MOTOR (N300071) 4355 RON
51 1 1 END CAP (N300072) 4355 RON
52 1 2 Screw M3.5X16 T15 (330019-03) 558 RON
53 1 1 RATING PLATE (N513369) 1318 RON
54 1 1 BRAND LABEL (N094673) 781 RON
55 1 1 SA LOWER GUARD (N300153) 48037 RON
56 1 1 RING (142273-00) 558 RON
57 1 1 ROLLER (625825-00) 781 RON
58 1 3 SCREW (385915-04) 558 RON
59 1 1 RETAINING PLATE SPRING (399182-00) 2347 RON
60 1 1 PLASTIC WASHER (612923-00) 558 RON
61 1 1 GUIDE SLEEVE (603440-00) 558 RON
62 1 1 TORSION SPRING (603439-00) 893 RON
63 1 1 LABEL ARM DCS365 (N431197) 1318 RON
101 1 1 TRUNNION Mach (N299993) 15469 RON
102 1 1 GUIDE SUPPORT (N745194) 12361 RON
103 1 2 SCREW (153666-00) 558 RON
104 1 4 SCREW (603390-00) 558 RON
105 1 2 COVER PLATE DCS365 (N300145) 1772 RON
106 1 2 VITE TRIL.TCB M5X12 D6 1 (616001-00) 558 RON
107 1 2 RUBBER WASHER (153586-00) 781 RON
108 1 1 SCREW M8X10 (153576-04) 190 RON
109 1 4 WIPER FELT DCS361 (N300196) 588 RON
110 1 1 WEAR GUIDE (628591-00) 2124 RON
111 1 1 SCREW (612008-00) 781 RON
112 1 2 WASHER (933168-00) 781 RON
113 1 1 LEVER (861840-03) 2795 RON
114 1 1 BEVEL CLAMP DW777 (868680-00) 1788 RON
115 1 1 WEAR GUIDE (397118-00) 1452 RON
116 1 2 SCREW (949743-02) 781 RON
117 1 1 SA SUPP.HSG+BRG DCS365, SERVICE (N454878) 57833 RON
118 1 1 BEVEL SCALE (N399655) 2556 RON
119 1 3 SCREW (949894-12) 558 RON
120 1 1 SA RAILS DCS365, SERVICE (N454876) 78485 RON
121 1 1 SPRING (659919-00) 893 RON
122 1 1 KNOB (N080677) 2124 RON
124 1 1 HOLDER (391358-01) 1117 RON
125 1 1 WRENCH (N040940) 3466 RON
126 1 1 DUST BAG (N126162) 5370 RON
127 1 1 CLAMP DW777 (N294299) 10512 RON
130 1 2 SCREW (098105-03) 558 RON
131 1 1 FIX FENCE DWS774, SERVICE (N454877) 32327 RON
132 1 1 SHAFT BEVEL DWS778 (N115187) 3466 RON
133 1 1 TABLE PIN DWS774 (N312779) 3268 RON
134 1 1 KERF PLATE DWS774 (N380813) 114 RON
135 1 1 TABLE DWS774, SERVICE (N493430) 49114 RON
136 1 1 SPACER FOR LOCKING SYSTEM DW777 (868707-01) 558 RON
137 1 1 BALL 6 3 mm (868708-00) 558 RON
138 1 2 WASHER (941633-00) 558 RON
139 1 2 SCREW.TEMP (330045-05) 558 RON
140 1 1 PIN LOCKING (387130-00) 2347 RON
145 1 3 SCREW (330045-49) 558 RON
146 1 1 MITER SCALE DWS774 (N493151) 3954 RON
147 1 2 BUSHING (N299799) 781 RON
148 1 1 SA TABLE LOCKING DW777 (N315680) 6688 RON
149 1 1 SPRING (868778-00) 558 RON
150 1 1 BASE DWS774, SERVICE (N443388) 51127 RON
151 1 1 NUT LOCKING M12X1 25 (860092-07) 558 RON
152 1 4 RUBBER FEET (868777-00) 558 RON
153 1 1 WASHER (949705-01) 558 RON
154 1 4 SCREW SOCKET M.5X25 UNI 5931 (860093-08) 558 RON
155 1 4 NUT HEX THICK M.5 UNI 5587 (860083-02) 558 RON
156 1 1 TOP TABLE EXTENSION DWS774 (N381932) 3954 RON
157 1 1 TOP TABLE EXTENSION RH DWS774 (N412530) 3954 RON
217 1 2 WARNING LABEL (610707-00) 781 RON
800 1 1 GREASE (283484-01) 62298 RON
