Top » Piese de schimb » PIESE DEWALT » DCS334N Type 1

XR 18V BL JIGSAW TH BARE DEWALT DCS334N Type 1
[DCS334N Type 1]
XR 18V BL JIGSAW TH BARE DEWALT DCS334N Type 1
Click pentru a mari
Imagini suplimentare
XR 18V BL JIGSAW TH BARE DEWALT DCS334N Type 1
Click pentru a mari

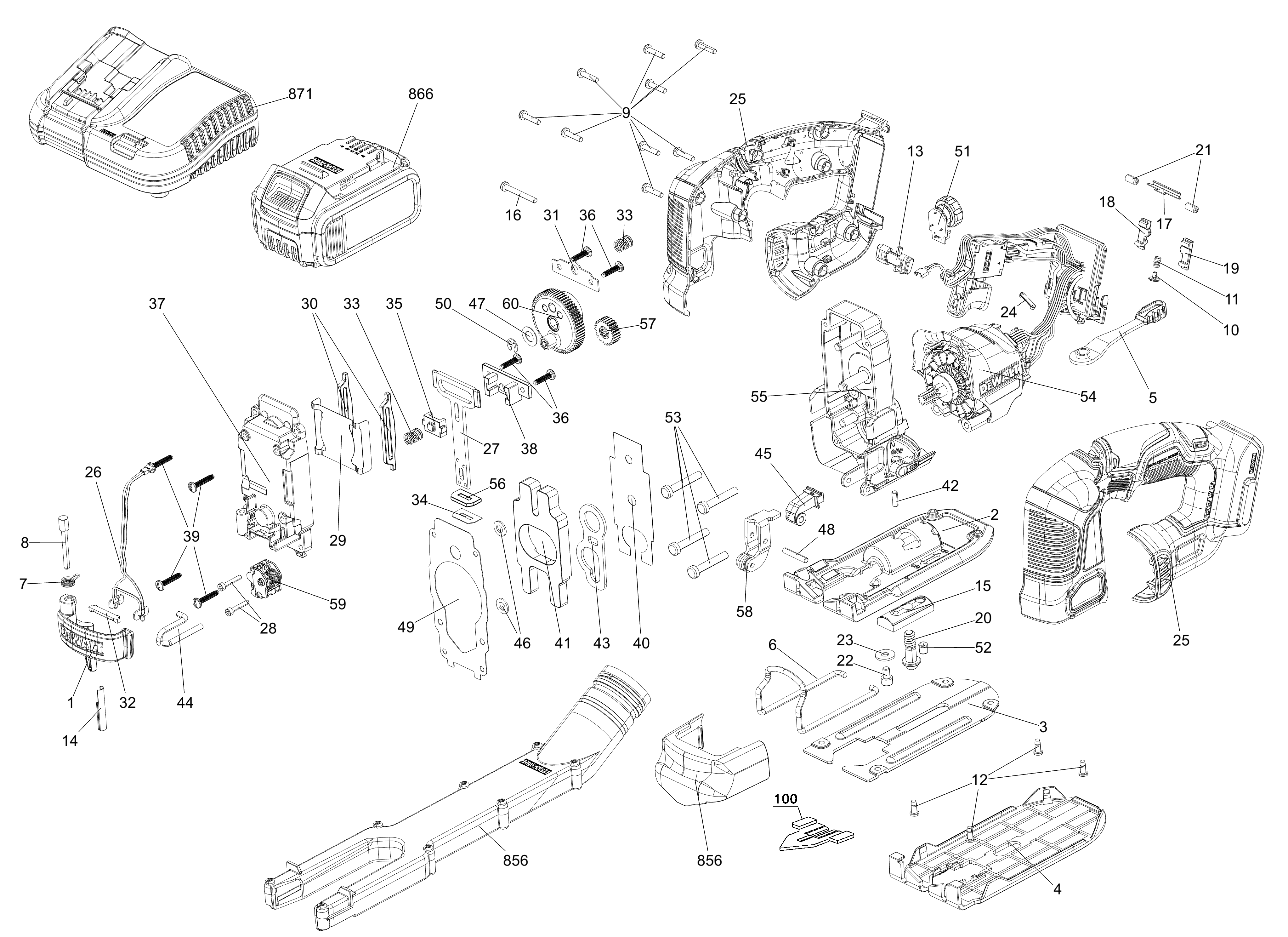

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 CLAMP (N565505) 3268 RON
2 1 1 SHOE (N527629) 741 RON
2 1 1 PIN ROLLER (330041-29) 558 RON
3 1 1 SHOE (N555231) 5370 RON
4 1 1 SOLE PLATE (N548480) 1933 RON
5 1 1 DUST PORT (N504498) 588 RON
5 1 1 LEVER (N522017) 2796 RON
6 1 1 GUARD (N523099) 3954 RON
7 1 1 SPRING (N515119) 588 RON
8 1 1 PIN (N524855) 2182 RON
9 1 9 Screw M3.5X16 T15 (330019-03) 558 RON
10 1 1 SPRING GUIDE (N091479) 558 RON
11 1 1 COIL TERMINAL BLOCK SPRING (N102647) 558 RON
12 1 4 SCREW M4X10 JIGSAW SOLE PLATE (N056875) 558 RON
13 1 1 BUTTON LOCK-OFF (N544264) 82 RON
14 1 1 PLATE (N548918) 588 RON
15 1 1 CLAMPING BAR (N516006) 2182 RON
16 1 1 SCREW PLSTC THD FORM M3.5x32 T15 (330019-06) 558 RON
17 1 1 STRIKE PLATE (N467560) 588 RON
18 1 1 INSERT (N728012) 588 RON
18 1 1 ANTIVIBE RAIL INSERT COVER SIDE (N438438) 588 RON
19 1 1 INSERT (N728013) 588 RON
19 1 1 ANTIVIBE RAIL INSERT ASSEMBLY SIDE (N438439) 588 RON
20 1 1 BOLT M8 * 2 PITCH (582826-00) 893 RON
21 1 2 RUBBER PIN (N487311) 588 RON
22 1 1 BOLT (N595379) 588 RON
23 1 1 WASHER (N595377) 588 RON
24 1 1 CAP (N261987) 588 RON
25 1 1 CLAMSHELL PAIR (N567102) 15469 RON
26 1 1 LED (N518314) 3268 RON
27 1 1 RECIPROCATOR (N499406) 741 RON
28 1 2 "BOLT M3 * 18""" (582837-00) 781 RON
29 1 1 GUIDE (N539623) 668 RON
30 1 2 GUIDE (N539622) 668 RON
31 1 1 BEARING (N539624) 588 RON
32 1 1 RETAINER (N543121) 588 RON
33 1 1 N508754 - Indisponibil
33 1 1 SPRING (N543918) 588 RON
34 1 1 SEAL (N579198) 588 RON
35 1 1 BEARING (N573337) 114 RON
36 1 4 SCREW METAL THD FRM M4X16 T20 (330045-06) 558 RON
37 1 1 GEARCASE (N561929) 741 RON
38 1 1 BEARING (N500477) 1318 RON
40 1 1 PLATE (N509093) 668 RON
41 1 1 CONNTERWEIGHT (N499205) 3954 RON
42 1 1 PIN (N516272) 588 RON
43 1 1 ACTUATOR (N509087) 82 RON
44 1 1 GUARD (N547459) 668 RON
46 1 1 WASHER (N563127) 588 RON
47 1 1 WASHER M8 * 15.5 * 0.5 (582829-00) 558 RON
49 1 1 GASKET (N514407) 588 RON
50 1 1 E CLIP (571181-00) 558 RON
51 1 1 WHEEL SPEED (N545416) 5370 RON
52 1 1 BALL PLUNGER (584686-00) 1229 RON
53 1 4 SCREW.PLSTC THD FORM M5X32 T25 (330019-21) 558 RON
54 1 1 MOTOR AND SWITCH SA (N632684) 113822 RON
55 1 1 GEARCASE SA (N723994) 13697 RON
56 1 1 SEAL SA (N723984) 1772 RON
57 1 1 Gear (N723986) 2796 RON
57 1 1 N505401 - Indisponibil
58 1 1 BRACKET (N723988) 5370 RON
59 1 1 N505413 - Indisponibil
59 1 1 BLADE CLAMP (N723991) 12361 RON
60 1 1 GEAR SA (N723993) 13697 RON
70 1 1 581280-00 - Indisponibil
100 1 1 GUIDE BLADE (402140-00) 893 RON
101 1 1 DUST PORT (N564892) 3268 RON
102 1 1 SHIELD (N575480) 944 RON
821 1 1 N572753 - Indisponibil
822 1 1 LABEL (N605024) 588 RON
823 1 1 BRAND LABEL (N572782) 588 RON
824 1 1 LABEL (N581733) 588 RON
864 1 1 INSERT (N577616) 741 RON
900 1 1 LEVER (N515469) 1933 RON
900 1 1 CLIP (N562695) 588 RON
