Top » Piese de schimb » PIESE DEWALT » DW933K2 Type 1

18V JIG SAW DEWALT DW933K2 Type 1
[DW933K2 Type 1]
18V JIG SAW DEWALT DW933K2 Type 1
Click pentru a mari
Imagini suplimentare
18V JIG SAW DEWALT DW933K2 Type 1
Click pentru a mari

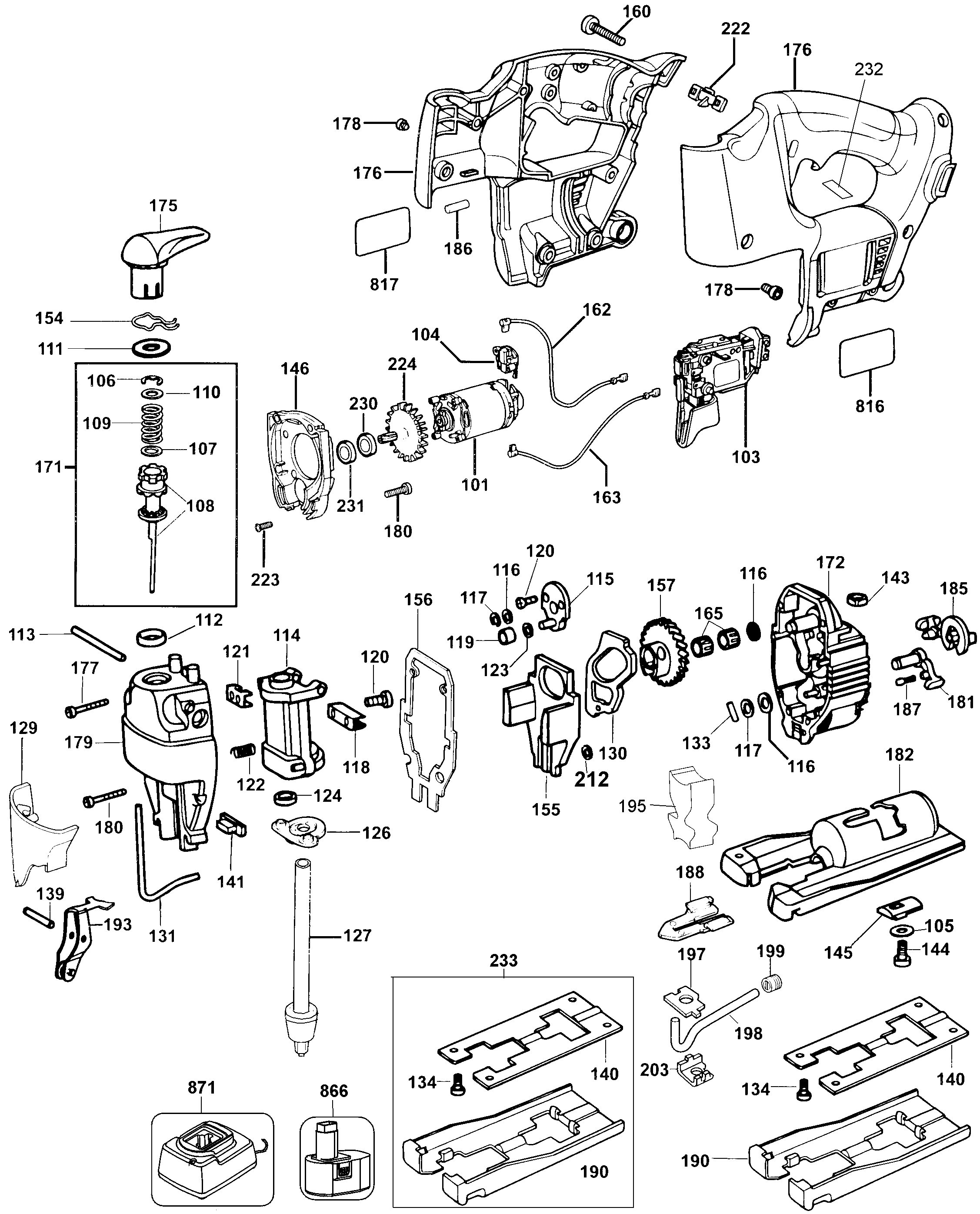

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
101 1 1 MOTOR SA (606047-00SV) 37579 RON
101 1 1 MOTOR SA (606047-00) 22144 RON
103 1 1 SWITCH (152274-19) 32770 RON
103 1 1 SWITCH (152274-19SV) 29862 RON
103 1 1 SWITCH (152274-09) 32770 RON
104 1 1 BRUSH PAIR (389025-01) 5591 RON
104 1 1 389025-01SV - Indisponibil
105 1 1 099389-06 - Indisponibil
105 1 1 99389-06 - Indisponibil
106 1 1 RING RADIAL SPRING D8 UNI7434 (860322-01) 558 RON
107 1 1 WASHER (388957-00) 558 RON
108 1 1 CLUTCH SA (402960-00) 17335 RON
108 1 1 402960-00SV - Indisponibil
109 1 1 SPRING (402110-00) 781 RON
110 1 1 949876-22 - Indisponibil
110 1 1 606410-00 - Indisponibil
111 1 1 WASHER (949876-21) 558 RON
112 1 1 RUBBER (402154-00) 558 RON
113 1 1 PIN (402105-00) 1452 RON
114 1 1 402153-00 - Indisponibil
115 1 1 ECCENTRIC SA (402161-00SV) 4472 RON
115 1 1 ECCENTRIC SA (402161-00) 5031 RON
116 1 3 WASHER (932302-00) 558 RON
117 1 2 CIRCLIP (949728-04) 558 RON
118 1 1 YOKE (402118-00) 4472 RON
119 1 1 BUSH (402155-00) 3466 RON
120 1 4 SCREW.SPECIAL (603215-00) 558 RON
121 1 1 CLAMP (399146-00) 1117 RON
122 1 2 933524-00 - Indisponibil
123 1 1 WASHER (949876-20) 558 RON
124 1 1 FELT (949400-00) 558 RON
124 1 1 FELT (949400-01) 781 RON
126 1 1 SEAL SA (402177-00) 3466 RON
127 1 1 SPINDLE SA (948603-00) 3124 RON
127 1 1 SPINDLE (948603-00SV) 40599 RON
129 1 1 SCREEN (389599-00) 2124 RON
130 1 1 CAM (402097-00) 2347 RON
131 1 2 GUARD (402116-00) 558 RON
133 1 1 PIN (330041-08) 558 RON
134 1 1 429802-00 - Indisponibil
134 1 4 SCREW JIGSAW SOLE PLATE (389235-00) 558 RON
139 1 1 PIN ROLLER (330041-29) 558 RON
140 1 1 SOLE PLATE (389652-00) 5591 RON
140 1 1 429802-00 - Indisponibil
141 1 1 RUBBER (402151-00) 558 RON
143 1 1 NUT SQUARE MEAN M.6 UNI 5597 (860310-00) 105 RON
144 1 1 SCREW (949701-13) 558 RON
145 1 1 PLATE (402652-00) 893 RON
146 1 1 BAFFLE (329635-00) 1788 RON
154 1 1 SPRING (402111-00) 1117 RON
155 1 1 COUNTERLFLIGHT (402098-00) 5591 RON
156 1 1 GASKET (402112-00) 781 RON
157 1 1 GEAR SA (611147-00) 15993 RON
157 1 1 GEAR SA (5140005-08) 15993 RON
160 1 8 SCREW (330065-07) 558 RON
162 1 1 LEAD (389924-00) 1117 RON
162 1 1 BRUSH PAIR (389025-01) 5591 RON
162 1 1 389025-01SV - Indisponibil
163 1 1 BRUSH PAIR (389025-01) 5591 RON
163 1 1 389025-01SV - Indisponibil
163 1 1 LEAD black dw933k (389923-00) 1117 RON
165 1 2 BEARING (402091-00) 2795 RON
165 1 2 BEARING NEEDLE (330004-06) 1452 RON
165 1 2 GEAR SA (611147-00) 15993 RON
171 1 1 CLUTCH SA (402158-03) 14315 RON
171 1 1 402158-03SV - Indisponibil
172 1 1 387850-01SV - Indisponibil
172 1 1 GEARCASE SA (387850-01) 20467 RON
175 1 1 KNOB (402137-00SV) 14315 RON
175 1 1 KNOB (402137-00) 10512 RON
176 1 1 487042-00 - Indisponibil
177 1 2 SCREW METAL THREAD FORM M4 * 30 T20 (330045-09) 558 RON
178 1 2 SCREW TAPTITE M4x12 SLT/T20 (330045-45) 558 RON
179 1 1 389870-02 - Indisponibil
180 1 6 Screw Metal (330045-15) 781 RON
181 1 1 329977-00 - Indisponibil
182 1 1 389649-00 - Indisponibil
182 1 1 429802-00 - Indisponibil
185 1 1 329979-01 - Indisponibil
186 1 1 INSERT RUBBER (941374-01) 558 RON
187 1 2 DETENT (326467-00) 558 RON
188 1 1 GUIDE BLADE (402140-00) 893 RON
190 1 1 329982-00 - Indisponibil
193 1 1 SUPPORT SA (388577-00) 7940 RON
195 1 1 SUPPORT ST18K (389003-00) 1117 RON
197 1 1 PLATE (402150-00) 558 RON
198 1 1 LEVER (615797-00) 3018 RON
199 1 1 RUBBER (943217-00) 781 RON
199 1 1 CLAMP LEVER (493248-00) 2795 RON
203 1 1 PLATE (402149-00) 781 RON
212 1 1 SPACER (609364-00) 558 RON
222 1 1 SA BUTTON (607100-00) 1117 RON
223 1 4 screw dw323 (389322-00) 558 RON
224 1 1 329812-00SV - Indisponibil
224 1 1 329812-00 - Indisponibil
230 1 1 BEARING (330003-59) 5031 RON
231 1 1 330003-04 - Indisponibil
231 1 1 BEARING BALL cod vechi 330003-04 BEARING BALL (605040-06) 1452 RON
232 1 1 382816-00 - Indisponibil
233 1 1 429802-00 - Indisponibil
816 1 1 000000-00 - Indisponibil
817 1 1 329637-00 - Indisponibil
866 1 2 DE9095 - Indisponibil
871 1 1 DE9108 - Indisponibil
