18V IMPACT WRENCH DEWALT DW059K2H Type 1
[DW059K2H Type 1]
18V IMPACT WRENCH DEWALT DW059K2H Type 1
Click pentru a mari
Imagini suplimentare
18V IMPACT WRENCH DEWALT DW059K2H Type 1
Click pentru a mari

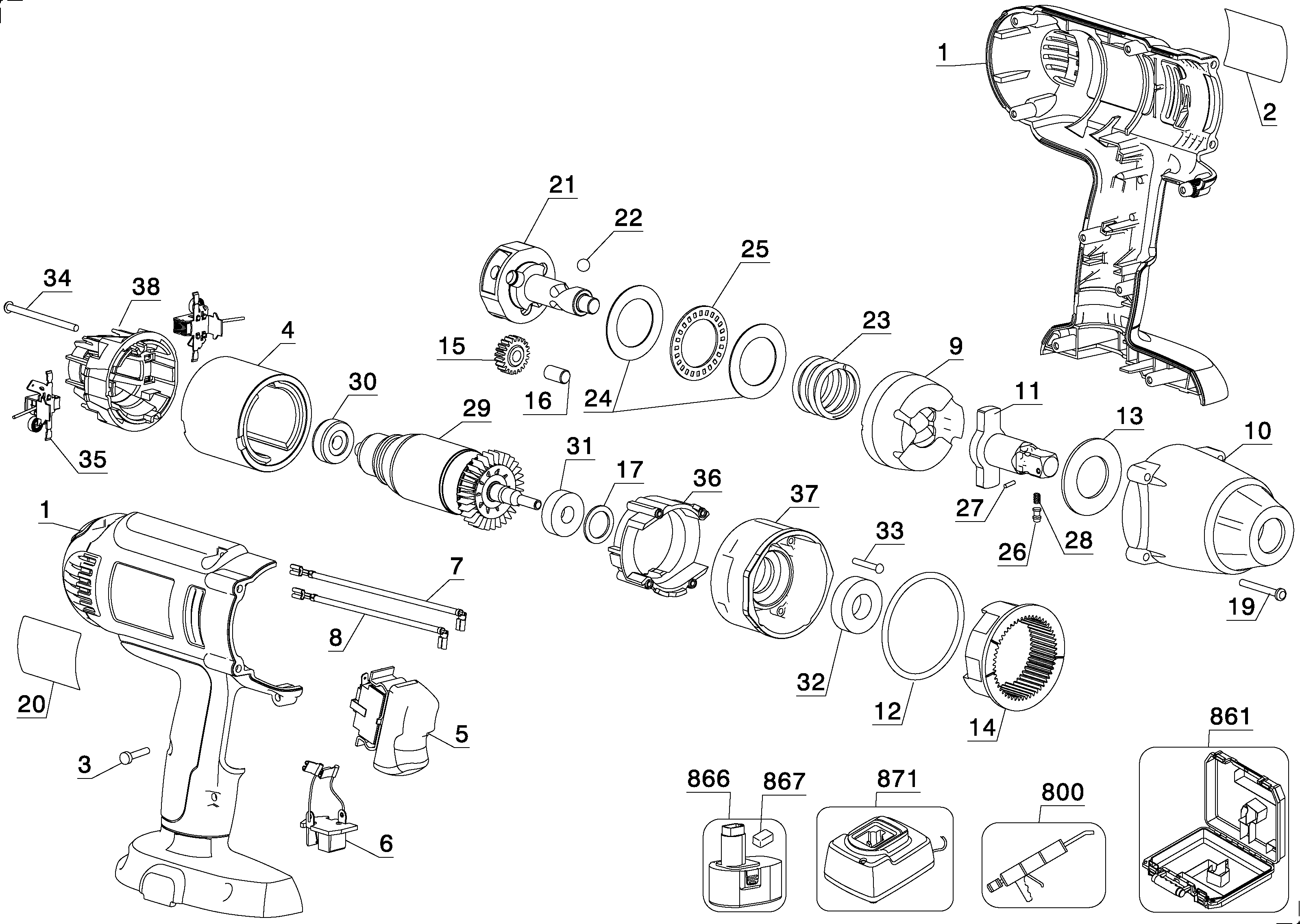

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 CLAMSHELL SET (652243-00) 12861 RON
1 1 1 CLAMSHELL (610534-00) 12861 RON
2 1 1 I.D. LABEL (391820-00) 781 RON
2 1 1 LABEL IDENTITY DEWALT 34*48 (395047-00) 558 RON
3 1 8 SCREW PLASTIC THREAD FORM M3.5 * 19 T1 (330019-04) 558 RON
4 1 1 MAGNET (611202-00SV) 9282 RON
4 1 1 SA MAGNET RING (611202-00) 9282 RON
5 1 1 SWITCH SA (610552-00) 20467 RON
5 1 1 SWITCH SA (610552-00SV) 1891 RON
6 1 1 TERMINAL SA (630518-00) 4137 RON
7 1 1 LEAD PURPLE (616168-00) 1229 RON
8 1 1 LEAD BROWN (616169-00) 1229 RON
9 1 1 IMPACTOR (610023-00) 22144 RON
10 1 1 BARREL (615803-00) 20467 RON
10 1 1 615803-00SV - Indisponibil
11 1 1 ANVIL ASSEMBLY (615801-00SV) 22144 RON
11 1 1 ANVIL ASSEMBLY (615801-00) 20467 RON
12 1 1 O RING (610542-00) 558 RON
13 1 1 WASHER THRUST (610539-00) 190 RON
14 1 1 GEAR (610547-00) 2795 RON
14 1 1 GEAR (648605-00) 2347 RON
15 1 3 PLANET GEAR (610545-00) 105 RON
16 1 3 ROLL PIN (611316-00) 781 RON
17 1 1 WASHER (611488-00) 190 RON
19 1 4 SCREW PLSTC THD FORM M3.5x32 T15 (330019-06) 558 RON
20 1 1 RATING PLATE (631963-00) 781 RON
20 1 1 RATING PLATE (N050357) 781 RON
21 1 1 CARRIER (610544-00) 37579 RON
22 1 2 5190-00 - Indisponibil
22 1 2 BALL STEEL DW290 (005190-00) 558 RON
23 1 1 SPRING (613461-00) 2347 RON
24 1 2 WASHER THRUST (613724-00) 781 RON
25 1 1 BEARING THRUST (610541-00) 2124 RON
26 1 1 143891-00 - Indisponibil
26 1 1 PIN DETENT cod vechi 143891-00 (N020802) 1452 RON
27 1 1 ROLLPIN DW290 (099205-07) 558 RON
27 1 1 99205-07 - Indisponibil
28 1 1 38769-00 - Indisponibil
28 1 1 SPRING (038769-00) 781 RON
29 1 1 ARMATURE SA (611200-02SV) 1891 RON
29 1 1 ARMATURE SA (611200-02) 20467 RON
29 1 1 ARMATURE SA (N360879) 25164 RON
30 1 1 SA BEARING AND BOOT (391032-00) 2795 RON
31 1 1 BEARING BALL 26 * 10 * 8 C3 (330003-63) 2347 RON
31 1 1 BEARING, BALL, CW MFG (605040-17) 4827 RON
32 1 1 BEARING BALL CW MFG (605040-25) 2347 RON
32 1 1 BEARING BALL 153209 (330003-12) 2795 RON
33 1 4 SCREW PLASTIC THREAD FORM M3 * 16 T10 (330019-49) 558 RON
34 1 2 SCREW PLASTIC THD FORM M3.5X65 T15 (330019-25) 558 RON
35 1 2 BRUSH SA (610126-00) 2795 RON
36 1 1 BAFFLE FAN (610550-00) 2347 RON
37 1 1 GEARCASE (611205-00) 5591 RON
38 1 1 SUPPORT REAR BEARING (610107-00) 2124 RON
38 1 1 SUPPORT BEARING (N171820) 2124 RON
800 1 1 GREASE (N017298) 4825 RON
800 1 1 GREASE (284778-00) 49771 RON
800 1 1 GREASE (286436-00) 70239 RON
861 1 1 617547-00 - Indisponibil
861 1 1 KITBOX (N142716) 25164 RON
861 1 1 KITBOX (N037221) 26730 RON
866 1 2 389795-20 - Indisponibil
867 1 1 CAP (645221-00) 558 RON
867 1 1 SAFETY CAP (608522-00) 558 RON
871 1 1 DE9116 - Indisponibil
