18V GRINDER BARE WITH KIT DEWALT DCG412KN Type 2
[DCG412KN Type 2]
18V GRINDER BARE WITH KIT DEWALT DCG412KN Type 2
Click pentru a mari
Imagini suplimentare
18V GRINDER BARE WITH KIT DEWALT DCG412KN Type 2
Click pentru a mari

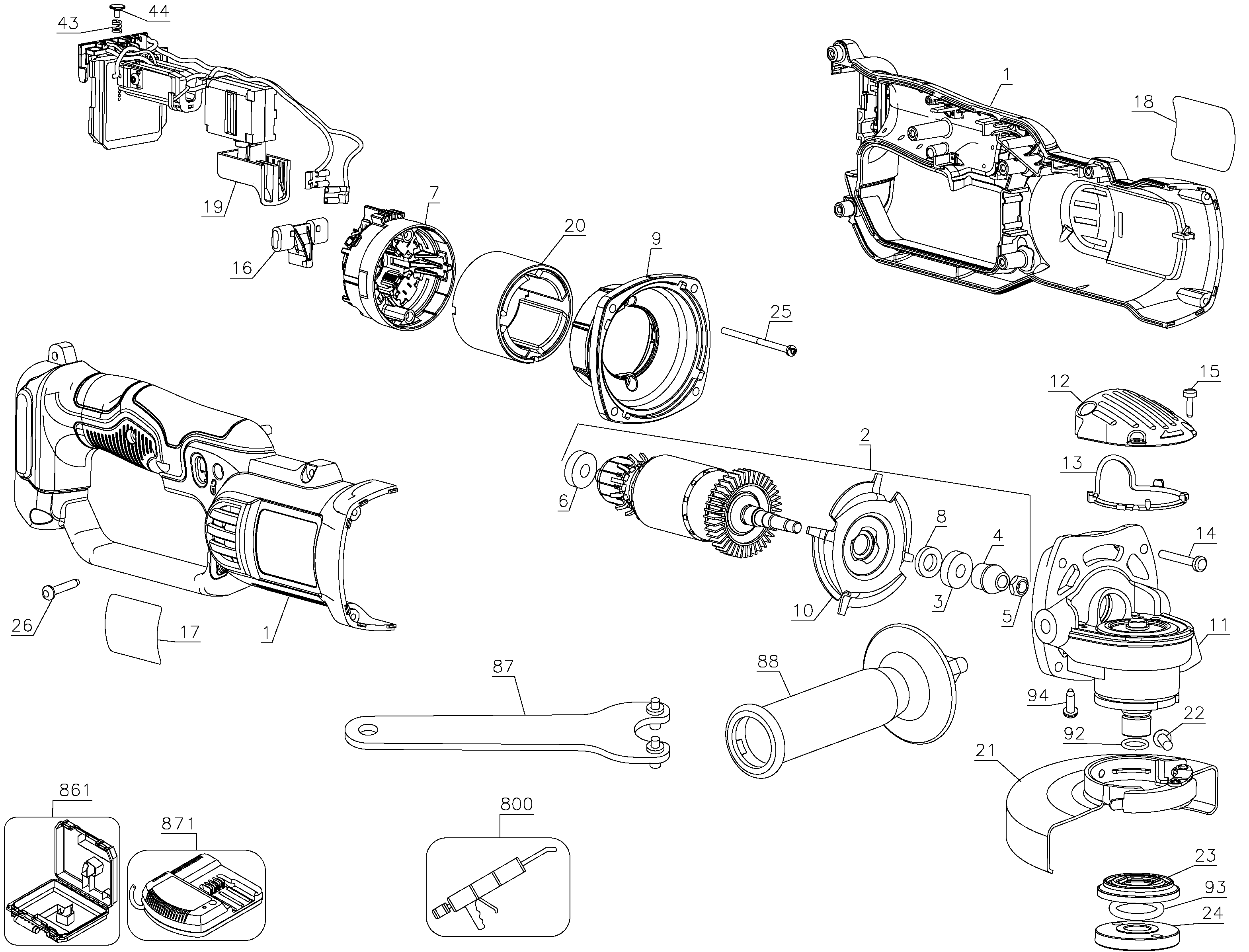

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 CLAMSHELL SET (N382444) 6688 RON
2 1 1 N338399 - Indisponibil
2 1 1 N415906 - Indisponibil
3 1 2 BEARING BALL (330003-60) 190 RON
3 1 2 BEARING DW818 (390821-01 cod inlocuit cu N110359) BALL BEARING (N110359) 5591 RON
4 1 1 PINION (623564-00) 4137 RON
5 1 1 NUT (604484-00) 558 RON
6 1 1 BEARING (N330639) 2182 RON
7 1 1 BRUSH HOLDER SA (N412223) 6688 RON
8 1 1 FELT SEAL (623617-00) 558 RON
9 1 1 N312459 - Indisponibil
10 1 1 N422242 - Indisponibil
10 1 1 ETAINER (623580-00) 1788 RON
11 1 1 GEARCASE SA (N042060SV) 32770 RON
12 1 1 GEARCASE COVER (623562-00) 2347 RON
13 1 1 GASKET (623618-00) 105 RON
14 1 4 SCREW PLASTIC 4 X 30FORM 4* 30 (330065-13) 558 RON
15 1 4 SCREW (385676-01) 558 RON
16 1 1 BUTTON LOCK-OFF (N129056) 781 RON
17 1 1 N408176 - Indisponibil
18 1 1 BRAND LABEL (N139498) 893 RON
19 1 1 SWITCH SA (N414107) 23244 RON
20 1 1 SSA MAGNET RING (N436044) 6688 RON
20 1 1 N234639 - Indisponibil
21 1 1 GUARD SA (N039878) 5591 RON
22 1 1 SCREW (631609-03) 558 RON
23 1 1 INNER FLANGE SA (633257-00SV) 2795 RON
24 1 1 OUTER FLANGE (622613-02) 2795 RON
25 1 2 SCREW, PLASTIC THD FORM (N389143) 588 RON
26 1 6 SCREW PLASTIC THREAD FORM M3.5 * 19 T1 (330019-04) 558 RON
43 1 1 COIL TERMINAL BLOCK SPRING (N102647) 558 RON
44 1 1 SPRING GUIDE (N091479) 558 RON
87 1 1 Wrench(Spanner) DW831 (401680-00) 2124 RON
88 1 1 SIDE HANDLE (N401305) 2556 RON
88 1 1 SIDE HANDLE (N239381) 2347 RON
92 1 1 O RING (633045-00) 781 RON
93 1 1 O RING (633043-00) 781 RON
94 1 1 SCREW STOP (N033051) 558 RON
800 1 1 GREASE (283484-01) 62298 RON
800 1 1 GREASE (761995-01) 23598 RON
861 1 1 KITBOX (N132422) 25164 RON
