Top » Piese de schimb » PIESE DEWALT » DC380KA Type 1

18v CORDLESS RECIPROCATIN DEWALT DC380KA Type 1
[DC380KA Type 1]
18v CORDLESS RECIPROCATIN DEWALT DC380KA Type 1
Click pentru a mari
Imagini suplimentare
18v CORDLESS RECIPROCATIN DEWALT DC380KA Type 1
Click pentru a mari

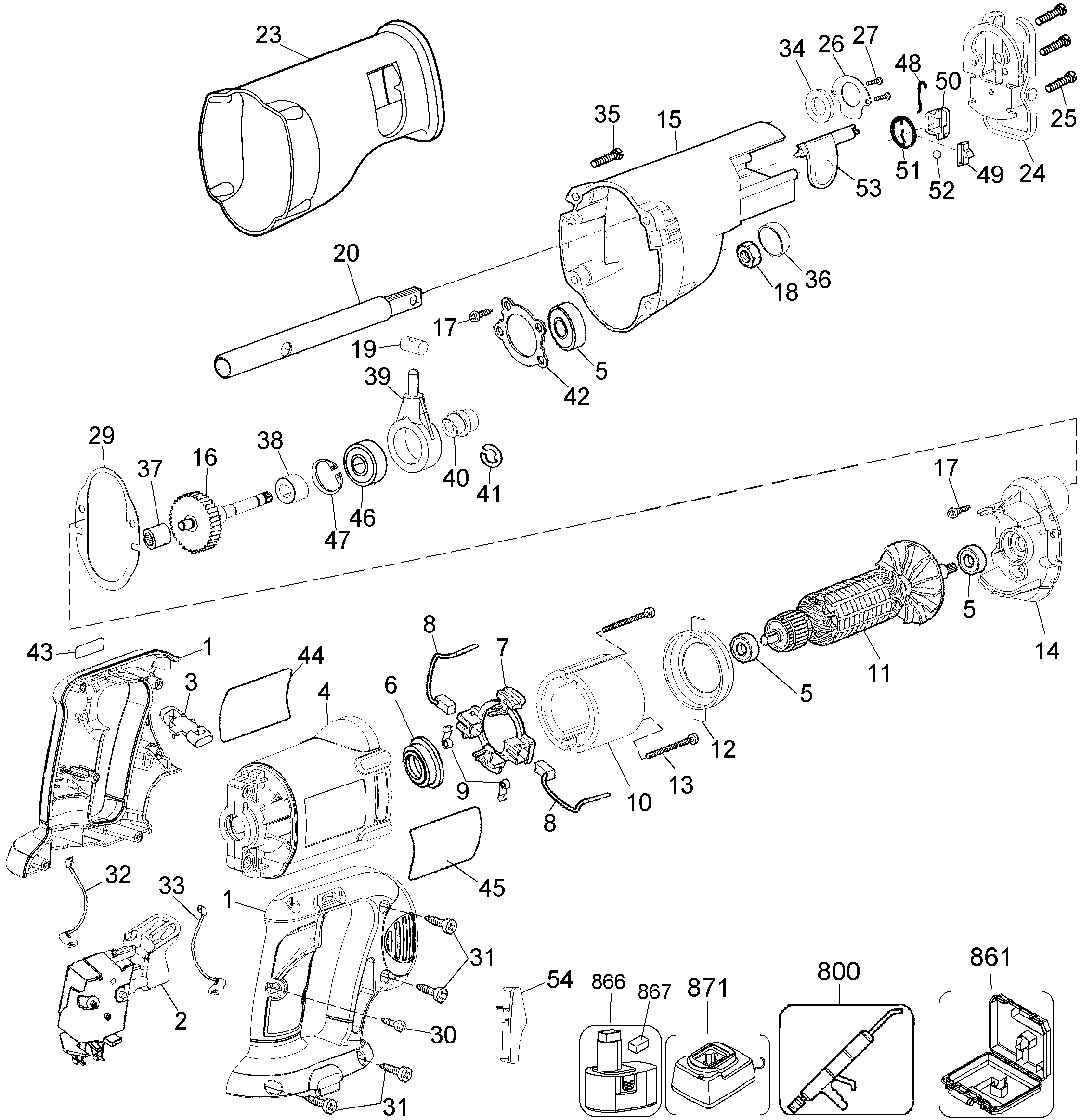

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SA HANDLE SET 18V YELLOW (613840-00) 6821 RON
2 1 1 SWITCH (152274-19) 32770 RON
2 1 1 SWITCH (152274-19SV) 29862 RON
2 1 1 SWITCH (152274-09) 32770 RON
3 1 1 SA BUTTON (607100-00) 1117 RON
4 1 1 FIELD CASE (382177-00) 4472 RON
4 1 1 NA044086 - Indisponibil
5 1 3 330003-04 - Indisponibil
5 1 1 BEARING BALL cod vechi 330003-04 BEARING BALL (605040-06) 1452 RON
6 1 1 SLEEVE (445217-02) 781 RON
7 1 1 RING BRUSH (382178-01) 1229 RON
8 1 2 BRUSH & LEAD (387558-01) 2124 RON
9 1 2 SPRING BRUSH (445860-00) 558 RON
10 1 1 MAGNET DW006K (388232-01) 11519 RON
10 1 1 MAGNET (388232-01SV) 7940 RON
10 1 1 NA476958 - Indisponibil
11 1 1 ARMATURE (617777-00) 15993 RON
11 1 1 ARMATURE (617777-00SV) 20467 RON
12 1 1 BAFFLE (392415-00) 893 RON
13 1 2 SCREW (448269-00) 558 RON
14 1 1 GEARCASE COVER SA (382180-01) 7940 RON
15 1 1 GEARCASE SA (382625-01SV) 28296 RON
15 1 1 SA GEARCASE DW938K TYPE 2 (382625-01) 23598 RON
16 1 1 SPINDLE & AXLE (383883-00) 11519 RON
16 1 1 383883-00SV - Indisponibil
17 1 6 SCREW (604609-00) 558 RON
18 1 1 NUT LH (382195-00) 781 RON
19 1 1 AXLE (382187-00) 3466 RON
20 1 1 OUTPUT SHAFT SA (394564-00) 17335 RON
20 1 1 OUTPUT SHAFT (623504-01) 1891 RON
21 1 4 SCREW (604609-00) 558 RON
23 1 1 BOOT (N084699) 5031 RON
23 1 1 BOOT (616105-00) 3466 RON
24 1 1 SHOE SA DW938K TYPE 2 (382191-01) 9282 RON
25 1 3 SCREW (142940-00) 558 RON
26 1 1 RETAINER DW938K TYPE 2 (387218-00) 1229 RON
27 1 2 Screw Taptite (330045-43) 558 RON
29 1 1 GASKET (382626-00) 781 RON
30 1 1 SCREW PLASTITE (682211-00) 781 RON
31 1 6 SCREW PLASTIC THREAD FORM M3.5 * 19 T1 (330019-04) 558 RON
32 1 1 LEAD BROWN (382629-00) 105 RON
33 1 1 LEAD PURPLE (382630-00) 1117 RON
33 1 1 PURPLE LEAD (382630-00SV) 1117 RON
34 1 1 SEAL (617060-00) 105 RON
35 1 4 SCREW PLASTIC THREAD FORM M4 * 32 T15 (330019-42) 558 RON
36 1 1 CAP (383227-00) 781 RON
37 1 1 NEEDLE BEARING (093128-00) 1229 RON
37 1 1 93128-00 - Indisponibil
38 1 1 SERVICE KIT (647342-00) 5591 RON
38 1 1 DRIVER (615821-00) 781 RON
39 1 1 DRIVER (382196-00) 20467 RON
39 1 1 382196-00SV - Indisponibil
40 1 1 BEARING (615820-00) 3018 RON
40 1 1 SERVICE KIT (647342-00) 5591 RON
41 1 1 58836-00 - Indisponibil
41 1 1 RETAINER (058836-00) 558 RON
42 1 1 RETAINER (383668-00) 105 RON
42 1 1 RETAINING PLATE DW008K (383668-01) 781 RON
43 1 1 WARNING LABEL (614918-00) 781 RON
44 1 1 IDENTITY LABEL (614878-00) 558 RON
45 1 1 RATING PLATE (634808-00) 781 RON
46 1 1 BEARING BALL CW MFG (605040-25) 2347 RON
46 1 1 BEARING BALL 153209 (330003-12) 2795 RON
47 1 1 CIRCLIP DW008K (384046-00) 781 RON
48 1 1 PIN dw008 (383751-02) 781 RON
48 1 1 LOCK PIN (620663-00) 781 RON
49 1 1 SLIDE (383749-01) 190 RON
50 1 1 BLADE CLAMP DW309K (388017-00) 6821 RON
50 1 1 BLADE CLAMP (604731-00) 5031 RON
51 1 1 SPRING dw309k (383750-00) 781 RON
51 1 1 SPRING BLADE CLAMP (623343-00) 781 RON
52 1 1 BALL (000903-00) 558 RON
52 1 1 903-00 - Indisponibil
53 1 1 LEVER (616501-00) 5031 RON
53 1 1 616501-00SV - Indisponibil
54 1 1 PLUG HEX KEY YELLOW (387213-00) 893 RON
800 1 1 GREASE (283484-01) 62298 RON
800 1 1 GREASE (761995-01) 23598 RON
861 1 1 KITBOX (N087255) 25164 RON
861 1 1 KITBOX (619795-00) 22144 RON
861 1 1 SA KITBOX 2 (655351-00) 20467 RON
861 1 1 KITBOX (N152704) 1891 RON
866 1 2 DE9095 - Indisponibil
867 1 2 CAP (645221-00) 558 RON
867 1 2 SAFETY CAP (608522-00) 558 RON
871 1 1 DE9116 - Indisponibil
