Top » Piese de schimb » PIESE DEWALT » DCN701N Type 1

18V CORDLESS ELECTRICIAN DEWALT DCN701N Type 1
[DCN701N Type 1]
18V CORDLESS ELECTRICIAN DEWALT DCN701N Type 1
Click pentru a mari
Imagini suplimentare
18V CORDLESS ELECTRICIAN DEWALT DCN701N Type 1
Click pentru a mari

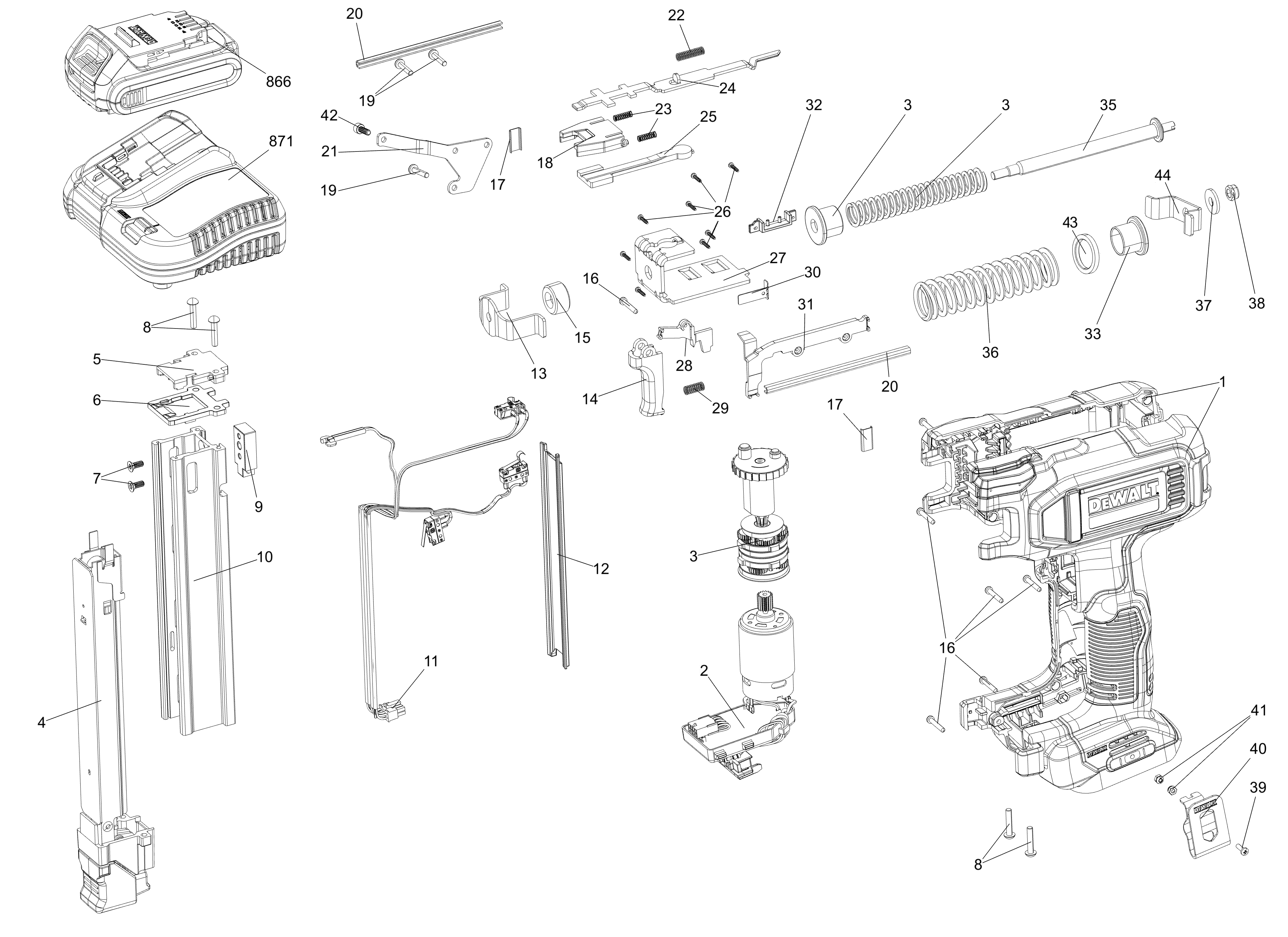

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 N599051 - Indisponibil
1 1 1 CLAMSHELL SET (NA380820) 27287 RON
2 1 1 N730215 - Indisponibil
2 1 1 MOTOR SA (NA682571) 73079 RON
3 1 1 TRANSMISSION SA (N730216) 55455 RON
4 1 1 MAGAZINE SA (N730217) 40734 RON
5 1 1 COVER (N533166) 11337 RON
6 1 1 NOSE (N533165) 12361 RON
7 1 2 SCREW (N569458) 588 RON
8 1 4 SCREW MACHINE M4X20 SCS (N639188) 588 RON
9 1 1 FRAME (N533168) 5370 RON
10 1 1 MAGAZINE (N563367) 25728 RON
11 1 1 LEAD SWITCH SA (N533246) 27287 RON
12 1 1 COVER (N532167) 944 RON
13 1 1 STRAP (N543472) 1630 RON
14 1 1 TRIGGER (N537095) 1630 RON
15 1 1 BUMPER (N488350) 4827 RON
16 1 10 SCREW PLSTC THD FORM M3*19 T10 (330019-24) 558 RON
17 1 2 LUG (N564273) 1630 RON
18 1 1 GUIDE (N502991) 114 RON
19 1 3 Screw M3.5X16 T15 (330019-03) 558 RON
20 1 2 GUIDE (N501234) 1933 RON
21 1 1 BUSHING STRAP - EXTENDED (N621099) 114 RON
22 1 1 SPRING (N540704) 588 RON
23 1 2 SPRING (N541874) 588 RON
24 1 1 CONTACT (N502993) 3954 RON
25 1 1 DRIVER (N518282) 11337 RON
26 1 8 SCREW (N529622) 588 RON
27 1 1 CARRIAGE (N501233) 741 RON
28 1 1 COVER (N541049) 668 RON
29 1 1 SPRING (N560608) 588 RON
30 1 1 PAWL (N508582) 114 RON
31 1 1 COVER (N550776) 82 RON
32 1 1 COVER (N537032) 114 RON
33 1 2 SEAT (N594637) 5370 RON
34 1 1 SPRING (N576700) 2556 RON
35 1 1 DRIVE SHAFT (N601236) 13697 RON
36 1 1 SPRING (N576701) 4827 RON
37 1 1 WASHER (330016-18) 558 RON
38 1 1 NUT STOP ELASTIC M6X1 (330021-07) 558 RON
39 1 1 BELT HOOK SCREW M3 (N042665) 558 RON
40 1 1 HOOK SA (N268241) 1772 RON
41 1 1 NUT STOP ELASTIC M3 X 0.5 (330021-11) 558 RON
42 1 1 SCREW MACHINE M4X10 SCS (N660764) 588 RON
43 1 1 DAMPER (N697536) 2796 RON
44 1 1 REAR BOOTSTRAP (N656554) 944 RON
700 1 1 RATING PLATE (N583398) 668 RON
701 1 1 N687677 - Indisponibil
702 1 1 WARNING LABEL (N600780) 668 RON
703 1 1 BRAND LABEL (N604839) 944 RON
704 1 1 N605834 - Indisponibil
866 1 1 DCB203 - Indisponibil
871 1 1 DCB115 - Indisponibil
871 1 1 DCB1104 - Indisponibil
