18V CIRCULAR SAW DEWALT DW934K2 Type 1
[DW934K2 Type 1]
18V CIRCULAR SAW DEWALT DW934K2 Type 1
Click pentru a mari
Imagini suplimentare
18V CIRCULAR SAW DEWALT DW934K2 Type 1
Click pentru a mari

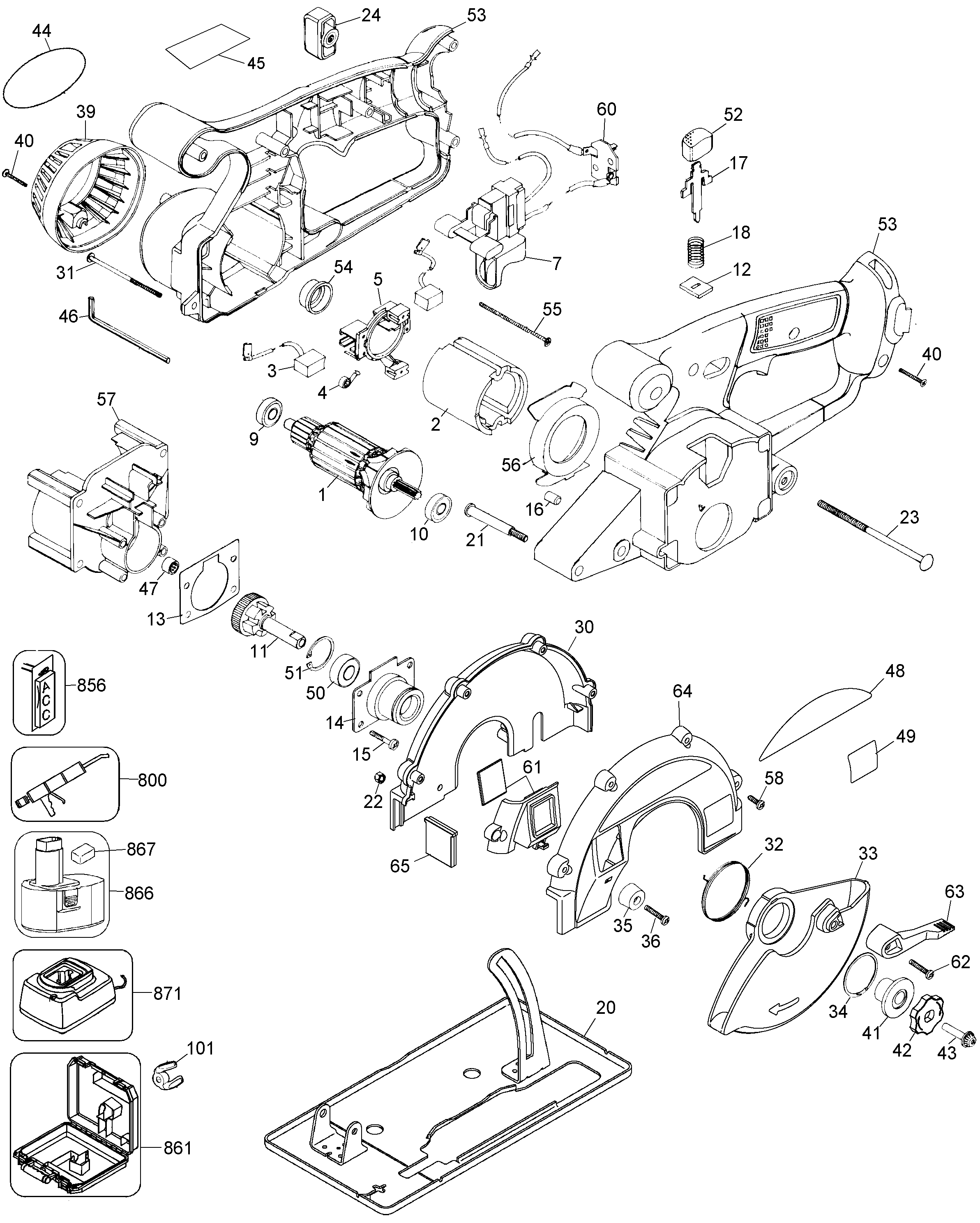

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ARMATURE & FAN (603229-00) 45297 RON
1 1 1 603229-00SV - Indisponibil
2 1 1 MAGNET DW006K (388232-01) 11519 RON
2 1 1 MAGNET (388232-01SV) 7940 RON
2 1 1 NA476958 - Indisponibil
3 1 2 BRUSH & LEAD (387558-01) 2124 RON
4 1 2 SPRING BRUSH (445860-00) 558 RON
5 1 1 RING BRUSH (382178-01) 1229 RON
7 1 1 SWITCH SA (613049-00) 9282 RON
9 1 1 330003-04 - Indisponibil
9 1 1 BEARING BALL cod vechi 330003-04 BEARING BALL (605040-06) 1452 RON
10 1 1 330003-04 - Indisponibil
10 1 1 BEARING BALL cod vechi 330003-04 BEARING BALL (605040-06) 1452 RON
11 1 1 SPINDLE SA (606741-00) 20467 RON
11 1 1 606741-00SV - Indisponibil
12 1 1 WIPER (393004-00) 558 RON
13 1 1 GASKET (393005-00) 781 RON
14 1 1 GEARCASE COVER (393007-00) 7940 RON
15 1 4 SCREW.TEMP (330045-04) 558 RON
15 1 4 SCREW METAL THD FRM M4X16 T20 (330045-06) 558 RON
16 1 1 32731-00 - Indisponibil
16 1 1 PLUG (032731-00) 558 RON
17 1 1 SPINDLE LOCK (150389-00) 781 RON
18 1 1 58698-00 - Indisponibil
18 1 1 SPRING (058698-00) 558 RON
20 1 1 SHOE SA (603790-00) 32770 RON
21 1 1 SCREW (396631-00) 558 RON
22 1 2 LOCK NUT (148641-00) 558 RON
23 1 1 BOLT (098128-97) 781 RON
23 1 1 BOLT (098128-97) 781 RON
24 1 1 SA KNOB (395889-00) 781 RON
30 1 1 GUARD UPPER (603781-00) 12861 RON
31 1 4 SCREW (398987-00) 558 RON
32 1 1 SPRING (611473-00) 105 RON
33 1 1 GUARD LOWER (604981-00) 14315 RON
34 1 1 RETAINER (150383-00) 781 RON
35 1 1 BUMPER (N248899) 588 RON
35 1 1 BUMPER (389132-00) 558 RON
36 1 1 SCREW.SPECIAL (393473-00) 781 RON
39 1 1 END CAP (150386-00) 190 RON
40 1 7 SCREW PLASTIC THREAD FORM M3.5 * 19 T1 (330019-04) 558 RON
41 1 1 647631-00 - Indisponibil
41 1 1 WASHER INNER CLAMP (608387-00) 1117 RON
42 1 1 WASHER OUTER CLAMP (610669-00) 1229 RON
43 1 1 BLADE BOLT (150384-00) 105 RON
44 1 1 IDENTITY LABEL (396062-00) 558 RON
45 1 1 RATING PLATE (631518-00) 781 RON
46 1 1 KEY kc1440 (497570-02) 781 RON
46 1 1 HEX KEY 4MM (98000-09) 781 RON
47 1 1 NEEDLE BEARING (093128-00) 1229 RON
47 1 1 93128-00 - Indisponibil
48 1 1 IDENTITY LABEL (612955-00) 781 RON
48 1 1 609237-00 - Indisponibil
49 1 1 LABEL. (609289-00) 781 RON
49 1 1 613001-00 - Indisponibil
50 1 1 BEARING BALL (605040-15) 2347 RON
51 1 1 37464-00 - Indisponibil
51 1 1 RETAINER (037464-00) 558 RON
52 1 1 BUTTON (145350-00) 558 RON
53 1 1 CLAMSHELL (395987-00) 14315 RON
54 1 1 445217-01 - Indisponibil
54 1 1 SLEEVE (445217-02) 781 RON
55 1 2 SCREW (448269-00) 558 RON
56 1 1 FAN (150370-00) 781 RON
57 1 1 GEARCASE (392999-00) 6821 RON
58 1 4 SCREW (611622-00) 558 RON
58 1 4 606701-00 - Indisponibil
60 1 1 285371-00 - Indisponibil
61 1 1 WINDOW (603783-00) 10512 RON
62 1 1 Screw Metal (330045-16) 558 RON
63 1 1 LEVER (604925-00) 1452 RON
64 1 1 GUARD (603782-00) 9282 RON
65 1 1 WINDOW (605568-00) 190 RON
101 1 1 84317-00 - Indisponibil
101 1 1 WING NUT (084317-00) 781 RON
800 1 1 GREASE (286436-00) 70239 RON
856 1 1 471981-00 - Indisponibil
861 1 1 KITBOX (609028-00) 57488 RON
866 1 2 DE9096 - Indisponibil
867 1 2 CAP (645221-00) 558 RON
867 1 2 SAFETY CAP (608522-00) 558 RON
871 1 1 DE9108 - Indisponibil
