Top » Piese de schimb » PIESE DEWALT » DW935K2 Type 3

14.4V TRIMSAW KIT-U.K. DEWALT DW935K2 Type 3
[DW935K2 Type 3]
14.4V TRIMSAW KIT-U.K. DEWALT DW935K2 Type 3
Click pentru a mari
Imagini suplimentare
14.4V TRIMSAW KIT-U.K. DEWALT DW935K2 Type 3
Click pentru a mari

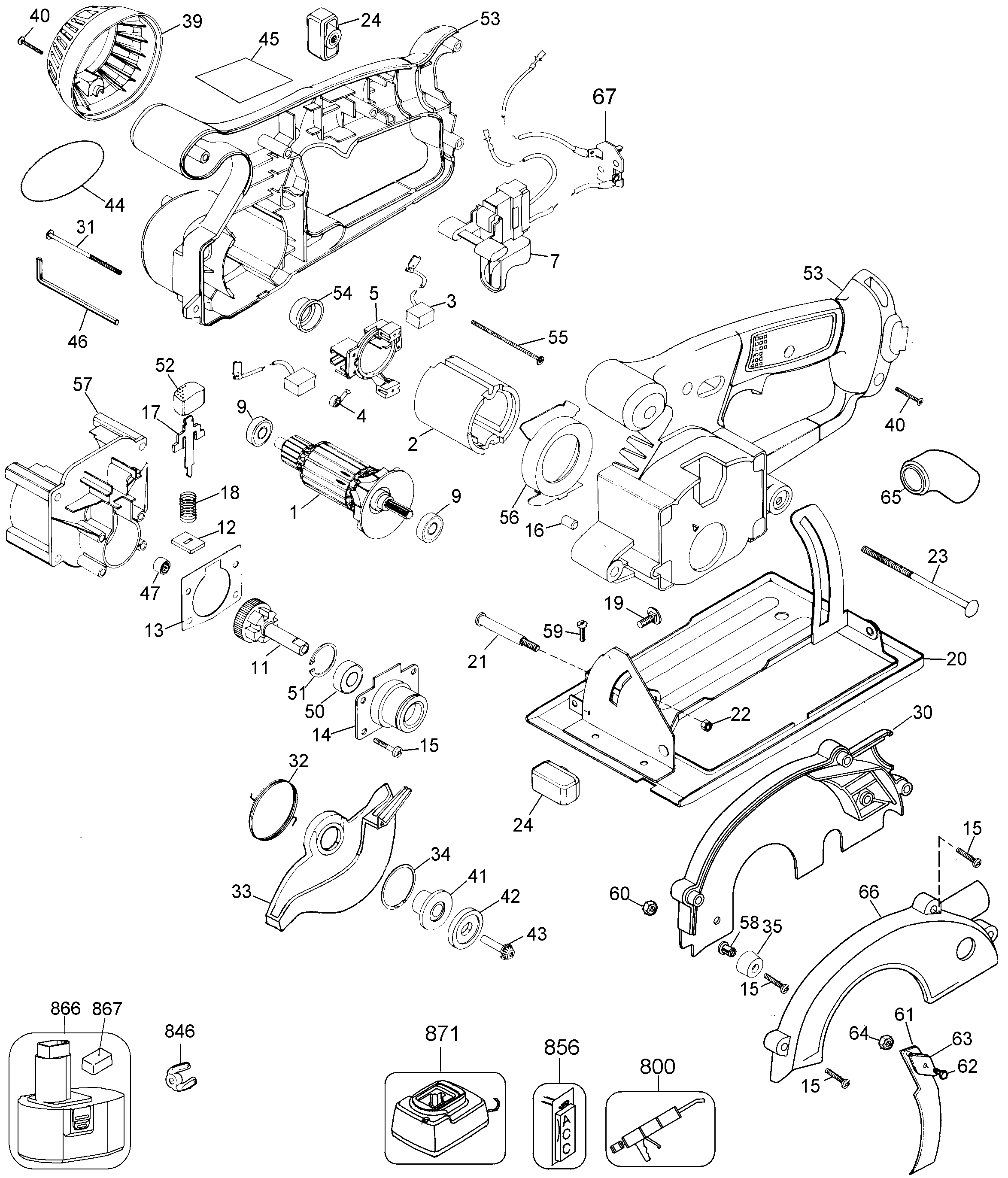

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SA ARMATURE (392996-01) 20467 RON
1 1 1 392996-00SV - Indisponibil
1 1 1 ARMATURE & FAN (392996-00) 22144 RON
2 1 1 MAGNET DW006K (388232-01) 11519 RON
2 1 1 MAGNET (388232-01SV) 7940 RON
2 1 1 NA476958 - Indisponibil
3 1 2 BRUSH & LEAD (387558-01) 2124 RON
4 1 2 SPRING BRUSH (445860-00) 558 RON
5 1 1 RING BRUSH (382178-01) 1229 RON
7 1 1 N062230 - Indisponibil
7 1 1 153207-01 - Indisponibil
9 1 2 330003-04 - Indisponibil
9 1 1 BEARING BALL cod vechi 330003-04 BEARING BALL (605040-06) 1452 RON
11 1 1 SPINDLE SA (393000-00) 15993 RON
11 1 1 393000-00SV - Indisponibil
12 1 1 WIPER (393004-00) 558 RON
13 1 1 GASKET (393005-00) 781 RON
14 1 1 GEARCASE COVER (393007-00) 7940 RON
15 1 8 SCREW METAL THD FRM M4X16 T20 (330045-06) 558 RON
16 1 1 32731-00 - Indisponibil
16 1 1 PLUG (032731-00) 558 RON
17 1 1 SPINDLE LOCK (150389-00) 781 RON
18 1 1 58698-00 - Indisponibil
18 1 1 SPRING (058698-00) 558 RON
19 1 1 CARRIAGE BOLT (N091970) 558 RON
19 1 1 CARRIAGE BOLT (098128-15) 558 RON
19 1 1 98128-15 - Indisponibil
20 1 1 SHOE SA (380045-02) 10512 RON
21 1 1 SCREW (396631-00) 558 RON
22 1 1 LOCK NUT (148641-00) 558 RON
23 1 1 98128-97 - Indisponibil
23 1 1 BOLT (098128-97) 781 RON
24 1 2 SA KNOB (395889-00) 781 RON
30 1 1 GUARD UPPER (380047-00) 12861 RON
31 1 4 SCREW (398987-00) 558 RON
32 1 1 SPRING (150067-00) 781 RON
32 1 1 605014-00 - Indisponibil
33 1 1 GUARD LOWER (381130-00) 3018 RON
34 1 1 RETAINER (150383-00) 781 RON
35 1 1 BUMPER (445625-01) 781 RON
39 1 1 END CAP (150386-00) 190 RON
40 1 7 SCREW PLASTIC THREAD FORM M3.5 * 19 T1 (330019-04) 558 RON
41 1 1 WASHER INNER CLAMP (150369-02) 105 RON
42 1 1 WASHER OUTER CLAMP (610669-00) 1229 RON
43 1 1 BLADE BOLT (150384-00) 105 RON
44 1 1 IDENTITY LABEL (396062-00) 558 RON
45 1 1 617251-00 - Indisponibil
46 1 1 KEY kc1440 (497570-02) 781 RON
46 1 1 HEX KEY 4MM (98000-09) 781 RON
47 1 1 SLEEVE BEARING (385939-00) 781 RON
50 1 1 BALL BEARING (330003-08) 3018 RON
50 1 1 BEARING BALL (605040-15) 2347 RON
51 1 1 37464-00 - Indisponibil
51 1 1 RETAINER (037464-00) 558 RON
52 1 1 BUTTON (145350-00) 558 RON
53 1 1 380968-01 - Indisponibil
54 1 1 SLEEVE (445217-02) 781 RON
55 1 2 SCREW (448269-00) 558 RON
56 1 1 FAN (150370-00) 781 RON
57 1 1 615621-00SV - Indisponibil
57 1 1 GEARCASE SA (615621-00) 15993 RON
58 1 1 91963-13 - Indisponibil
58 1 1 EYELET (091963-13) 558 RON
59 1 1 SCREW (098003-11) 558 RON
59 1 1 98003-11 - Indisponibil
60 1 1 ad225 (90610773) 588 RON
60 1 1 NUT (330021-00) 558 RON
61 1 1 RIVING KNIFE (380041-00) 2795 RON
62 1 1 98023-17 - Indisponibil
62 1 1 SCREW (098023-17) 2347 RON
63 1 1 PLATE (380042-00) 558 RON
64 1 1 "NUT 6KT M6 ISO7040""" (330021-01) 2347 RON
65 1 1 NOZZLE (380043-00) 2347 RON
66 1 1 GUARD COVER (380048-00) 10512 RON
66 1 1 380048-00SV - Indisponibil
67 1 1 285371-00 - Indisponibil
800 1 1 GREASE (286436-00) 70239 RON
846 1 1 84317-00 - Indisponibil
846 1 1 WING NUT (084317-00) 781 RON
856 1 1 340781-15 - Indisponibil
861 1 2 LATCH ASSEMBLY, KITBOX (381109-00) 944 RON
861 1 1 380865-02 - Indisponibil
861 1 2 637475-00 - Indisponibil
866 1 2 DE9093 - Indisponibil
867 1 2 CAP (645221-00) 558 RON
867 1 2 SAFETY CAP (608522-00) 558 RON
871 1 1 DE9107 - Indisponibil
