Top » Piese de schimb » PIESE DEWALT » RAD14K Type 1

14.4V RA DRILL KIT DEWALT RAD14K Type 1
[RAD14K Type 1]
14.4V RA DRILL KIT DEWALT RAD14K Type 1
Click pentru a mari
Imagini suplimentare
14.4V RA DRILL KIT DEWALT RAD14K Type 1
Click pentru a mari

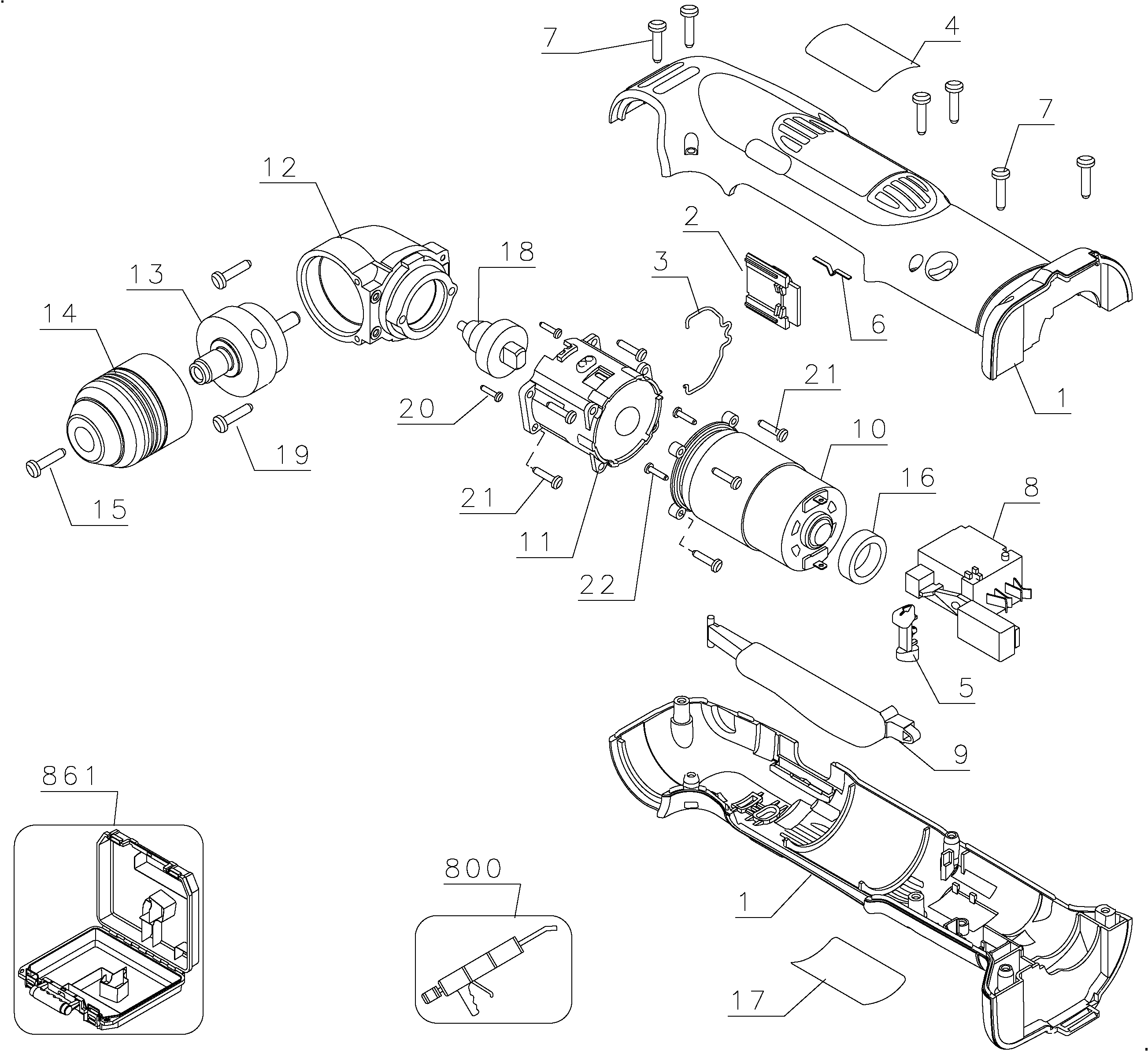

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 383841-05 - Indisponibil
2 1 1 ACTUATOR (383842-01) 1229 RON
2 1 1 ACTUATOR (383842-02) 893 RON
3 1 1 SPRING (383184-00) 781 RON
4 1 1 380333-00 - Indisponibil
5 1 1 SCREW (148204-00) 781 RON
5 1 1 SLIDER (383843-00) 1229 RON
6 1 1 SPRING (144658-00) 1117 RON
7 1 6 SCREW PLASTIC THD FORM (330019-00) 558 RON
8 1 1 GREASE (283484-00) 32770 RON
8 1 1 SWITCH (152274-13) 37579 RON
8 1 1 152274-13SV - Indisponibil
9 1 1 PADDLE (383844-00) 3018 RON
10 1 1 MOTOR & PINION (391886-01) 17335 RON
10 1 1 MOTOR & PINION (391886-01SV) 17335 RON
11 1 1 CHUCK KEYLESS (330075-06) 25164 RON
11 1 1 383839-00 - Indisponibil
12 1 1 GEARCASE (383837-00) 12861 RON
13 1 1 SPINDLE & GEAR (383840-00) 23598 RON
14 1 1 CHUCK KEYLESS (330075-46) 14315 RON
15 1 1 "SCREW CHUCK (1/4"" - 28 UNF - LH)" (605256-01) 781 RON
16 1 1 DAMPER (387740-00) 893 RON
18 1 1 GEARCASE SA (604790-00) 43731 RON
18 1 1 GEARCASE (604790-00SV) 4825 RON
18 1 1 PINION & GEAR SA (386492-00) 25164 RON
19 1 2 SCREW (80164-00) 588 RON
19 1 2 SCREW (080164-00) 558 RON
20 1 2 SCREW (055206-00) 558 RON
20 1 2 55206-00 - Indisponibil
21 1 1 383876-01 - Indisponibil
21 1 8 SCREW (098091-10) 558 RON
21 1 8 98091-10 - Indisponibil
22 1 2 SCREW TAPTITE (156179-00) 558 RON
22 1 2 SCREW TAPTITE (156179-01) 558 RON
23 1 1 387244-02 - Indisponibil
26 1 1 761995-00 - Indisponibil
800 1 1 GREASE (N017298) 4825 RON
800 1 1 GREASE (284778-00) 49771 RON
800 1 1 GREASE (283484-01) 62298 RON
800 1 1 GREASE (761995-01) 23598 RON
