Top » Piese de schimb » PIESE DEWALT » DW927K2 Type 1

12V DRILL / DRIVER DEWALT DW927K2 Type 1
[DW927K2 Type 1]
12V DRILL / DRIVER DEWALT DW927K2 Type 1
Click pentru a mari
Imagini suplimentare
12V DRILL / DRIVER DEWALT DW927K2 Type 1
Click pentru a mari

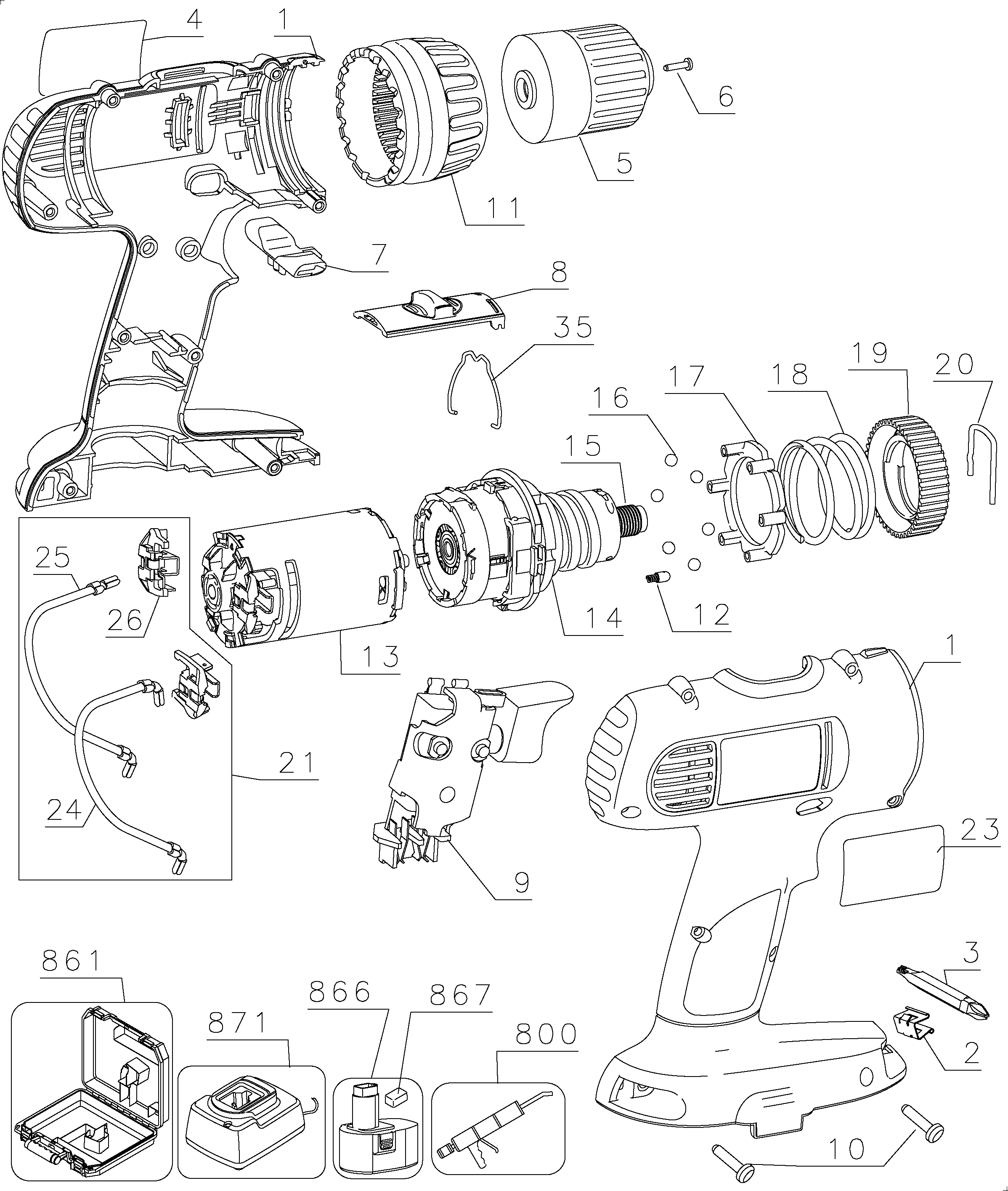

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SA MOTOR PINION 12V (SERVICE) (579731-00) 22144 RON
2 1 1 610136-00 - Indisponibil
2 1 1 623331-00 - Indisponibil
2 1 1 TRANSMISSION SA (623331-00SV) 28296 RON
3 1 1 SWITCH SA (N034934) 1891 RON
3 1 1 SWITCH SA (152274-14) 26730 RON
5 1 1 CHUCK KEYLESS (330075-46) 14315 RON
7 1 1 397147-01 - Indisponibil
8 1 1 BUTTON FWD/REV (623997-00) 781 RON
8 1 1 BUTTON FORWARD/REVERSE BLACK (391895-00) 781 RON
9 1 9 SCREW PLASTITE (682211-00) 781 RON
14 1 1 WIREFORM (391896-00) 781 RON
16 1 1 HOUSING CLUTCH (391908-00) 1117 RON
22 1 1 392095-00 - Indisponibil
23 1 1 COLLAR ADJUSTING (391899-00) 2347 RON
24 1 1 SA LEAD WIRE POS 14AWG (398978-00) 1117 RON
25 1 1 SA LEAD WIRE NEG 14 AWG (398979-01) 1788 RON
26 1 2 SA BRUSH BOX (603754-01) 3018 RON
27 1 1 "SCREW CHUCK (1/4"" - 28 UNF - LH)" (605256-01) 781 RON
31 1 1 CLIP BIT HOLDER (148354-03) 558 RON
32 1 1 BIT SCREWDRIVER (390691-01) 781 RON
32 1 1 BIT SCREWDRIVER PH2/SL8 (607918-41) 781 RON
33 1 1 CLIP BEARING (798959-00) 558 RON
34 1 1 NUT ADJUSTING (391911-00) 2795 RON
35 1 1 DETENT (326467-00) 558 RON
37 1 1 391912-01 - Indisponibil
37 1 1 SPRING CLUTCH (391912-00) 893 RON
38 1 1 PLATE CLUTCH (397303-00) 2795 RON
39 1 6 BALL STEEL (386690-00) 558 RON
40 1 2 PIN ATTACHMENT (392094-00) 558 RON
800 1 1 GREASE (N017298) 4825 RON
800 1 1 GREASE (284778-00) 49771 RON
817 1 1 578765-00 - Indisponibil
866 1 2 DE9074 - Indisponibil
867 1 2 CAP (645221-00) 558 RON
867 1 2 SAFETY CAP (608522-00) 558 RON
871 1 1 DE9118 - Indisponibil
