Top » Piese de schimb » PIESE DEWALT » DWD530KS Type 2

1100W DRILL DEWALT DWD530KS Type 2
[DWD530KS Type 2]
1100W DRILL DEWALT DWD530KS Type 2
Click pentru a mari
Imagini suplimentare
1100W DRILL DEWALT DWD530KS Type 2
Click pentru a mari
1100W DRILL DEWALT DWD530KS Type 2
Click pentru a mari

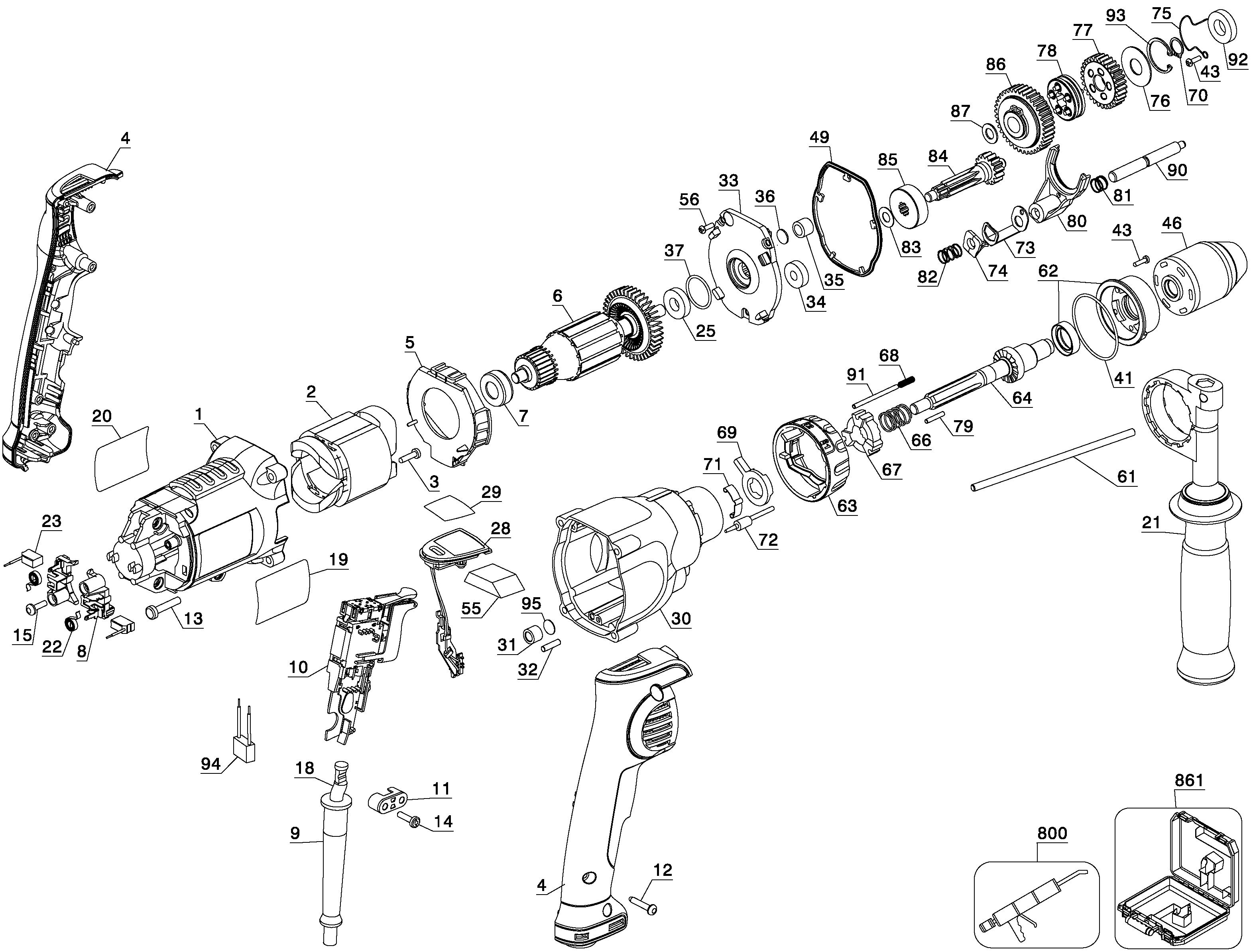

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 FIELD CASE (639593-01) 4137 RON
2 1 1 FIELD 230V (N048009SV) 25164 RON
2 1 1 FIELD 230V (NA694611) 40734 RON
3 1 2 SCREW (N068183) 558 RON
4 1 1 CLAMSHELL SET (NA045801) 21676 RON
5 1 1 BAFFLE FAN (641824-00) 105 RON
6 1 1 ARMATURE SA (647864-03SV) 3124 RON
6 1 1 ARMATURE SA (NA816729) 55455 RON
7 1 1 SA BEARING AND BOOT (391032-00) 2795 RON
8 1 2 BRUSH HOLDER (N028784SV) 15469 RON
9 1 1 CORD PROTECTOR (N918736) 668 RON
10 1 1 NA046932 - Indisponibil
10 1 1 SWITCH SA (NA495421) 51127 RON
11 1 1 CORD CLAMP (655058-00) 781 RON
12 1 4 SCREW (330065-31) 558 RON
13 1 4 Screw Metal (330045-15) 781 RON
14 1 2 SCREW (330065-07) 558 RON
15 1 2 SCREW (176951-00) 558 RON
18 1 1 CORDSET (EURO) (330120-92) 11519 RON
19 1 1 RATING PLATE (NA101570) 4355 RON
20 1 1 LABEL IDENTITY DEWALT 34*48 (395047-00) 558 RON
21 1 1 HANDLE SIDE SA (663029-00) 9282 RON
21 1 1 663028-00 - Indisponibil
22 1 2 SPRING (662999-01) 781 RON
23 1 2 BRUSH (N032702) 2124 RON
25 1 1 6900 CW Bearing (N339299) 2182 RON
28 1 1 MODULE (656320-00) 5591 RON
29 1 1 LABEL (N203994) 105 RON
30 1 1 GEARCASE SA (N913585) 24962 RON
31 1 1 BEARING NEEDLE NF (N332380) 944 RON
32 1 1 PIN ROLLER (330041-07) 558 RON
33 1 1 GEARCASE COVER (645400-04SV) 11519 RON
34 1 1 BEARING (605040-02) 1788 RON
35 1 1 BEARING NEEDLE (330004-02) 1229 RON
36 1 1 THRUST PLATE (652185-00) 558 RON
37 1 1 O RING (099014-04) 558 RON
41 1 1 O RING (056122-00) 1229 RON
43 1 4 SCREW (330045-74) 558 RON
46 1 1 CHUCK KEYLESS (586200-12) 34336 RON
49 1 1 SEAL (648761-00) 781 RON
55 1 1 FELT (N063107) 190 RON
56 1 3 SCREW.TEMP (098102-13) 558 RON
61 1 1 DEPTH STOP (940357-00) 893 RON
62 1 1 END CAP (N030304) 6821 RON
62 1 1 NA935935 - Indisponibil
63 1 1 COLLAR (655856-00) 4137 RON
64 1 1 SA SPINDLE OUTPUT SERVICE (656368-02SV) 25728 RON
66 1 1 SPRING (651266-00) 558 RON
67 1 1 RATCHET (651262-00) 2124 RON
68 1 3 SPRING (656287-00) 558 RON
69 1 1 ARM (659192-00) 1788 RON
70 1 1 CIRCLIP (652188-00) 558 RON
71 1 1 SPRING DETENT (395460-00) 558 RON
72 1 1 PIN (648298-00) 781 RON
73 1 1 BRACKET (651331-00) 781 RON
74 1 1 FINGER (656286-00) 558 RON
75 1 1 SPRING (652003-00) 781 RON
76 1 1 WASHER THRUST (652004-00) 558 RON
77 1 1 GEAR (653728-00) 5591 RON
78 1 1 SELECTOR (643924-00SV) 18568 RON
79 1 1 ROLLER (651330-00) 558 RON
80 1 1 YOKE (N045436) 781 RON
81 1 1 SPRING (N031370) 558 RON
82 1 1 SPRING (N022914) 781 RON
83 1 1 WASHER THRUST (659185-00) 558 RON
84 1 1 INTER SHAFT (N045500SV) 22144 RON
85 1 1 GEAR (643896-00) 5591 RON
86 1 1 CLUTCH SA (653814-00SV) 39145 RON
87 1 1 WASHER THRUST (652007-00) 558 RON
90 1 1 PIN (651334-00) 2347 RON
91 1 3 PIN (656321-00) 558 RON
92 1 1 BEARING (605040-72) 2347 RON
93 1 1 CIRCLIP (658952-00) 558 RON
94 1 1 CAPACITOR (N075085) 3018 RON
95 1 1 WASHER THRUST (N045430) 893 RON
800 1 1 GREASE (286436-00) 70239 RON
800 1 1 GREASE (429698-00) 62298 RON
861 1 1 KITBOX (N079829) 20467 RON
