Top » Piese de schimb » PIESE BOSCH » 0601B10003

MASINA DE DEBITAT CU DISC (0601B10003) GCO 141 / 230 V /EU
[0601B10003]
MASINA DE DEBITAT CU DISC (0601B10003) GCO 141 / 230 V /EU
Click pentru a mari
Imagini suplimentare
MASINA DE DEBITAT CU DISC (0601B10003) GCO 141 / 230 V /EU
Click pentru a mari
MASINA DE DEBITAT CU DISC (0601B10003) GCO 141 / 230 V /EU
Click pentru a mari

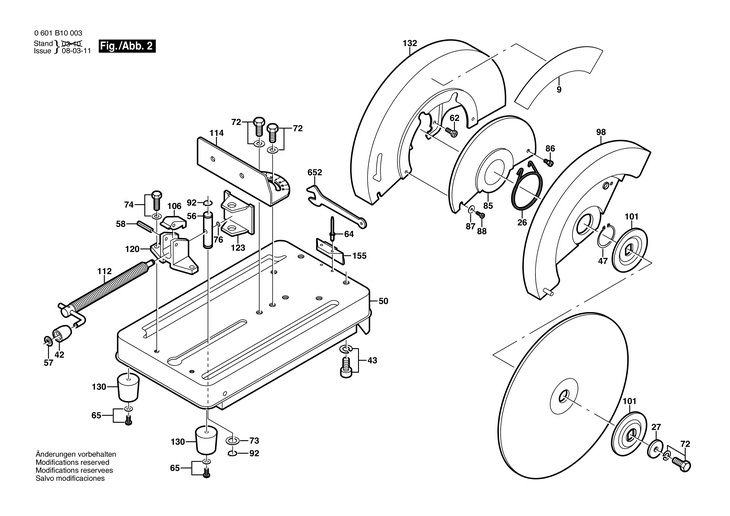

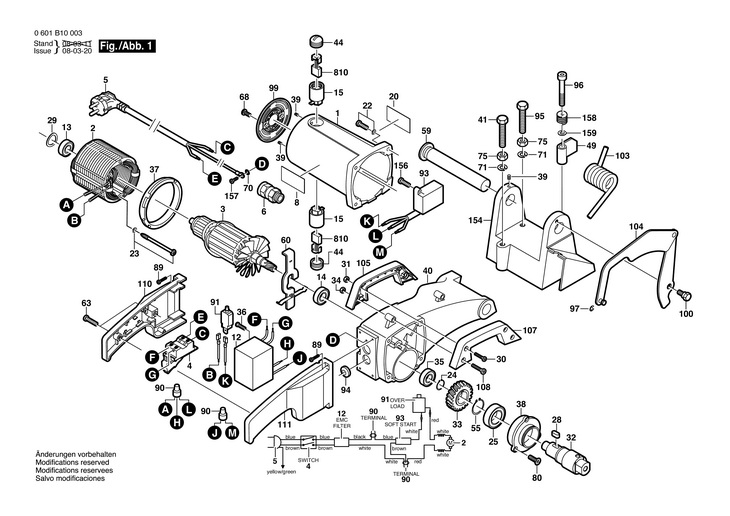

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 CARCASA MOTOR (2610913038) 17223 RON
2 1 1 Stator (2610911649) 35375 RON
3 1 1 Rotor (2610911655) 78718 RON
4 1 1 INTRERUPATOR PORNIT/OPRIT (2610913060) 25018 RON
5 1 1 CONDUCTOR DE RETEA (1609203F91) 10624 RON
6 1 1 BRATARA DE FIXARE (2610913043) 2794 RON
8 1 1 PLACUTA INDICATOARE TIP (1609902659) 1229 RON
9 1 1 PLACUTA CU EMBLEMA FIRMEI (2610994083) 1229 RON
12 1 1 BOBINA DE SOC (1619P04445) 2748 RON
13 1 1 RULMENT (2610913087) 4143 RON
14 1 1 RULMENT (2610968044) 4584 RON
15 1 2 PERIE DE CARBUNE (2610913039) 6374 RON
20 1 1 PLACUTA INDICATOARE TIP (1609902653) 1229 RON
22 1 4 SURUB (2610913086) 558 RON
23 1 2 SURUB (2610913088) 781 RON
24 1 1 INEL DE SIGURANTA (2610913091) 558 RON
25 1 1 RULMENT (2610913093) 10676 RON
26 1 1 ARC (2610913049) 1117 RON
27 1 1 RONDELA (2610913096) 558 RON
28 1 1 CHEIE (2610355343) 190 RON
29 1 1 RONDELA (2615302981) 558 RON
30 1 2 SURUB (2610913089) 558 RON
31 1 2 PIULITA HEXAGONALA (2610913090) 558 RON
32 1 1 ARBORE DE POLIZAT (2610913048) 13863 RON
33 1 1 ROATA DINTATA (2610913046) 12588 RON
34 1 2 PIULITA (2610355339) 558 RON
35 1 1 RULMENT (2610327848) 3665 RON
36 1 1 SURUB (2610913100) 558 RON
37 1 1 INEL DEFLECTOR DE AER (2610913042) 1452 RON
38 1 1 CAPAC DE LAGAR (2610913047) 12588 RON
39 1 3 SURUB (2610911456) 893 RON
40 1 1 BRAT BASCULANT (2610913045) 35375 RON
41 1 1 SURUB (2610913108) 893 RON
42 1 1 MANER (2610913063) 1117 RON
43 1 4 SURUB (2610913114) 558 RON
44 1 2 CAPAC PERII (2610913041) 677 RON
47 1 1 INEL DE SIGURANTA (2610913095) 1117 RON
49 1 1 TAMPON OPRITOR (2610913069) 1676 RON
50 1 1 PLACA DE BAZA (2610913073) 40474 RON
55 1 1 INEL DE SIGURANTA (2610913092) 2794 RON
56 1 1 BOLT (1619P03791) 2459 RON
57 1 1 INEL DE SIGURANTA (2610913104) 558 RON
58 1 1 STIFT DE PRINDERE (2610913061) 781 RON
59 1 1 BOLT (2610913068) 5479 RON
60 1 1 PARTE DE BLOCARE (2610913044) 3354 RON
62 1 4 SURUB 22 MM (1619P03288) 558 RON
63 1 2 SURUB (2610913101) 558 RON
64 1 1 SURUB (2610355293) 1229 RON
65 1 3 SURUB (2610913115) 558 RON
68 1 2 SURUB (2615296774) 558 RON
70 1 1 SAIBA DE SIGURANTA (1609203F78) 558 RON
71 1 2 RONDELA (2610355264) 1229 RON
72 1 3 SURUB CU CAP HEXAGONAL (2610913097) 781 RON
73 1 1 RONDELA (2610913106) 558 RON
74 1 2 SURUB CU CAP HEXAGONAL (2610913102) 558 RON
75 1 2 PIULITA HEXAGONALA (2610905937) 558 RON
76 1 1 RONDELA (2610913107) 558 RON
80 1 3 SURUB (2610913094) 558 RON
85 1 1 APARATOARE (2610913055) 4584 RON
86 1 1 SURUB (2610913098) 558 RON
87 1 1 RONDELA (2610913099) 558 RON
88 1 1 SURUB (2610910784) Indisponibil Indisponibil
89 1 4 SURUB (2610327867) 558 RON
90 1 2 BORNA DE LEGATURA (1609203G03) 558 RON
91 1 1 INTRERUPATOR PORNIT/OPRIT (1619P04446) 4143 RON
92 1 1 INEL DE SUSTINERE (2610355290) 1229 RON
93 1 1 REZISTENTA SARMEI (1609203G01) 25018 RON
94 1 2 MUFA (1609203G04) 1229 RON
95 1 1 SURUB CU CAP HEXAGONAL (2610913109) 558 RON
96 1 1 SURUB CU CAP HEXAGONAL (2610913110) 893 RON
97 1 1 INEL DE SIGURANTA (2610913112) 558 RON
98 1 1 APARATOARE (2610913050) 18644 RON
99 1 1 PLACA DE ACOPERIRE (2610913037) 1229 RON
100 1 1 SURUB CU CAP HEXAGONAL (2610913113) 781 RON
101 1 2 FLANSA (2610913051) 5032 RON
103 1 1 ARC (2610913111) 3466 RON
104 1 1 PARGHIE (2610913071) 679 RON
105 1 1 INVELIS AL MANERULUI (2610913074) 2868 RON
106 1 1 PIESA FILETATA (2610913103) 2868 RON
107 1 1 INVELIS AL MANERULUI (2610913075) 2868 RON
108 1 2 SURUB (2610358928) 558 RON
110 1 1 INVELIS AL MANERULUI (1619P04447) 5099 RON
111 1 1 INVELIS AL MANERULUI (1619P04448) 5099 RON
112 1 1 FUS FILETAT (2610913105) 5479 RON
114 1 1 FALCA DE PRINDERE (2610913067) 5577 RON
120 1 1 LAGAR AX (1619P03792) 5926 RON
123 1 1 FALCA DE PRINDERE (1619P03790) 3689 RON
130 1 3 TALPA APARATULUI (2610913072) 1676 RON
132 1 1 APARATOARE (2610913054) 20715 RON
154 1 1 LAGAR (2610913070) 24829 RON
155 1 1 SUPORT DE CUTIT (1609203H36) 893 RON
156 1 2 SURUB (1609203G05) 558 RON
157 1 1 SURUB (1609203H37) 558 RON
158 1 1 ARC (1609902168) 558 RON
159 1 1 RONDELA (1609902169) 558 RON
652 1 1 CHEIE (2610913079) 2459 RON
810 1 1 SET DE PERII DE CARBUNE (1619P04451) Indisponibil Indisponibil
891 1 1 MANER DE INTREUPATOR (1619P05635) 44936 RON
