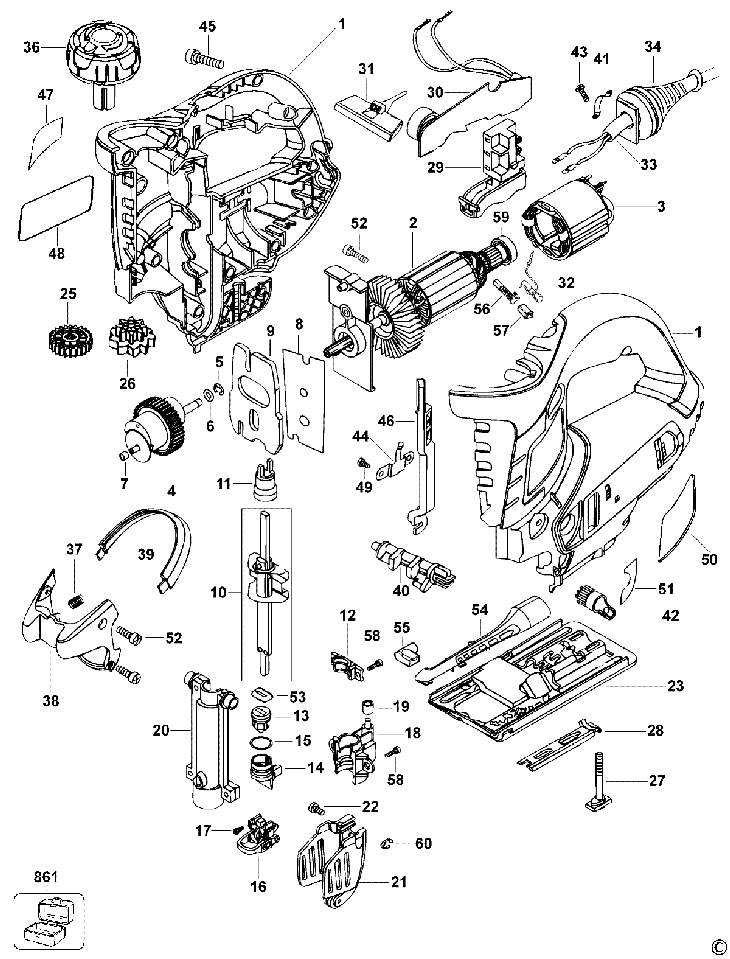

XTS10EK JIGSAW Type 1
[XTS10EK Type 1]
XTS10EK JIGSAW Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 CLAMSHELL SET (583413-05) 15993 RON
2 1 1 ARMATURE SA (585803-00) 17335 RON
3 1 1 FIELD SA (583820-06) 10512 RON
4 1 1 GEAR SA (585805-00) 4472 RON
5 1 1 LOCKING RING (588592-00) 558 RON
6 1 1 WASHER (588593-00) 558 RON
7 1 1 DRIVE ROLLER (583464-01) 558 RON
8 1 1 THRUST PLATE (585809-00) 781 RON
9 1 1 BALANCE WEIGHT (583419-00) 3466 RON
10 1 1 SHAFT SA (583427-01) 4472 RON
11 1 1 BEARING (583422-00) 1117 RON
12 1 1 CLAMP/KS2005/XTS10 (583567-00) 558 RON
13 1 1 BEARING (583677-00) 1117 RON
14 1 1 BEARING (583425-00) 1788 RON
15 1 1 O RING (585388-00) 558 RON
16 1 1 BLADE CLAMP (582593-00) 2124 RON
17 1 2 SCREW (583173-00) 781 RON
18 1 1 CLAMP SA/KS2005 / XTS10 (583430-00) 2124 RON
19 1 1 FOLLOWER (583423-00) 558 RON
20 1 1 CARRIER (583421-00) 2124 RON
21 1 1 BLADE SUPPORT SA (583432-00) 3466 RON
22 1 1 SCREW (590341-00) 105 RON
23 1 1 SHOE SA (585391-00) 3466 RON
25 1 1 GEAR SA (582768-00) 781 RON
26 1 1 ACTUATOR (582601-00) 781 RON
27 1 1 LOCKING SCREW (586927-00) 781 RON
28 1 1 SUPPORT BRACKET (583657-00) 781 RON
29 1 1 SWITCH SA (585385-00) 2347 RON
30 1 1 PCB SA (583508-00) 10512 RON
31 1 1 ACTUATOR (585386-00) 781 RON
32 1 2 CHOKE LEAD SA (582762-00) 1452 RON
33 1 1 CORDSET (589164-11) 9282 RON
34 1 1 CORD PROTECTOR (582722-00) 781 RON
36 1 1 KNOB SA (583434-00) 2795 RON
37 1 1 SPRING (590096-00) 558 RON
38 1 1 CASTING (583455-00) 3018 RON
39 1 1 CASTING (583454-00) 2124 RON
40 1 1 CAM (583452-00) 558 RON
41 1 1 CORD CLAMP DW309K (380414-00) 558 RON
42 1 1 SELECTOR (583451-00) 558 RON
43 1 2 SCREW NO.6 X 12.7 (370748) 558 RON
44 1 1 RETAINER (583450-00) 558 RON
45 1 10 SCREW NO.8 X 19 POLY (809961) 558 RON
46 1 1 LOCK (583449-00) 781 RON
47 1 1 LABEL (586220-01) 558 RON
48 1 1 LABEL (586067-08) 781 RON
49 1 2 SCREW (330019-48) 558 RON
50 1 1 LABEL (586219-01) 558 RON
51 1 1 LABEL (585383-01) 558 RON
52 1 6 SCREW (330013-11) 558 RON
53 1 1 FELT SEAL (583678-00) 558 RON
54 1 1 VACUUM ADAPTOR (586068-00) 1117 RON
55 1 1 ELBOW TUBE (582732-00) 558 RON
56 1 2 BRUSH 230V SA (582761-00) 1229 RON
57 1 2 BRUSHBOX (582696-00) 558 RON
58 1 4 SCREW PATCH LOCK (812171) 558 RON
59 1 1 BEARING (574853-08) 1117 RON
60 1 1 LOCKING RING (587375-00) 558 RON
861 1 1 KITBOX (478754-00) 17335 RON
