Top » Piese de schimb » PIESE BLACK & DECKER » XTS100 Type 1

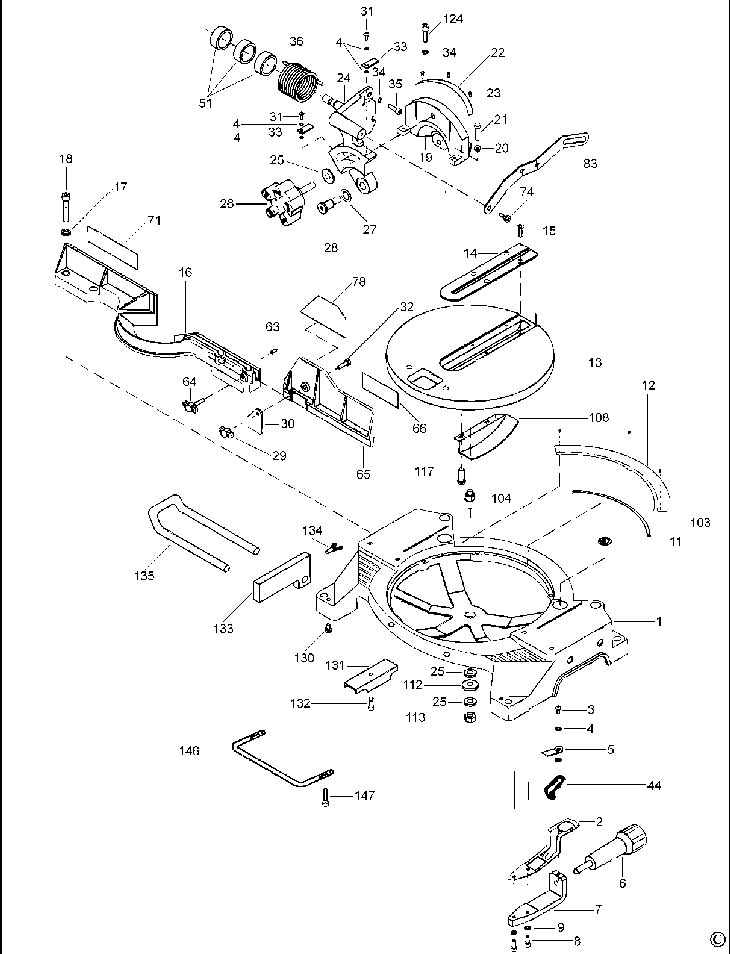

XTS100 MITRE SAW Type 1
[XTS100 Type 1]
XTS100 MITRE SAW Type 1
Click pentru a mari
Imagini suplimentare
XTS100 MITRE SAW Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 BASE (597130-00) 59725 RON
2 1 1 SPRING (597131-00) 3466 RON
3 1 1 SCREW (429907-03) 558 RON
4 1 6 WASHER (429907-04) 558 RON
5 1 1 INDICATOR (429907-05) 1788 RON
6 1 1 HANDLE (429945-06) 4472 RON
7 1 1 LOCK HANDLE (597132-00) 6821 RON
8 1 2 SCREW (429907-08) 558 RON
9 1 2 WASHER SPRING (429907-09) 558 RON
11 1 2 WARNING LABEL (429945-11) 558 RON
12 1 1 SCALE (429945-12) 3018 RON
13 1 1 TABLE (597134-00) 26730 RON
14 1 1 PLATE (597135-00) 2347 RON
15 1 4 SCREW (597136-00) 558 RON
16 1 1 FENCE (597137-00) 25164 RON
17 1 4 WASHER SPRING (429907-17) 558 RON
18 1 4 SCREW (429907-18) 781 RON
19 1 1 PIVOT (597138-00) 14315 RON
20 1 2 NUT M6 (429907-20) 558 RON
21 1 2 BOLT (597139-00) 558 RON
22 1 1 BEVEL SCALE (597140-00) 25164 RON
23 1 6 STUD (429907-23) 558 RON
24 1 1 SUPPORT (597141-00) 26730 RON
25 1 3 WASHER (429907-25) 558 RON
26 1 1 KNOB (429907-26) 5591 RON
27 1 1 WASHER (429907-27) 558 RON
28 1 1 SHAFT (597142-00) 3018 RON
29 1 1 KNOB (429907-29) 893 RON
30 1 1 PLATE (429907-30) 781 RON
31 1 2 SCREW (429907-31) 558 RON
32 1 1 BOLT (429907-32) 558 RON
33 1 2 INDICATOR (429907-33) 1788 RON
34 1 3 000000-00 - Indisponibil
35 1 1 BOLT (597143-00) 893 RON
36 1 1 SPRING. TORSION (597144-00) 5031 RON
37 1 1 ARM (597145-00) 29862 RON
38 1 2 WASHER (429907-38) 781 RON
39 1 1 NUT (429907-39) 781 RON
40 1 1 RETAINER (429907-40) 558 RON
41 1 1 LOCK PIN (429907-41) 2795 RON
42 1 1 LOCKING RING (429907-42) 781 RON
43 1 1 NUT (429907-43) 558 RON
44 1 1 LOCKING DEVICE (597146-00) 893 RON
45 1 1 GUARD PLATE (597147-00) 2124 RON
46 1 1 RETAINER (429907-46) 558 RON
47 1 1 SHAFT (429907-47) 2795 RON
48 1 1 SPRING (429907-48) 558 RON
49 1 1 SCREW (429907-49) 781 RON
50 1 1 NUT (429907-50) 558 RON
51 1 2 SLEEVE (597148-00) 1229 RON
52 1 1 BEARING (429907-52) 4472 RON
53 1 1 RETAINER (429907-53) 558 RON
54 1 1 GEAR (597149-00) 10512 RON
55 1 1 LOCKING RING (429907-55) 2124 RON
56 1 1 KEY (429907-56) 893 RON
57 1 1 SPINDLE (597150-00) 5591 RON
58 1 1 DUST BAG SA (597151-00) 5591 RON
59 1 1 CATCHPLATE (597152-00) 2795 RON
60 1 1 BEARING (429907-60) 10512 RON
61 1 1 GUARD UPPER (597153-00) 22144 RON
62 1 1 SPINDLE LOCK (429907-62) 1117 RON
63 1 1 SCREW (429907-63) 781 RON
64 1 1 KNOB (429907-64) 893 RON
65 1 1 FENCE (597154-00) 12861 RON
66 1 1 WARNING LABEL (429945-66) 781 RON
67 1 1 LABEL (597155-00) 893 RON
68 1 2 WASHER CLAMP (429907-68) 1229 RON
70 1 1 BLADE BOLT (429907-70) 105 RON
71 1 1 LABEL (597156-00) 1229 RON
72 1 1 PIVOT BLOCK (597157-00) 5031 RON
73 1 4 SCREW (429907-73) 558 RON
74 1 2 SCREW (429907-74) 781 RON
75 1 1 SPRING (429907-75) 1117 RON
76 1 1 GUARD SA (597158-00) 12861 RON
77 1 1 NUT M6 (429907-77) 558 RON
78 1 1 LABEL (597159-00) 893 RON
79 1 1 LABEL (597160-00) 781 RON
80 1 1 BUSHING (597161-00) 1229 RON
81 1 1 SCREW (597162-00) 558 RON
82 1 1 Washer Lock (429907-82) 558 RON
83 1 1 LINK (429907-83) 3018 RON
84 1 1 SLEEVE (429907-84) 781 RON
85 1 1 SCREW (597163-00) 1452 RON
86 1 4 NUT M4 (429907-86) 558 RON
87 1 1 BEARING (429907-87) 6821 RON
88 1 1 RETAINER (429907-88) 558 RON
89 1 1 000000-00 - Indisponibil
90 1 1 BEARING (429907-90) 4137 RON
91 1 1 000000-00 - Indisponibil
92 1 1 DUST PORT (429907-92) 3018 RON
93 1 2 SCREW (429907-93) 781 RON
94 1 1 000000-00 - Indisponibil
95 1 1 000000-00 - Indisponibil
96 1 1 LABEL (597166-00) 781 RON
97 1 3 SCREW (429907-97) 558 RON
98 1 1 CORD CLAMP (597167-00) 781 RON
99 1 1 HOUSING MOTOR (597168-00) 1891 RON
100 1 1 SWITCH (597169-00) 15993 RON
101 1 1 INSERT (429908-01) 105 RON
102 1 2 SCREW (429908-02) 558 RON
103 1 3 GLIDE STRIP (597170-00) 7940 RON
104 1 1 STUD (597171-00) 1788 RON
106 1 1 HANDLE UPPER (429946-06) 190 RON
107 1 4 SCREW (429908-07) 558 RON
108 1 1 COVERPLATE (597172-00) 893 RON
109 1 2 000000-00 - Indisponibil
110 1 2 000000-00 - Indisponibil
111 1 2 BRUSH HOLDER (597175-00) 3466 RON
112 1 1 WASHER BOW (429908-12) 781 RON
113 1 1 LOCK NUT (429908-13) 781 RON
114 1 1 000000-00 - Indisponibil
115 1 2 SCREW (429908-15) 558 RON
116 1 2 SCREW.SPECIAL (429908-16) 558 RON
117 1 2 SCREW (429908-17) 558 RON
118 1 1 CORDSET (597178-00) 1891 RON
119 1 1 WRENCH SPECIAL (429908-19) 190 RON
120 1 1 HEX KEY 8 MM (597180-00) 1117 RON
121 1 1 HEX KEY 6 MM (597181-00) 781 RON
122 1 1 HEX KEY 5 MM (597182-00) 781 RON
123 1 2 SCREW (597183-00) 558 RON
124 1 2 SCREW (429908-24) 781 RON
125 1 2 SCREW (429908-25) 558 RON
126 1 1 O RING (429908-26) 893 RON
127 1 1 O RING (597200-00) 558 RON
128 1 1 LABEL (429908-28) 558 RON
129 1 1 O RING (429908-29) 558 RON
130 1 3 FOOT (597184-00) 893 RON
131 1 2 PLATE (597185-00) 1452 RON
132 1 2 SCREW (597186-00) 781 RON
133 1 1 STOP (597187-00) 5031 RON
134 1 1 WING NUT (597188-00) 1117 RON
135 1 2 EXTENSION (597189-00) 5591 RON
136 1 2 ROLLER (597190-00) 893 RON
137 1 2 RETAINER (597191-00) 558 RON
138 1 1 BOLT (597192-00) 1229 RON
139 1 1 COVER (597193-00) 2347 RON
140 1 1 SPRING (597194-00) 781 RON
141 1 1 CAPACITOR (597195-00) 1117 RON
142 1 1 TERMINAL BLOCK (597196-00) 1117 RON
143 1 4 SCREW (597197-00) 558 RON
144 1 1 GUARD PLATE (597198-00) 190 RON
145 1 1 CONNECTING WIRE (597199-00) 781 RON
146 1 1 BAR (597561-00) 3018 RON
147 1 2 PIN (597562-00) 781 RON
150 1 1 X13350-XJ - Indisponibil
