XTC243BK CORDLESS DRILL Type 1
[XTC243BK Type 1]
XTC243BK CORDLESS DRILL Type 1

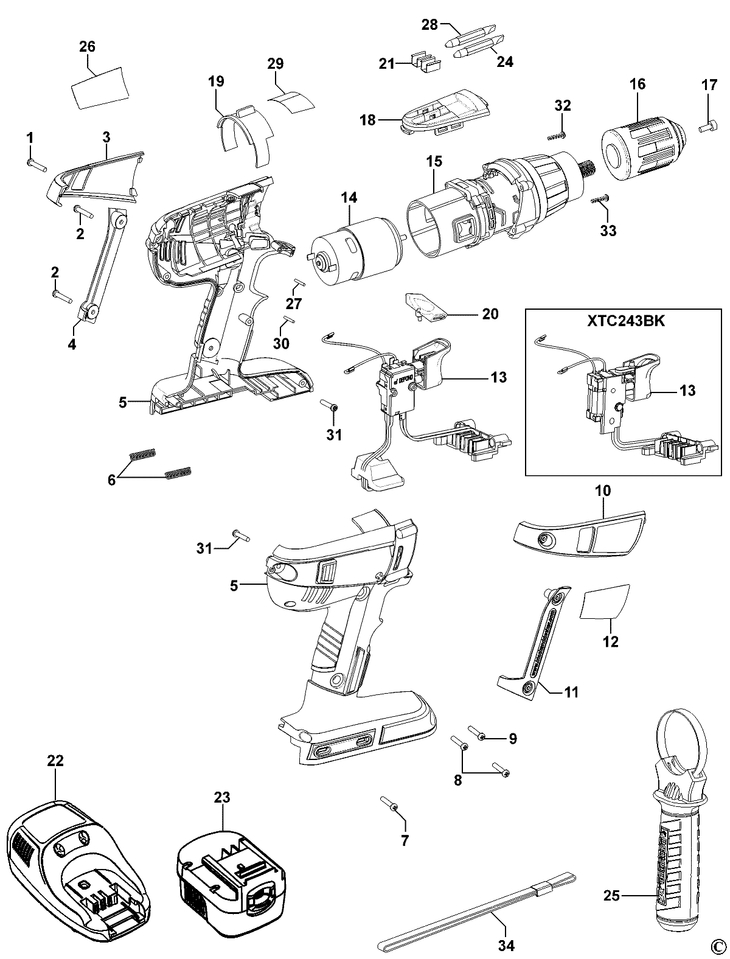

Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SCREW (5145507-04) 558 RON
2 1 2 SCREW (5145507-00) 558 RON
3 1 1 COVER LH (5146862-00) 3466 RON
4 1 1 COVER (5145395-01) 190 RON
5 1 1 CLAMSHELL (5146767-02) 5031 RON
6 1 2 SPRING (5145496-00) 558 RON
7 1 1 SCREW (5146420-02) 558 RON
8 1 2 SCREW (5146420-01) 558 RON
9 1 1 SCREW (5146420-00) 558 RON
10 1 1 COVER RH (5146863-00) 3466 RON
11 1 1 COVER (5145396-01) 190 RON
12 1 1 RATING PLATE (5147953-02) 558 RON
13 1 1 SWITCH SA (5148061-00) 25164 RON
14 1 1 MOTOR & PINION (5148058-00) 17335 RON
15 1 1 TRANSMISSION ASSEMBLY (5147027-00) 53015 RON
16 1 1 CHUCK KEYLESS (5147021-00) 10512 RON
17 1 1 SCREW (5103096-01) 558 RON
18 1 1 COVER-TOP (5146269-00) 558 RON
19 1 1 ACTUATOR (5146268-00) 558 RON
20 1 1 ACTUATOR FWD/REV (5145751-00) 558 RON
21 1 2 CLIP BIT HOLDER (148354-03) 558 RON
22 1 1 000000-00 - Indisponibil
23 1 1 000000-00 - Indisponibil
24 1 1 D/END PZ/SL BIT (419581-01) 781 RON
25 1 1 SIDE HANDLE (5148131-00) 4472 RON
26 1 1 BRAND LABEL (5147331-00) 781 RON
27 1 1 PIN (5106169-00) 558 RON
28 1 1 BIT (D/END) (419581-62) 781 RON
29 1 1 LABEL (5147332-01) 781 RON
30 1 1 PIN (5106169-02) 558 RON
31 1 2 SCREW (5102250-00) 558 RON
32 1 2 SCREW (5146783-00) 558 RON
33 1 2 SCREW (5146783-01) 558 RON
34 1 1 STRAP (5106149-01) 781 RON
