Top » Piese de schimb » PIESE BLACK & DECKER » XTA900EK Type 1

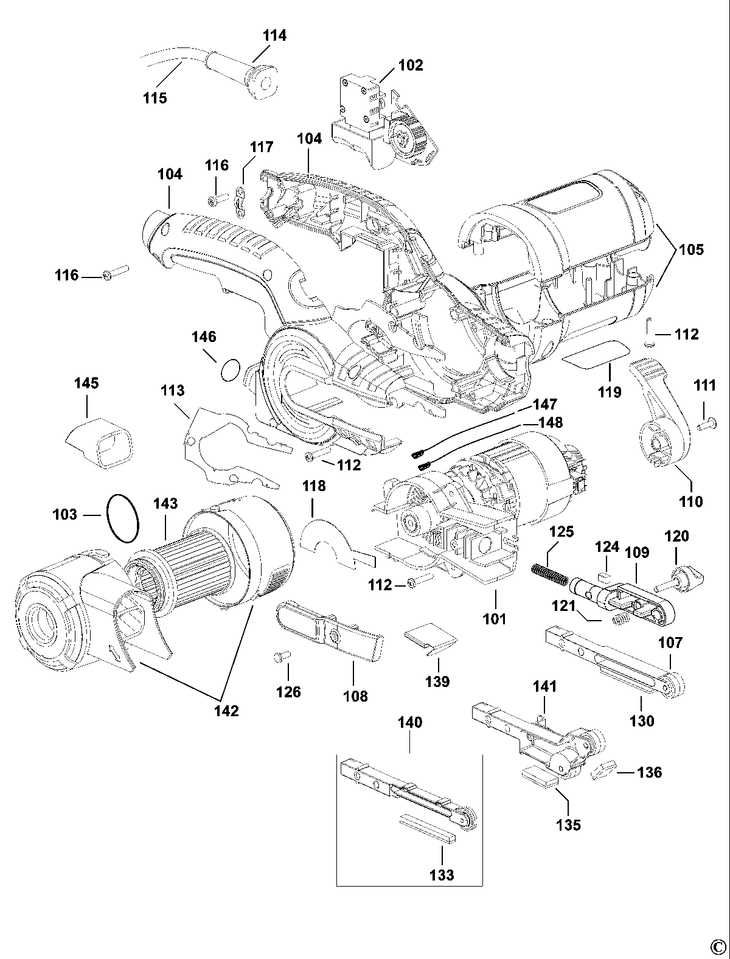

XTA900EK POWERFILE Type 1
[XTA900EK Type 1]
XTA900EK POWERFILE Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
101 1 1 MOTOR SA (90524071) 23598 RON
102 1 1 SWITCH & PCB SA (90518045) 7940 RON
103 1 1 O RING (479525-00) 558 RON
104 1 1 CLAMSHELL SA (90514236) 5591 RON
105 1 1 MOTOR HOUSING SA (90520348) 4137 RON
106 1 1 DUST BAG SA (90514728) 2124 RON
107 1 1 ARM 13MM STANDARD (90546472) 4137 RON
108 1 1 GUARD SA (90519750) 1117 RON
109 1 1 CASTING (90514542) 2347 RON
110 1 1 LEVER (90515085) 1229 RON
111 1 1 SCREW No 6 * 13 (821032) 558 RON
112 1 12 SCREW (747329) 558 RON
113 1 1 GASKET (90514669) 558 RON
114 1 1 CORD PROTECTOR (770235) 558 RON
115 1 1 CORDSET (90523672) 14315 RON
116 1 4 SCREW NO.6 X 12.7 (370748) 558 RON
117 1 1 CLAMP CORD (821070) 558 RON
118 1 1 BAFFLE PLATE (821055) 781 RON
119 1 1 RATING PLATE (90513455) 558 RON
120 1 1 SA ADJUSTING KNOB (826251) 1788 RON
121 1 1 SPRING (821020) 558 RON
124 1 1 DUST SEAL (828026) 558 RON
125 1 1 SPRING (829954) 558 RON
126 1 1 SCREW (573148-00) 558 RON
130 1 1 PAD-STANDARD ARM (90520643) 893 RON
133 1 1 PAD-NARROW ARM (90522370) 781 RON
135 1 1 PAD (90522368) 781 RON
136 1 1 PAD (90522369) 558 RON
139 1 1 PLATE DEFLECTOR (581818-00) 558 RON
140 1 1 ARM (90514541) 3466 RON
141 1 1 ARM CRANKED (90524082) 4472 RON
142 1 1 DUST COLLECTOR (90514899) 7940 RON
143 1 1 FILTER SA (479535-00) 3018 RON
145 1 1 MOUTH PIECE (90519375) 781 RON
146 1 1 RING (90517985) 558 RON
147 1 1 LEADWIRE (90518142) 781 RON
148 1 1 LEADWIRE (90518141) 781 RON
